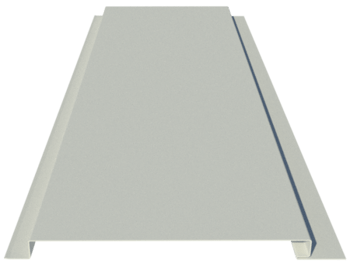

Lysaght - Zenith - Dominion

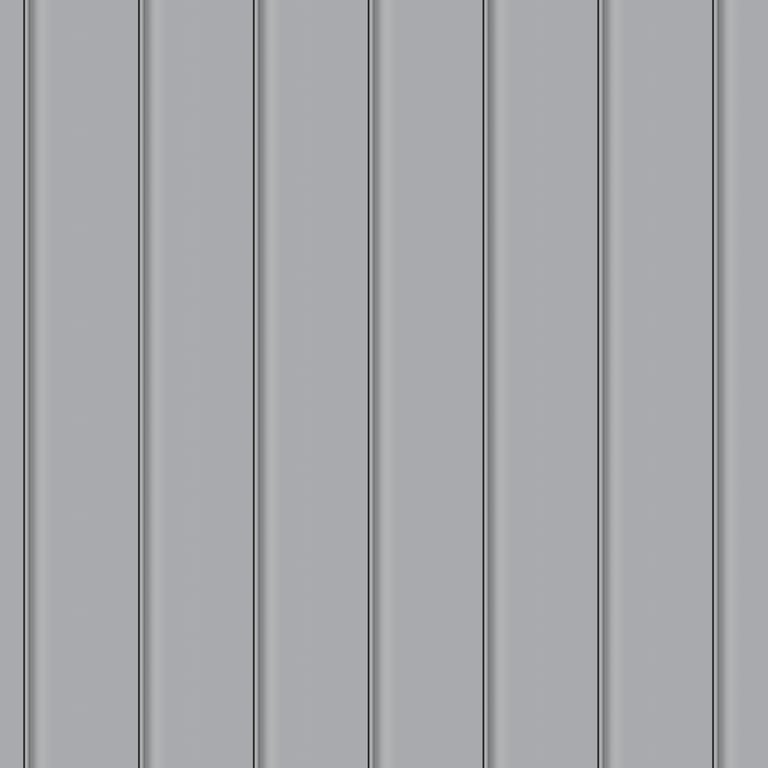

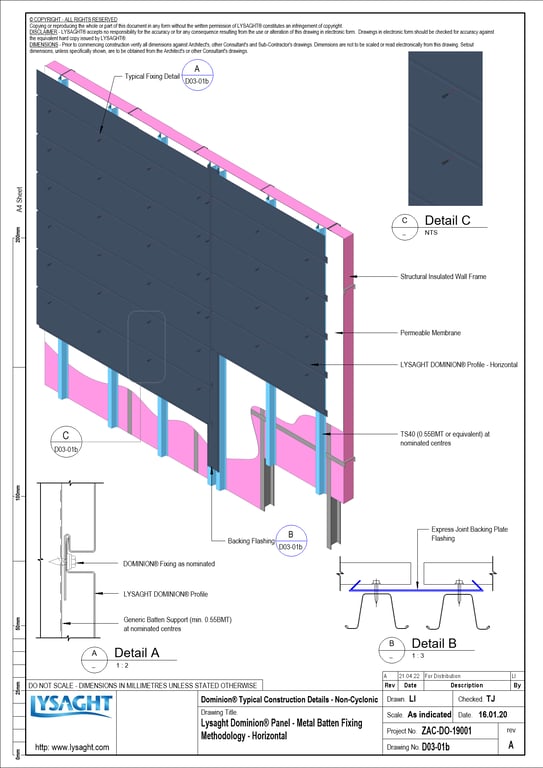

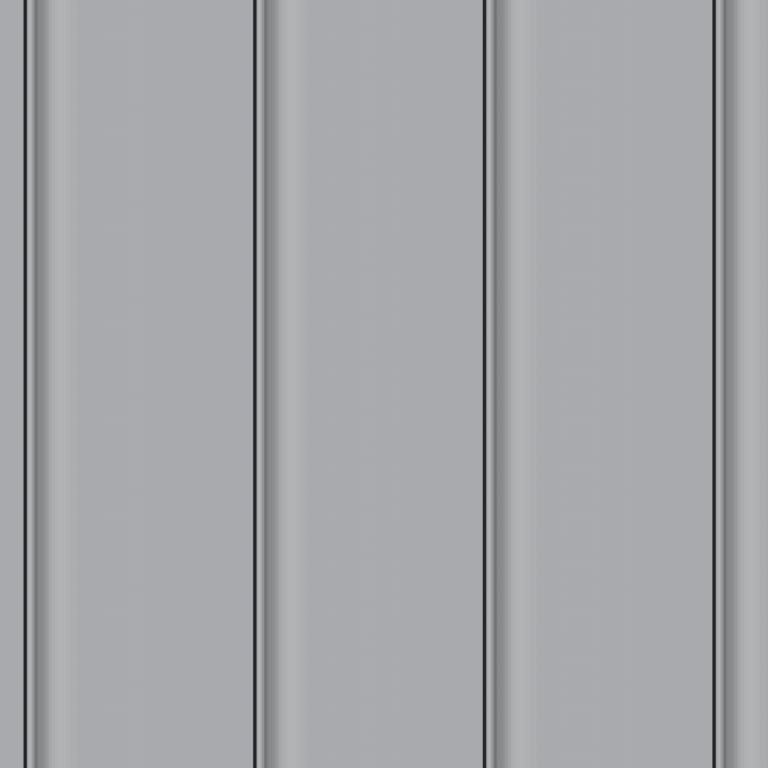

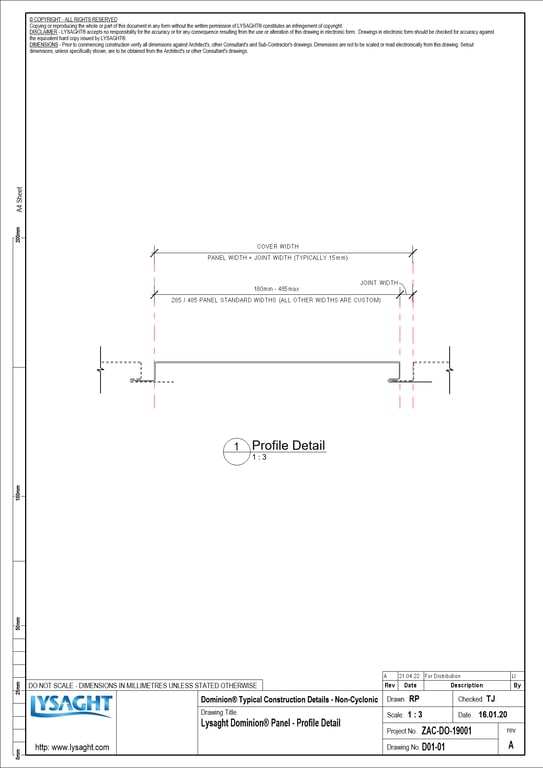

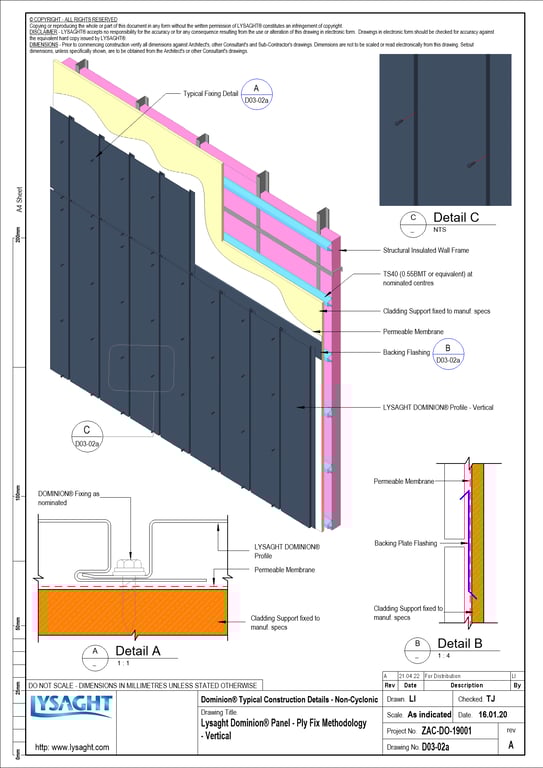

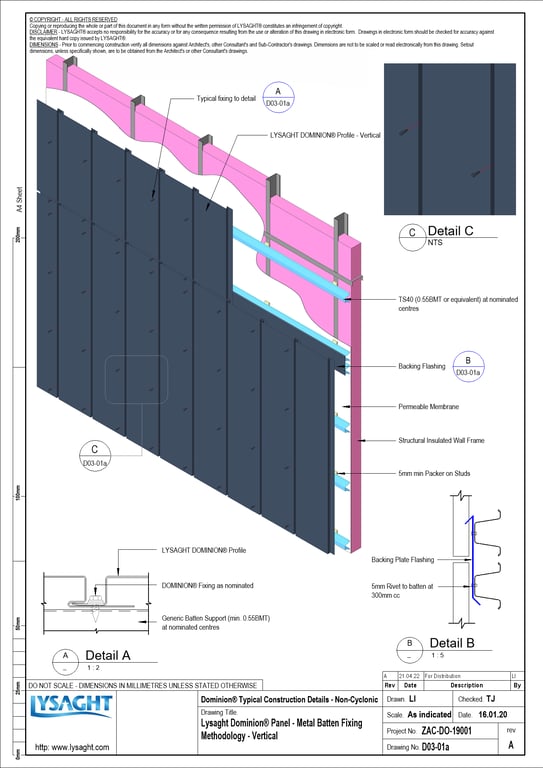

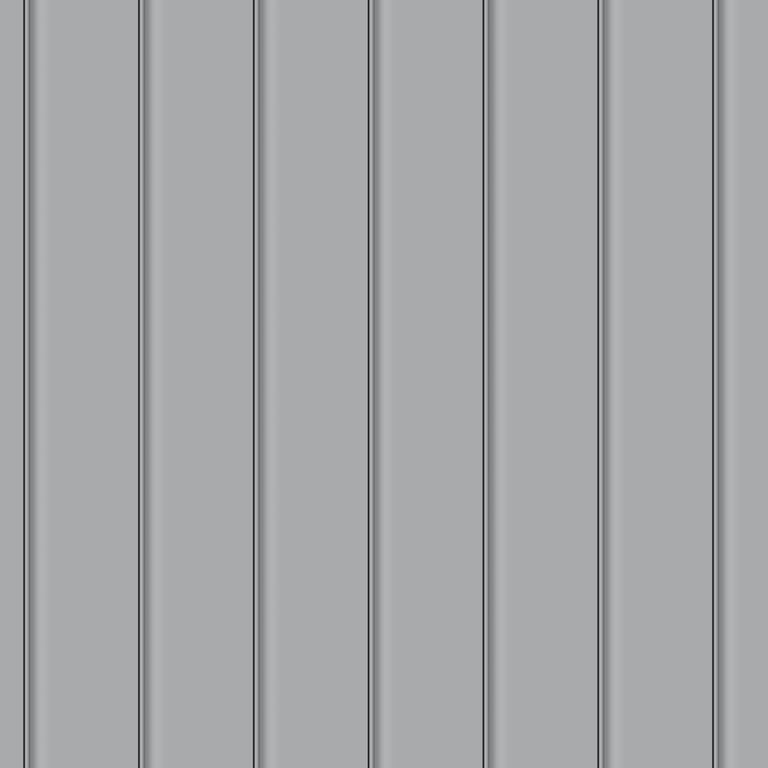

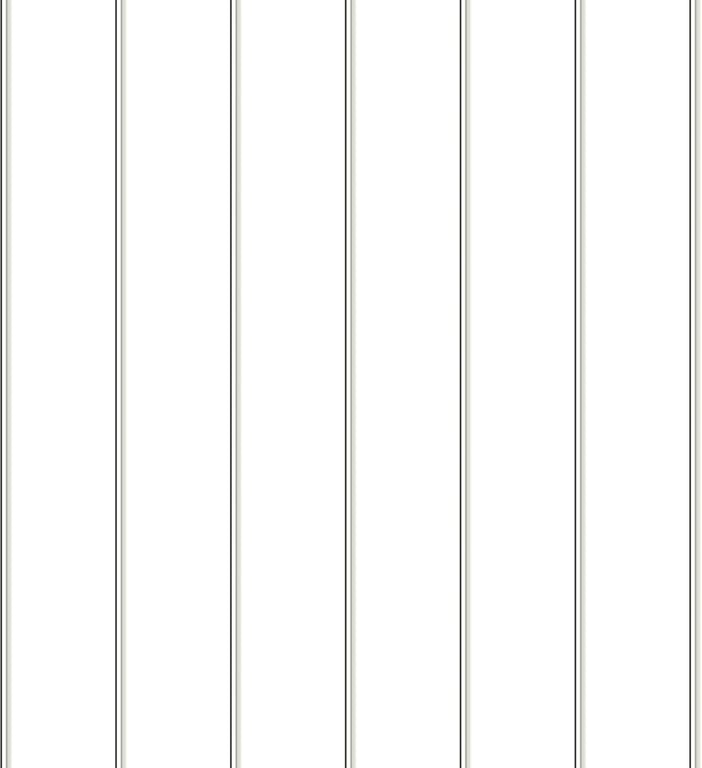

LYSAGHT DOMINION® architectural panel is a concealed fixed flat panel wall cladding system. DOMINION® is structurally sound for direct fixed to steel battens and can also be fixed onto conventional supporting substrate such as plywood or fibre cement panels. DOMINION® is a wall cladding system installed with a ventilated air space. It involves laying DOMINION®on a metal framework fixed to the supporting structure. The interlocking groove connecting the panels gives an elegant recessed joint. DOMINION®can be laid vertically or horizontally. The choice of direction implies different aesthetics and technical solutions for the main flashings.Key Information:Application: WallingBase Metal Thickness: 0.55/0.75mmEffective Cover Width: 265/485mmRecess Depth: 22/25mmMinimum Pitch: n/a
