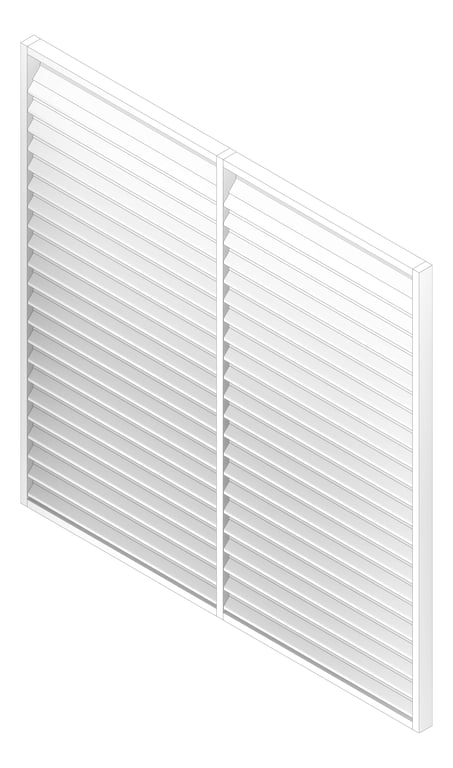

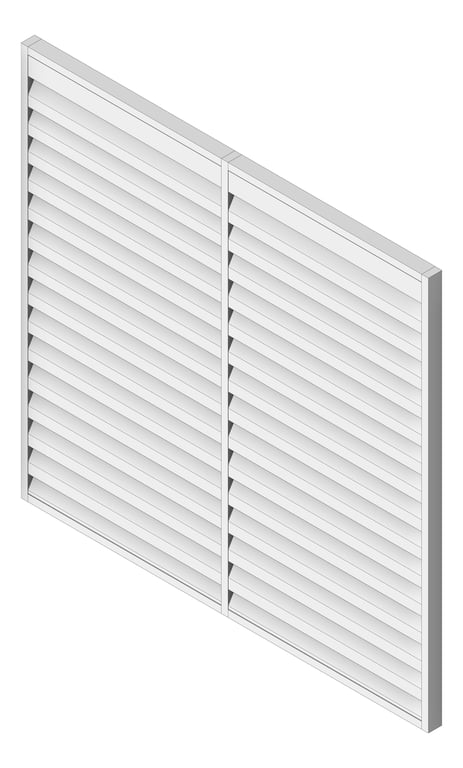

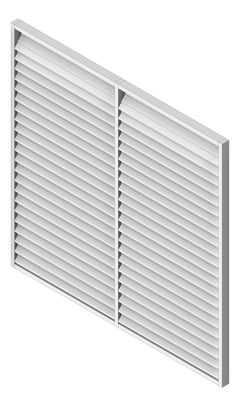

3D Shaded Image of Louvres Airflow Louvreclad NexusSeries

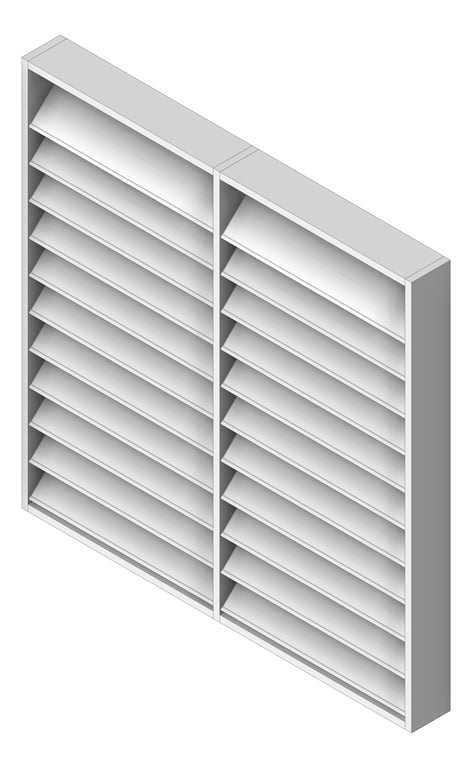

3D Documentation Image of Louvres Airflow Louvreclad NexusSeries
Plan Image of Louvres Airflow Louvreclad NexusSeries
Left Image of Louvres Airflow Louvreclad NexusSeries

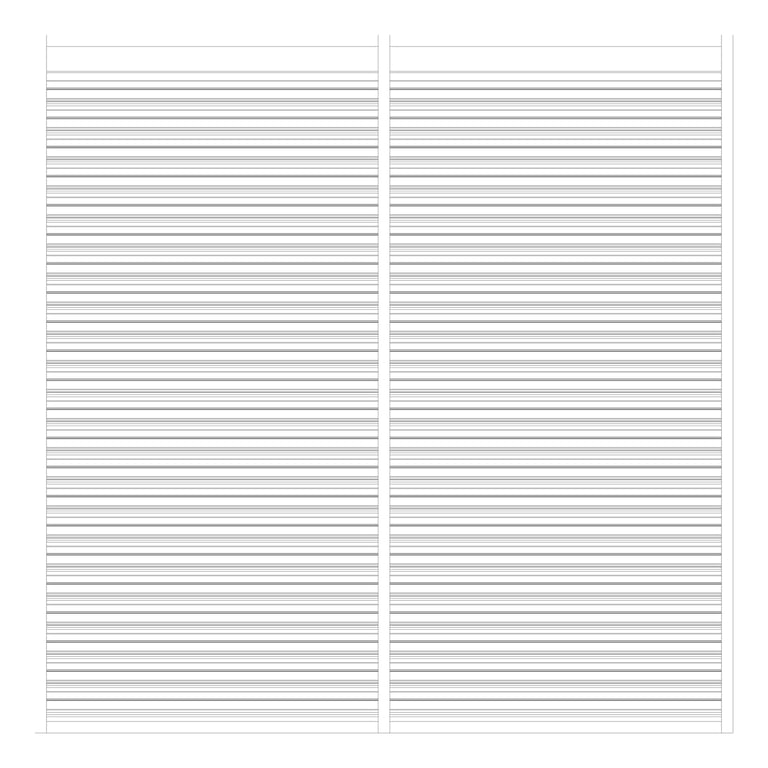

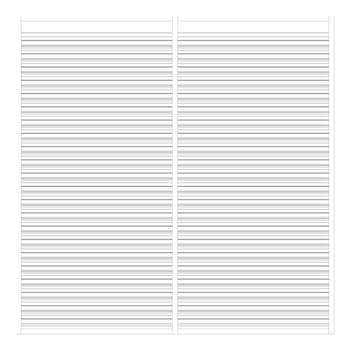

Front Image of Louvres Airflow Louvreclad NexusSeries

Louvres Airflow Louvreclad NexusSeries

Tested to AS/NZS 4740:2000, the Nexus Series® louvre is available in standard, drainable and two-stage louvre options achieving high performance ratings for both aerodynamics and rain defence, making it a good all-round industry standard louvre with an additional weather lip to mitigate the water cascade effect when raining.
highlight_alt
Clearance / Required Space Zones
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Manufacturer
Model
Nexus Series® Standard
ModifiedIssue
20250129.00
Uniclass2015Title
Aluminium louvre panel units
OmniClassTitle
FreeOpenArea
83
MaxSpan
1500
BladeSpacing
125
