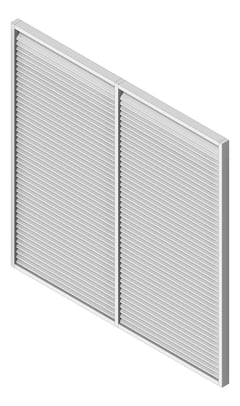

3D Shaded Image of Louvres Airflow Louvreclad NeptuneSeries Horizontal

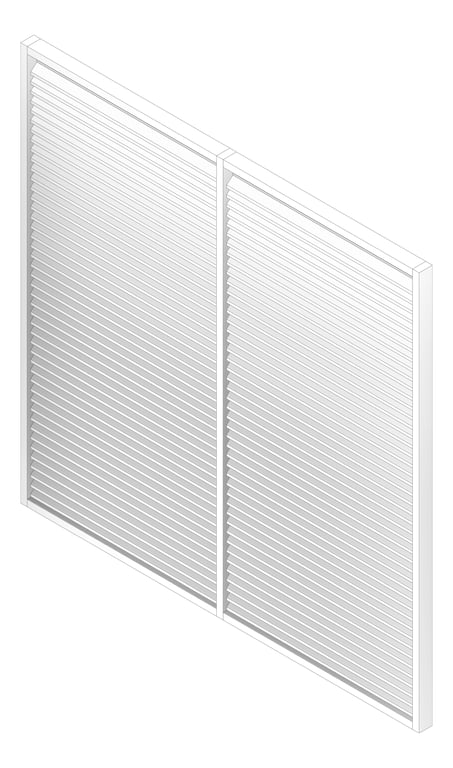

3D Documentation Image of Louvres Airflow Louvreclad NeptuneSeries Horizontal
Plan Image of Louvres Airflow Louvreclad NeptuneSeries Horizontal
Left Image of Louvres Airflow Louvreclad NeptuneSeries Horizontal

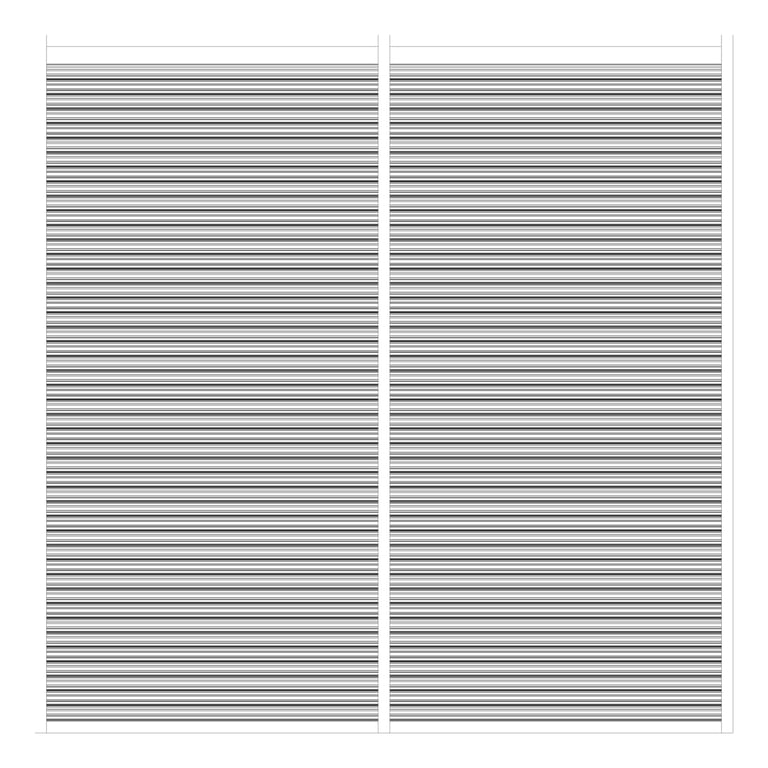

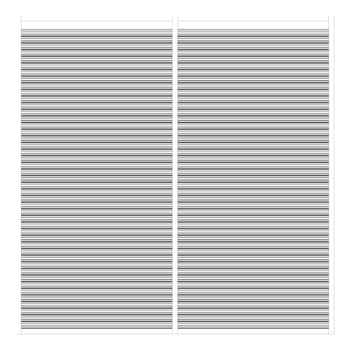

Front Image of Louvres Airflow Louvreclad NeptuneSeries Horizontal

Louvres Airflow Louvreclad NeptuneSeries Horizontal

Louvreclad Neptune Series® is a 48mm aluminium louvre offering Class D 72% rain resistance, Class 2 aerodynamics, and 50% open area. Ideal for louvre doors, small grilles, and general screening.
highlight_alt
Clearance / Required Space Zones
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Manufacturer
Model
Neptune Series® Horizontal
ModifiedIssue
20250129.00
Uniclass2015Title
Aluminium louvre panel units
OmniClassTitle
FreeOpenArea
50
MaxSpan
950
BladeSpacing
62.5
