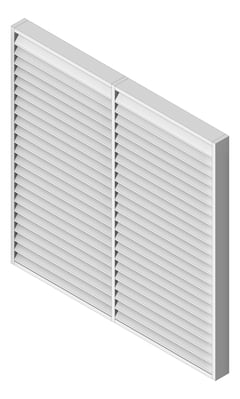

3D Shaded Image of Louvres Airflow Louvreclad JupiterSeries TwoStage

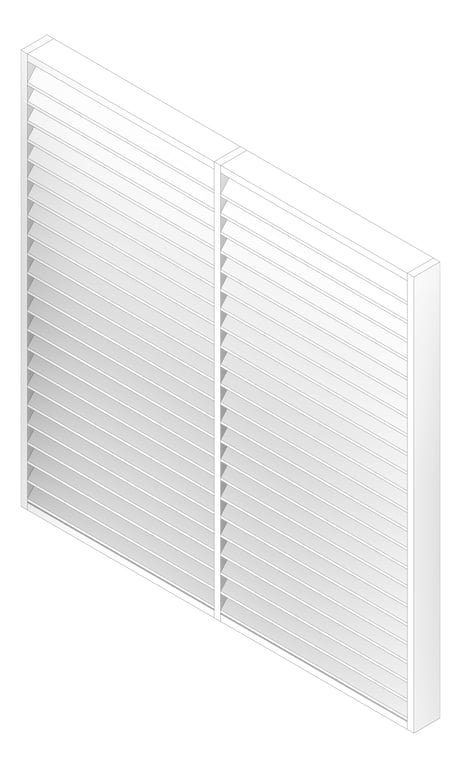

3D Documentation Image of Louvres Airflow Louvreclad JupiterSeries TwoStage
Plan Image of Louvres Airflow Louvreclad JupiterSeries TwoStage
Left Image of Louvres Airflow Louvreclad JupiterSeries TwoStage

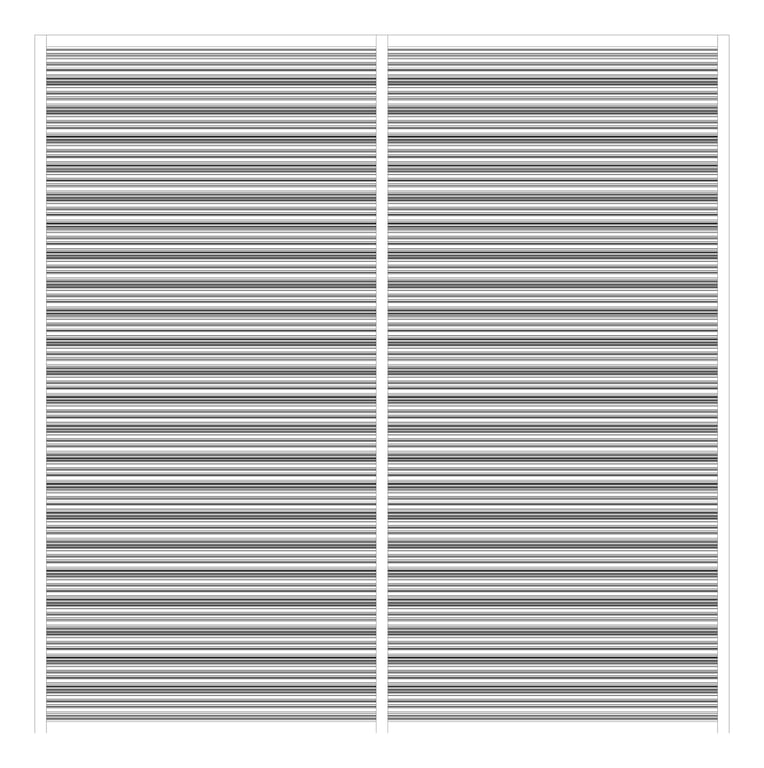

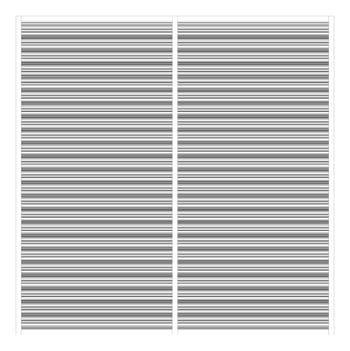

Front Image of Louvres Airflow Louvreclad JupiterSeries TwoStage

Louvres Airflow Louvreclad JupiterSeries TwoStage

Louvreclad’s Jupiter Series® features an extruded aluminium fixed louvre which is ideal for commercial and industrial applications where both performance & aesthetics are necessary.

Clearance / Required Space Zones
Bulk Download Options
Manufacturer
Model
Jupiter Series® Two Stage
ModifiedIssue
20250129.00
Uniclass2015Title
Aluminium louvre panel units
OmniClassTitle
FreeOpenArea
55
MaxBladeLength
6500
MaxSpan
1500
BladeSpacing
125
