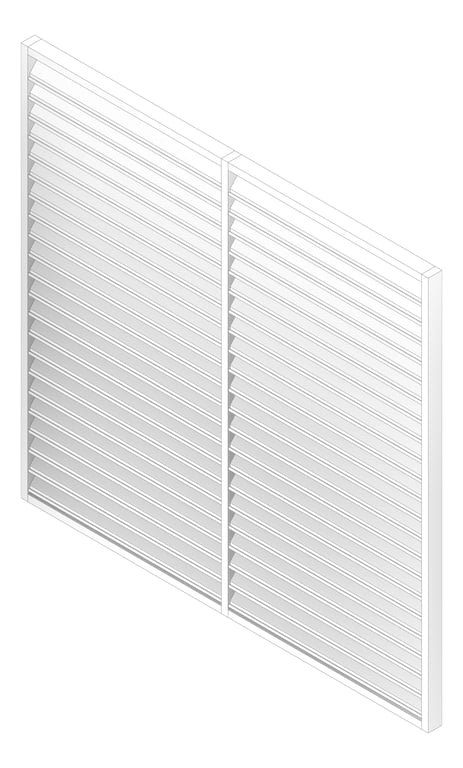

Image of Louvres Airflow Louvreclad JupiterSeries Drainable

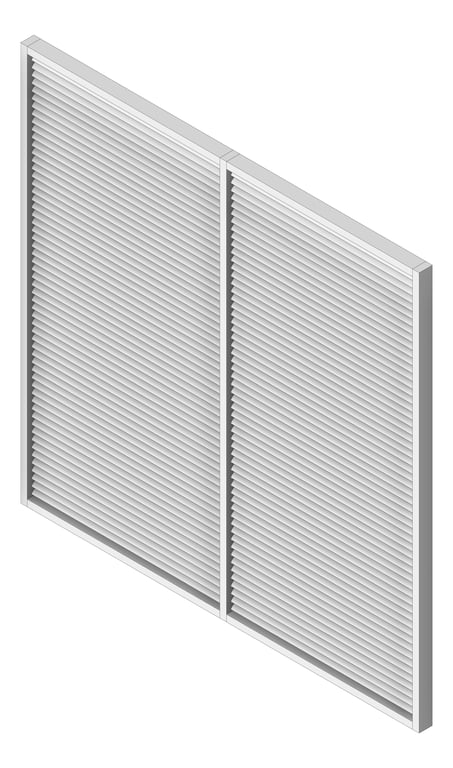

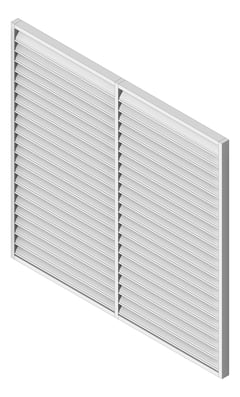

3D Shaded Image of Louvres Airflow Louvreclad JupiterSeries Drainable

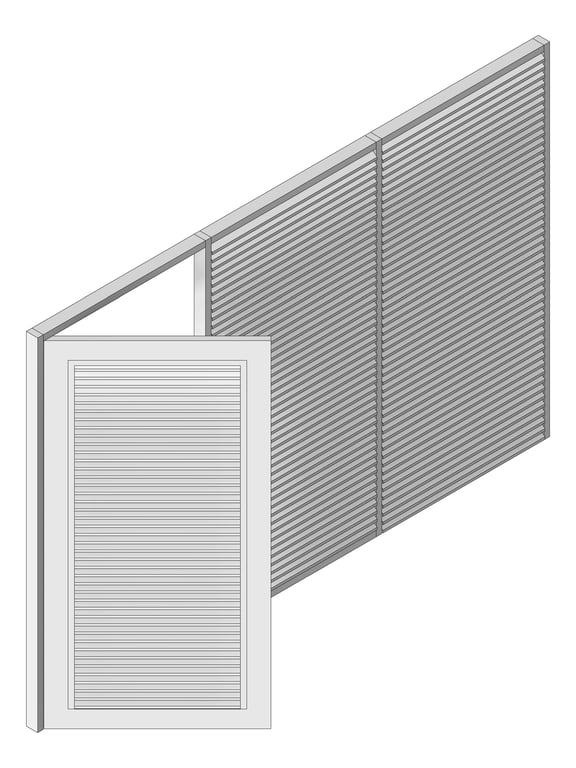

3D Documentation Image of Louvres Airflow Louvreclad JupiterSeries Drainable
Plan Image of Louvres Airflow Louvreclad JupiterSeries Drainable
Left Image of Louvres Airflow Louvreclad JupiterSeries Drainable

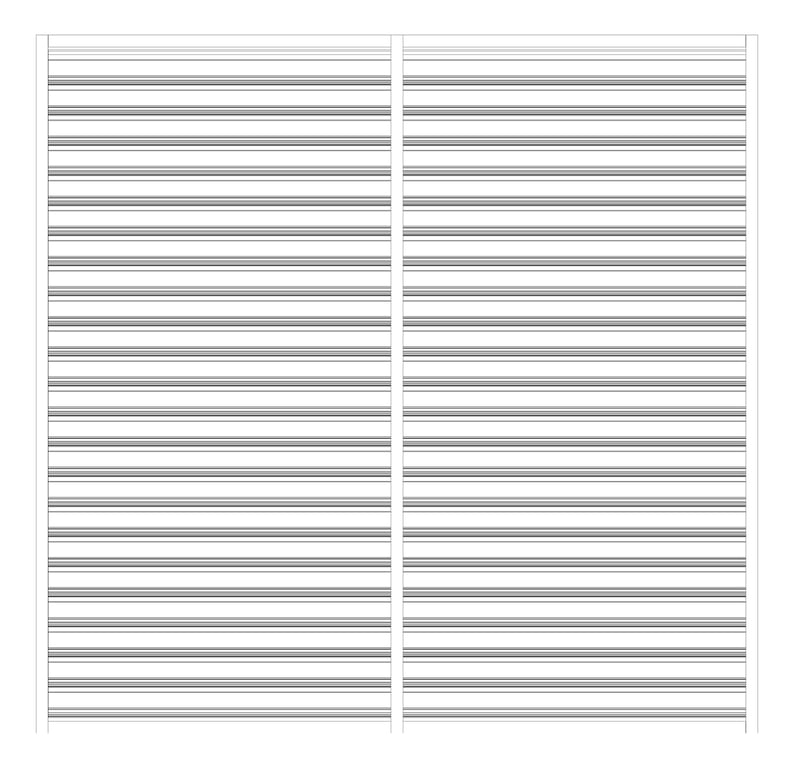

Front Image of Louvres Airflow Louvreclad JupiterSeries Drainable

Louvres Airflow Louvreclad JupiterSeries Drainable

Louvreclad’s Jupiter Series® features an extruded aluminium fixed louvre which is ideal for commercial and industrial applications where both performance & aesthetics are necessary.
highlight_alt
Clearance / Required Space Zones
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
Manufacturer
Model
Jupiter Series® Drainable
ModifiedIssue
20250129.00
Uniclass2015Title
Aluminium louvre panel units
OmniClassTitle
FreeOpenArea
55
MaxBladeLength
6500
MaxSpan
1500
BladeSpacing
125
