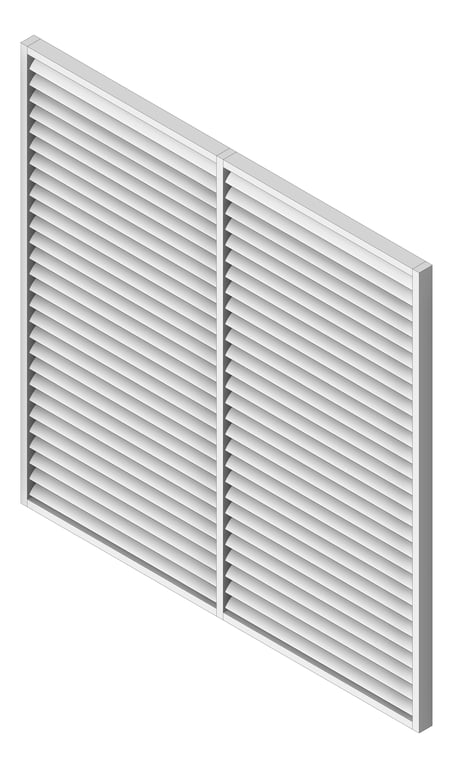

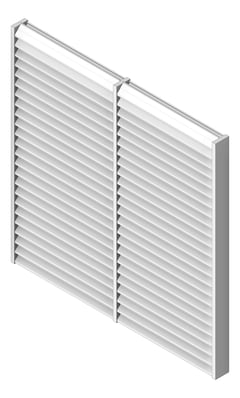

3D Shaded Image of Louvres Airflow Louvreclad DeltaSeries TwoStage

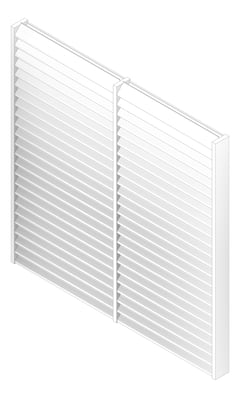

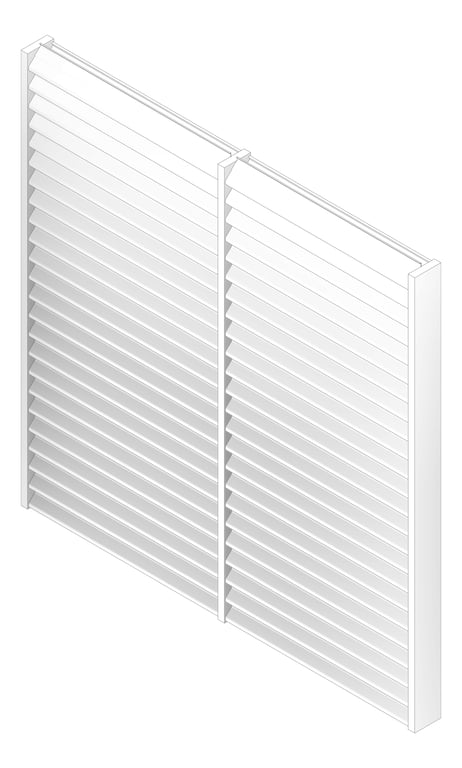

3D Documentation Image of Louvres Airflow Louvreclad DeltaSeries TwoStage
Plan Image of Louvres Airflow Louvreclad DeltaSeries TwoStage
Left Image of Louvres Airflow Louvreclad DeltaSeries TwoStage

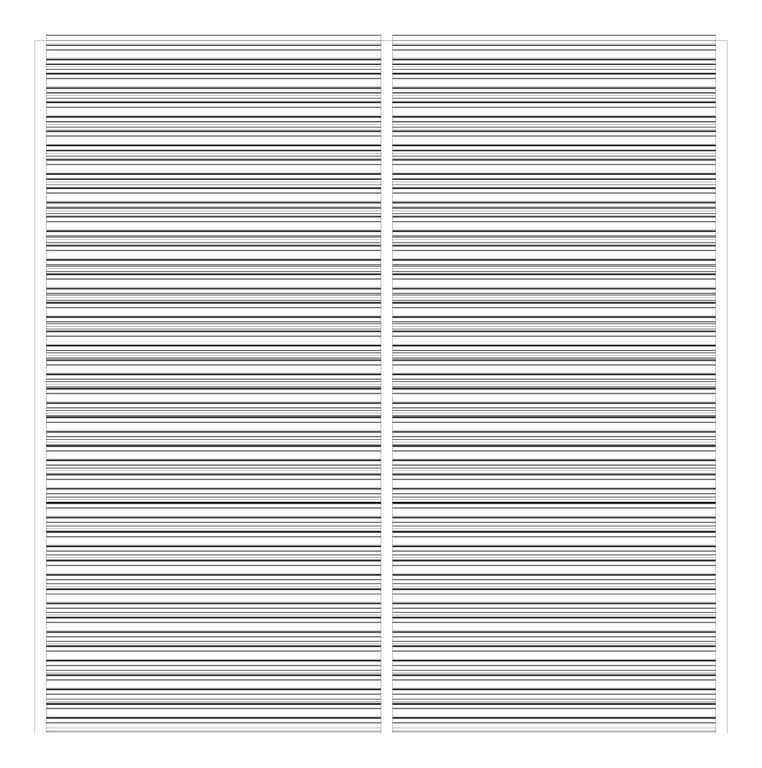

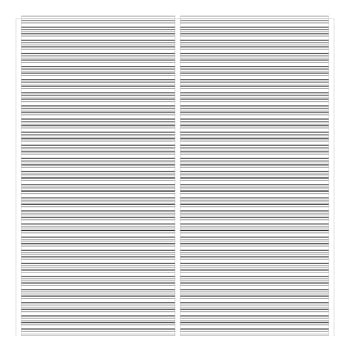

Front Image of Louvres Airflow Louvreclad DeltaSeries TwoStage

Louvres Airflow Louvreclad DeltaSeries TwoStage

From:Louvreclad

Clearance / Required Space Zones
Created By IGS BIM Solutions
Bulk Download Options
CreatedBy
IGS BIM Solutions
Manufacturer
Louvreclad
Model
Delta Series® Two Stage
ModifiedIssue
20250129.00
Uniclass2015Title
Aluminium louvre panel units
OmniClassTitle
FreeOpenArea
42
MaxBladeLength
7200
MaxSpan
2400
BladeSpacing
125
