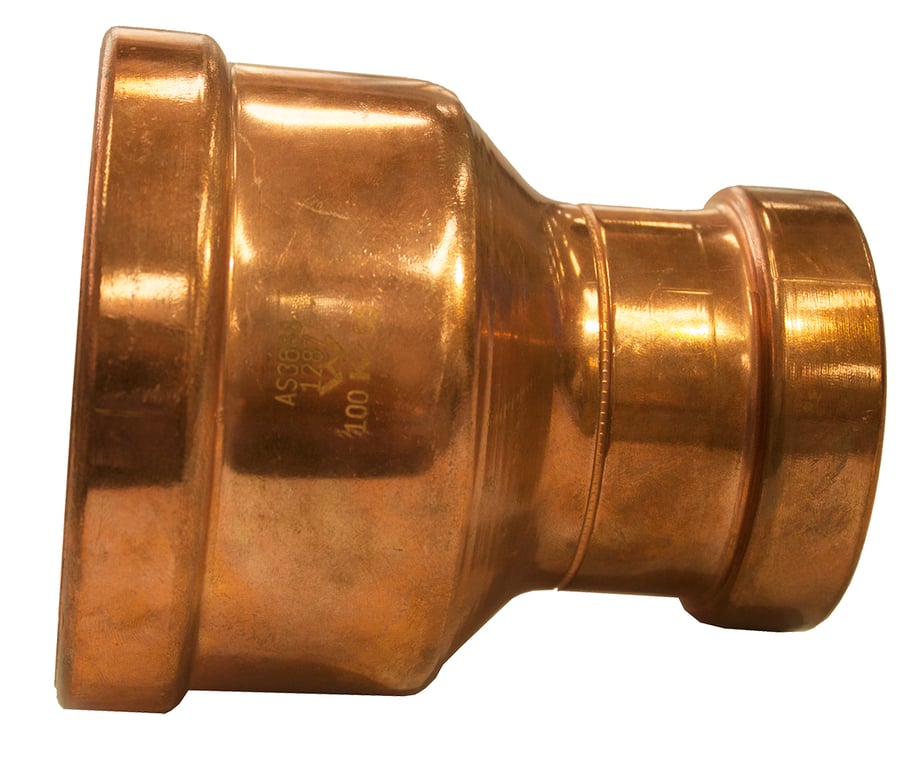

Image of KemPress ReducerConnector MMKembla Copper Large

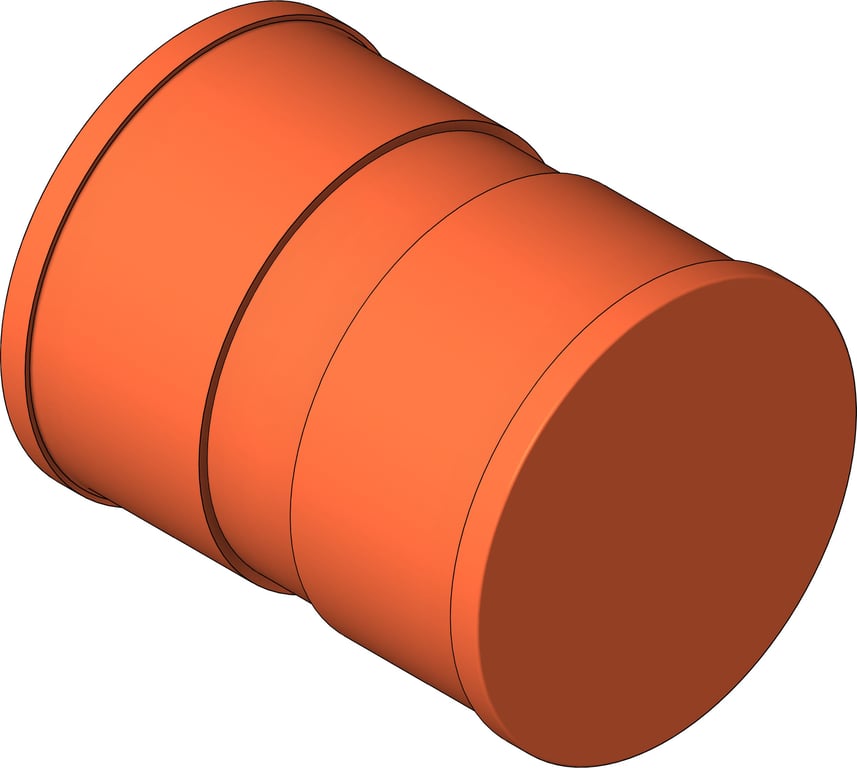

3D Shaded Image of KemPress ReducerConnector MMKembla Copper Large

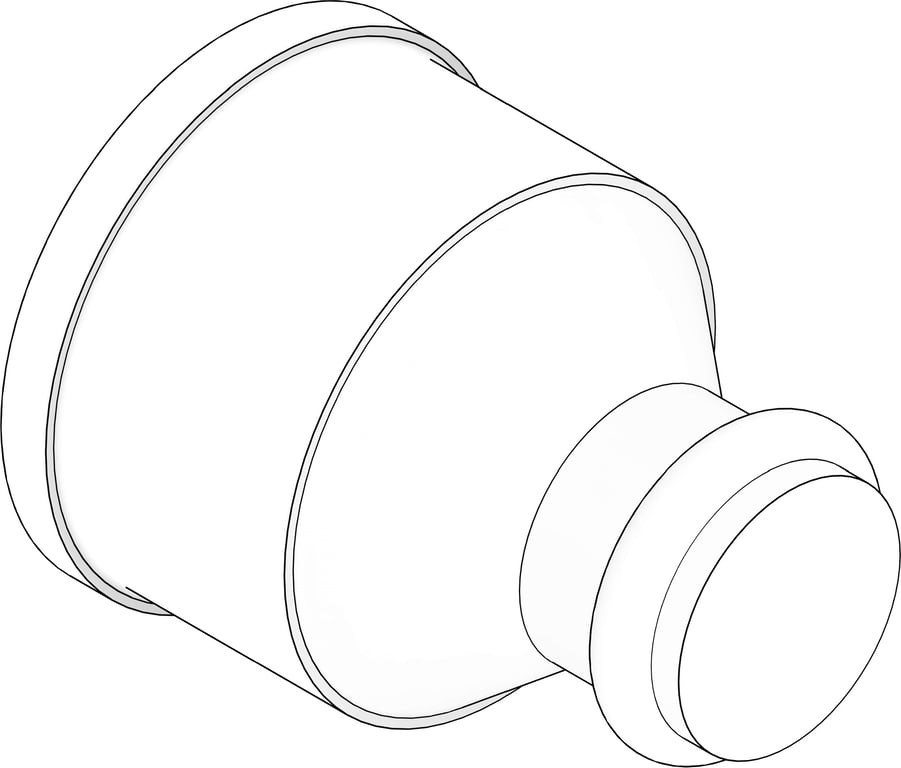

3D Documentation Image of KemPress ReducerConnector MMKembla Copper Large

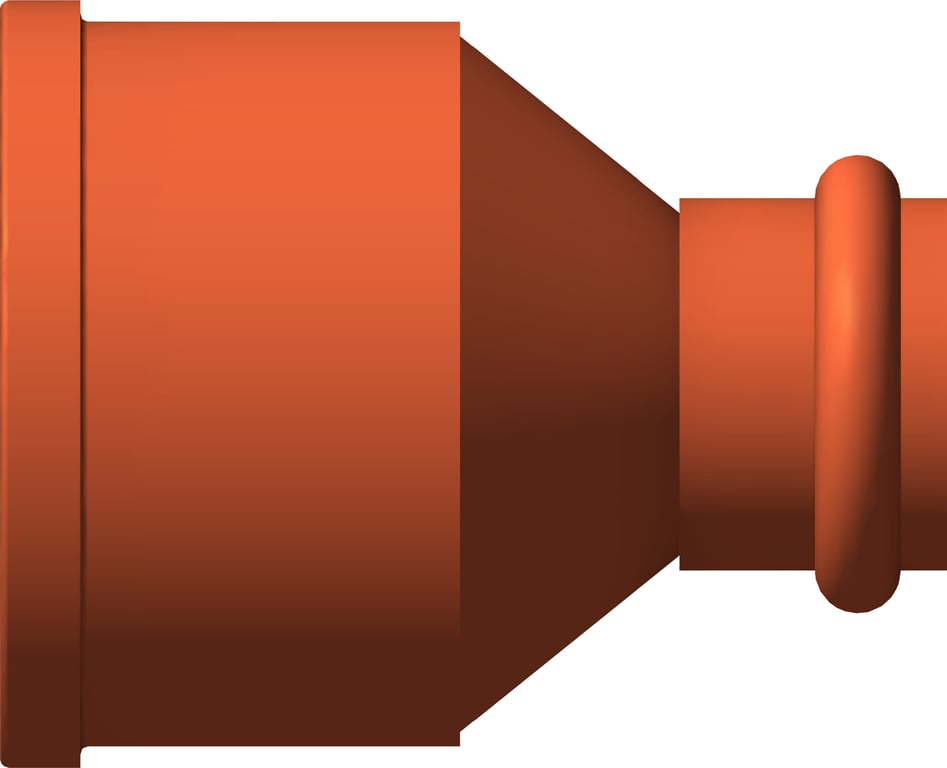

Plan Image of KemPress ReducerConnector MMKembla Copper Large

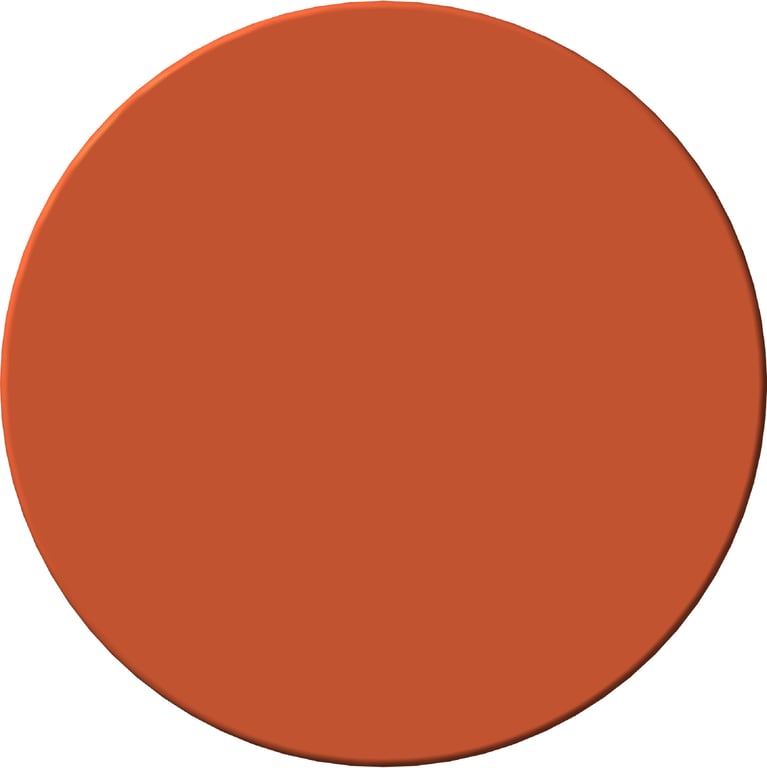

Left Image of KemPress ReducerConnector MMKembla Copper Large

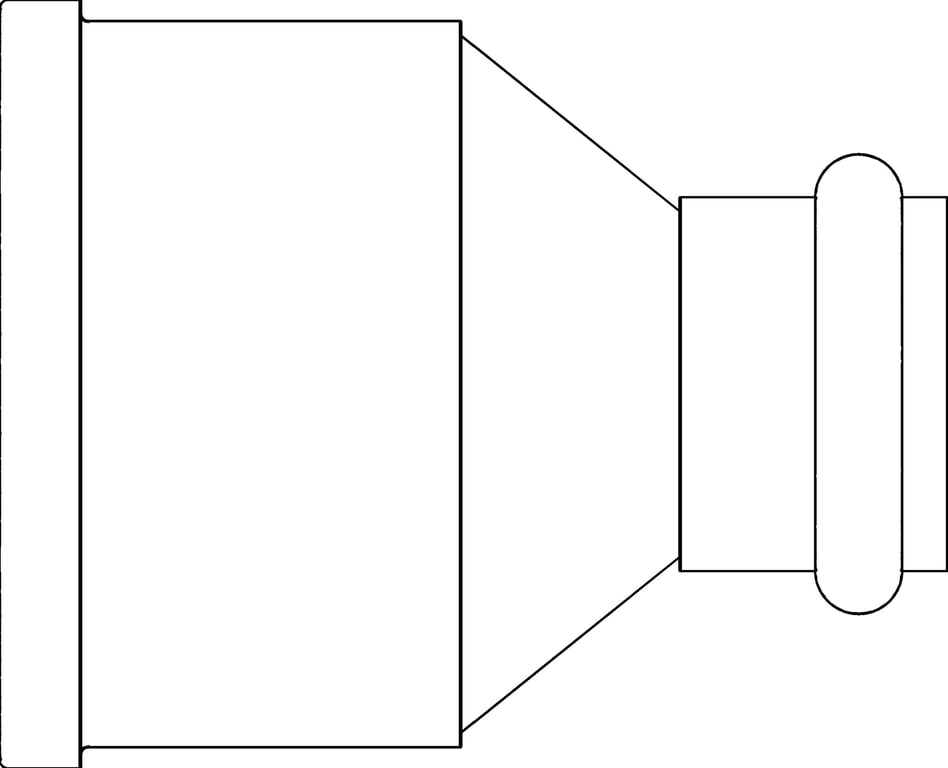

Front Image of KemPress ReducerConnector MMKembla Copper Large
KemPress_XL_Cu_Reducer Image of KemPress ReducerConnector MMKembla Copper Large

KemPress ReducerConnector MMKembla Copper Large

KemPress® Copper Press-Fit Connection system for Water/Gas/HT applications, having Watermark license, are fully compliant to AS3688 and AS4020, and equipped with KemGuard technology features including:
• Leak Path (Unpressed Fiiting ID)
• Push & Stay: Fittings up to DN50 are tight enough to complete the rough-in before securing placement by pressing
• Universal Profile: Designed to work with AS1432 copper tube and approved copper pressfit tools/systems, designed to deliver minimal deformation to the internal shape of the tube they are connecting to, reducing turbulence in the flow of the fluid. The connection provides a rigid coupling with excellent resistance to torsional forces
• O-rings: Black (EPDM) O-ring is for Water, yellow (HNBR) is for Gas, and red (FKM) is for HT applications
• Dual Layer Grip Ring: For DN65-100 to provide extra connection strength
• Bluetooth KemPress® Tool is the smartest, lightweight pressing tool on the market. Slim line design makes it easy to handle, with longest interval between servicing (40,000 presses - KPL), Bluetooth software enables the operator to generate test reports/docs and calibrate the device on site
• Design life of over 50 years with a warranty of 25 years

folder_zip
Bulk Download Options
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Model
Refer to ManufacturerSpecCode
ModifiedIssue
20200519.00
