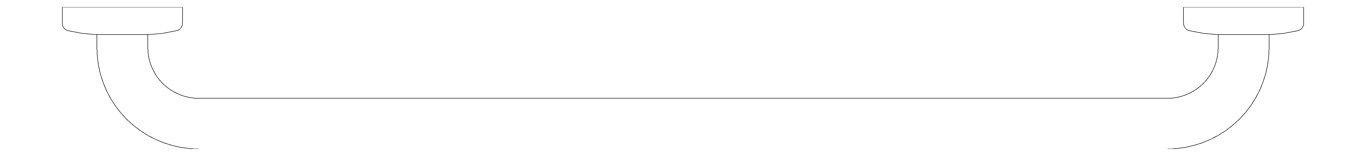

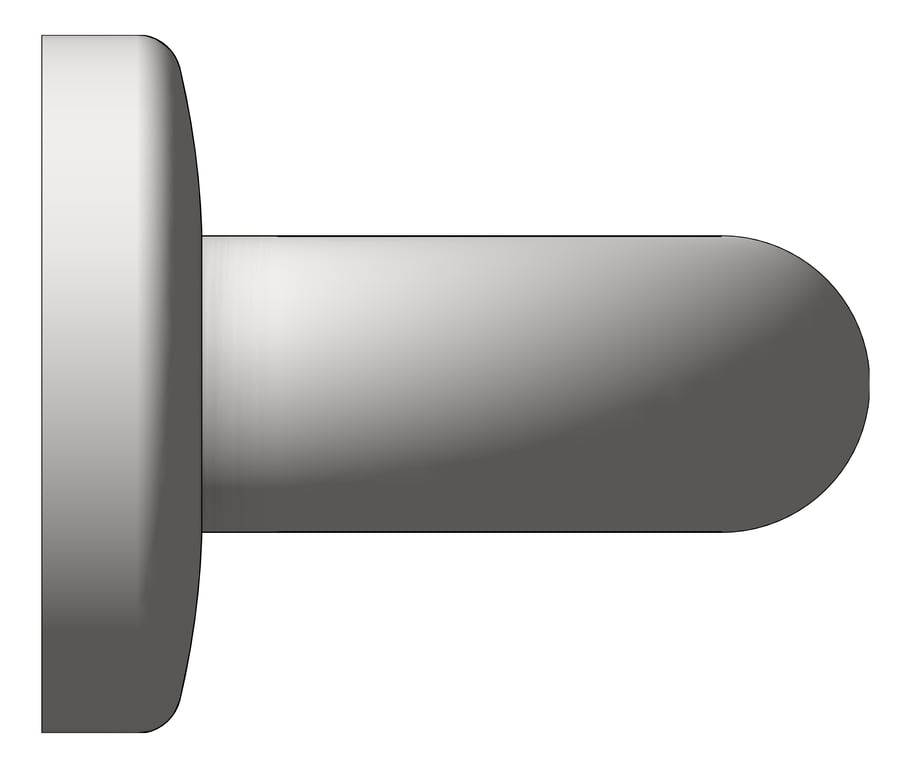

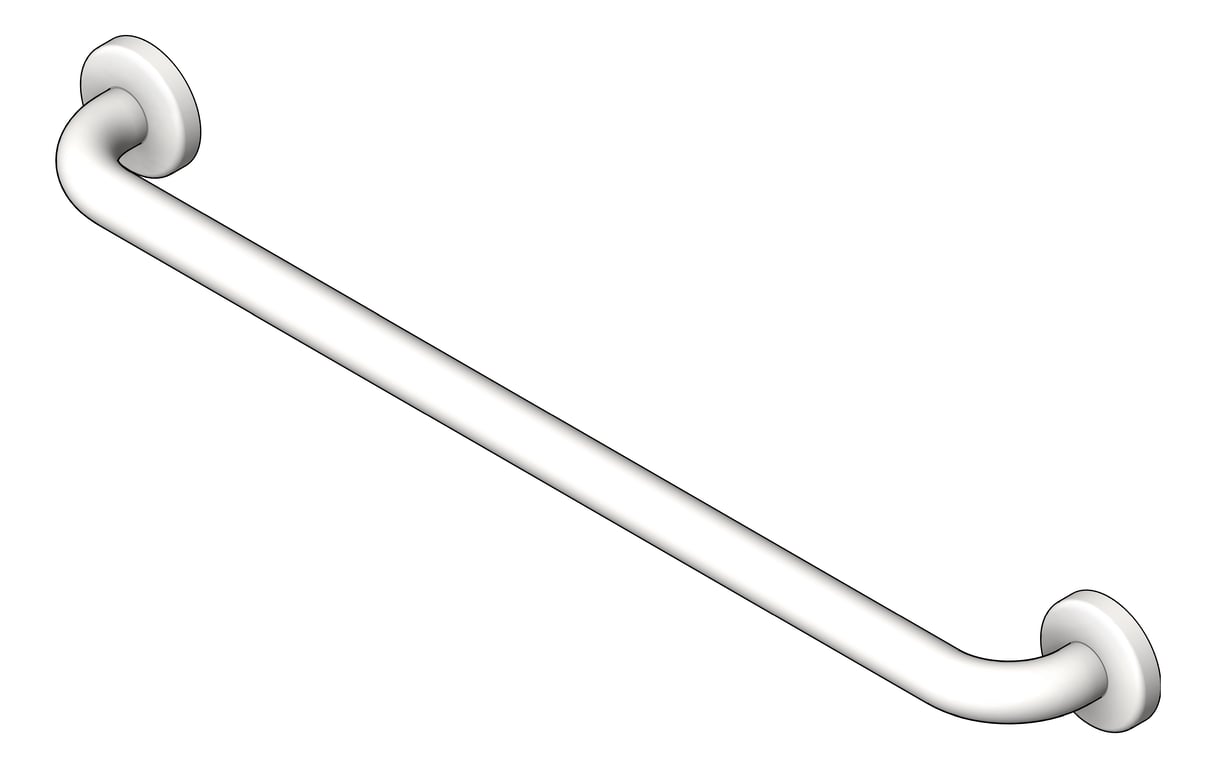

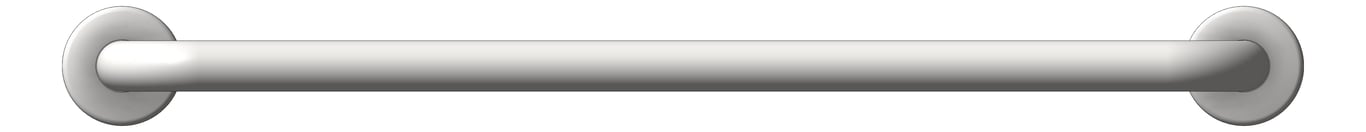

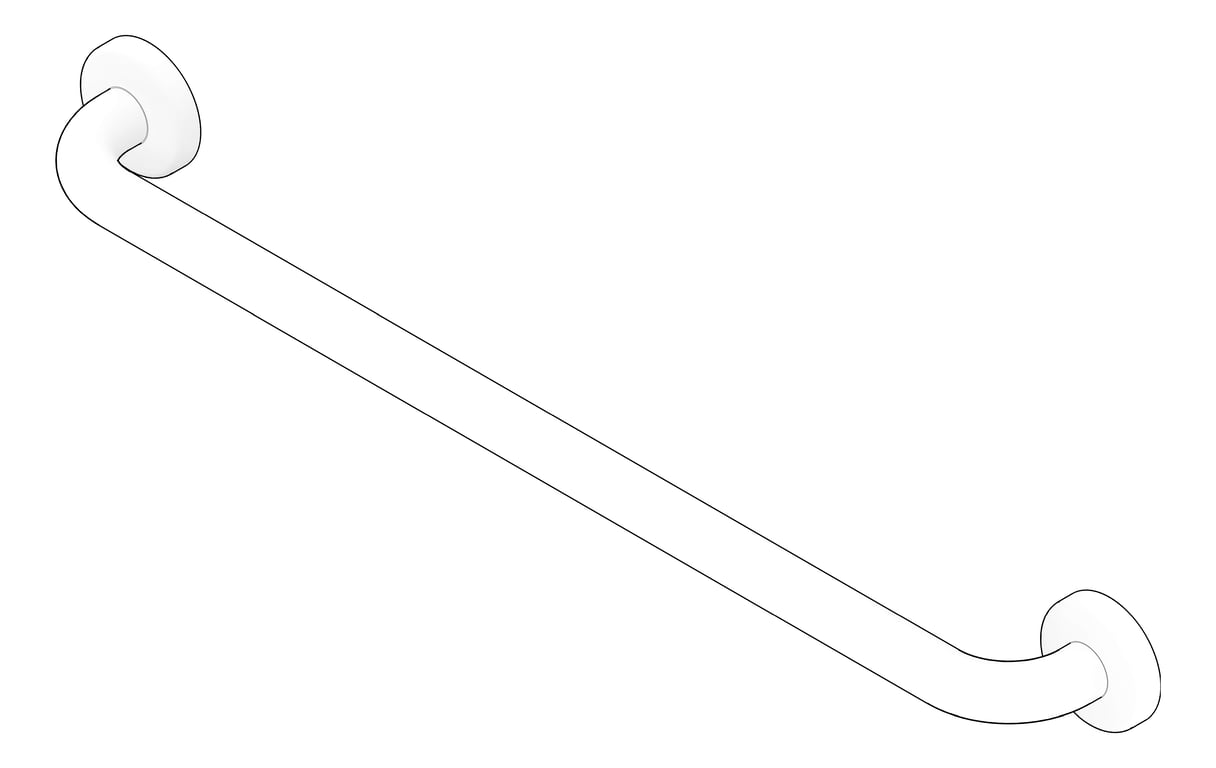

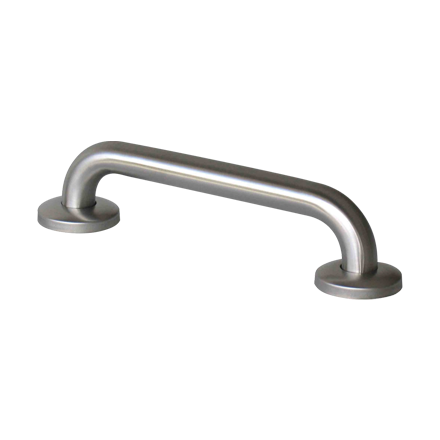

GrabRail Straight ASIJDMacDonald GermShield

Designed for the safety, security and convenience of the physically disabled with the added protection of the Germ Shield rubber seal. Easy to install on most building surfaces. Grab Rails shall be type 304 stainless steel alloy 18-8. Tubing shall be 32mm diameter x 18 gauge (1.2mm). Flange shall be 5mm thick and shall be Heliarc welded to tubing with a continuous concealed bead and shall have three (3) 7mm diameter mounting holes. Cover plates to conceal flange and fixings shall be 2.8mm stainless steel. See chart for standard sizes.

• JDM-GSS-3 – 300 mm
• JDM-GSS-6 – 600 mm
• JDM-GSS-7 – 700 mm

*Standard finish is Satin. For Polished finish add suffix ‘-P‘
