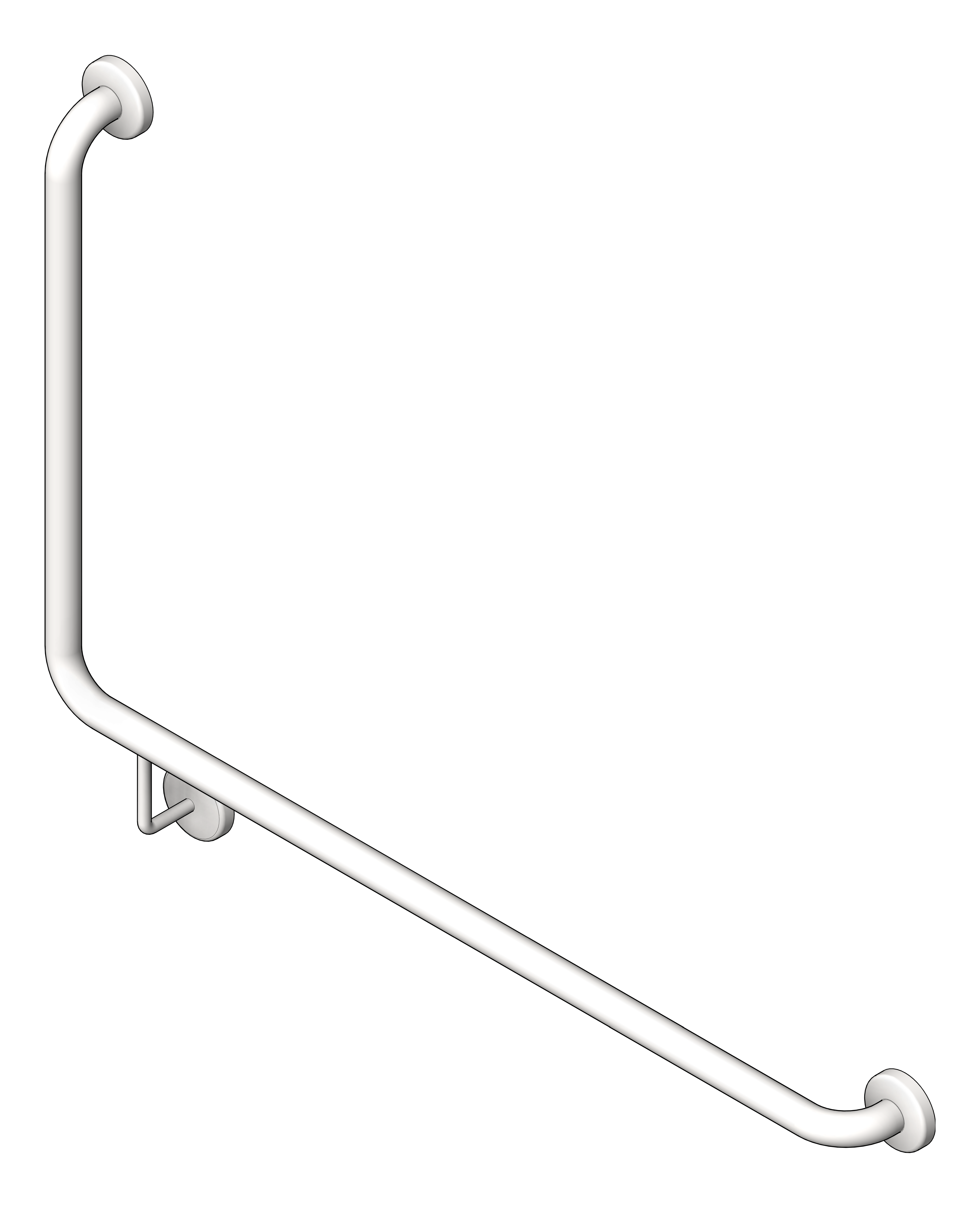

3D Shaded Image of GrabRail 90deg ASIJDMacDonald RH GermShield

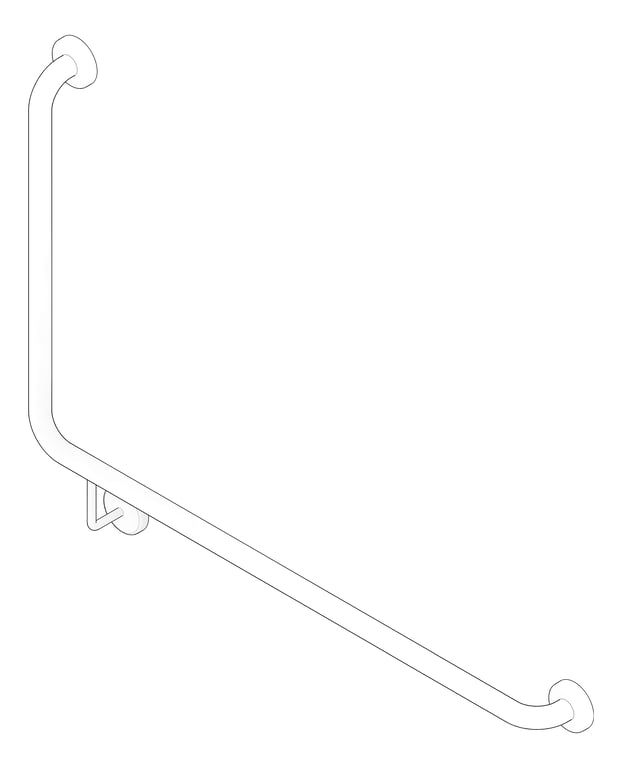

3D Documentation Image of GrabRail 90deg ASIJDMacDonald RH GermShield

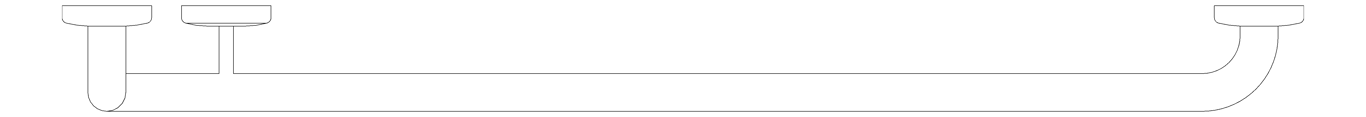

Plan Image of GrabRail 90deg ASIJDMacDonald RH GermShield
Left Image of GrabRail 90deg ASIJDMacDonald RH GermShield

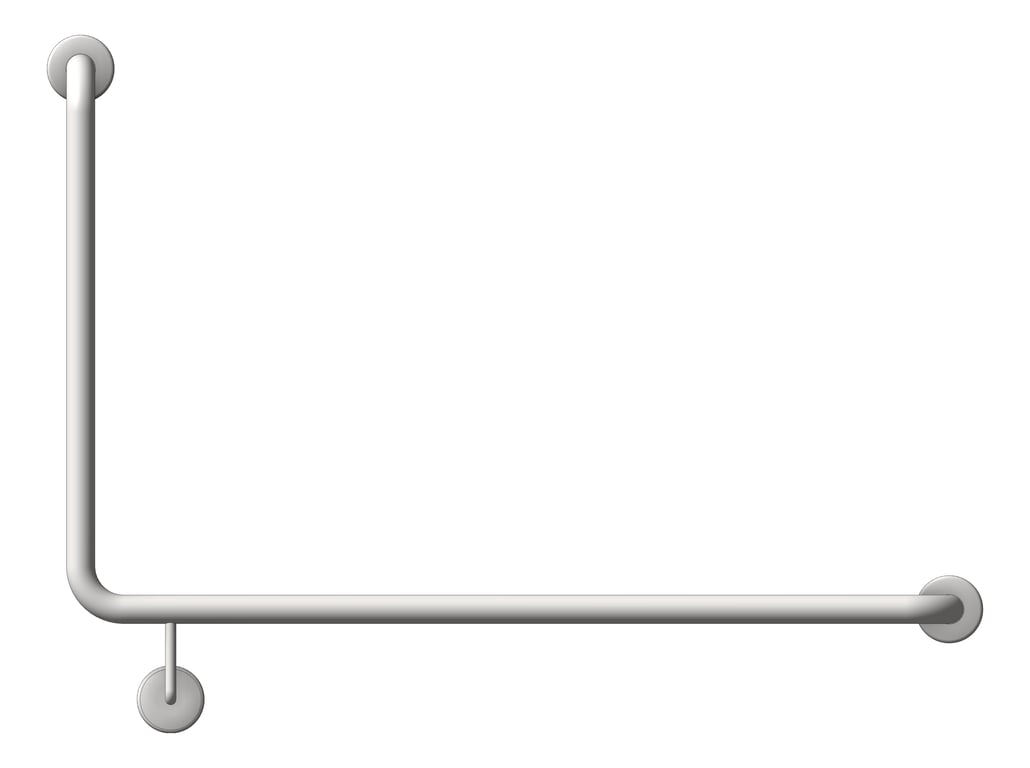

Front Image of GrabRail 90deg ASIJDMacDonald RH GermShield

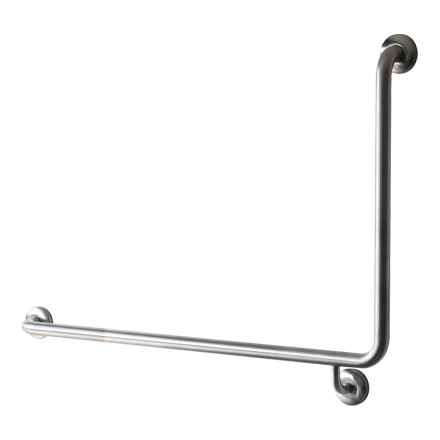

JDM-GNS-9_ASIJDMacDonald_Grab_Rail_Germ_Shield_Web.png Image of GrabRail 90deg ASIJDMacDonald RH GermShield

GrabRail 90deg ASIJDMacDonald RH GermShield

Designed for the safety, security and convenience of the physically disabled with the added protection of the Germ Shield rubber seal. Easy to install on most building surfaces. Grab Rails shall be type 304 stainless steel alloy 18-8. Tubing shall be 32mm diameter x 18 gauge (1.2mm). Flange shall be 5mm thick and shall be Heliarc welded to tubing with a continuous concealed bead and shall have three (3) 7mm diameter mounting holes. Cover plates to conceal flange and fixings shall be 2.8mm stainless steel.

*HANDING
Grab rails indicating handing are referenced from the in-situation position (eg the pan or shower) not looking at it. Handing is indicated by the suffix of either LH (Left Hand) or RH (Right Hand) and MUST be specified at time of order.

*Standard finish is Satin. For Polished finish add suffix ‘-P

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
89 mm
Height
775 mm
Width
1040 mm
Model
JDM-GNS-9-RH-P|JDM-GNS-9-RH
ModifiedIssue
20221201.00
