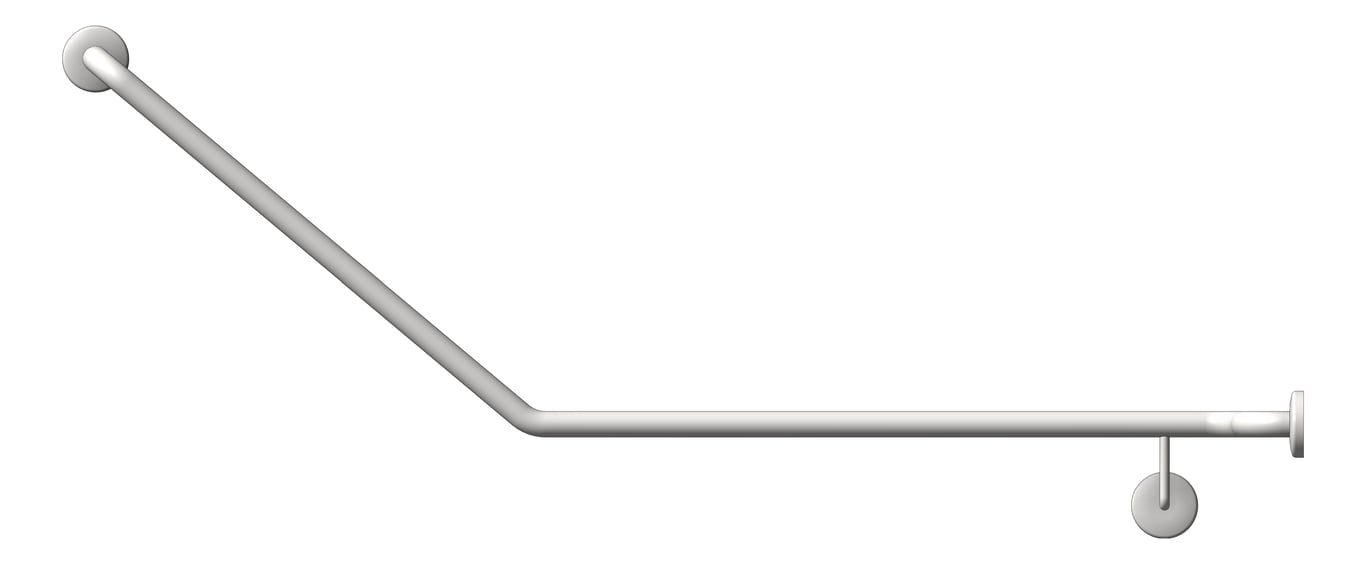

Image of GrabRail 40Deg ASIJDMacDonald Corner RH

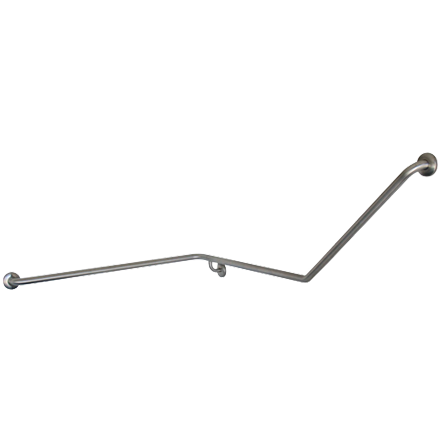

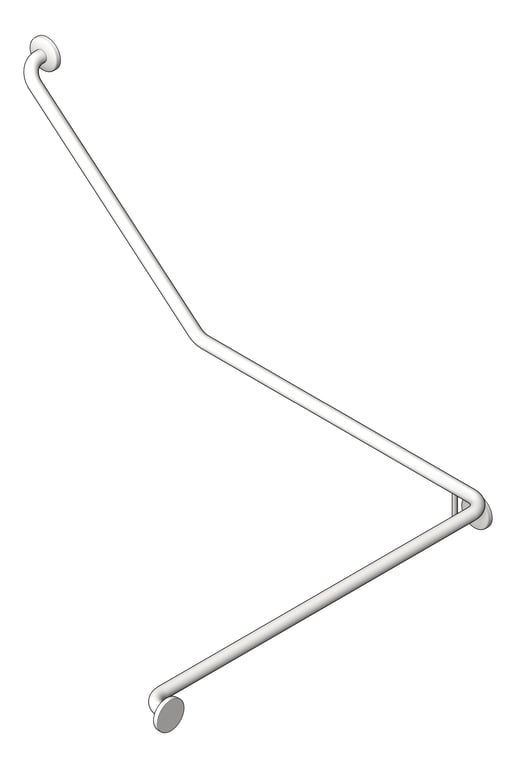

3D Shaded Image of GrabRail 40Deg ASIJDMacDonald Corner RH

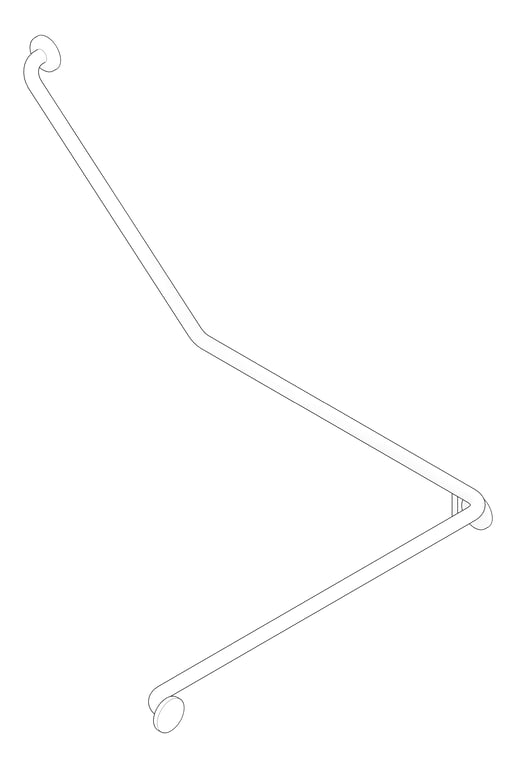

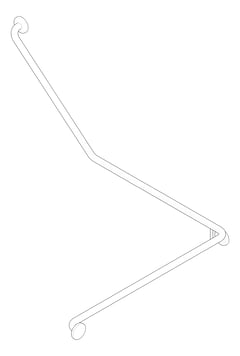

3D Documentation Image of GrabRail 40Deg ASIJDMacDonald Corner RH

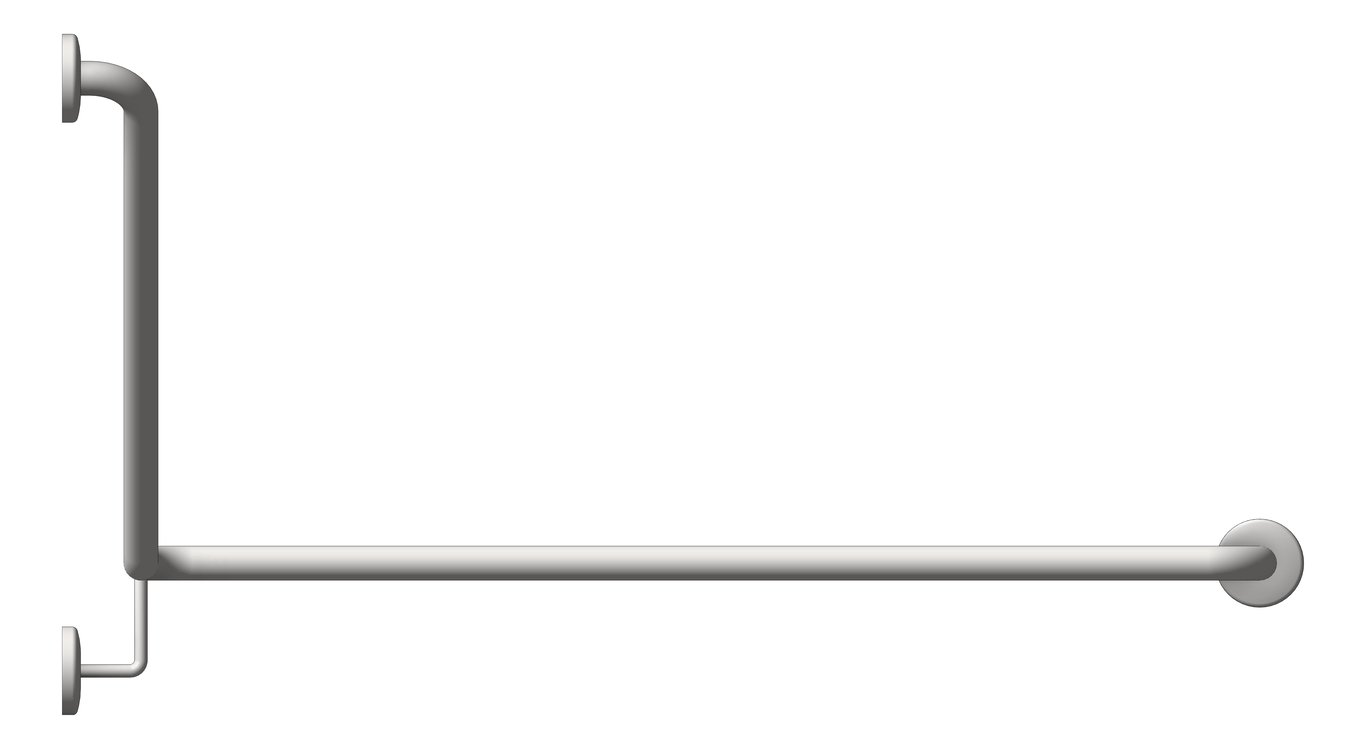

Plan Image of GrabRail 40Deg ASIJDMacDonald Corner RH
Left Image of GrabRail 40Deg ASIJDMacDonald Corner RH

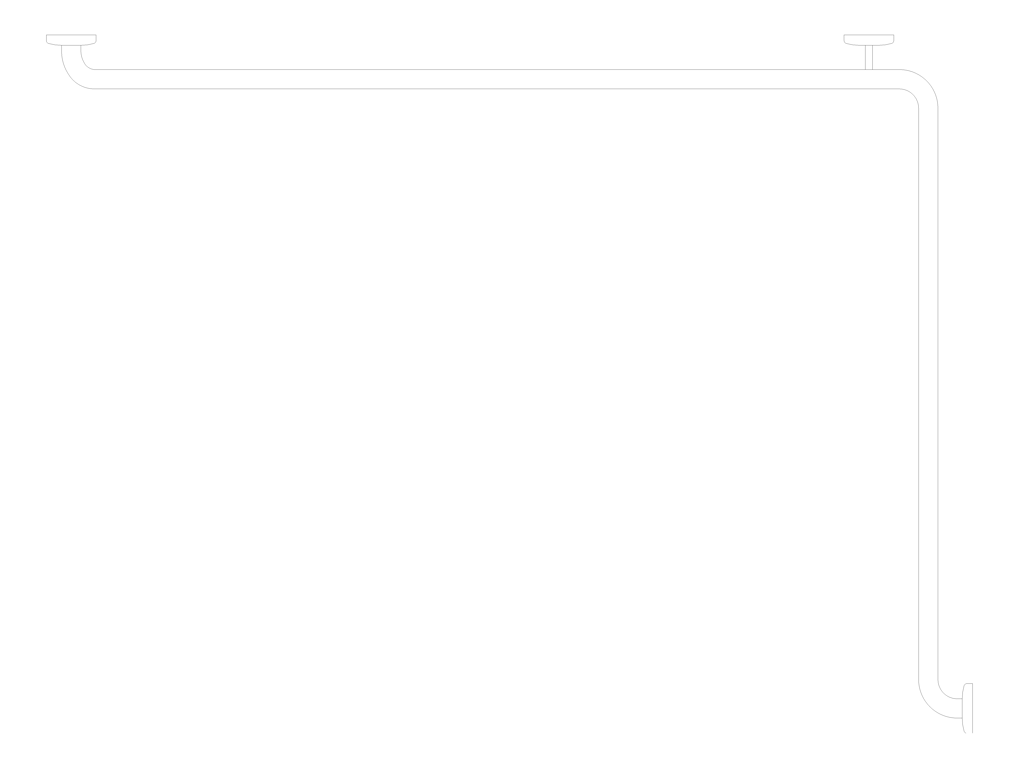

Front Image of GrabRail 40Deg ASIJDMacDonald Corner RH

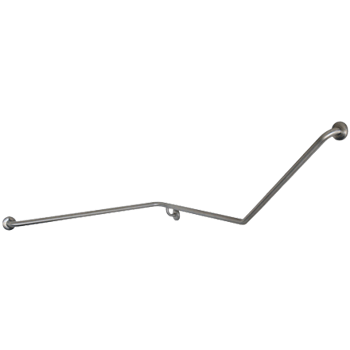

JDM-GFN-1_ASIJDMacDonald_Grab_Rail_Web.png Image of GrabRail 40Deg ASIJDMacDonald Corner RH

GrabRail 40Deg ASIJDMacDonald Corner RH

Designed for the safety, security and convenience of the physically disabled. Easy to install on most building surfaces. Grab Rails shall be type 304 stainless steel alloy 18-8. Tubing shall be 32mm diameter x 18 gauge (1.2mm). Flange shall be 3mm thick and shall be Heliarc welded to tubing with a continuous concealed bead and shall have three (3) 7mm diameter mounting holes. Cover plates to conceal flange and fixings shall be 22 gauge (0.8mm) stainless steel.

*HANDING
Grab rails indicating handing are referenced from the in-situation position (eg the pan or shower) not looking at it. Handing is indicated by the suffix of either LH (Left Hand) or RH (Right Hand) and MUST be specified at time of order.

*Standard finish is Satin. For Polished finish add suffix ‘-P

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
Manufacturer
Depth
1151 mm
Height
631.951 mm
Width
1527.231 mm
Model
JDM-GFN-1-RH-P|JDM-GFN-1-RH
ModifiedIssue
20221201.00
Types
