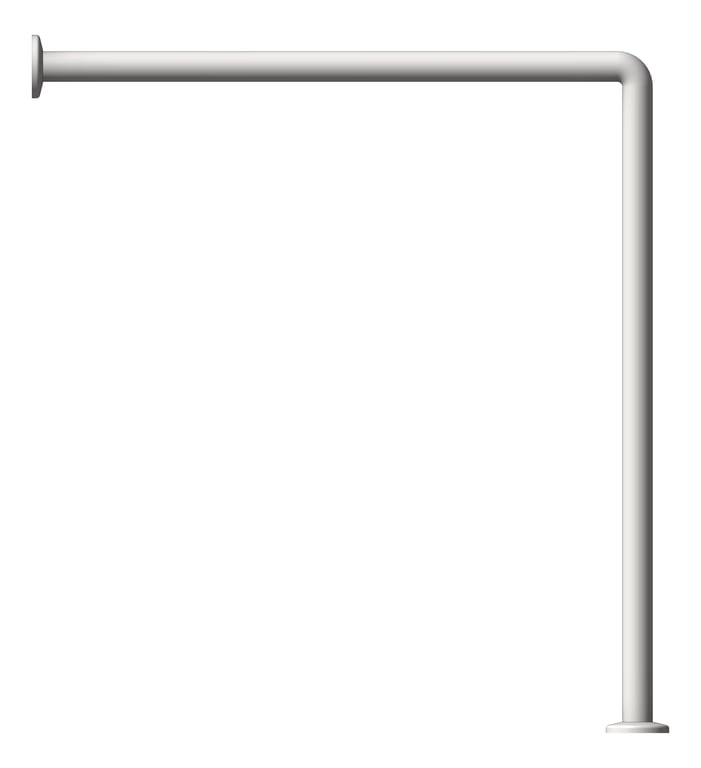

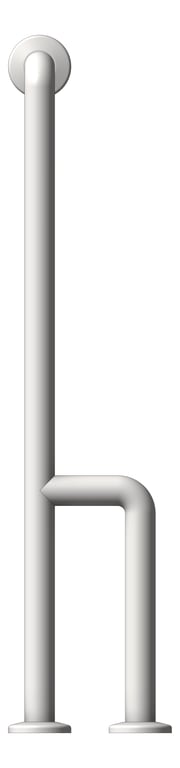

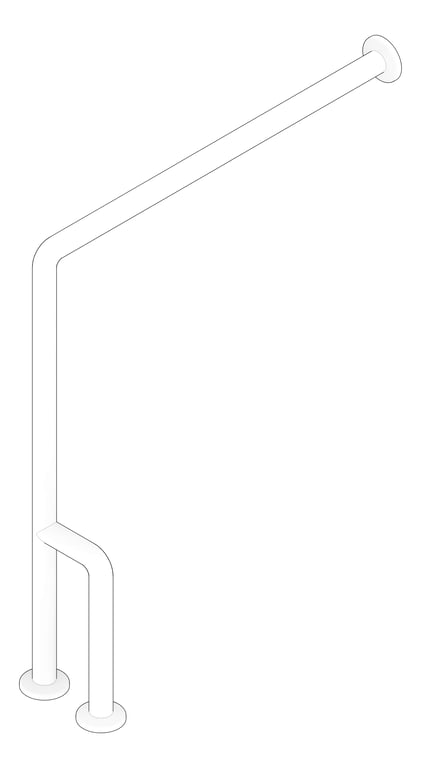

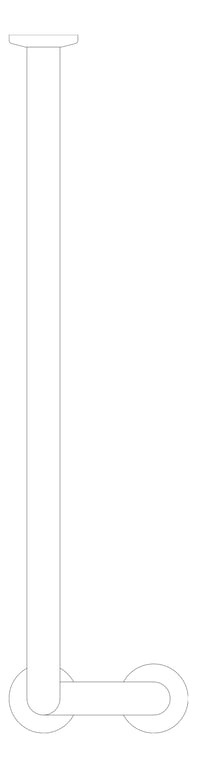

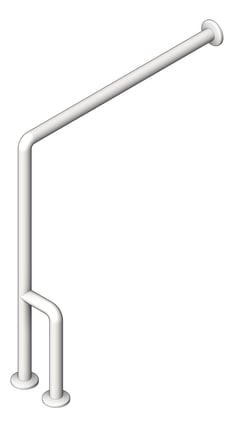

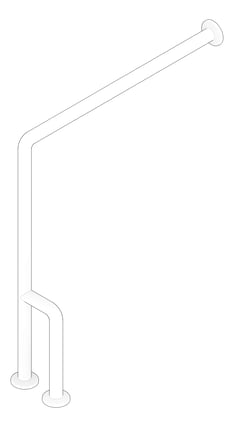

GrabBar WallToFloor ASI SnapFlange 1.5InDia Outrigger RH
Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.
Snap Flange (1-1/2″ O.D) Peened – Wall to Floor: 30” x 33” with Outrigger – Specify Handing
Bulk Download Options
Virtual Showroom Available
Native Geometry
Width
8 1/8"
Depth
31 9/16"
Height
34 9/16"
Manufacturer
Model
3833-R, 3833-RP
Type Comments
Types
