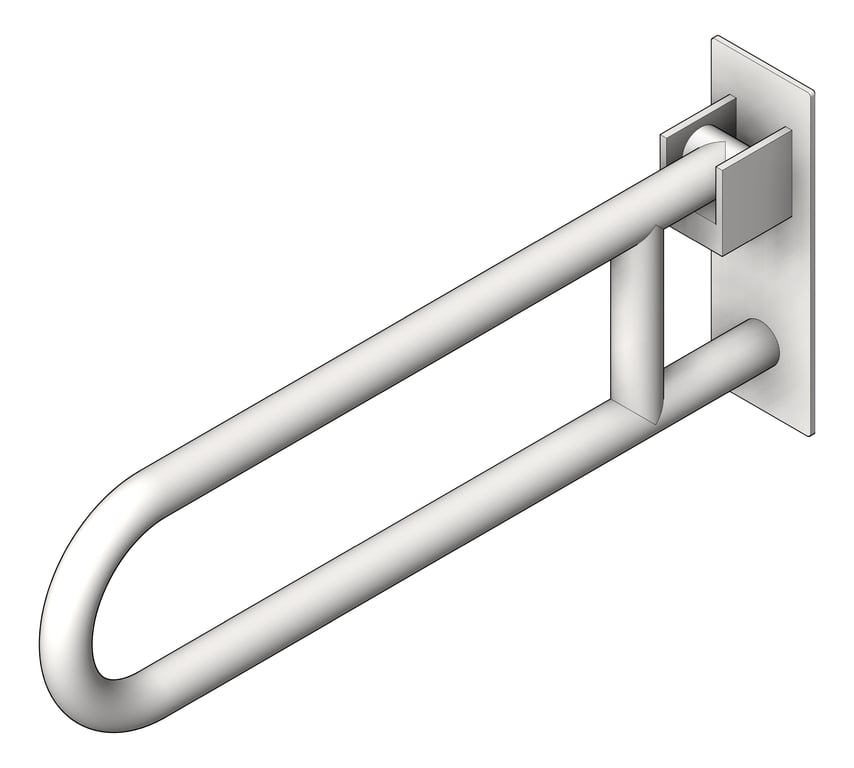

3D Shaded Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

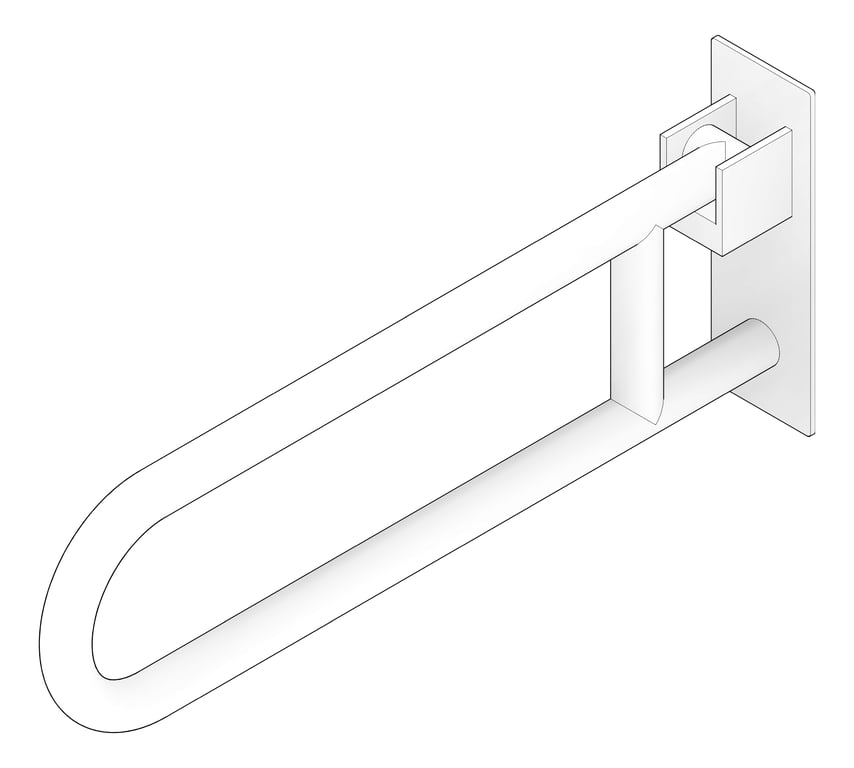

3D Documentation Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

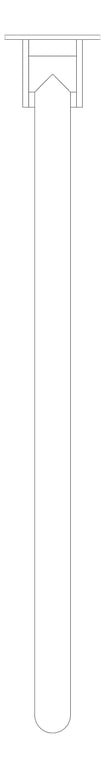

Plan Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

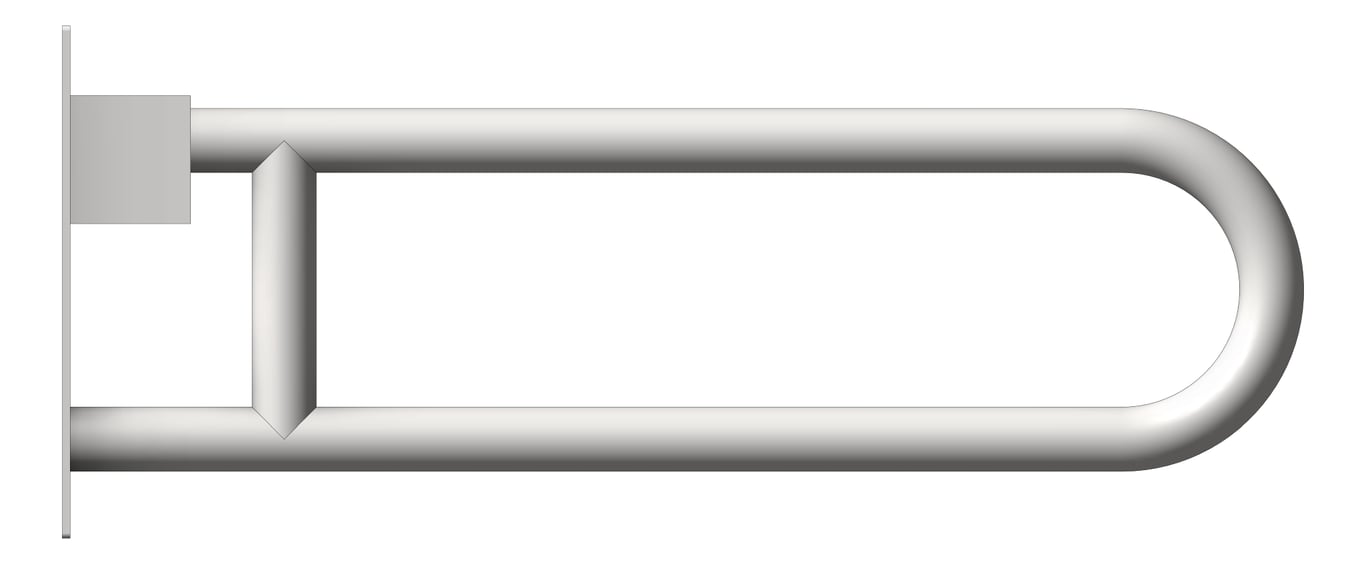

Left Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

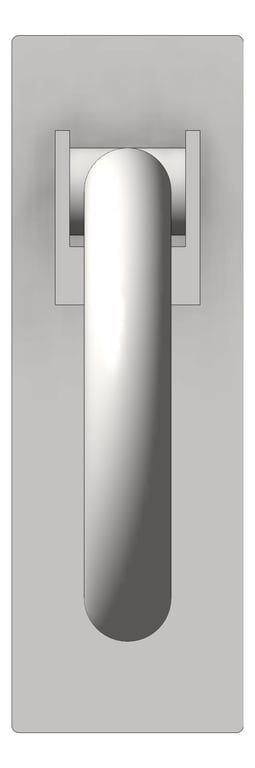

Front Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking
3451_ASI-SwingUpGrabBar@2x.png Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

GrabBar SwingUp ASI ExposedFlange 1.5InchDia Locking

Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) wall tubing hinge riding on solid bar axle with twin torsion-spring counter balance. Vertical position gravity lock with manual release provided. Tamper resistant screw provided to allow owner to lock bar in vertical position. Operable with one hand. Grab bar tube will have a plastic end cap to cushion contact with wall plate in use position.

Exposed Flange (1-1/2″ O.D) Smooth –  Swing Up Grab Bar

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
4"
Depth
29"
Height
12"
Model
3551|3551-P
Type Comments
Types
