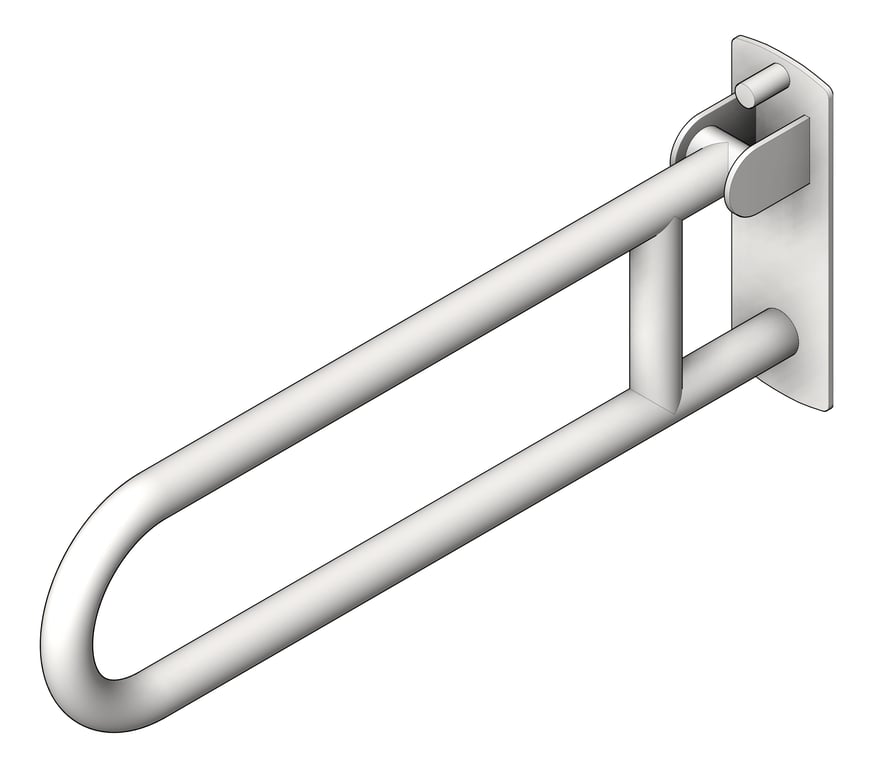

3D Shaded Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

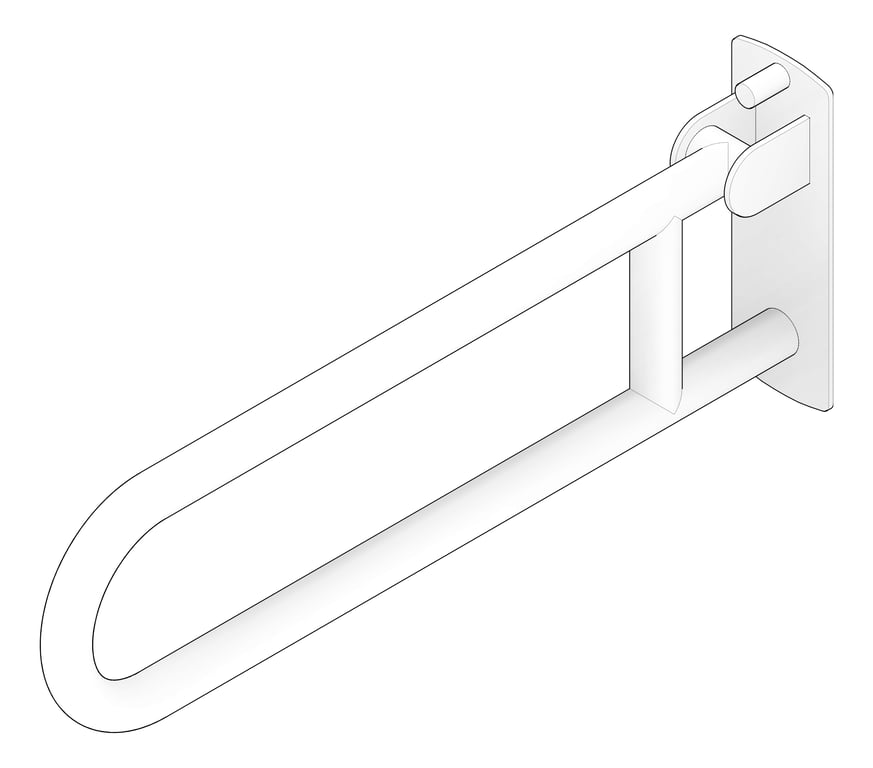

3D Documentation Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

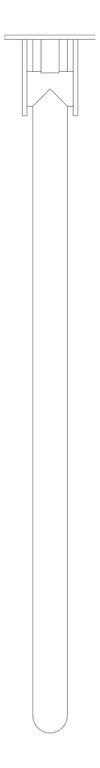

Plan Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

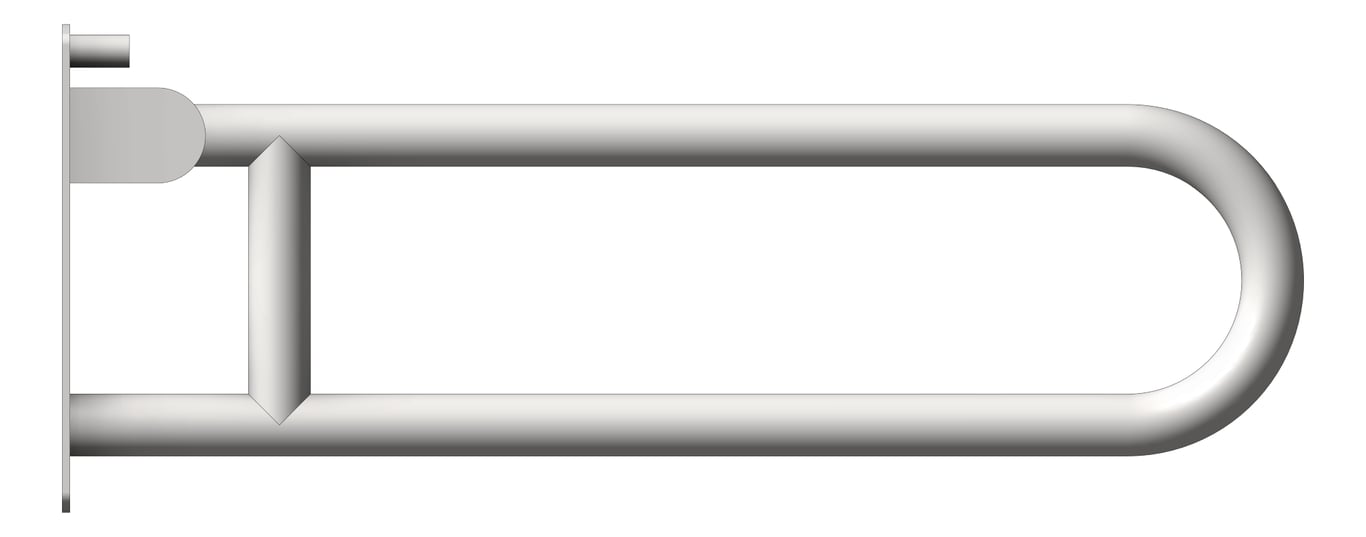

Left Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

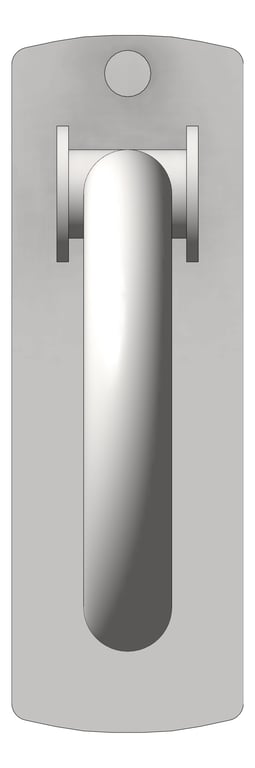

Front Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge
3413_ASI-SwingUpGrabBar@2x.png Image of GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

GrabBar SwingUp ASI ExposedFlange 1.5InchDia 3PositionHinge

Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) tubing hinge with (3) preset detent stop postitions (full up, 45 deg. raised and full down). A polymer bumper is provided at the bottom bar end to prevent banging when lowered into use position. Tension for bar movement is accomplished by internal detent stops pawl provided. Operable with one hand. Bar mounting plate includes solid stop bumper to prevent raised arm from banging into wall.

Exposed Flange (1-1/2″ O.D) Peened –  Swing Up Grab Bar

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
3 15/16"
Depth
30"
Height
11 13/16"
Model
3514|3514-P
Type Comments
Types
