Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal
3D Shaded Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

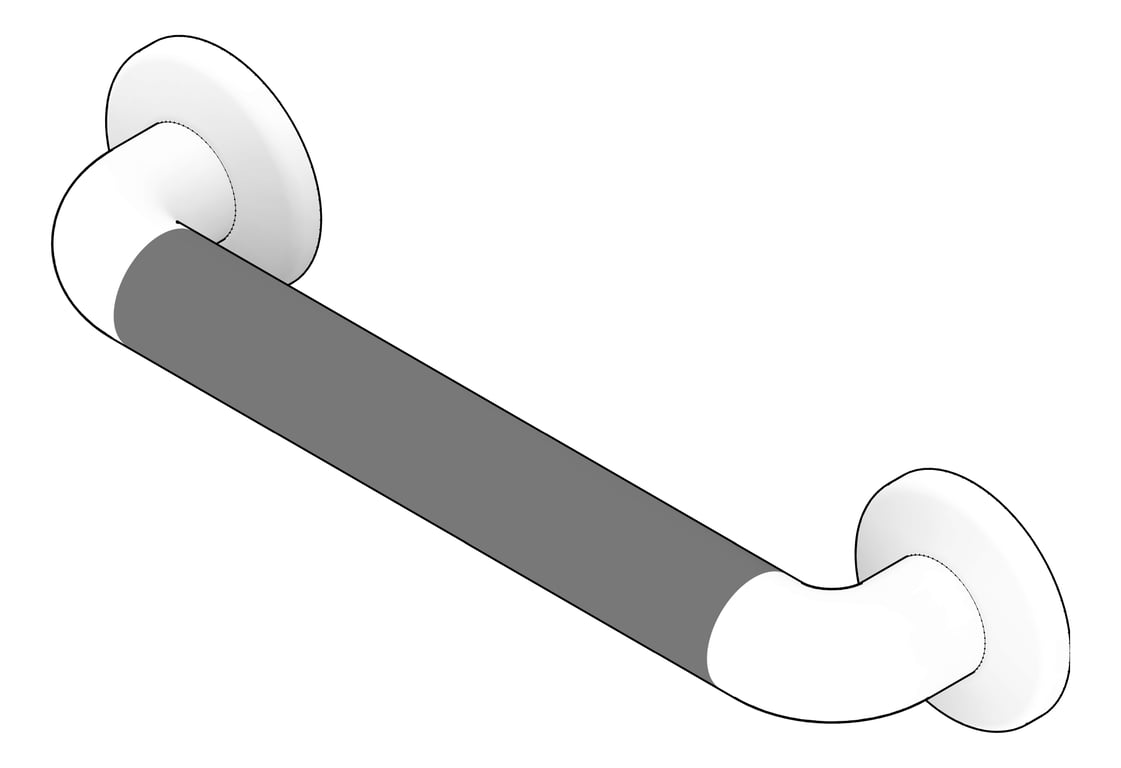

3D Documentation Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

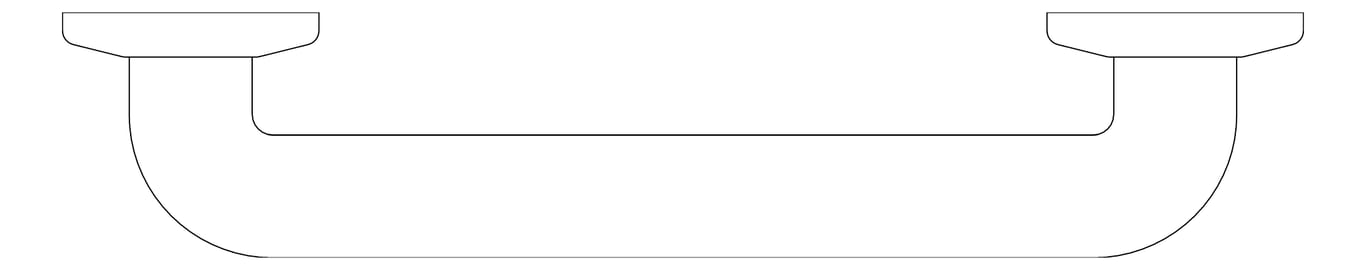

Plan Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

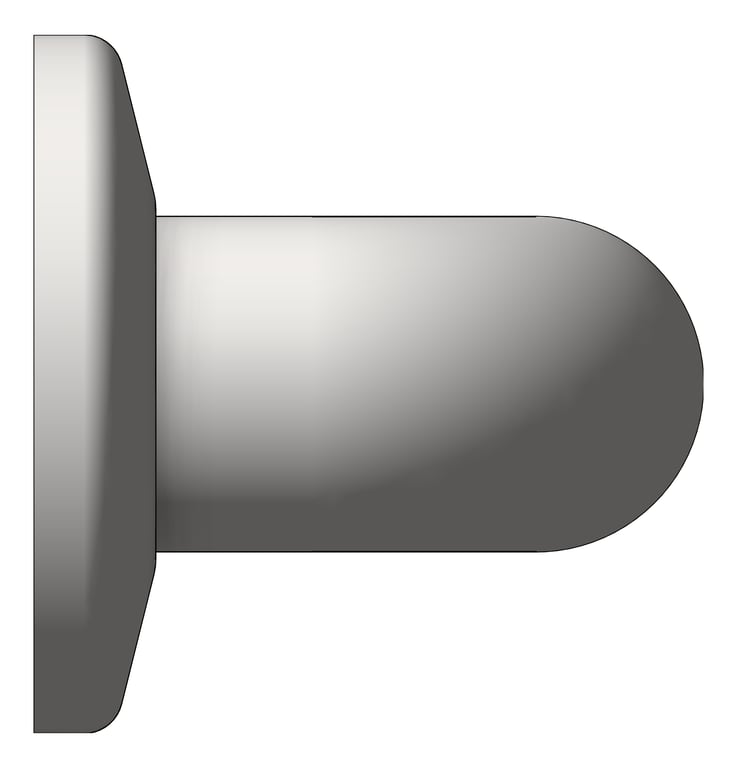

Left Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

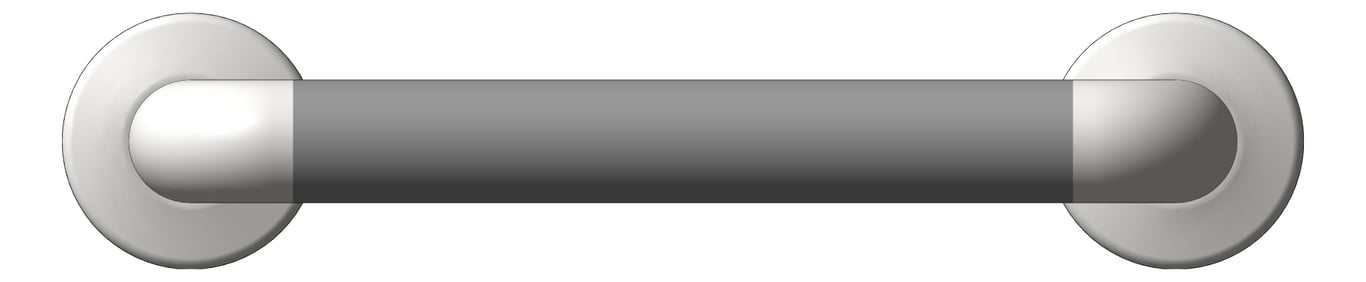

Front Image of GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

GrabBar Straight ASI SnapFlange 1.5InDia Horizontal

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 33/16″ (81 mm) diameter.

1-1/2″ DIA (38 mm) Series Grab Bar With White Powder Coated Finish – 48″ Length

Bulk Download Options
Virtual Showroom Available
Native Geometry
Type Comments
Depth
3"
Height
3 1/8"
Model
Please Load From Type Catalog
Type Catalog
Yes
Types
