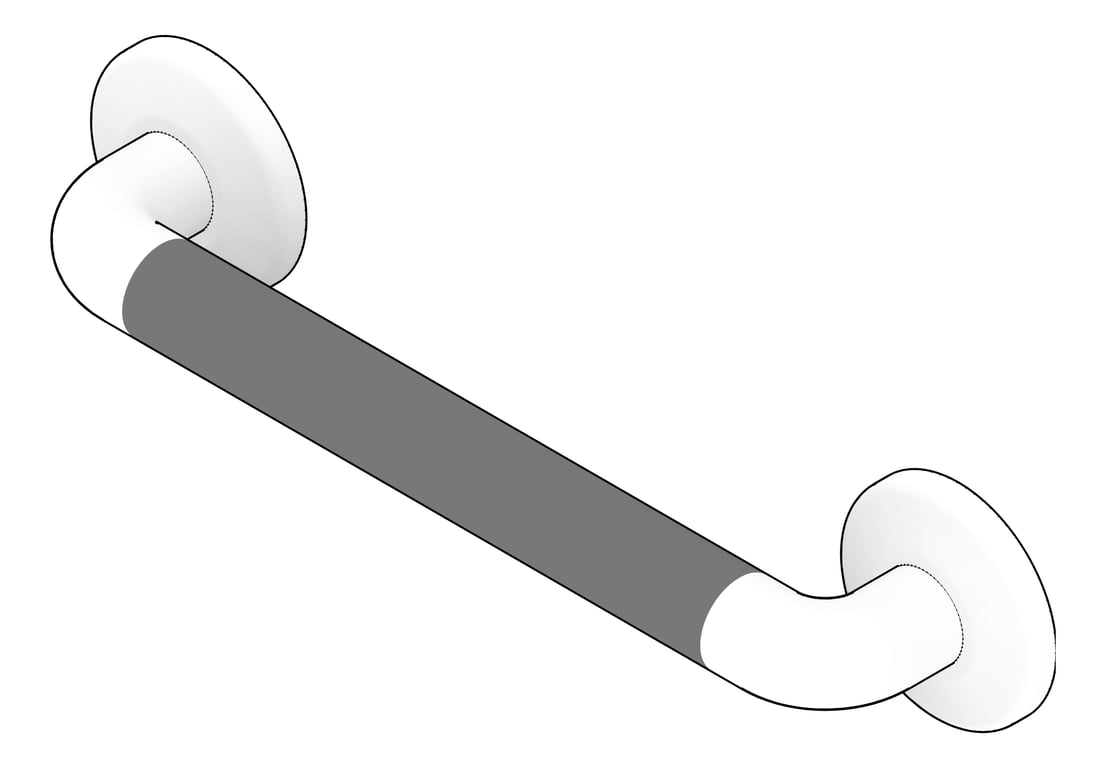

3D Documentation Image of GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal

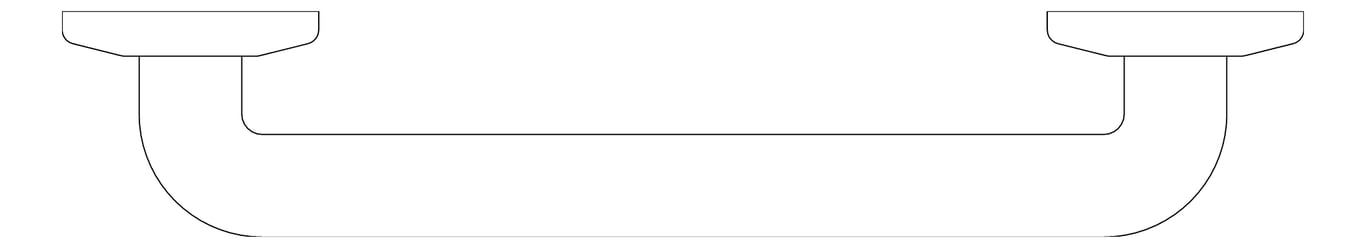

Plan Image of GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal

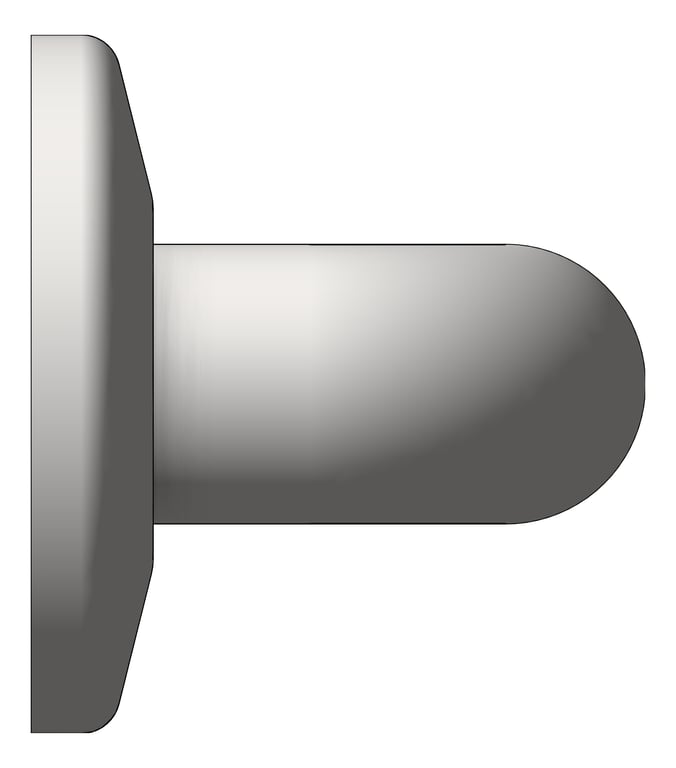

Left Image of GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal

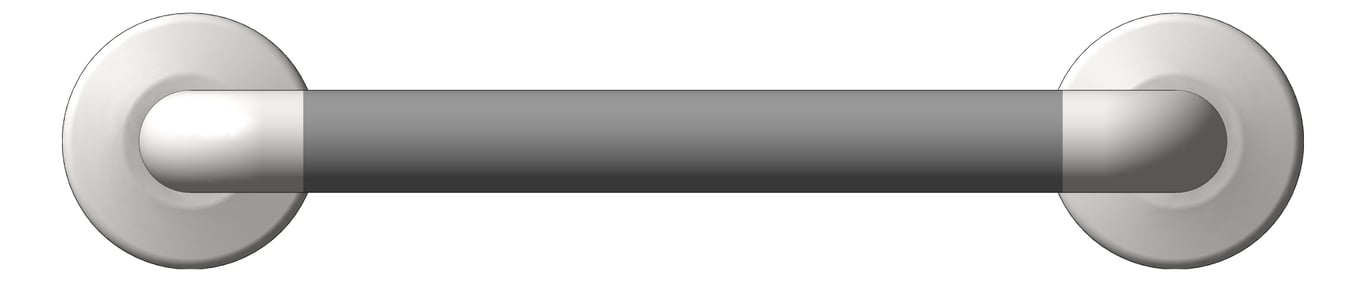

Front Image of GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal
white-grab-bars.png Image of GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal

GrabBar Straight ASI SnapFlange 1.25InchDia Horizontal

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 33/16″ (81 mm) diameter.

1-1/4″ DIA (32 mm) Series Grab Bar With White Powder Coated Finish – 48″ Length

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Model
3701-12
Type Comments
Type Catalog
Yes
Types
