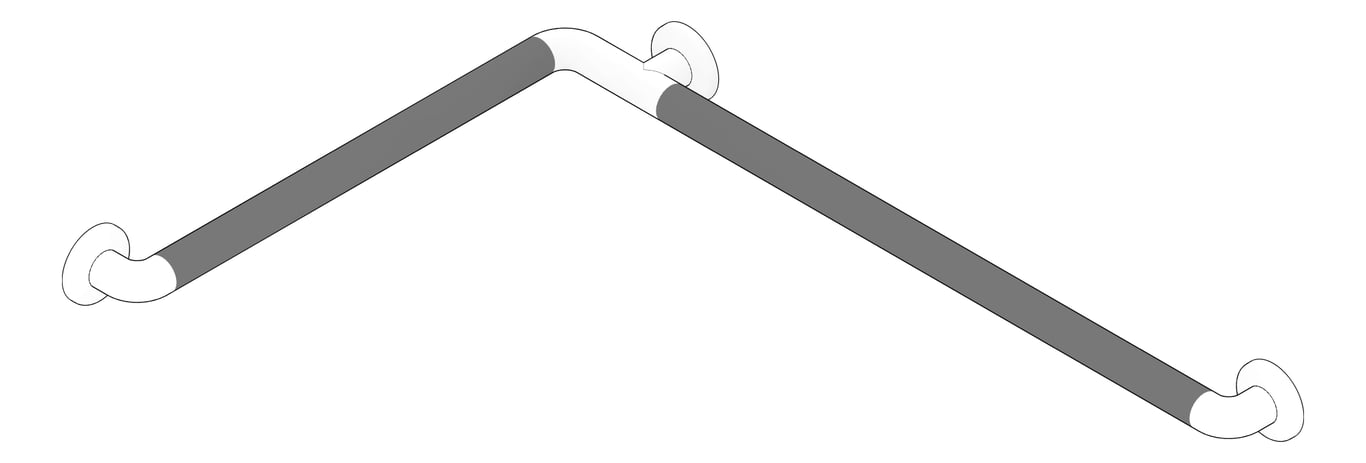

3D Shaded Image of GrabBar Corner ASI SnapFlange 1.5InDia
3D Documentation Image of GrabBar Corner ASI SnapFlange 1.5InDia

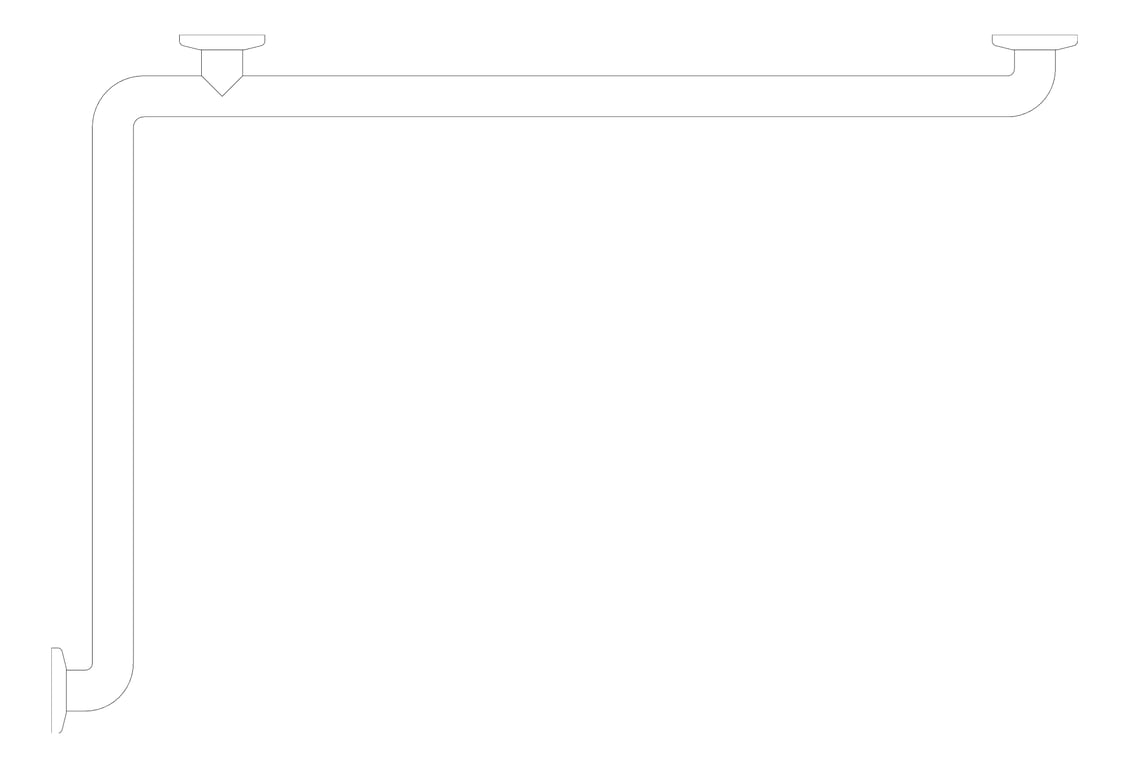

Plan Image of GrabBar Corner ASI SnapFlange 1.5InDia
Left Image of GrabBar Corner ASI SnapFlange 1.5InDia
Front Image of GrabBar Corner ASI SnapFlange 1.5InDia
GrabBar-Type-60A.png Image of GrabBar Corner ASI SnapFlange 1.5InDia

GrabBar Corner ASI SnapFlange 1.5InDia

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

Snap Flange (1-1/2″ O.D) Smooth – Horizontal Grab Bar, 18-1/8” x 33-1/8”

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Depth
25 9/16"|37 9/16"|37 9/16"|43 9/16"|43 9/16"|19 9/16"|19 9/16"|19 11/16"|19 11/16"
Height
3 1/8"
Manufacturer
American Specialties Inc.
ManufacturerURLProductSpecific
https://americanspecialties.com/product/horizontal-grab-bar-24-x-36-3850-p/|https://americanspecialties.com/product/horizontal-grab-bar-24-x-36-3850/|https://americanspecialties.com/product/horizontal-grab-bar-54-x-36-3856/|https://americanspecialties.com/product/horizontal-grab-bar-54-x-36-3856-p/|https://americanspecialties.com/product/horizontal-grab-bar-54-x-42-3857/|https://americanspecialties.com/product/horizontal-grab-bar-54-x-42-3857-p/|https://americanspecialties.com/product/horizontal-grab-bar-30-x-18-3860/|https://americanspecialties.com/product/horizontal-grab-bar-30-x-18-3860-p/|https://americanspecialties.com/product/horizontal-grab-bar-3874-p/|https://americanspecialties.com/product/horizontal-grab-bar-3874/
Model
3850-P|3850|3856|3856-P|3857|3857-P|3860|3860-P|3874-P|3874
Type Comments
Grab Bar - Corner - 36" W x 24" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel - Peened|Grab Bar - Corner - 36" W x 24" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel|Grab Bar - Corner - 54" W x 36" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel|Grab Bar - Corner - 54" W x 36" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel - Peened|Grab Bar - Corner - 54" W x 42" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel|Grab Bar - Corner - 54" W x 42" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel - Peened|Grab Bar - Corner - 30" W x 18" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel|Grab Bar - Corner - 30" W x 18" H - 1.5" Diameter - Snap Flange - Satin Stainless Steel - Peened|Grab Bar - Corner - 33-1/8" x 18-1/8" - 1.5" Diameter - Snap Flange - Satin Stainless Steel - Peened|Grab Bar - Corner - 33-1/8" x 18-1/8" - 1.5" Diameter - Snap Flange - Satin Stainless Steel
Types
10
