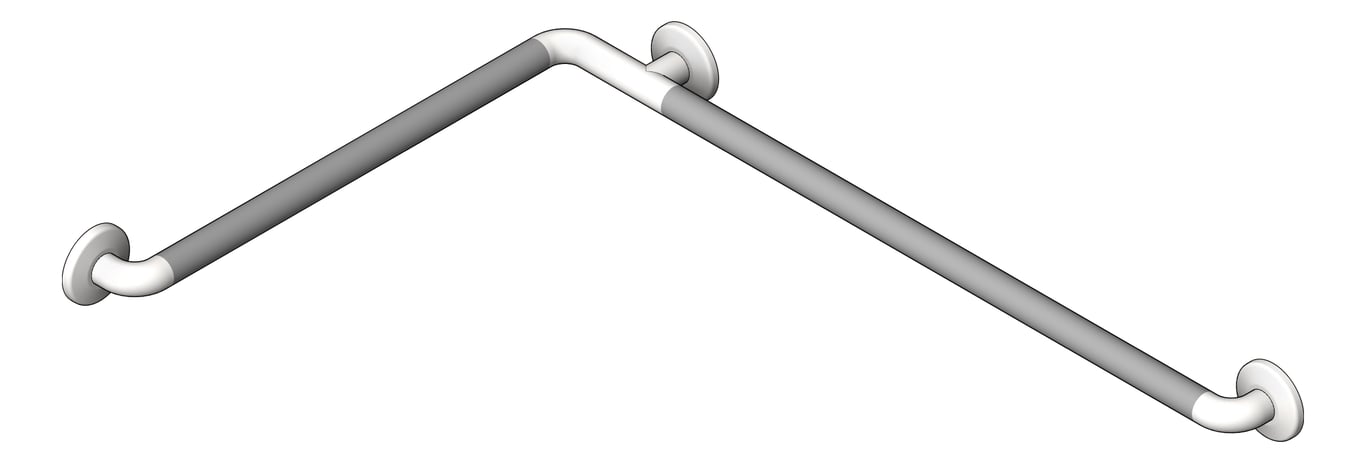

3D Shaded Image of GrabBar Corner ASI SnapFlange 1.25InchDia

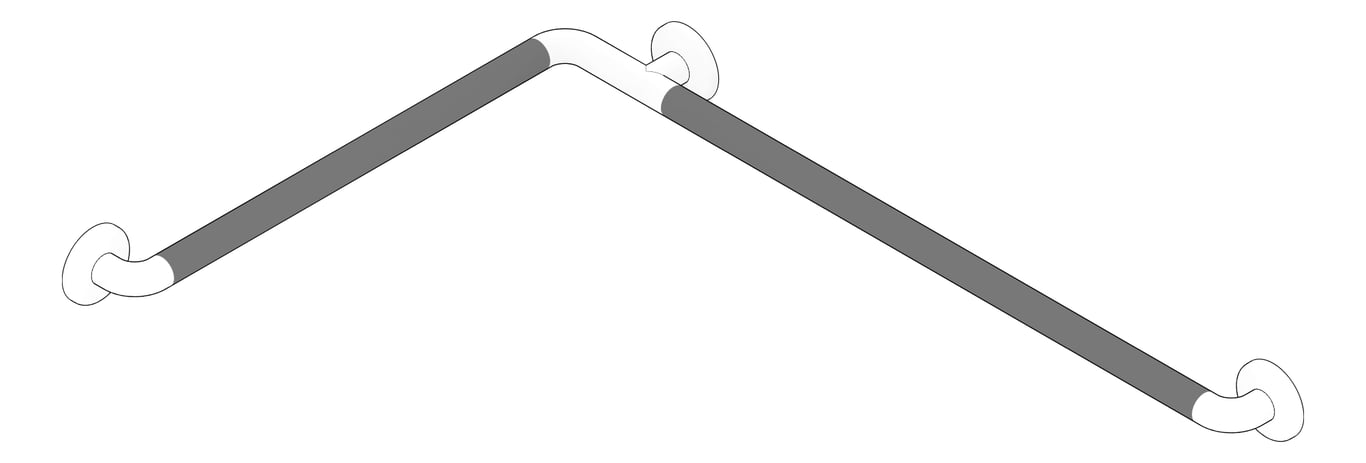

3D Documentation Image of GrabBar Corner ASI SnapFlange 1.25InchDia

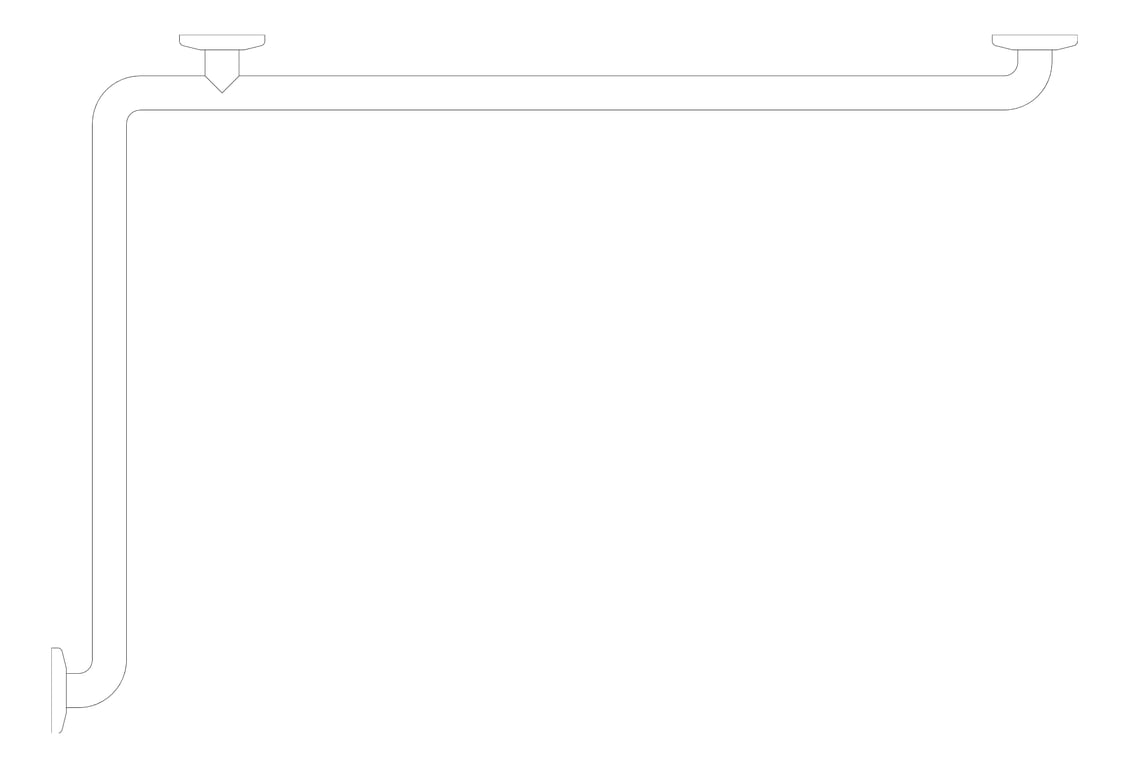

Plan Image of GrabBar Corner ASI SnapFlange 1.25InchDia

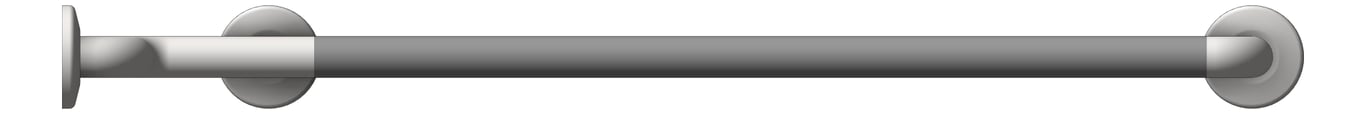

Left Image of GrabBar Corner ASI SnapFlange 1.25InchDia

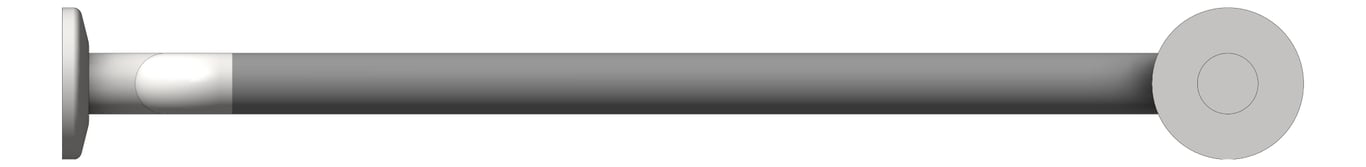

Front Image of GrabBar Corner ASI SnapFlange 1.25InchDia
GrabBar-Type-60A.png Image of GrabBar Corner ASI SnapFlange 1.25InchDia

GrabBar Corner ASI SnapFlange 1.25InchDia

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

Snap Flange (1-1/4″ O.D) Smooth –  Horizontal Grab Bar, 18-1/8” x 33-1/8”

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Height
3 1/8"
Types
