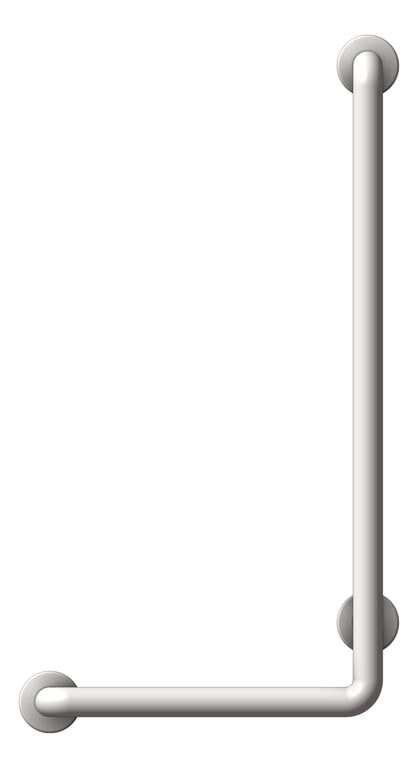

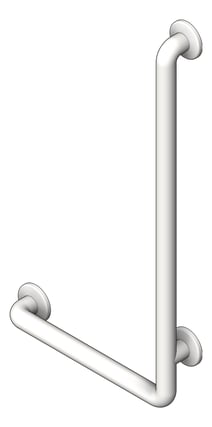

3D Shaded Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH

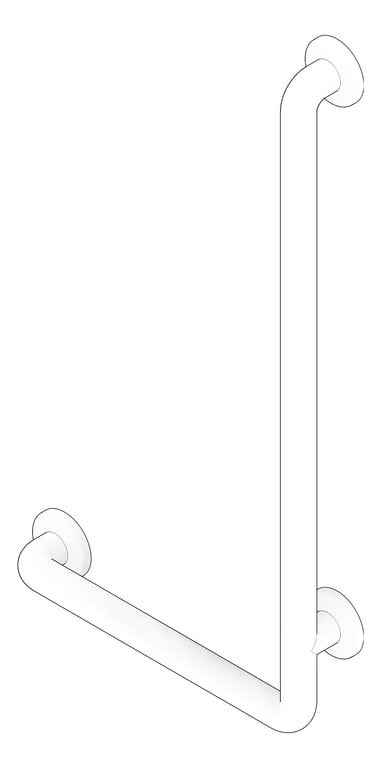

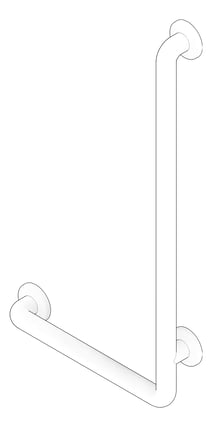

3D Documentation Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH

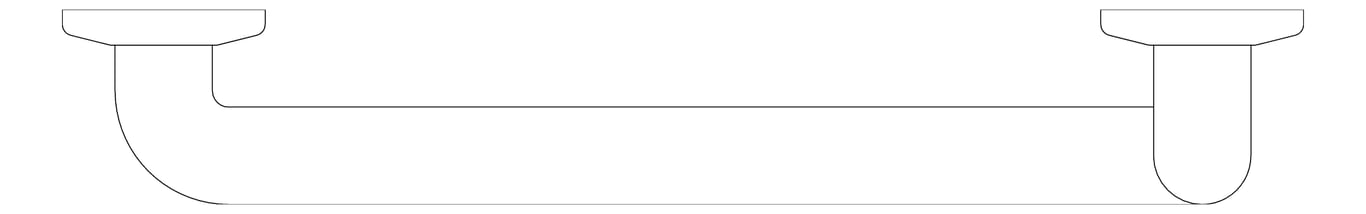

Plan Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH
Left Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH
Front Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH
GrabBar-Type-04-P_440x440.png Image of GrabBar 90Deg ASI SnapFlange 1.5InDia RH

GrabBar 90Deg ASI SnapFlange 1.5InDia RH

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

Snap Flange (1-1/2″ O.D) Peened –  90° Angle, 16” x 32” – Specify Handing

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Depth
3"
Height
35 1/8"
Model
3804-R|3804-PR
Types
