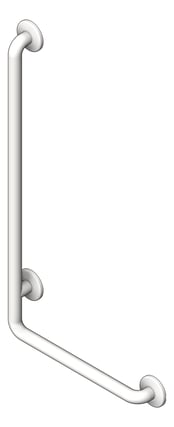

3D Shaded Image of GrabBar 90Deg ASI SnapFlange 1.25InchDia LH

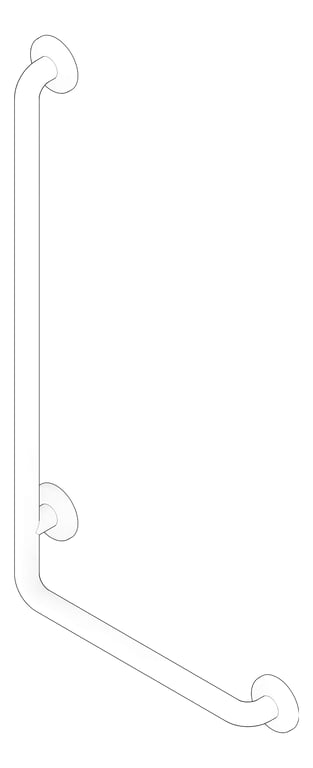

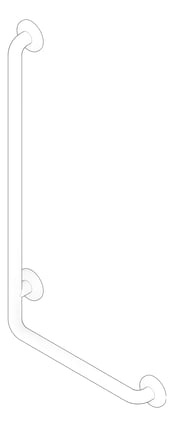

3D Documentation Image of GrabBar 90Deg ASI SnapFlange 1.25InchDia LH

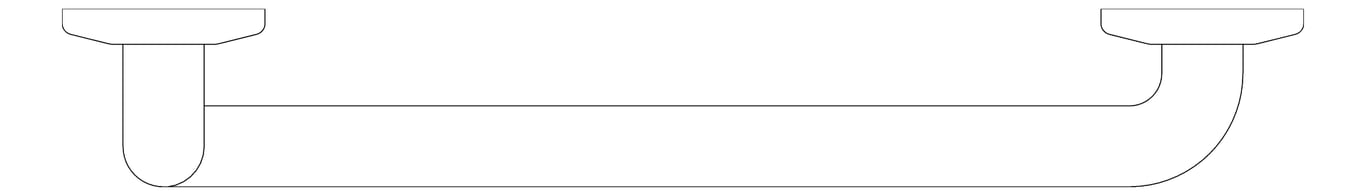

Plan Image of GrabBar 90Deg ASI SnapFlange 1.25InchDia LH
Left Image of GrabBar 90Deg ASI SnapFlange 1.25InchDia LH

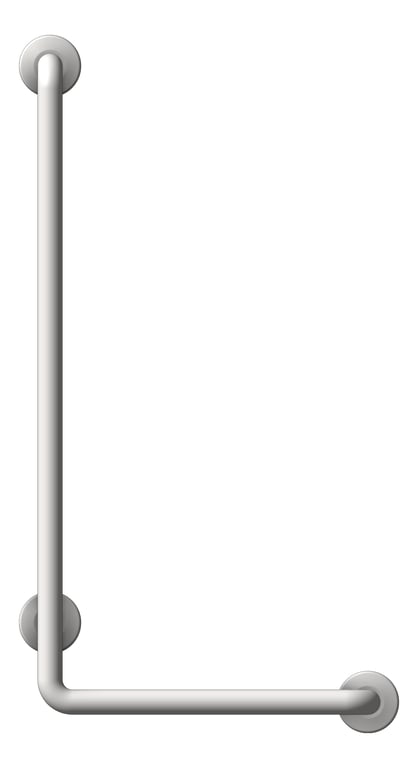

Front Image of GrabBar 90Deg ASI SnapFlange 1.25InchDia LH

GrabBar 90Deg ASI SnapFlange 1.25InchDia LH

Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8″ (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ (3 mm) thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16″ (81 mm) diameter.

Snap Flange (1-1/4″ O.D) Peened –  90° Angle, 16” x 32” – Specify Handing

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Depth
2 3/4"
Height
35 1/8"
Model
3704-L|3704-PL
