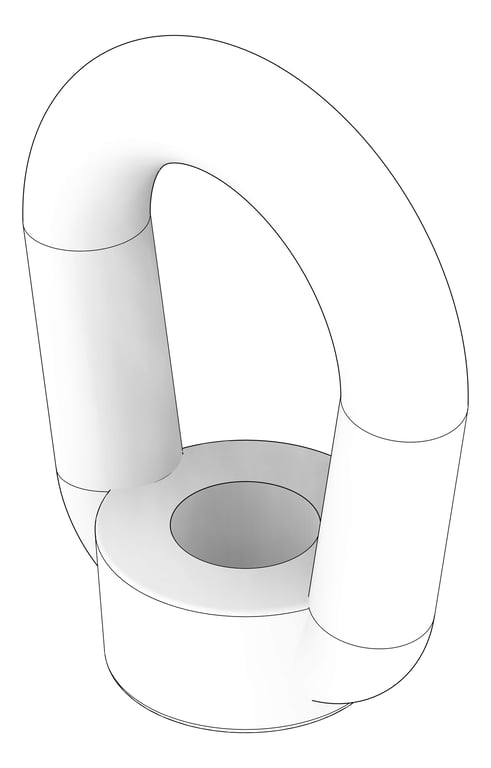

3D Documentation Image of Forged Anchorage Weldless Eye Nut AG290

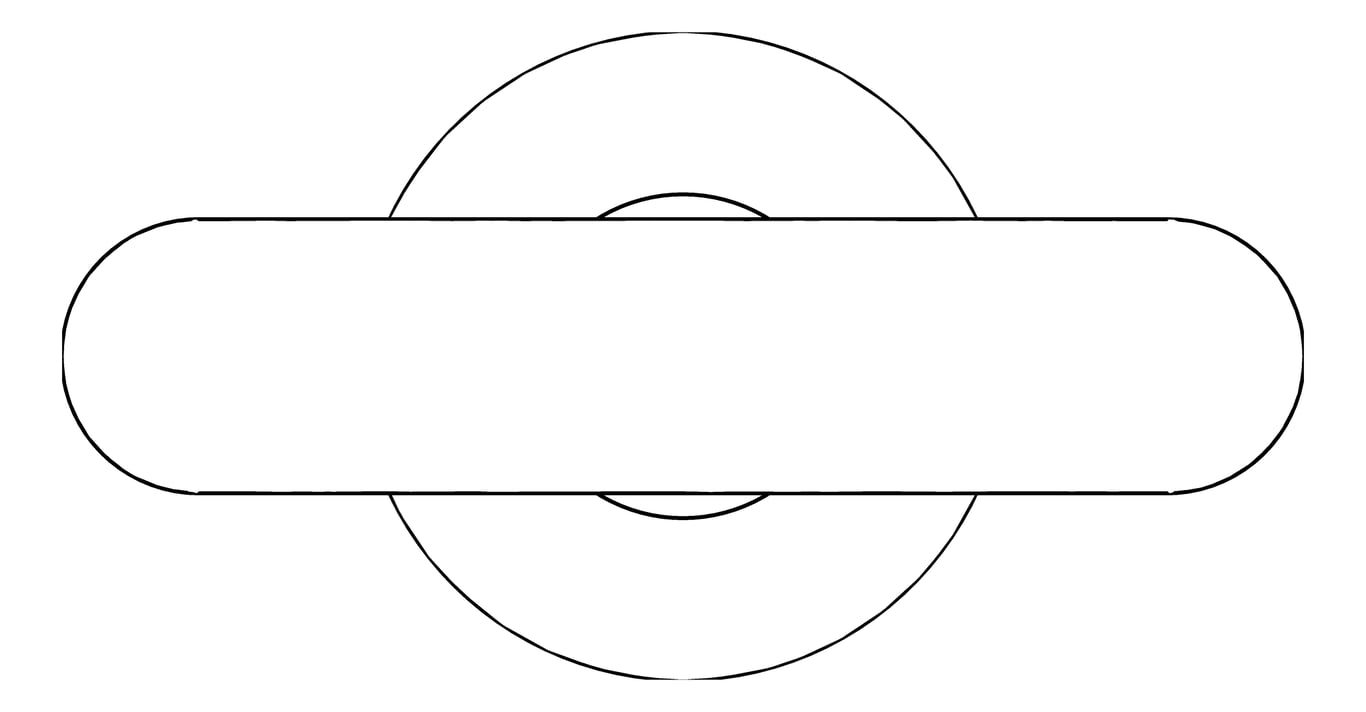

Plan Image of Forged Anchorage Weldless Eye Nut AG290

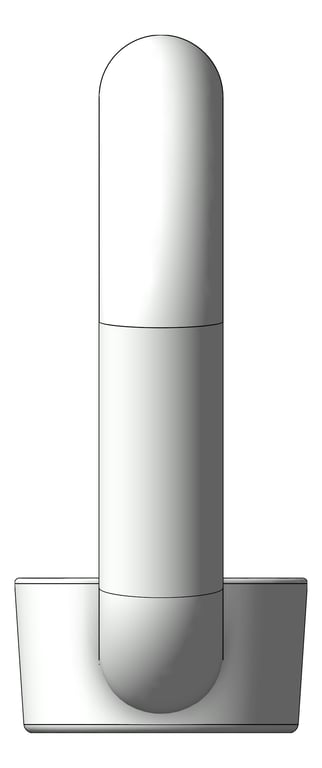

Left Image of Forged Anchorage Weldless Eye Nut AG290

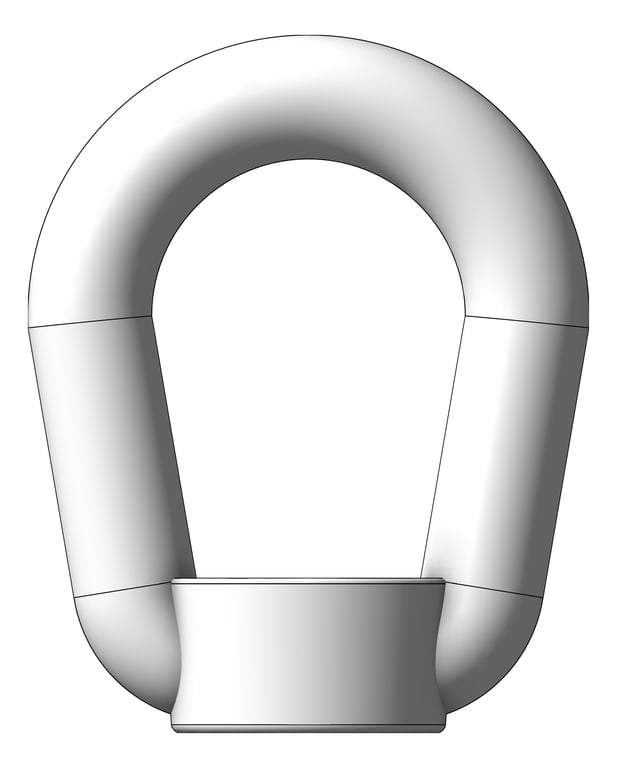

Front Image of Forged Anchorage Weldless Eye Nut AG290

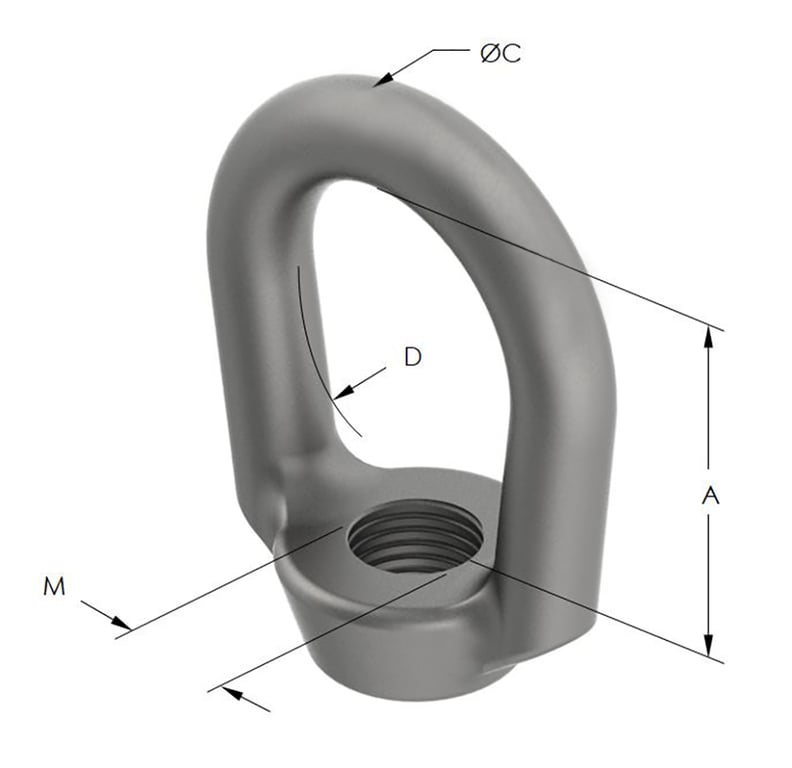

1AG290 Image of Forged Anchorage Weldless Eye Nut AG290

Forged Anchorage Weldless Eye Nut AG290

Galvanised carbon steel often used with AG270, AG280. Right hand thread. Tapped oversize to suit galvanised threaded rod. Max 200C when galvanised. See also AG295.

Multi Format
Created By IGS BIM Solutions
Bulk Download Options
Model
AG290-10
ModifiedIssue
20200612
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Type Catalog
Yes
Types
