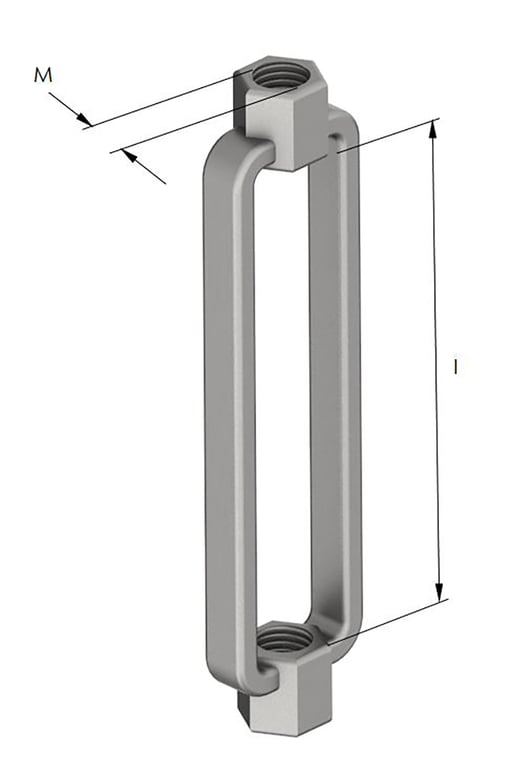

Image of Forged Turnbuckle Anchorage RH/LH Thread AG330

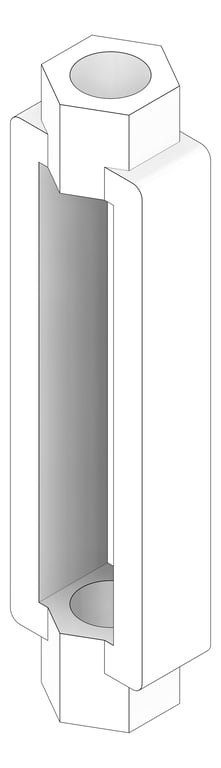

3D Shaded Image of Forged Turnbuckle Anchorage RH/LH Thread AG330
3D Documentation Image of Forged Turnbuckle Anchorage RH/LH Thread AG330

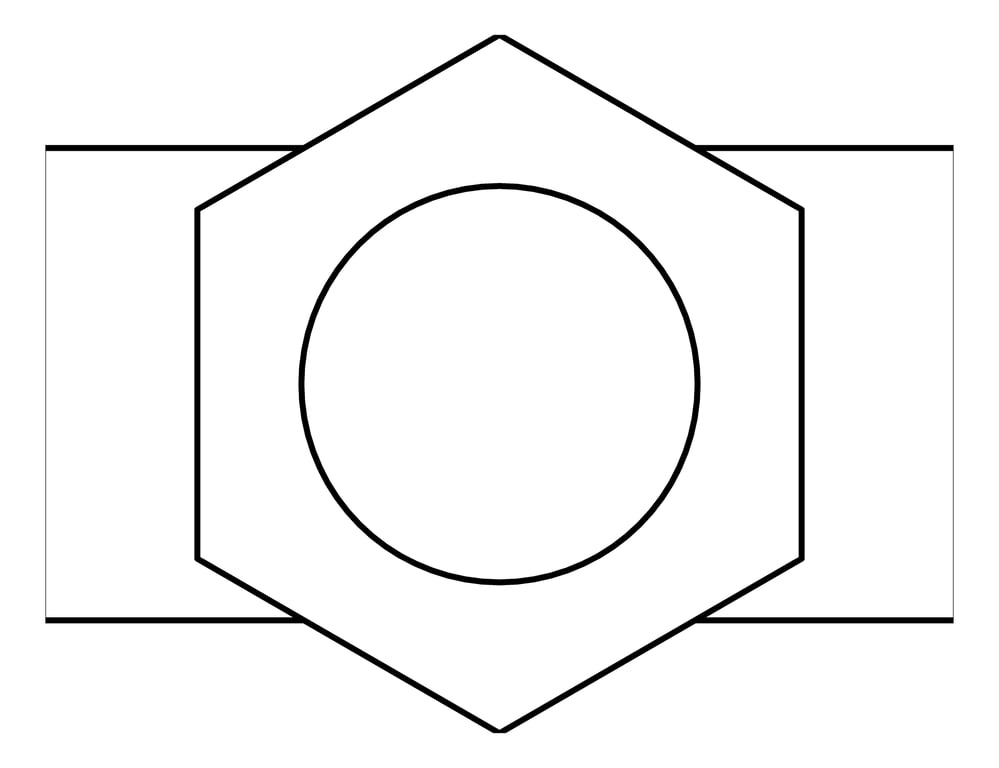

Plan Image of Forged Turnbuckle Anchorage RH/LH Thread AG330

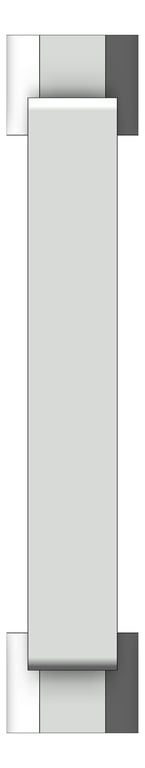

Left Image of Forged Turnbuckle Anchorage RH/LH Thread AG330

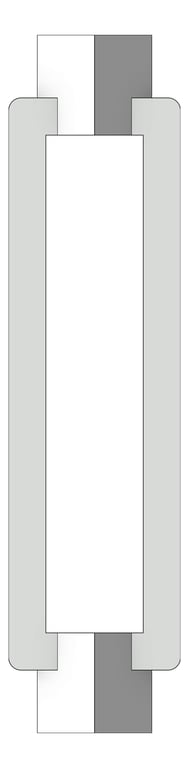

Front Image of Forged Turnbuckle Anchorage RH/LH Thread AG330
1AG330 Image of Forged Turnbuckle Anchorage RH/LH Thread AG330

Forged Turnbuckle Anchorage RH/LH Thread AG330

Galvanised carbon steel often used with AG270, AG280. Left/Right hand thread. Tapped oversize to suit galvanised threaded rod. Max 200C when galvanised.
view_module
Multi Format
Created By IGS BIM Solutions
folder_zip
Bulk Download Options
CreatedBy
IGS BIM Solutions
Manufacturer
Anchorage
Model
AG330-10
ModifiedIssue
20200529
Type Catalog
Yes
Types
