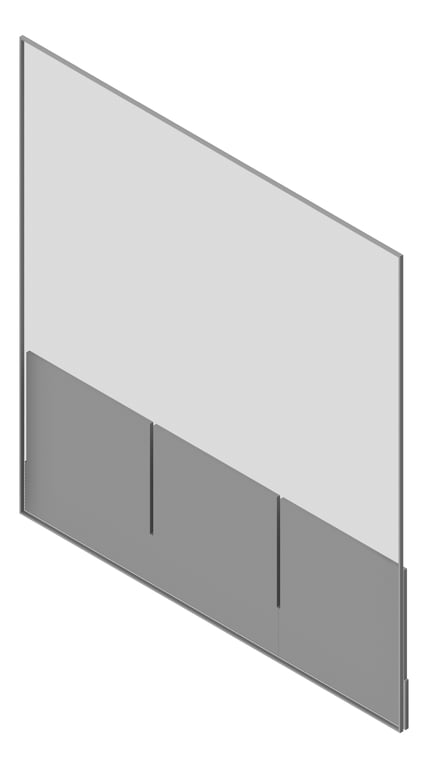

Image of FACADE Assembly VT Type1F 3900x3600mm
    3D Presentation Image of FACADE Assembly VT Type1F 3900x3600mm

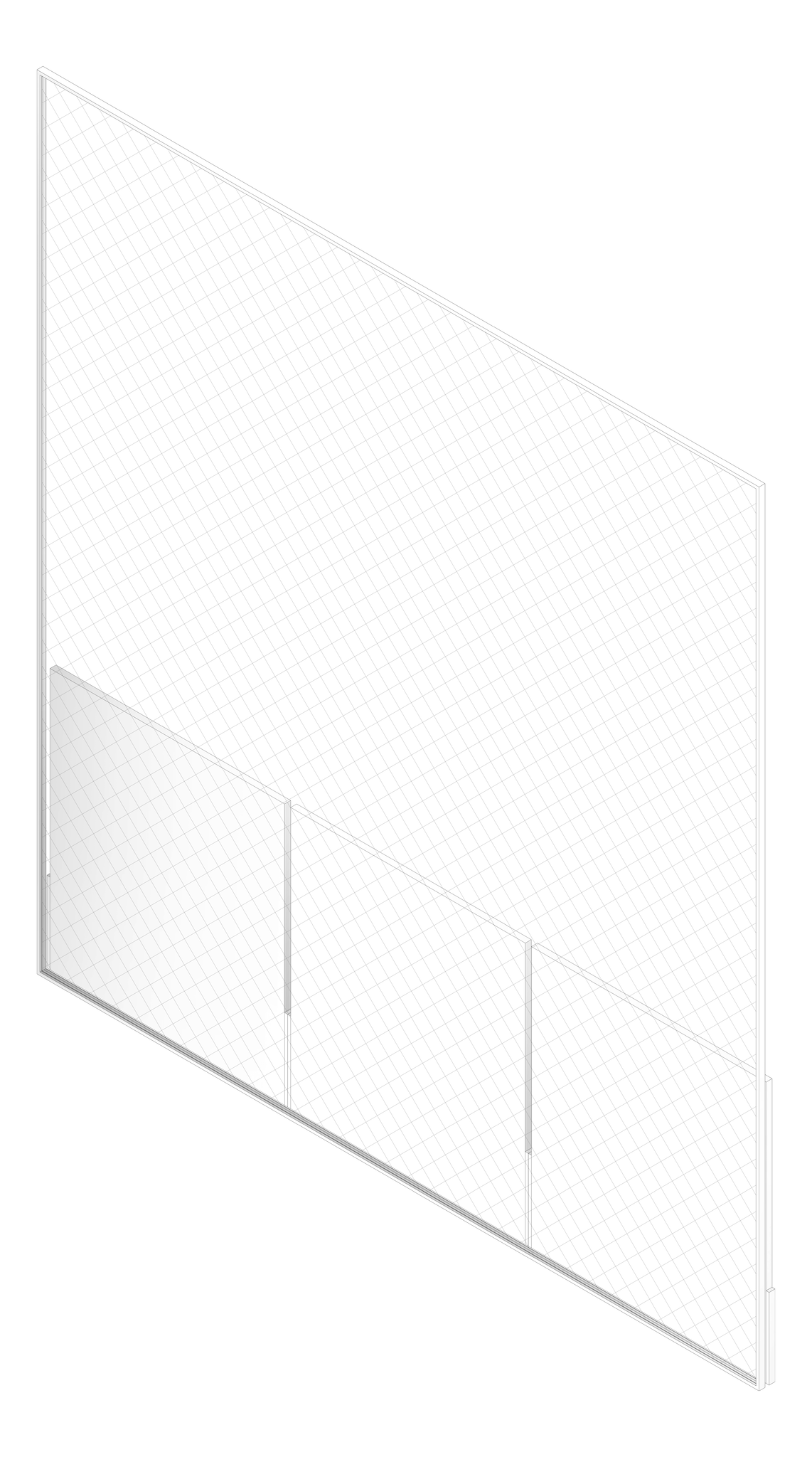

    3D Documentation Image of FACADE Assembly VT Type1F 3900x3600mm
    Plan Image of FACADE Assembly VT Type1F 3900x3600mm
    Left Image of FACADE Assembly VT Type1F 3900x3600mm

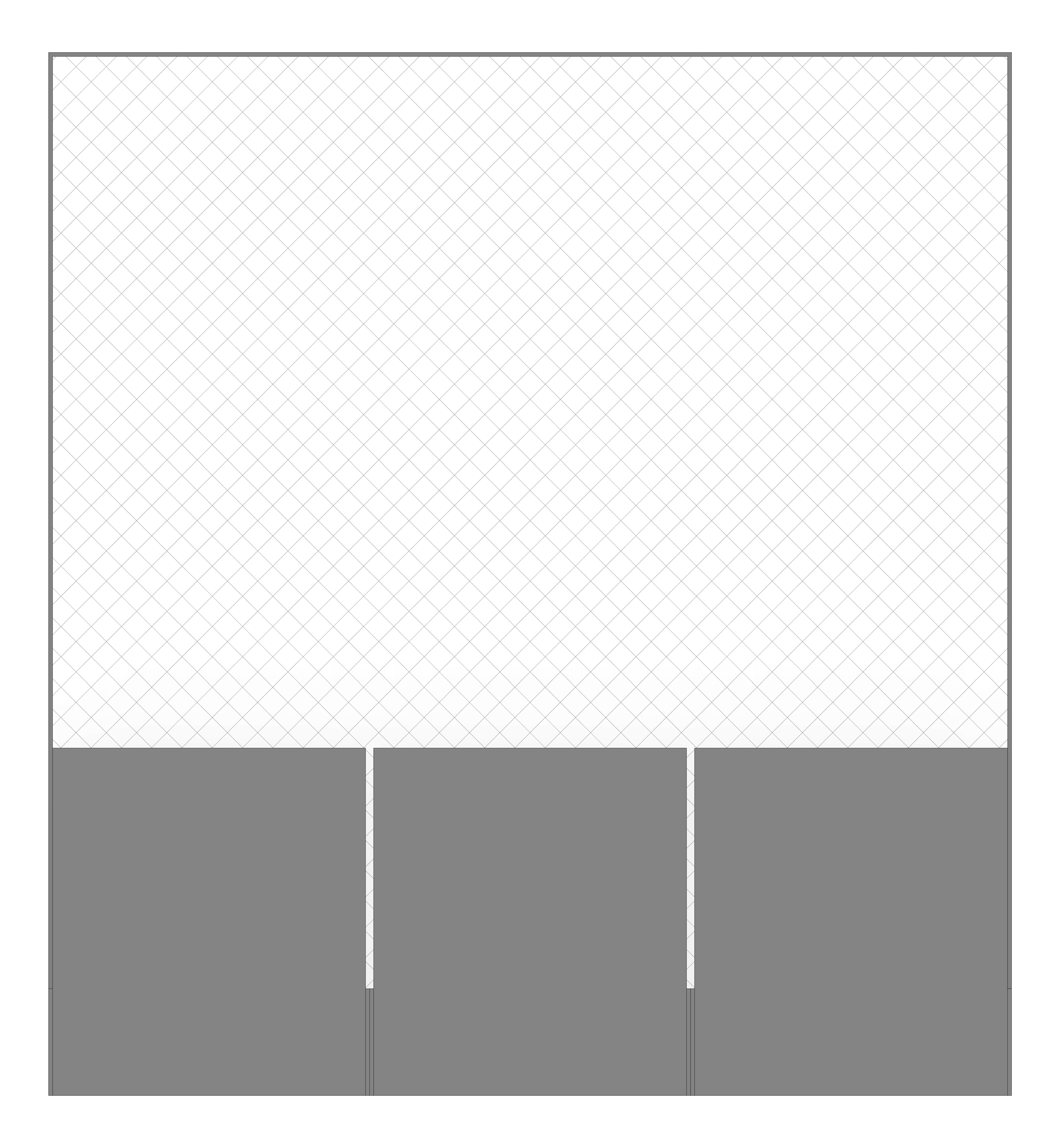

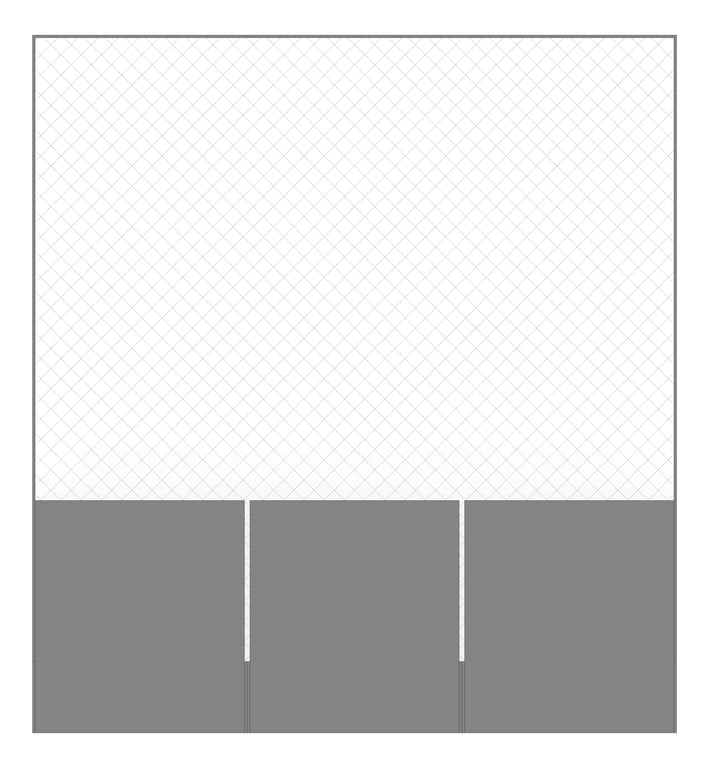

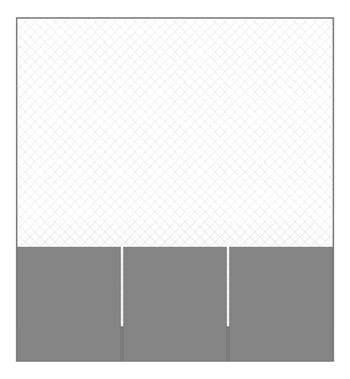

    Front Image of FACADE Assembly VT Type1F 3900x3600mm

    FACADE Assembly VT Type1F 3900x3600mm

    KOP-SINSW-ZZ-XX-DR-A-FACF-031-36

    FACADE Assembly VT Type1F 3900x3600mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    0.288 sqm
    AreaXZ
    14.04 sqm
    HeightZ
    3900 mm
    LengthX
    3600 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    7360 mm
    PerimeterXZ
    15000 mm
    Volume
    1.123 cum
    WidthY
    80 mm
