Generic Models
FACADE
FACADE Assembly Staff Type2C 3900x9600mm

Image of FACADE Assembly Staff Type2C 3900x9600mm

3D Presentation Image of FACADE Assembly Staff Type2C 3900x9600mm

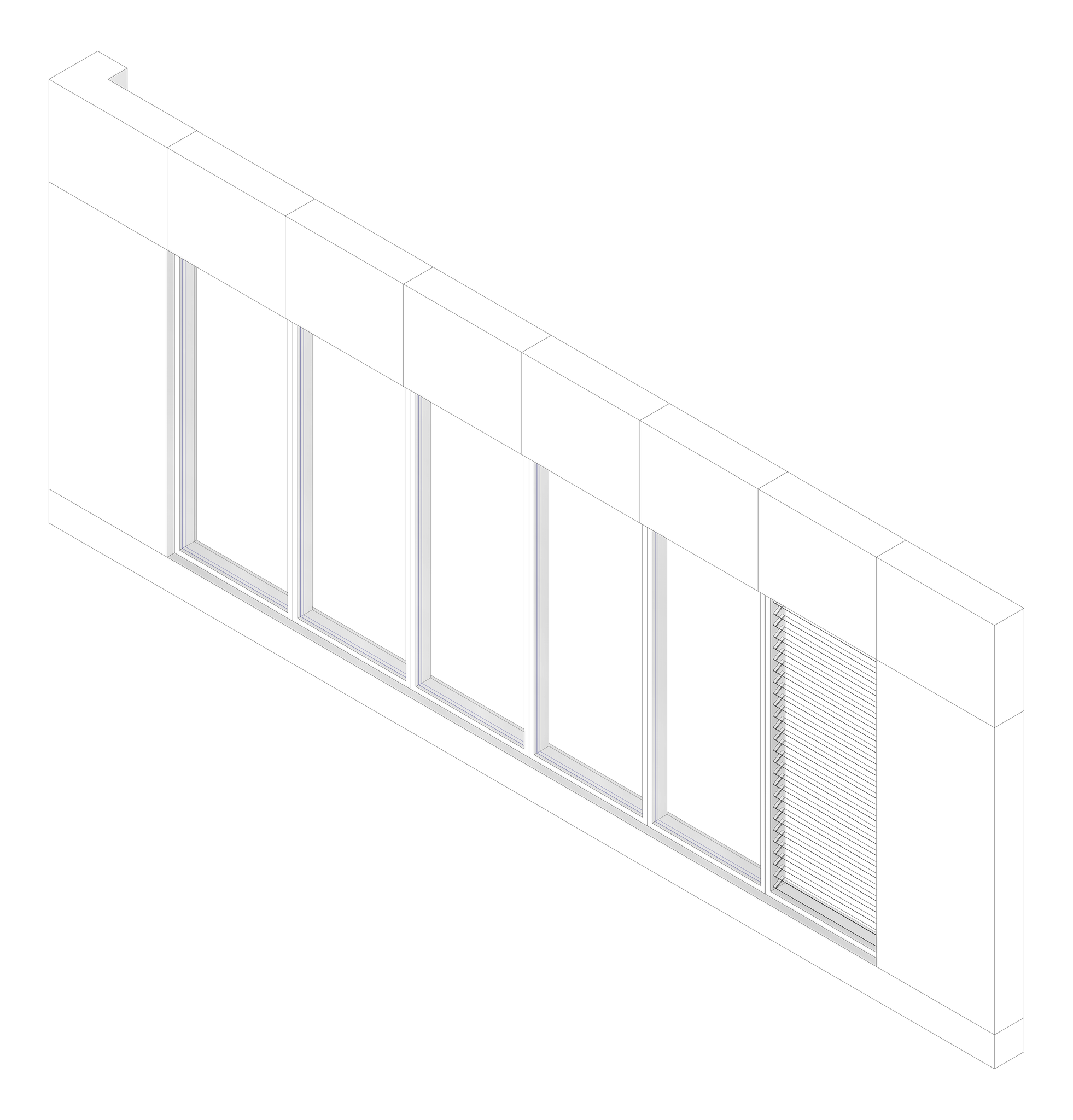

3D Documentation Image of FACADE Assembly Staff Type2C 3900x9600mm

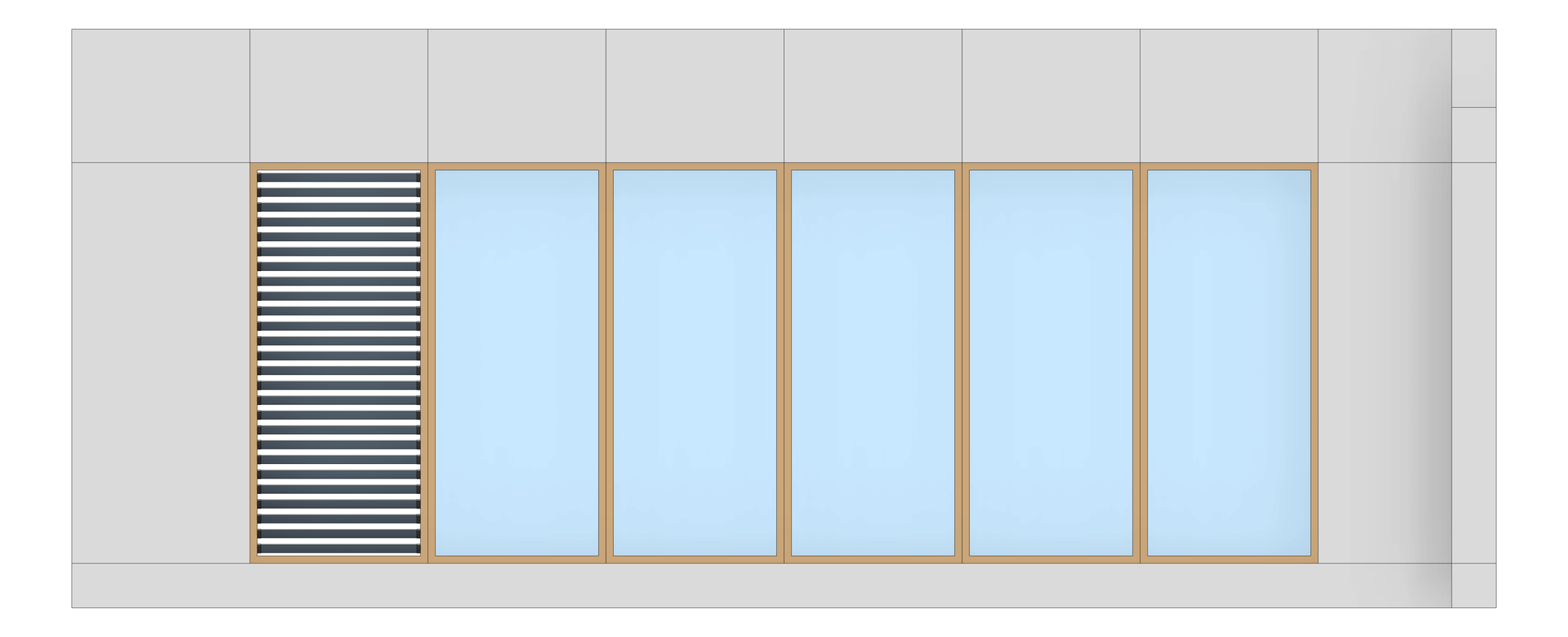

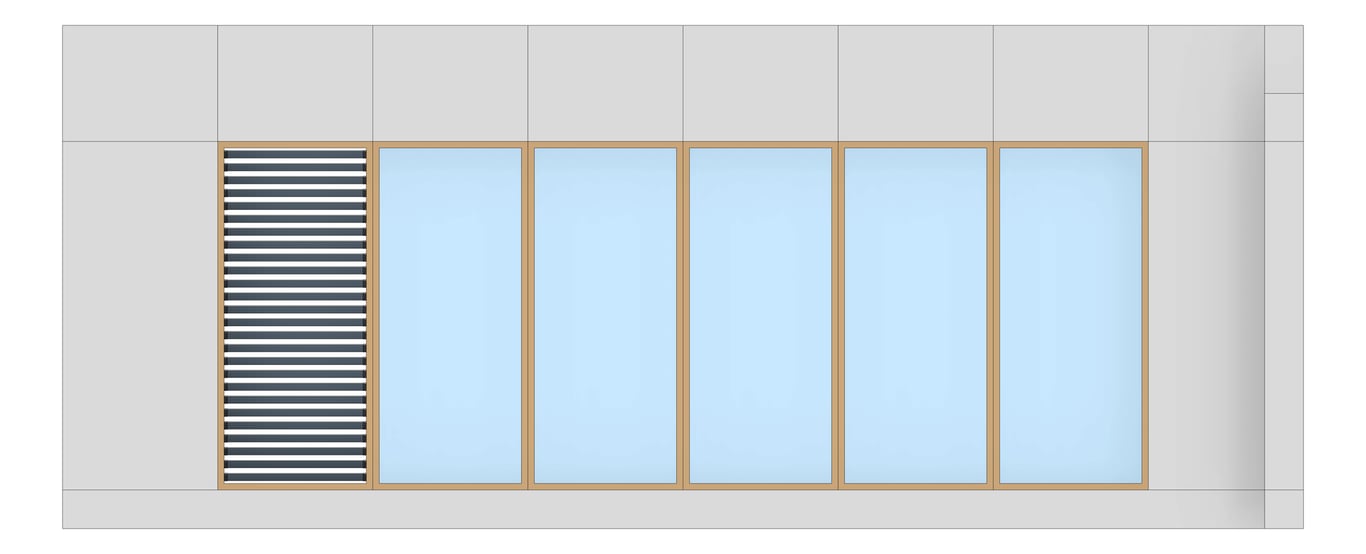

Front Image of FACADE Assembly Staff Type2C 3900x9600mm

FACADE Assembly Staff Type2C 3900x9600mm

FACADE Assembly Staff Type2C 3900x9600mm

For access to the Kit of Parts models, please Contact Us

Advanced Materials

Created By IGS BIM Solutions

Bulk Download Options

AreaXY

5.76 sqm

AreaXZ

37.44 sqm

HeightZ

3899 mm

LengthX

9600 mm

ModifiedIssue

V01.01

PerimeterXY

20400 mm

PerimeterXZ

26998 mm

Volume

22.464 cum

WidthY

600 mm

Types

Connect with the Manufacturer

RESEARCH PRODUCT

Related content

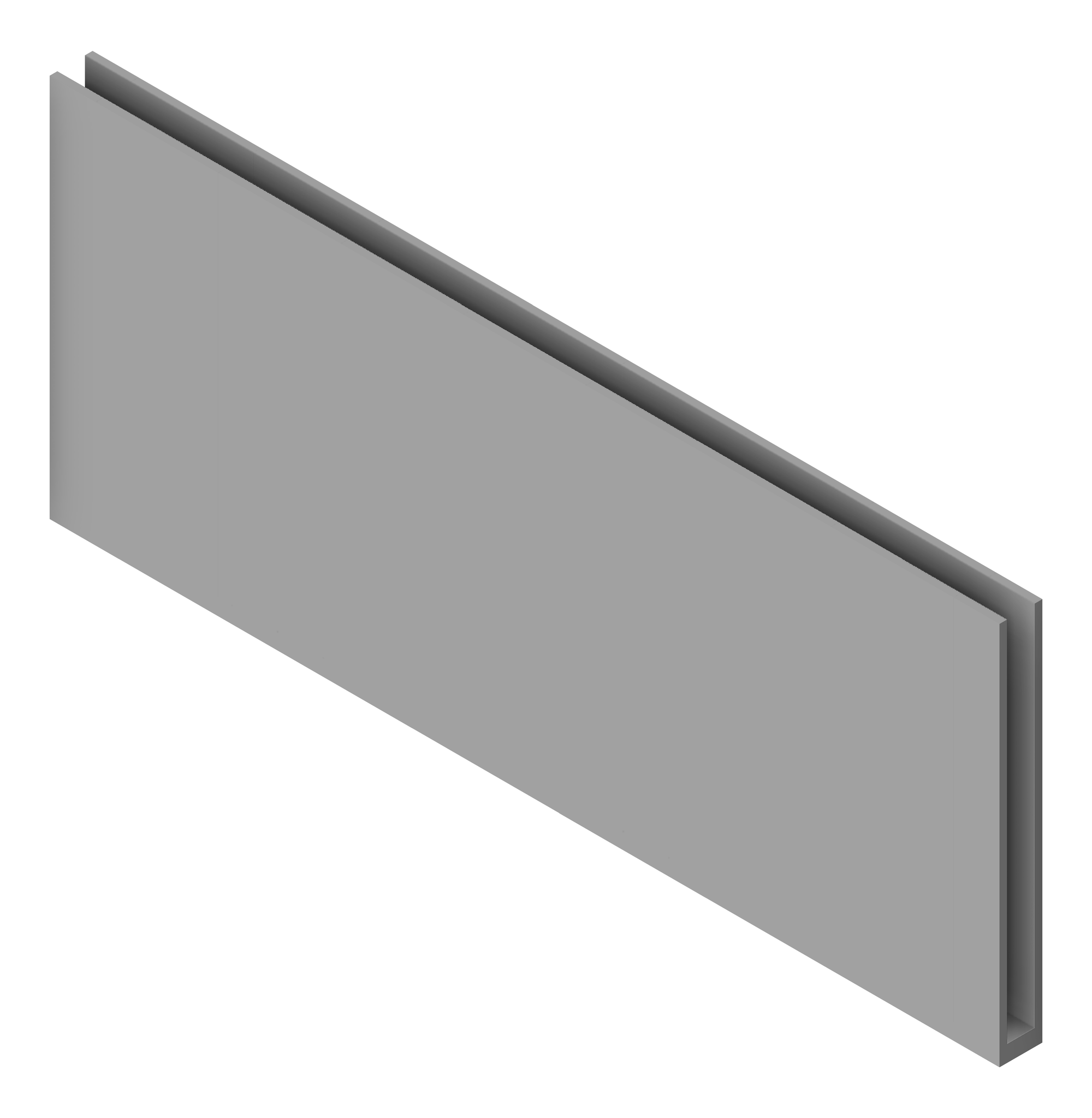

Navigate to WALL Assembly Partition TypeB5 3760x9300mm
