Image of FACADE Assembly Staff Type1C 3900x9600mm
    3D Presentation Image of FACADE Assembly Staff Type1C 3900x9600mm

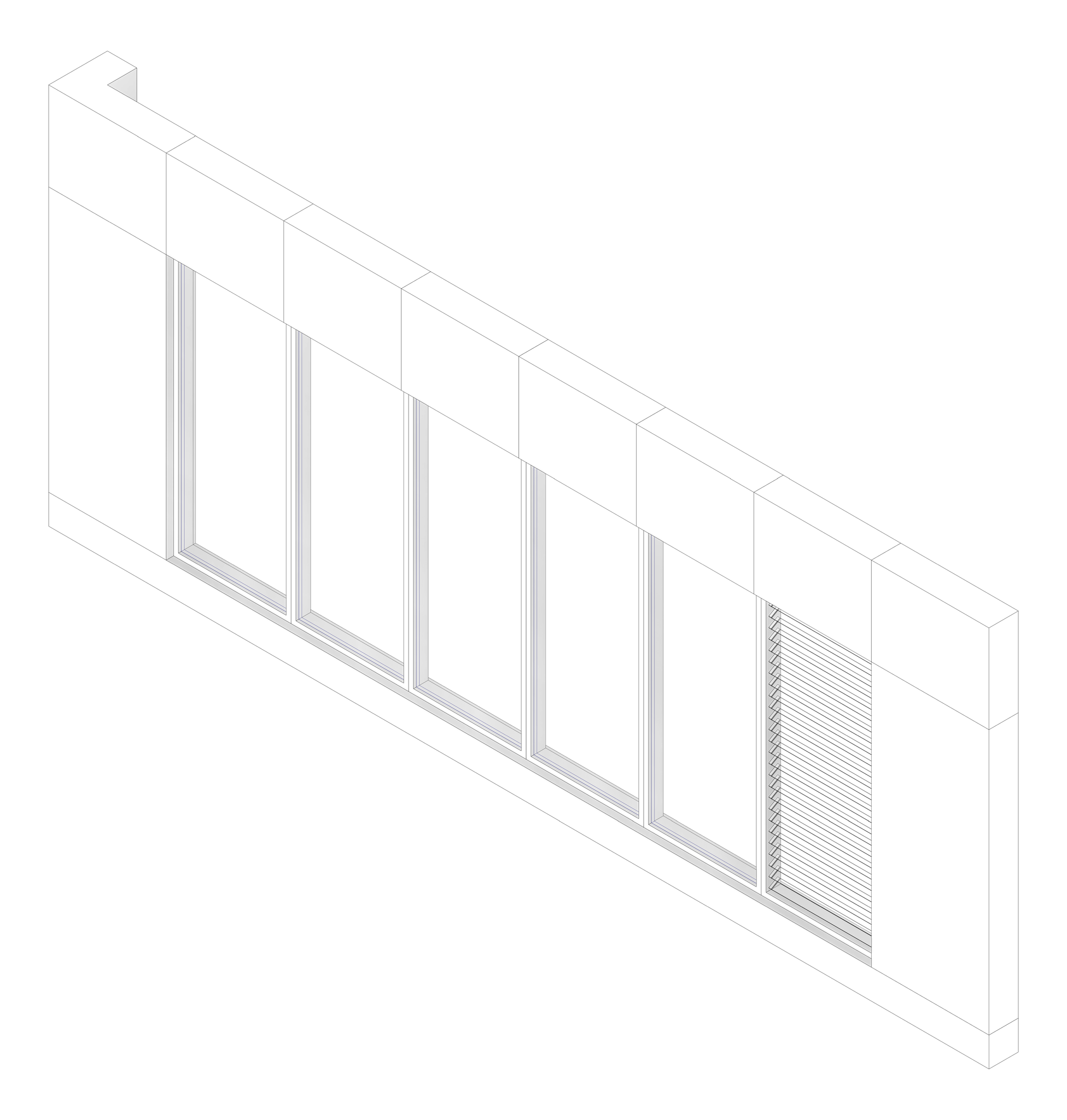

    3D Documentation Image of FACADE Assembly Staff Type1C 3900x9600mm

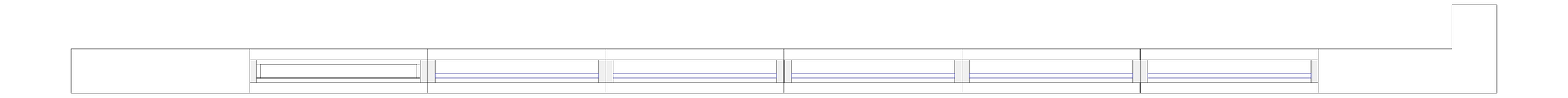

    Plan Image of FACADE Assembly Staff Type1C 3900x9600mm

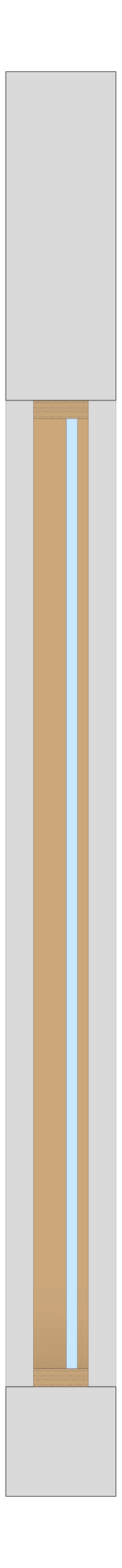

    Left Image of FACADE Assembly Staff Type1C 3900x9600mm

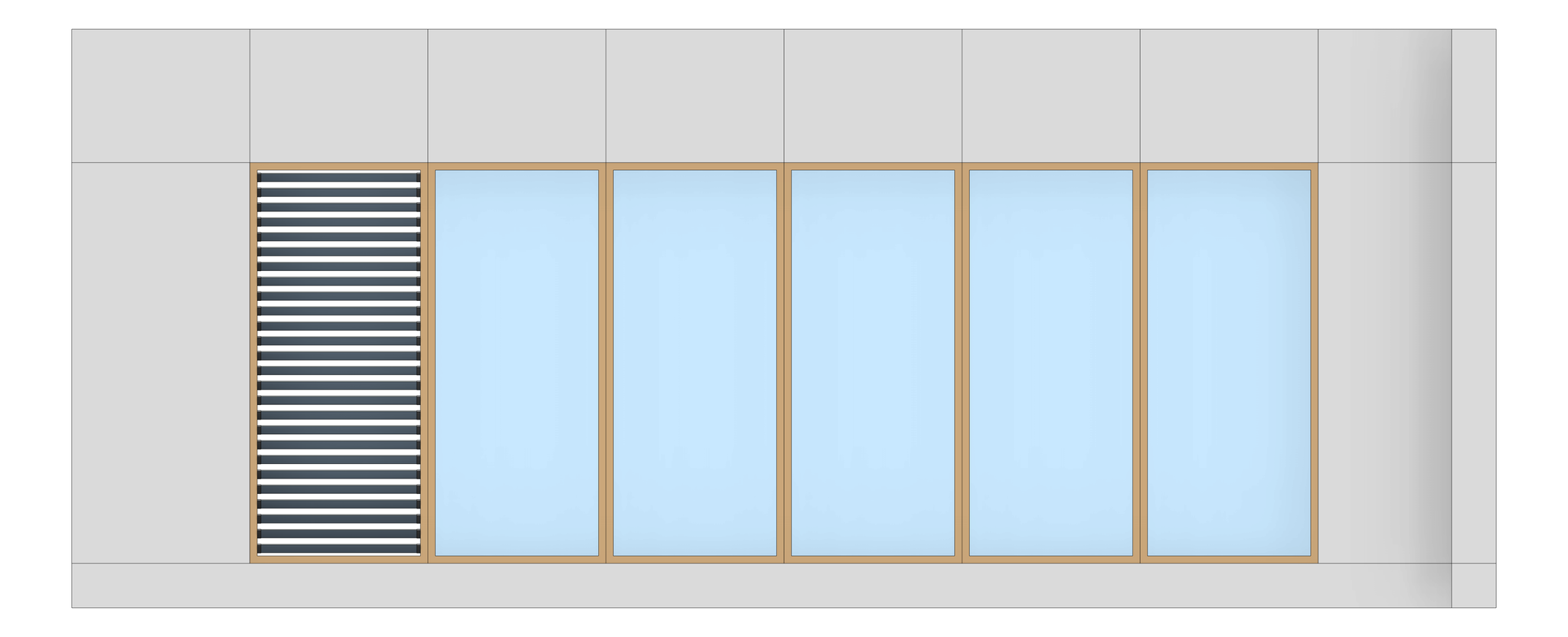

    Front Image of FACADE Assembly Staff Type1C 3900x9600mm

    FACADE Assembly Staff Type1C 3900x9600mm

    KOP-SINSW-ZZ-XX-DR-A-FACC-024-90

    FACADE Assembly Staff Type1C 3900x9600mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    5.76 sqm
    AreaXZ
    37.44 sqm
    HeightZ
    3900 mm
    LengthX
    9600 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    20400 mm
    PerimeterXZ
    27000 mm
    Volume
    22.464 cum
    WidthY
    600 mm
    Types
