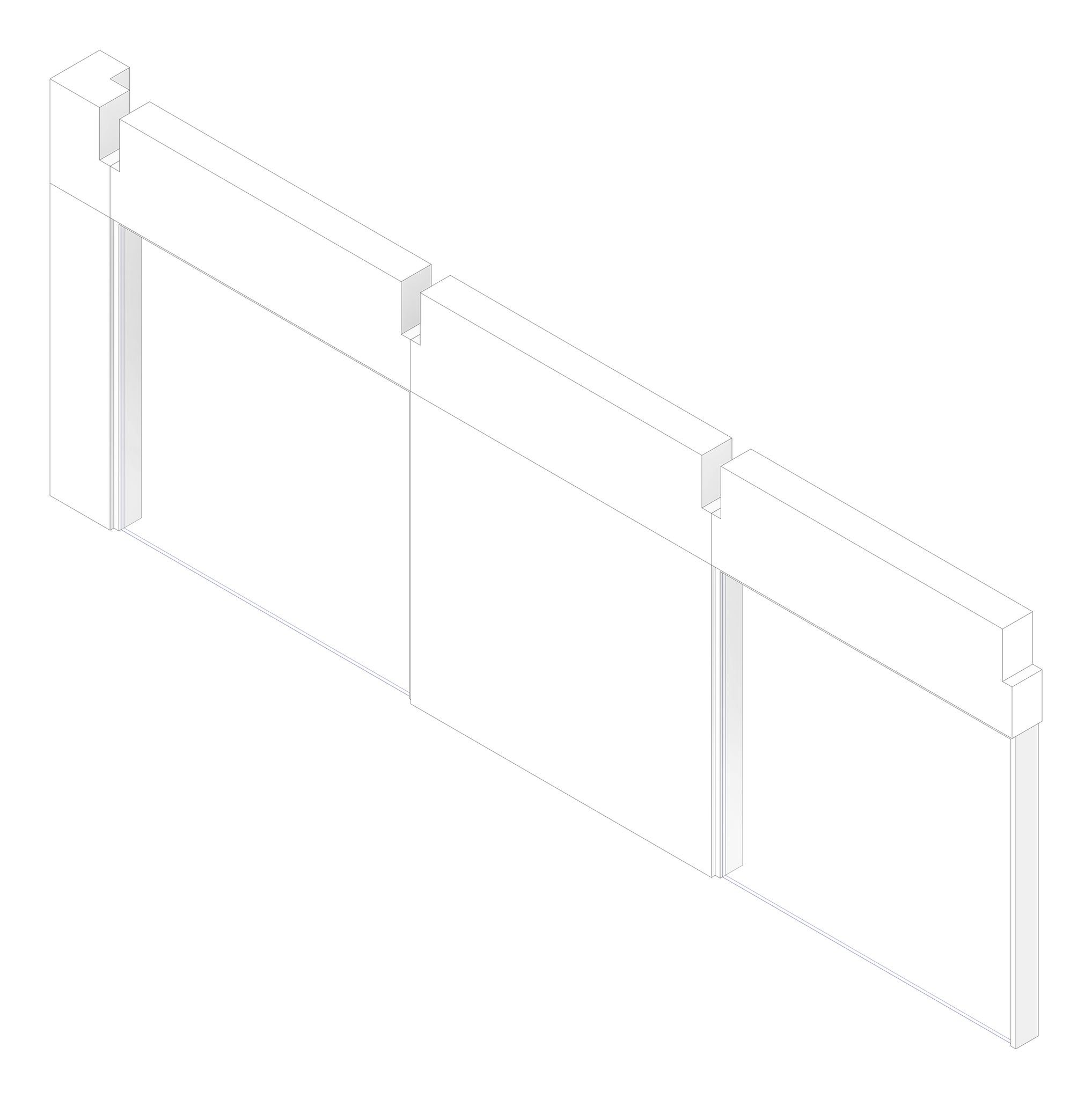

    3D Documentation Image of FACADE Assembly Science Type2D 3600x9000mm

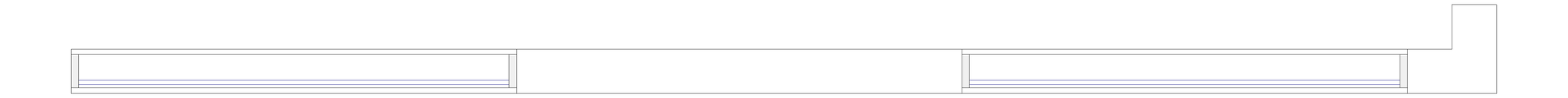

    Plan Image of FACADE Assembly Science Type2D 3600x9000mm

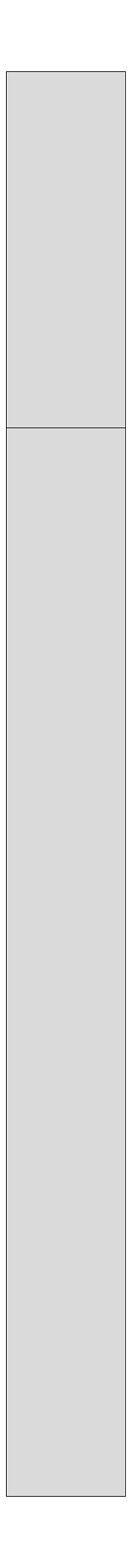

    Left Image of FACADE Assembly Science Type2D 3600x9000mm

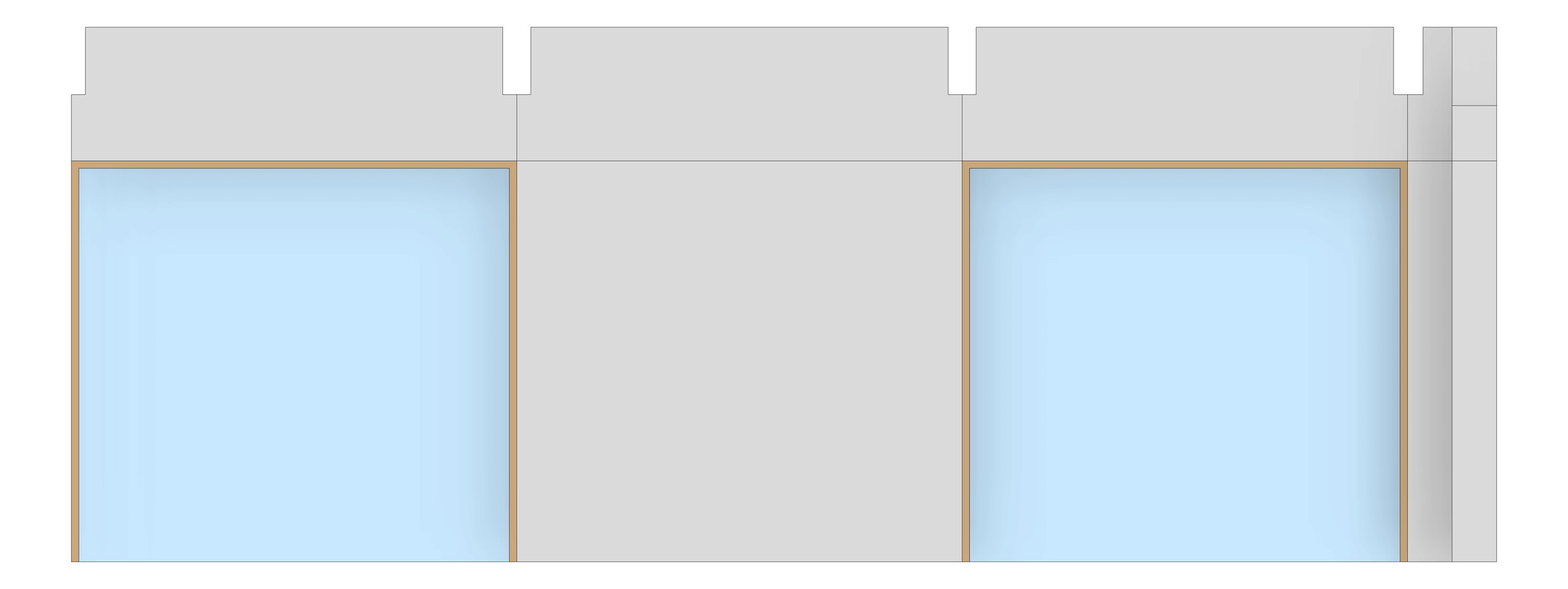

    Front Image of FACADE Assembly Science Type2D 3600x9000mm

    FACADE Assembly Science Type2D 3600x9000mm

    KOP-SINSW-ZZ-XX-DR-A-FACD-028-90

    FACADE Assembly Science Type2D 3600x9000mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    5.76 sqm
    AreaXZ
    34.56 sqm
    HeightZ
    3600 mm
    LengthX
    9600 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    20400 mm
    PerimeterXZ
    26400 mm
    Volume
    20.736 cum
    WidthY
    600 mm
