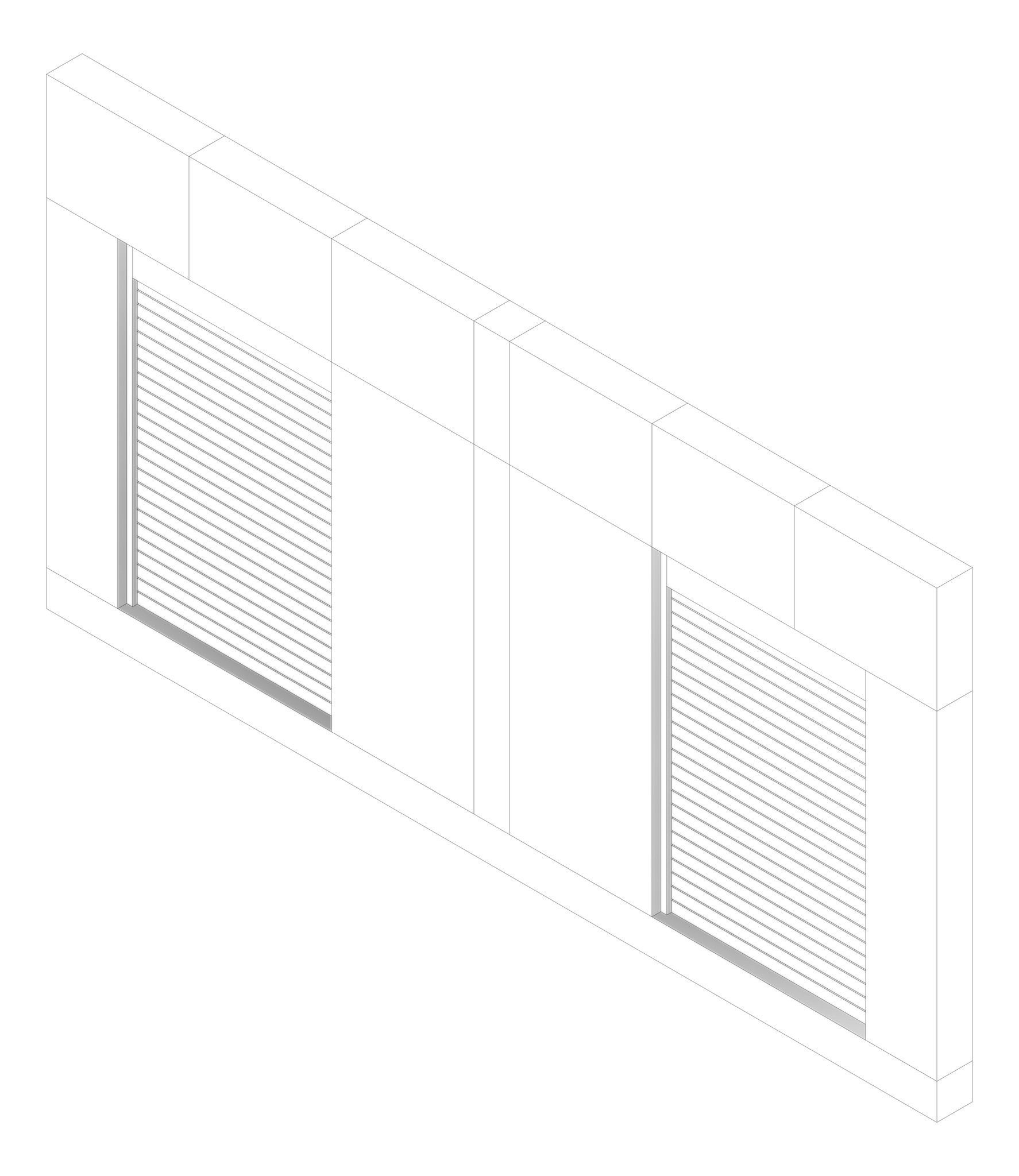

    3D Documentation Image of FACADE Assembly Metal-And-Wood Type1B 3900x7500mm
    Plan Image of FACADE Assembly Metal-And-Wood Type1B 3900x7500mm

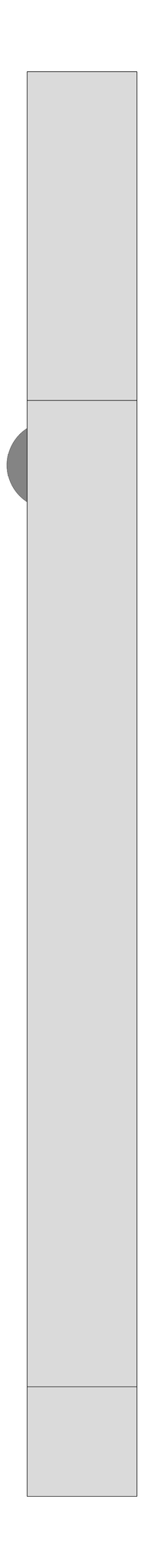

    Left Image of FACADE Assembly Metal-And-Wood Type1B 3900x7500mm

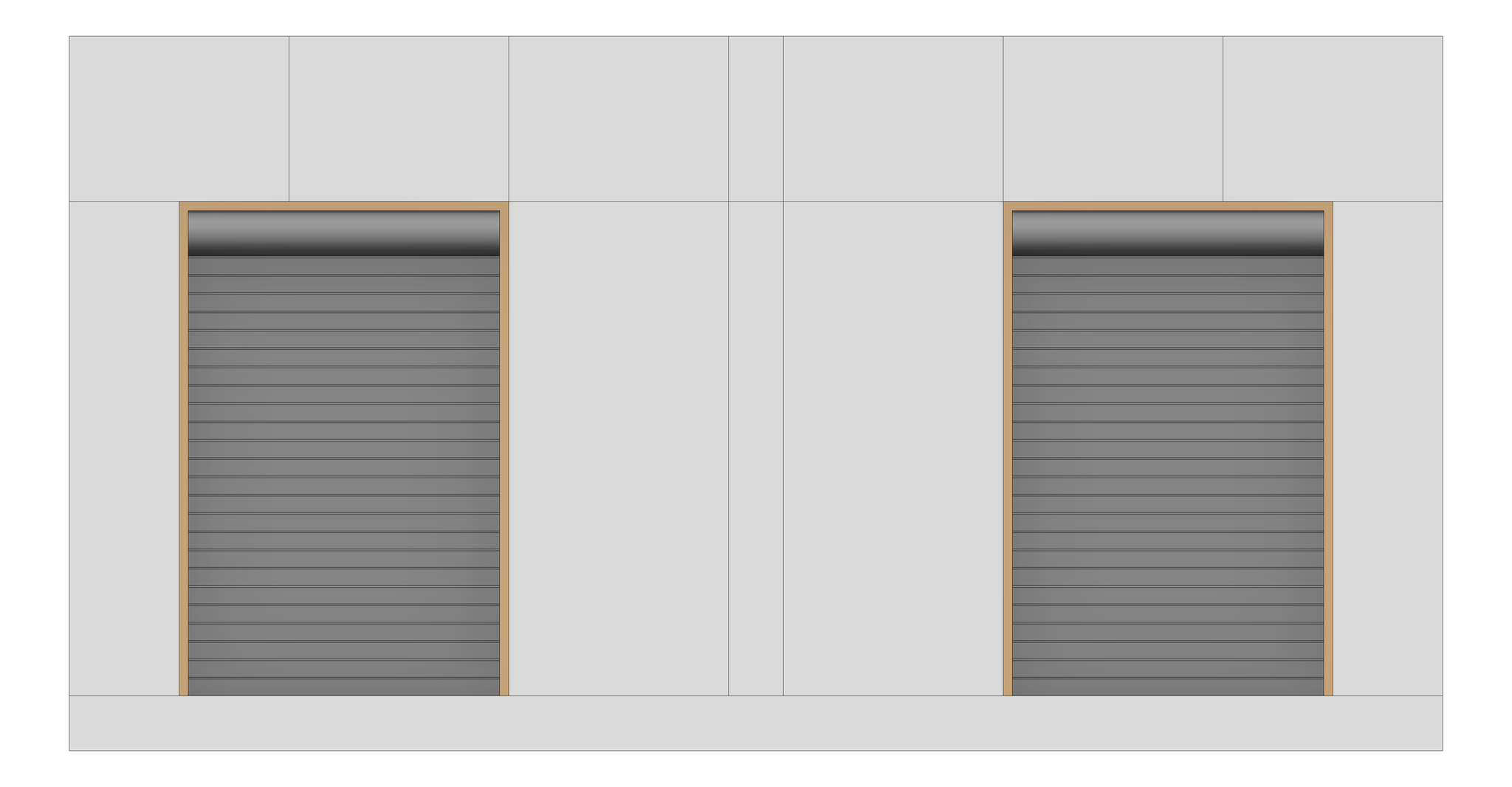

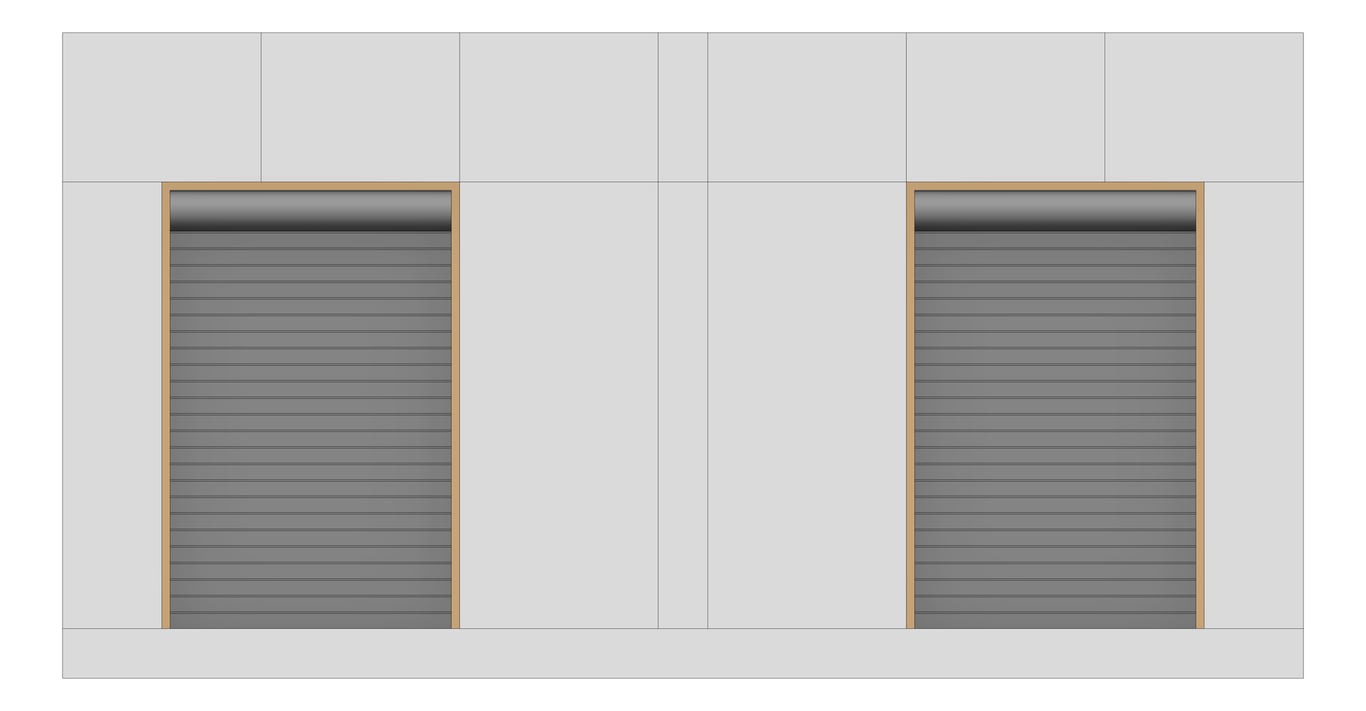

    Front Image of FACADE Assembly Metal-And-Wood Type1B 3900x7500mm

    FACADE Assembly Metal-And-Wood Type1B 3900x7500mm

    KOP-SINSW-ZZ-XX-DR-A-FACB-021-75

    FACADE Assembly Metal-And-Wood Type1B 3900x7500mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    2.657 sqm
    AreaXZ
    29.25 sqm
    HeightZ
    3900 mm
    LengthX
    7500 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    15708 mm
    PerimeterXZ
    22800 mm
    Volume
    10.363 cum
    WidthY
    354 mm
