FACADE Assembly General Type13C 3900x9600mm

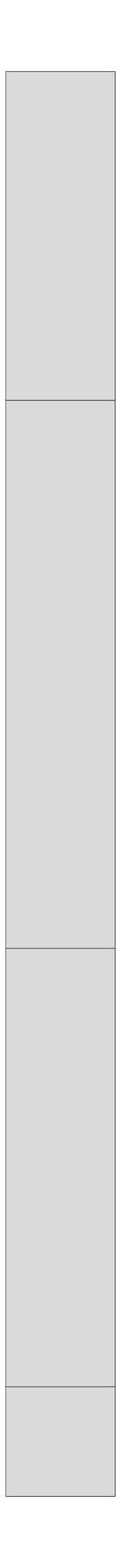

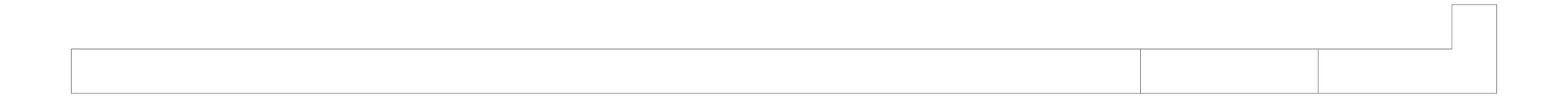

Image of FACADE Assembly General Type13C 3900x9600mm

3D Presentation Image of FACADE Assembly General Type13C 3900x9600mm

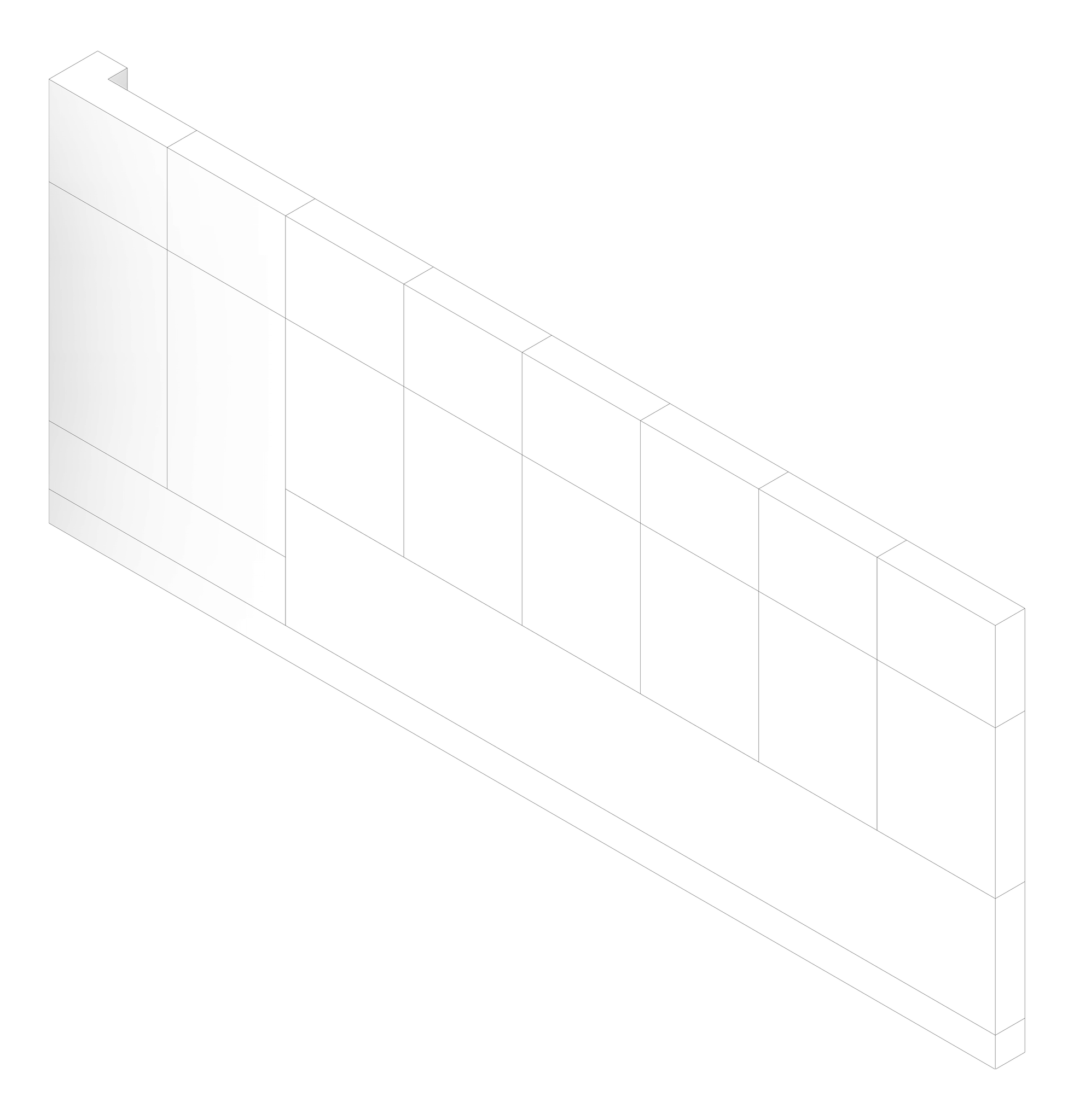

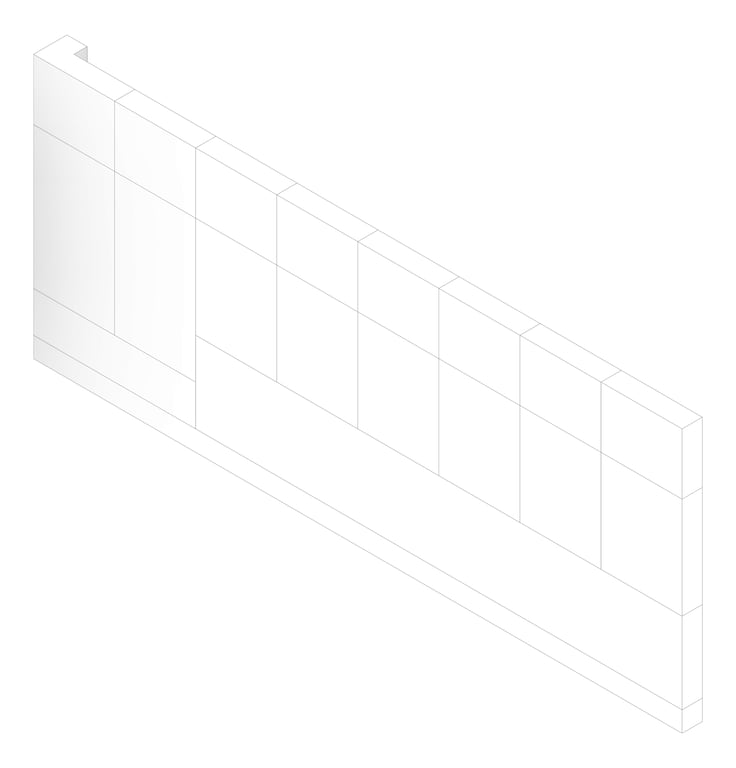

3D Documentation Image of FACADE Assembly General Type13C 3900x9600mm

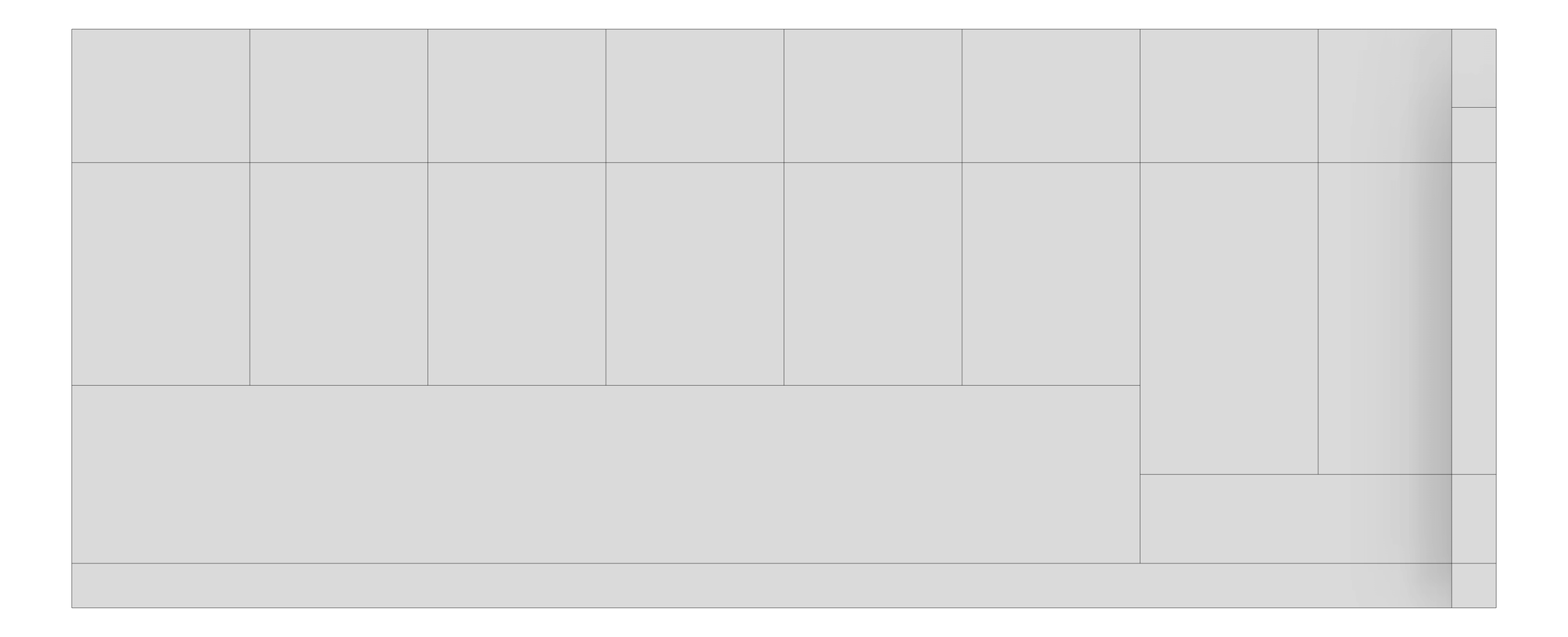

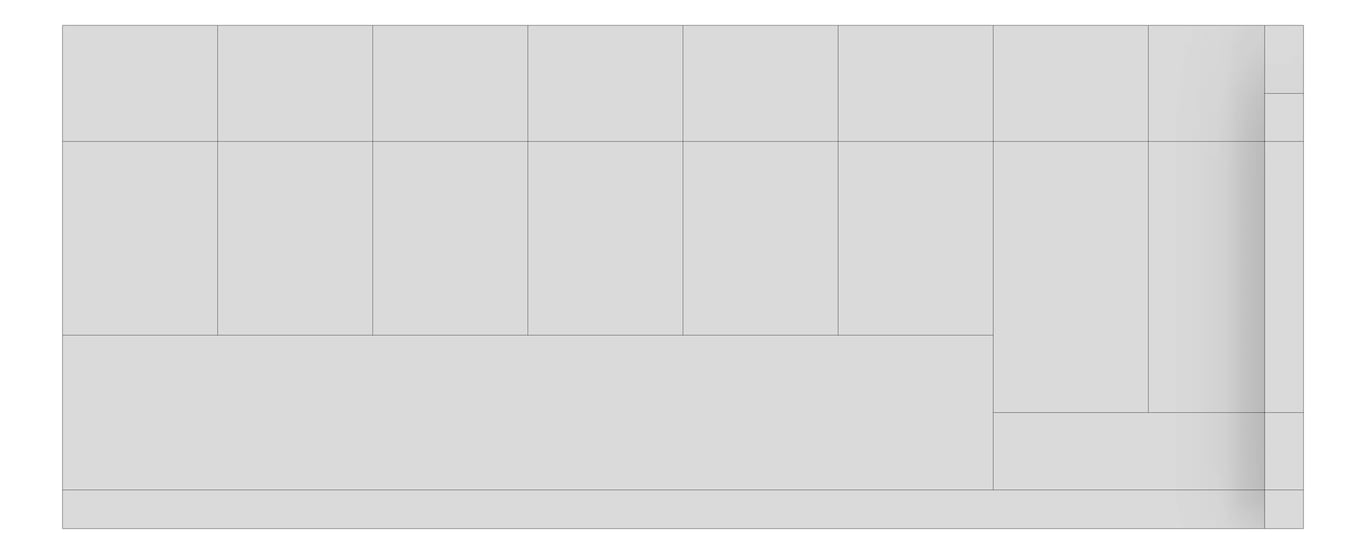

Front Image of FACADE Assembly General Type13C 3900x9600mm

FACADE Assembly General Type13C 3900x9600mm

FACADE Assembly General Type13C 3900x9600mm

For access to the Kit of Parts models, please Contact Us

Advanced Materials

Created By IGS BIM Solutions

Bulk Download Options

AreaXY

5.76 sqm

AreaXZ

37.44 sqm

HeightZ

3900 mm

LengthX

9600 mm

ModifiedIssue

V01.01

PerimeterXY

20400 mm

PerimeterXZ

27000 mm

Volume

22.464 cum

WidthY

600 mm

Types

Connect with the Manufacturer

RESEARCH PRODUCT

Related content

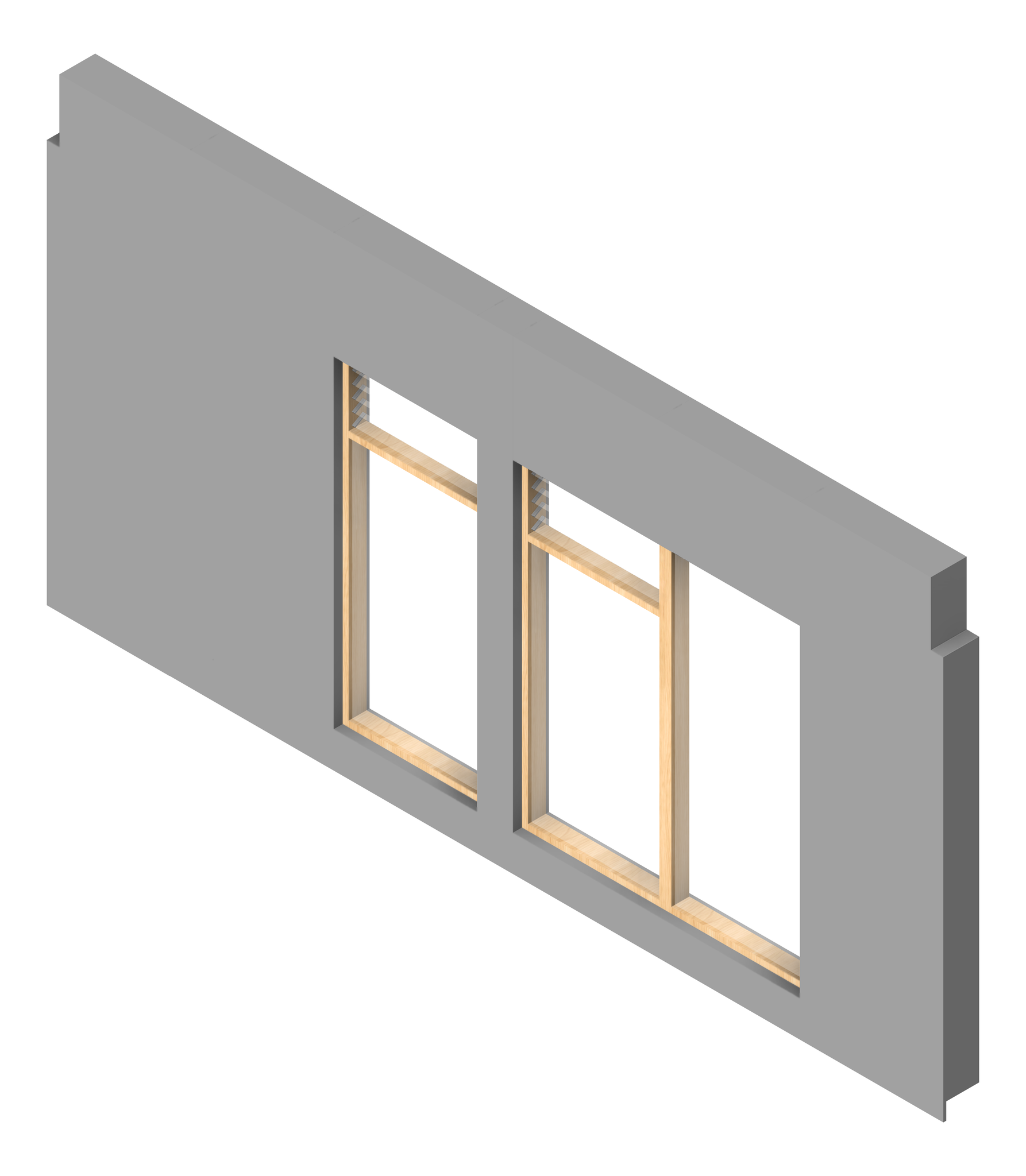

Navigate to FACADE Assembly General Type6A 3900x7500mm

FACADE Assembly General Type6A 3900x7500mm

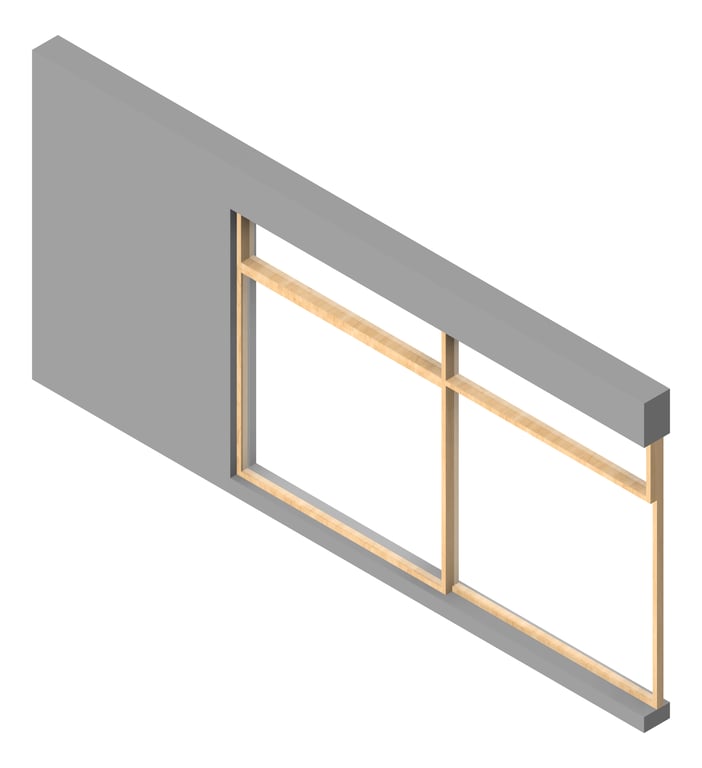

Navigate to WALL Assembly Partition TypeA1 3146x7100mm
