Image of FACADE Assembly General Type11C 3900x9600mm
3D Presentation Image of FACADE Assembly General Type11C 3900x9600mm

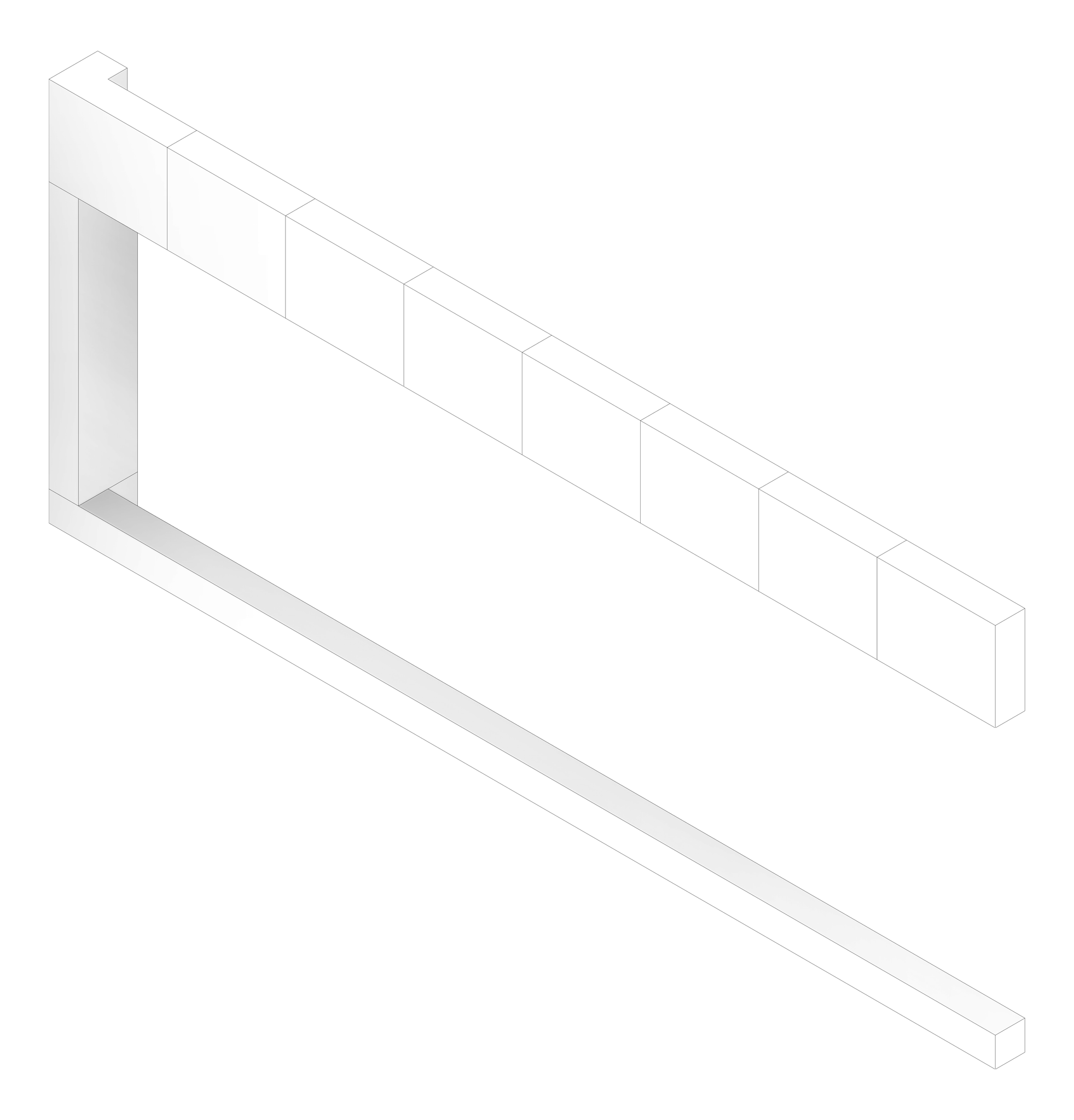

3D Documentation Image of FACADE Assembly General Type11C 3900x9600mm

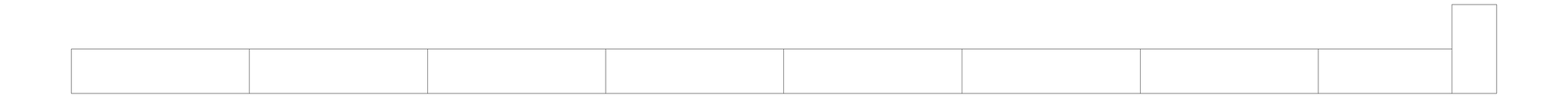

Plan Image of FACADE Assembly General Type11C 3900x9600mm

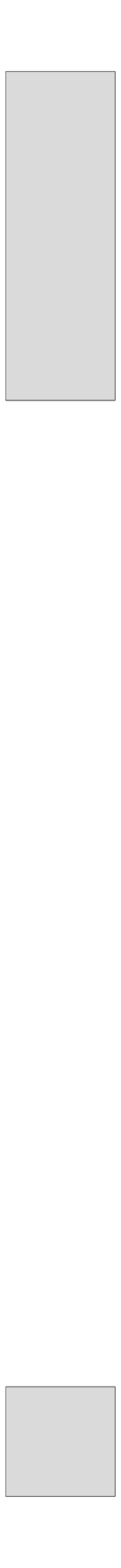

Left Image of FACADE Assembly General Type11C 3900x9600mm

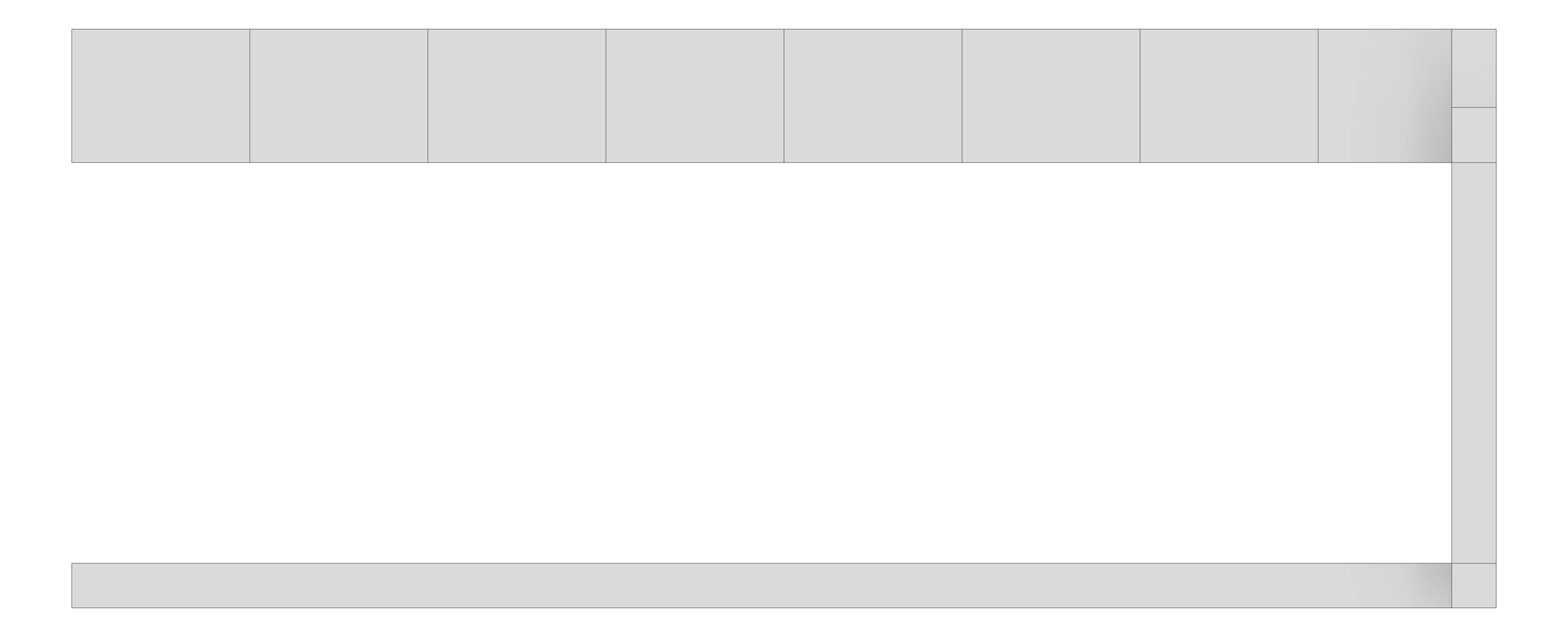

Front Image of FACADE Assembly General Type11C 3900x9600mm

FACADE Assembly General Type11C 3900x9600mm

FACADE Assembly General Type11C 3900x9600mm



For access to the Kit of Parts models, please Contact Us

Advanced Materials
Created By IGS BIM Solutions
Bulk Download Options
AreaXY
5.76 sqm
AreaXZ
37.44 sqm
HeightZ
3899 mm
LengthX
9600 mm
ModifiedIssue
V01.01
PerimeterXY
20400 mm
PerimeterXZ
26998 mm
Volume
22.464 cum
WidthY
600 mm
Types
