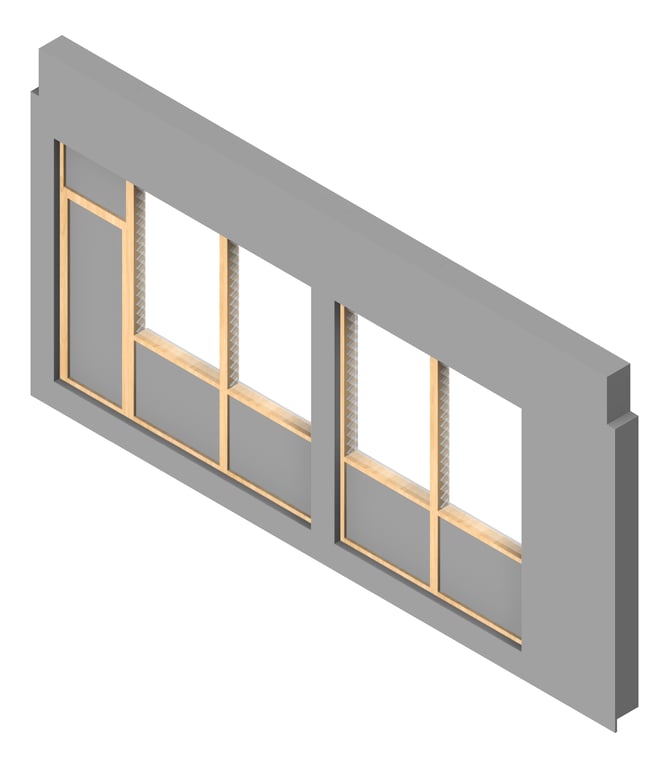

Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm
    3D Presentation Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm

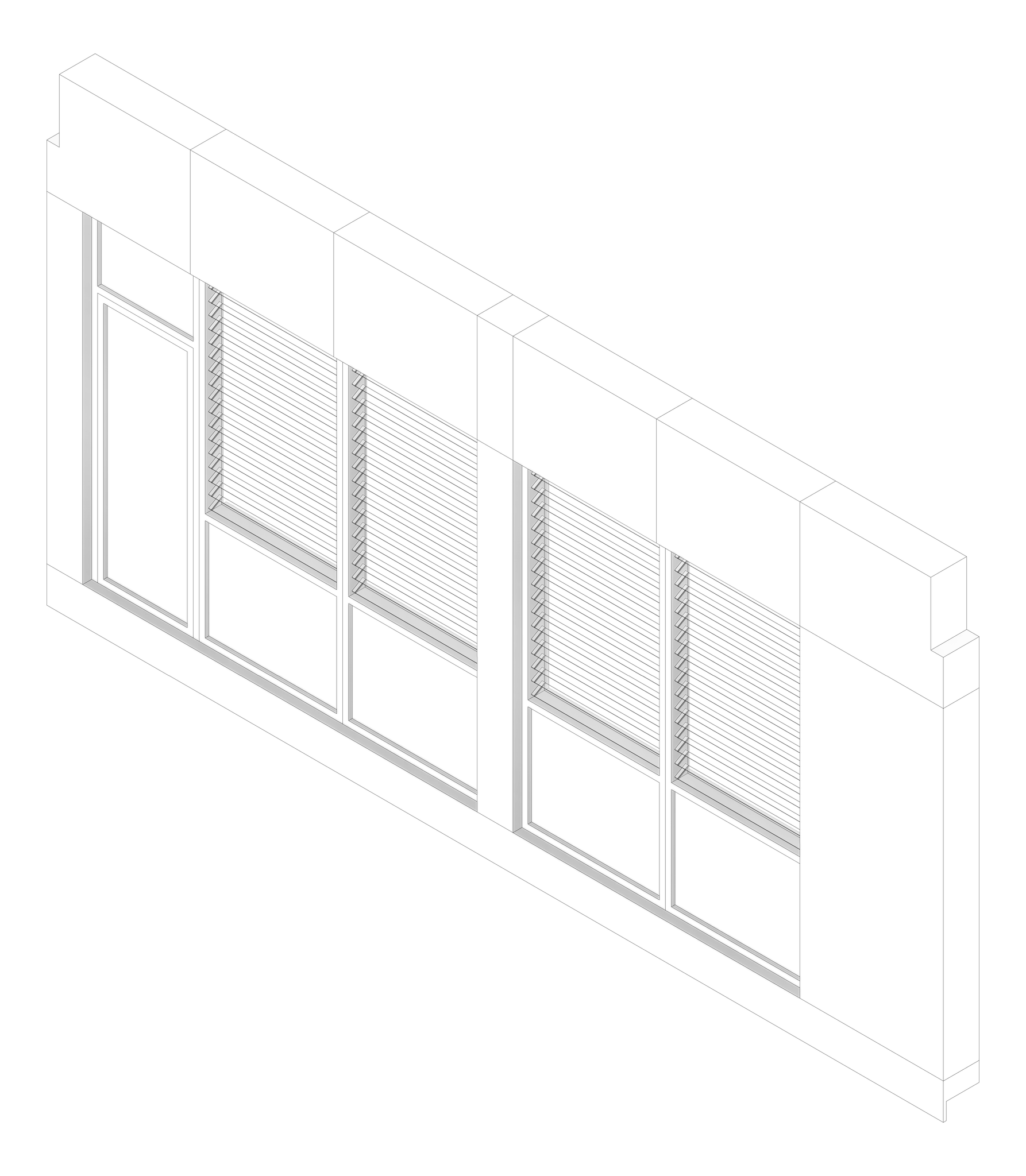

    3D Documentation Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm

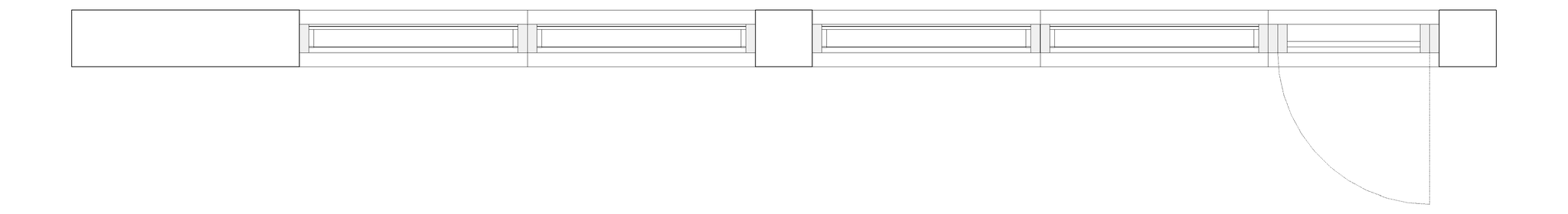

    Plan Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm

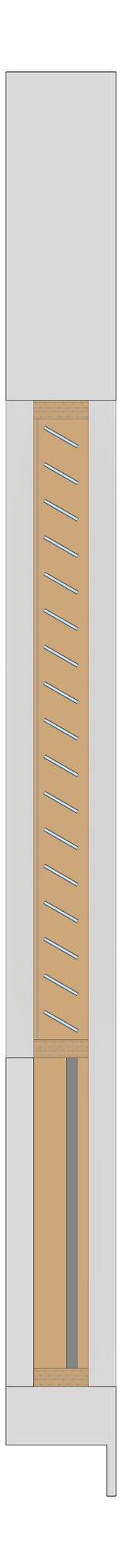

    Left Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm

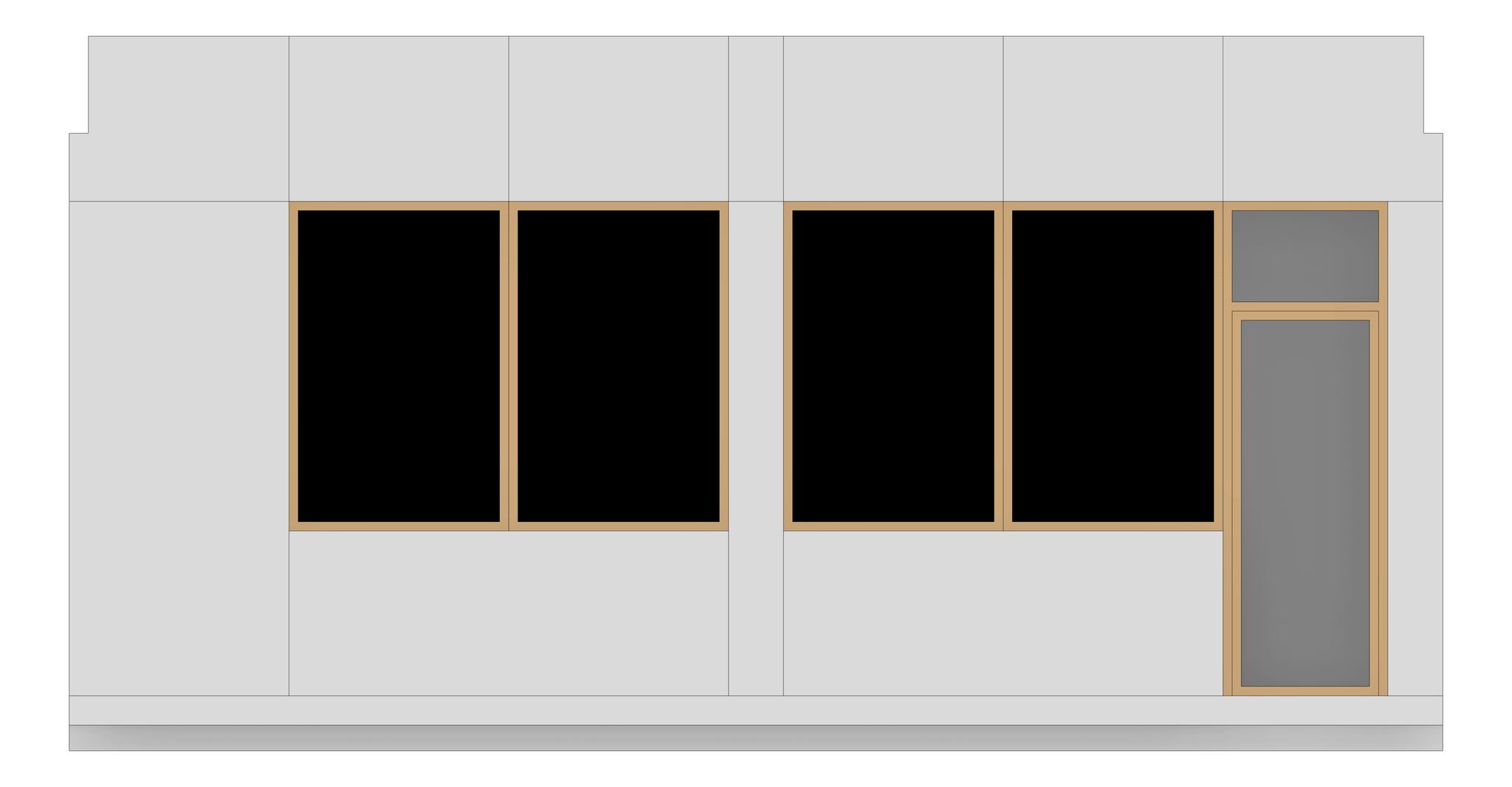

    Front Image of FACADE Assembly Food-And-Textile Type4A 3900x7500mm

    FACADE Assembly Food-And-Textile Type4A 3900x7500mm

    KOP-SINSW-ZZ-XX-DR-A-FACA-016-75

    FACADE Assembly Food-And-Textile Type4A 3900x7500mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    2.25 sqm
    AreaXZ
    29.25 sqm
    HeightZ
    3900 mm
    LengthX
    7500 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    15600 mm
    PerimeterXZ
    22800 mm
    Volume
    8.775 cum
    WidthY
    300 mm
    Types
