Image of FACADE Assembly Admin Type4A 3900x7500mm
3D Presentation Image of FACADE Assembly Admin Type4A 3900x7500mm

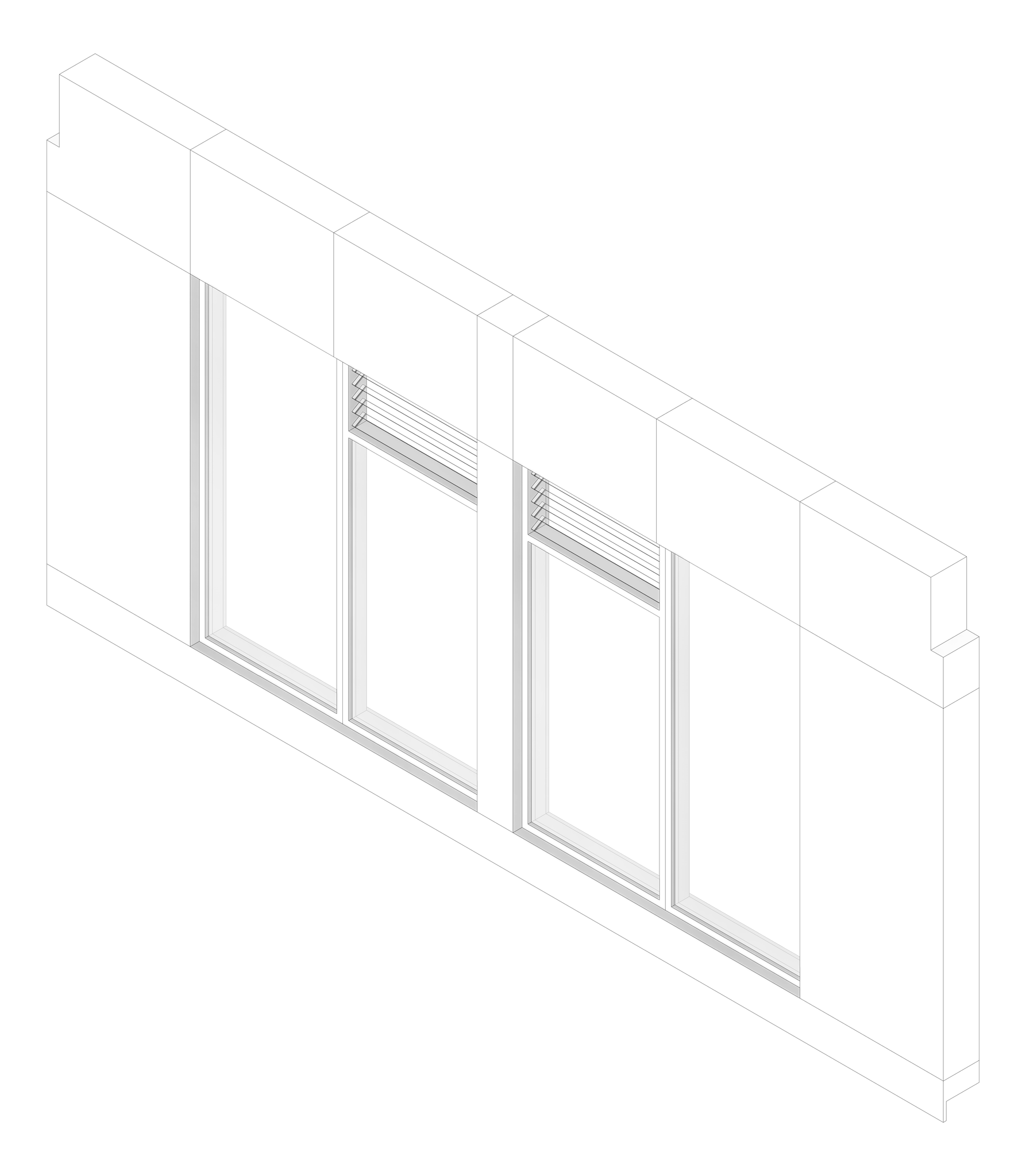

3D Documentation Image of FACADE Assembly Admin Type4A 3900x7500mm
Plan Image of FACADE Assembly Admin Type4A 3900x7500mm

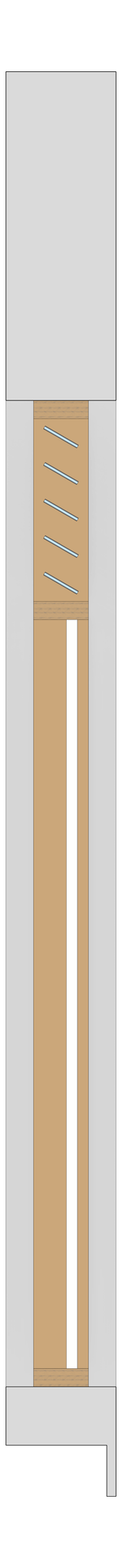

Left Image of FACADE Assembly Admin Type4A 3900x7500mm

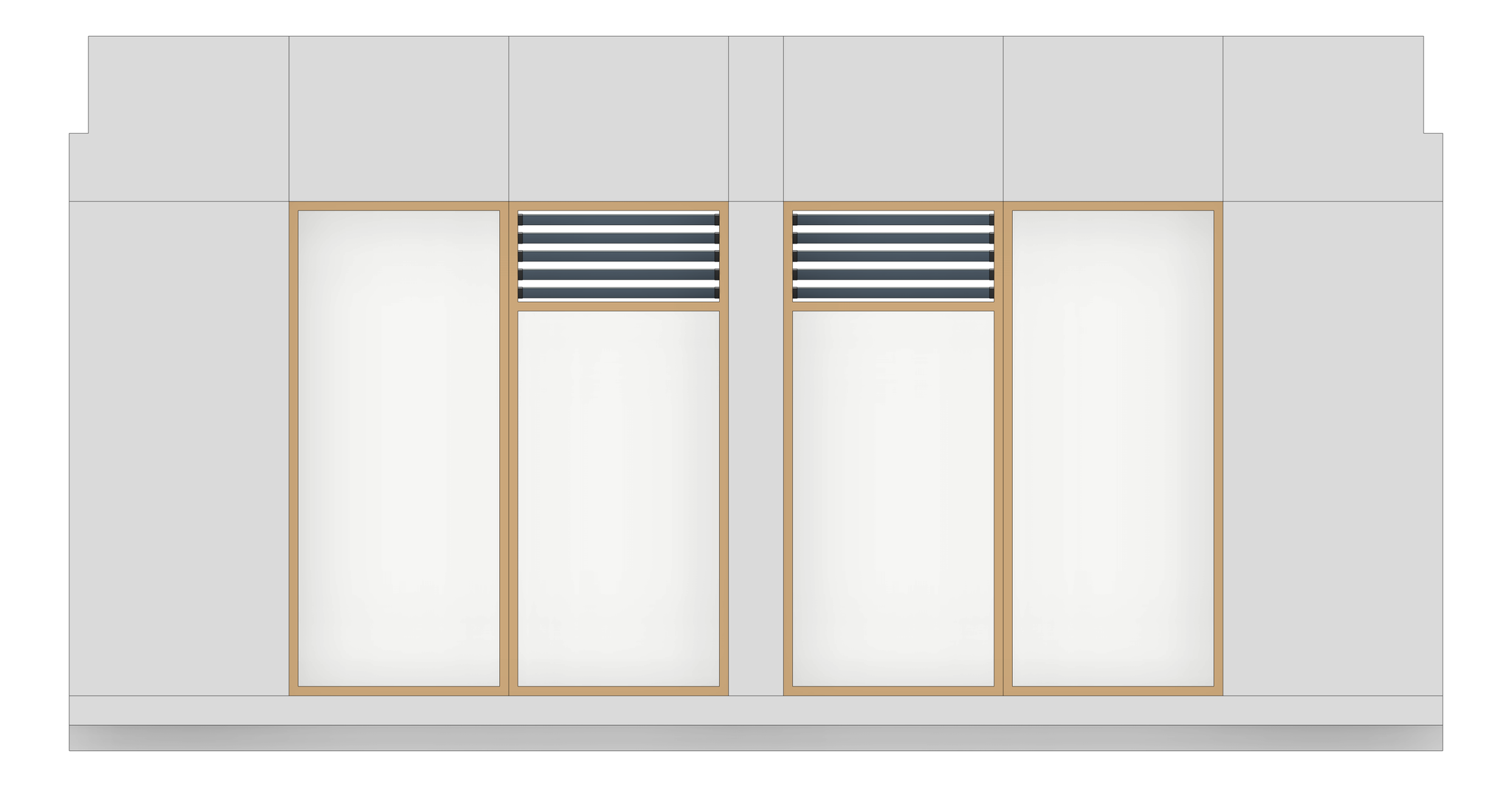

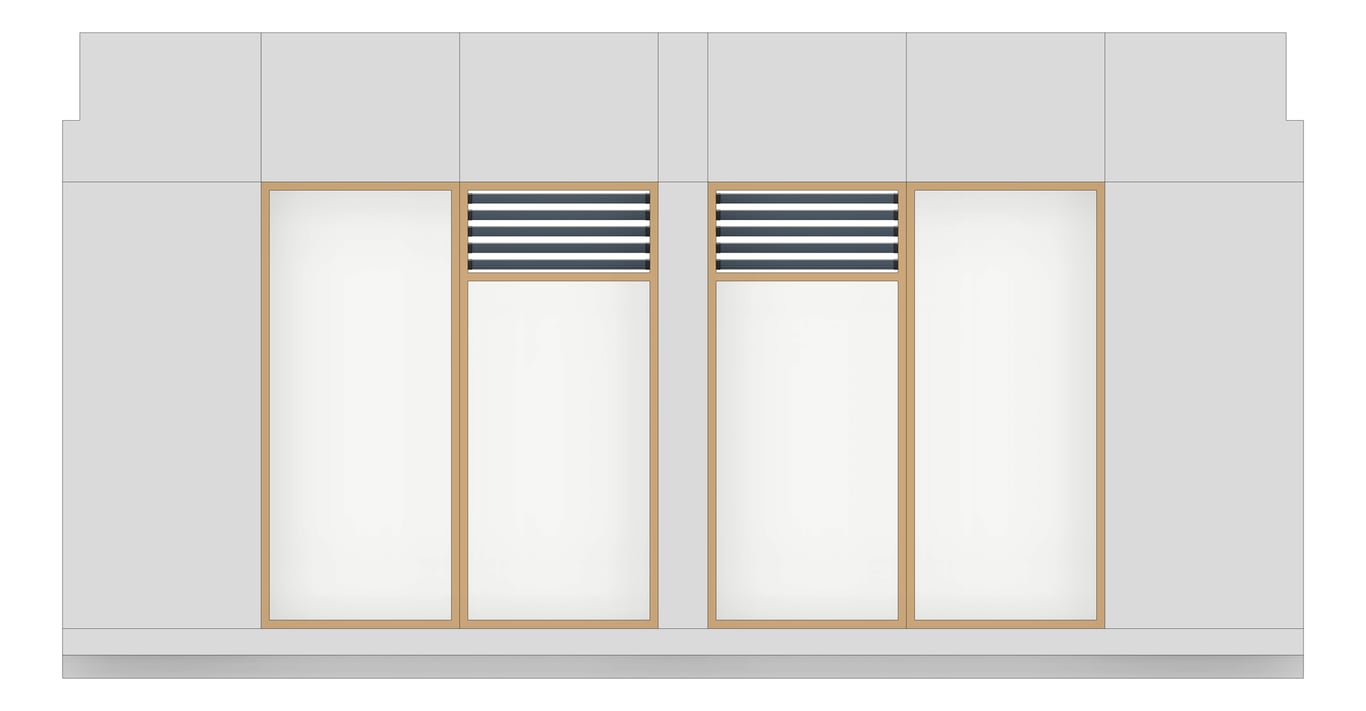

Front Image of FACADE Assembly Admin Type4A 3900x7500mm

FACADE Assembly Admin Type4A 3900x7500mm

FACADE Assembly Admin Type4A 3900x7500mm



For access to the Kit of Parts models, please Contact Us

Advanced Materials
Created By IGS BIM Solutions
Bulk Download Options
AreaXY
2.25 sqm
AreaXZ
29.25 sqm
HeightZ
3900 mm
LengthX
7500 mm
ModifiedIssue
V01.01
PerimeterXY
15600 mm
PerimeterXZ
22800 mm
Volume
8.775 cum
WidthY
300 mm
Types
