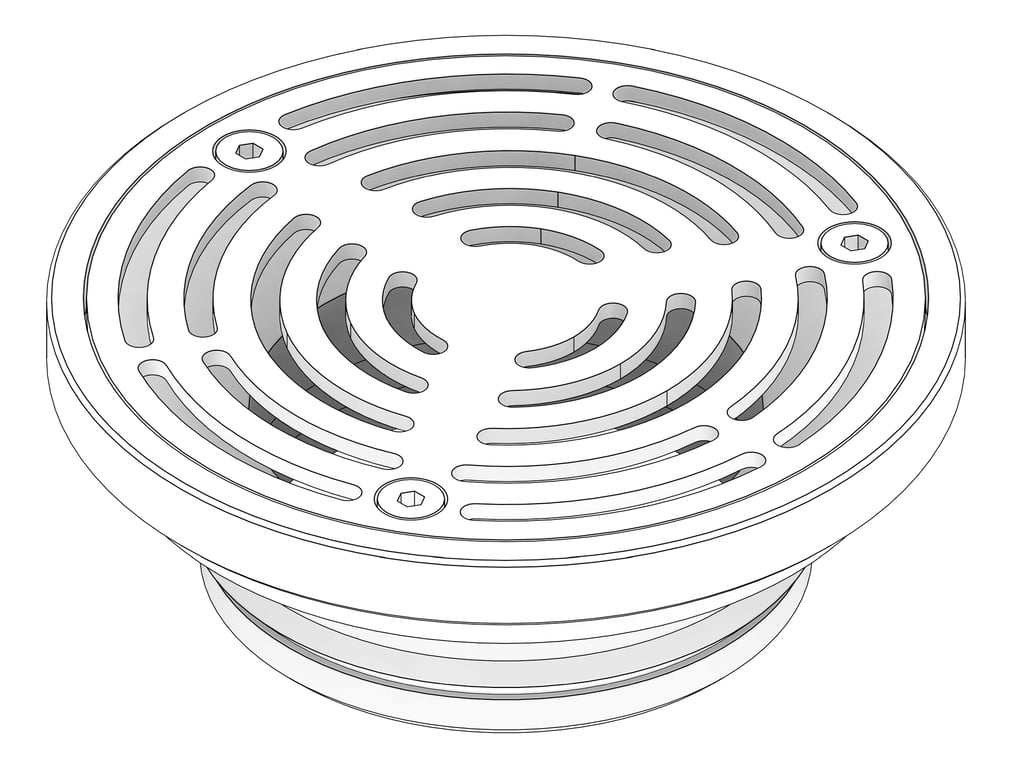

3D Documentation Image of Drain Floor GalvinEngineering HeelGrate

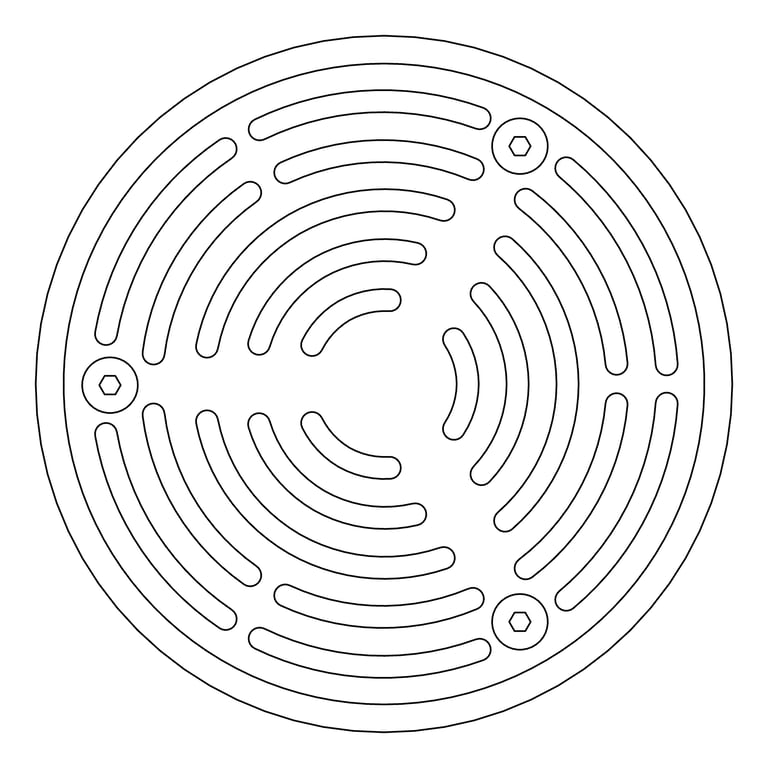

Plan Image of Drain Floor GalvinEngineering HeelGrate

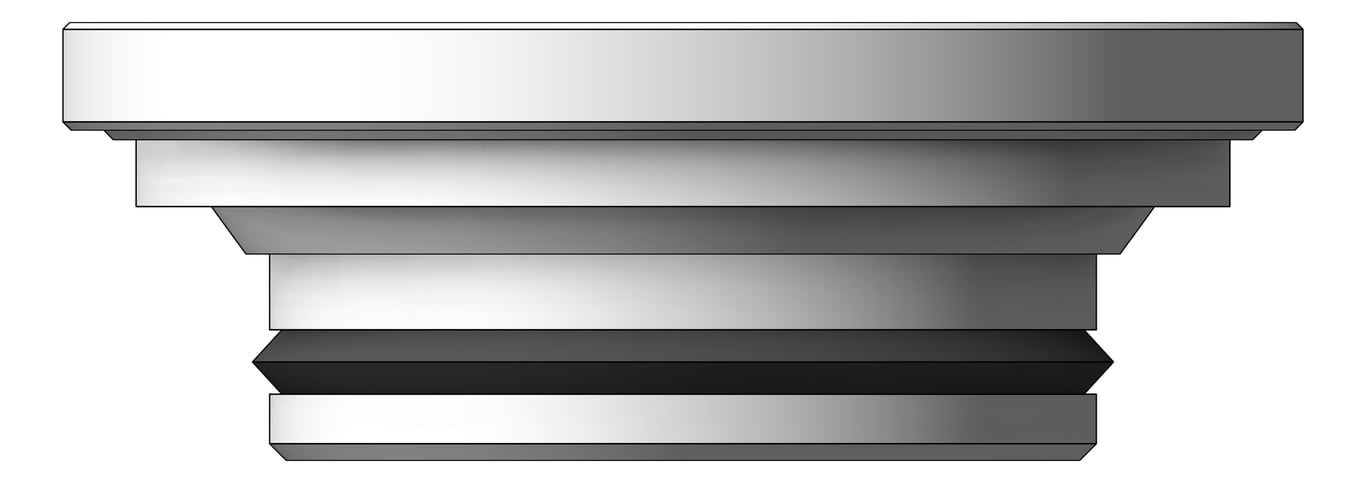

Left Image of Drain Floor GalvinEngineering HeelGrate
Front Image of Drain Floor GalvinEngineering HeelGrate

Drain Floor GalvinEngineering HeelGrate

The Galvin HeelGrate® SS316 Floor Drain Grate Round 150x100 is designed to address concerns about possible accidental injury to pedestrians, caused by high-heel shoes penetrating grates. The design of the grates also minimises potential problems where tips of crutches or wheelchair wheels could become lodged in the grates.
pivot_table_chart
Face Based Available
Created By IGS BIM Solutions
view_module
Multi Format
Model
302185x
AHFGCode
HYDR-009
AHFGDescription
DRAIN: clear out
