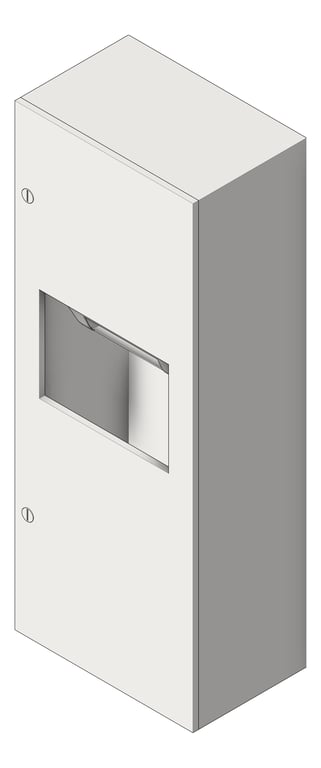

3D Shaded Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

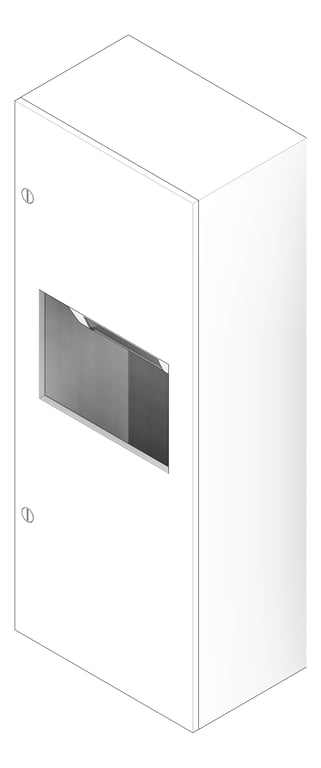

3D Documentation Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

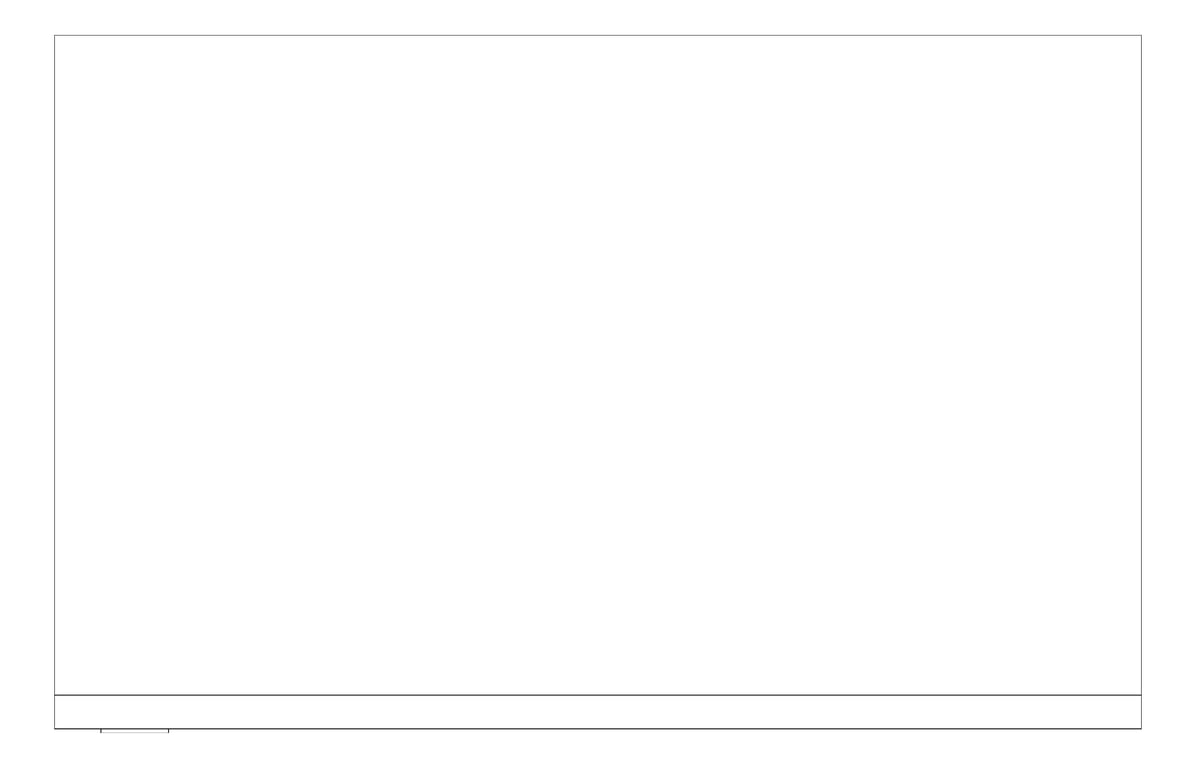

Plan Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

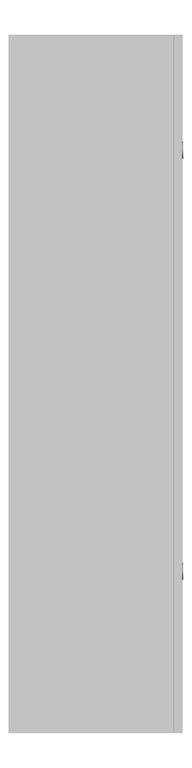

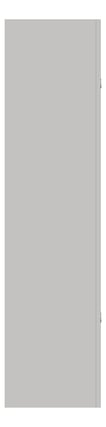

Left Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

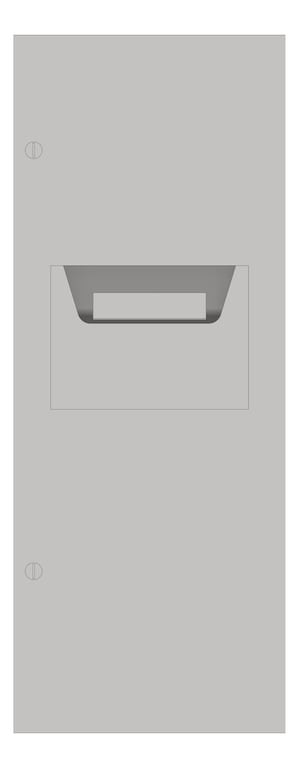

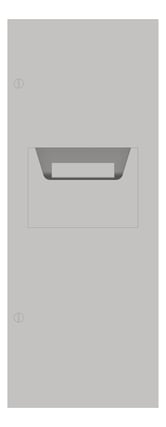

Front Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal
64696A-AC-9.png Image of CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

CombinationUnit SurfaceMount ASI Simplicity RollPaperDispenser Electric 9.9Gal

Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changees over to main roll when finished with stub roll when feed tabs are properly engaged. Waste receptacle has a capacity of 9.9 gallons (37.3 L).

Surface mounted with stainless steel collar.

Powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110
• 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
16 1/16"
Depth
10 1/4"
Height
41 1/4"
Model
64696AC-9
