Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal
3D Shaded Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

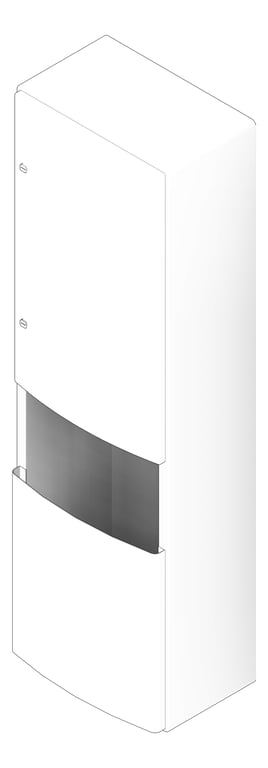

3D Documentation Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

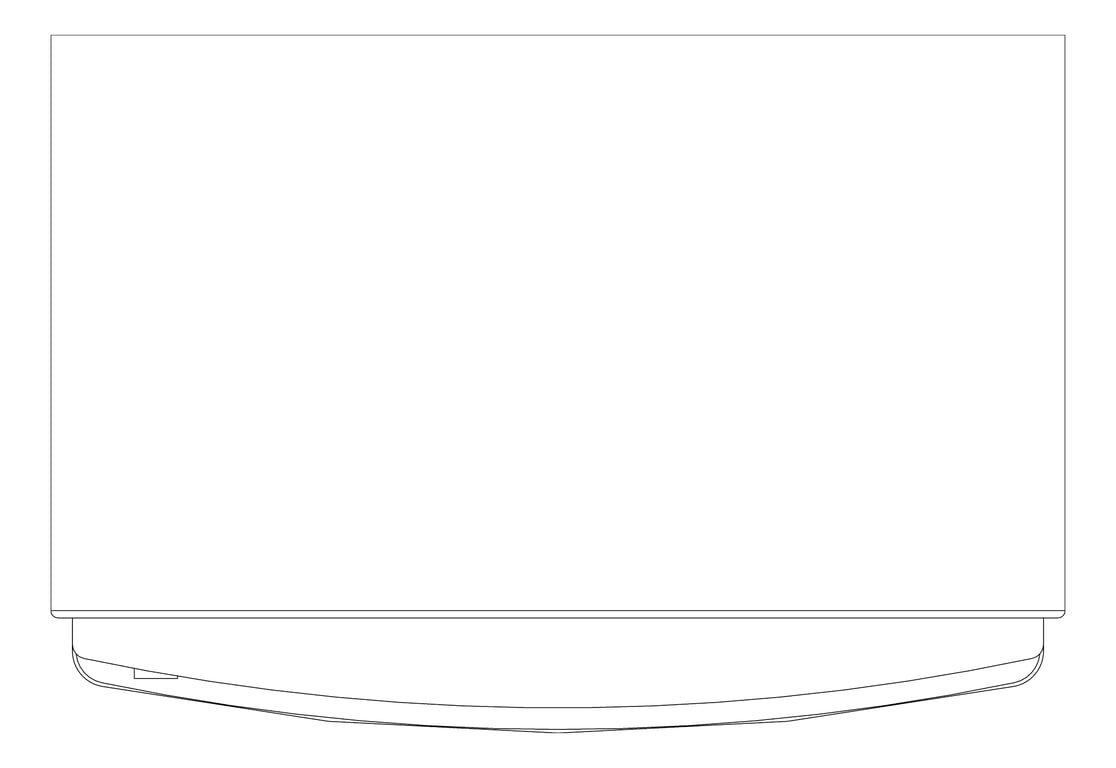

Plan Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

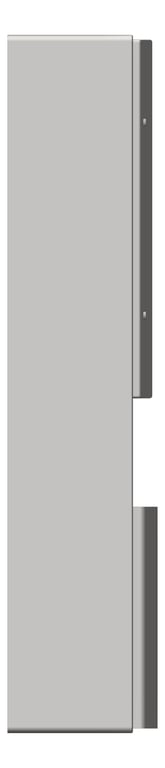

Left Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

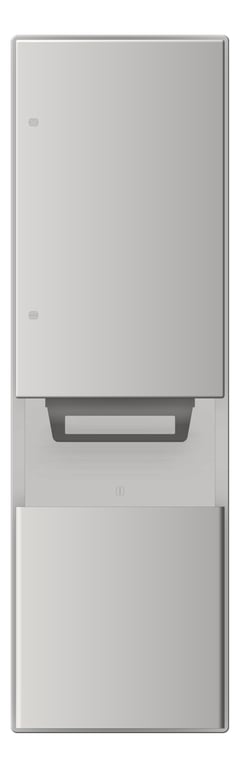

Front Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal
2046921A-9.png Image of CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

CombinationUnit SurfaceMount ASI Roval RollPaperDispenser Electric 13.5Gal

Proximity sensing no-touch unit dispenses  a pre-set length per cycle from 8″ or 9″ wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. Smaller waste receptacle, 13.5 gal. (51.1 L), allows unit to be ADA compliant. Internal shelf is ideal for paper towel storage. Towel length is determined by owner by setting length, delay and paper saver switches.

Powered by internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 5VDC @ 1A.

Surface mounted with stainless steel collar.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
17 5/8"
Depth
12 1/8"
Height
56 5/16"
Model
2046921AC-9
