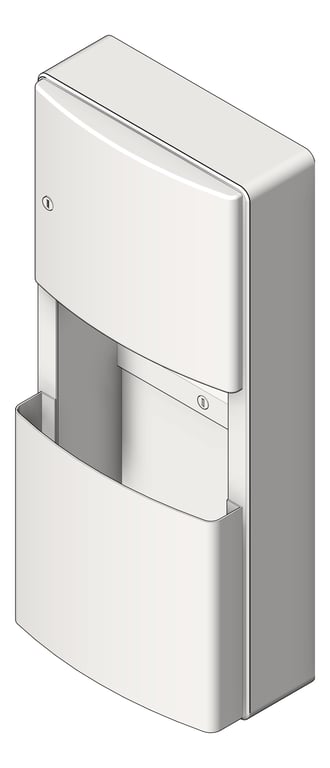

3D Shaded Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

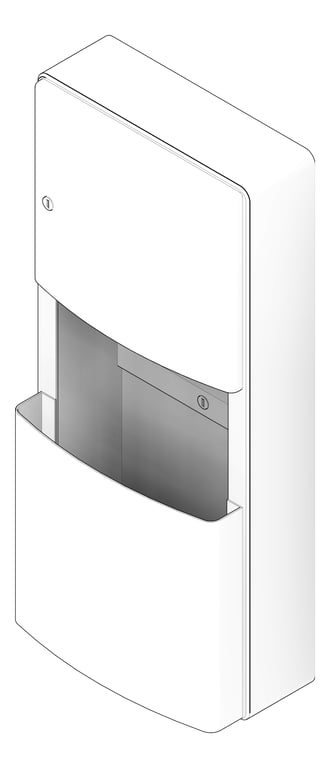

3D Documentation Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

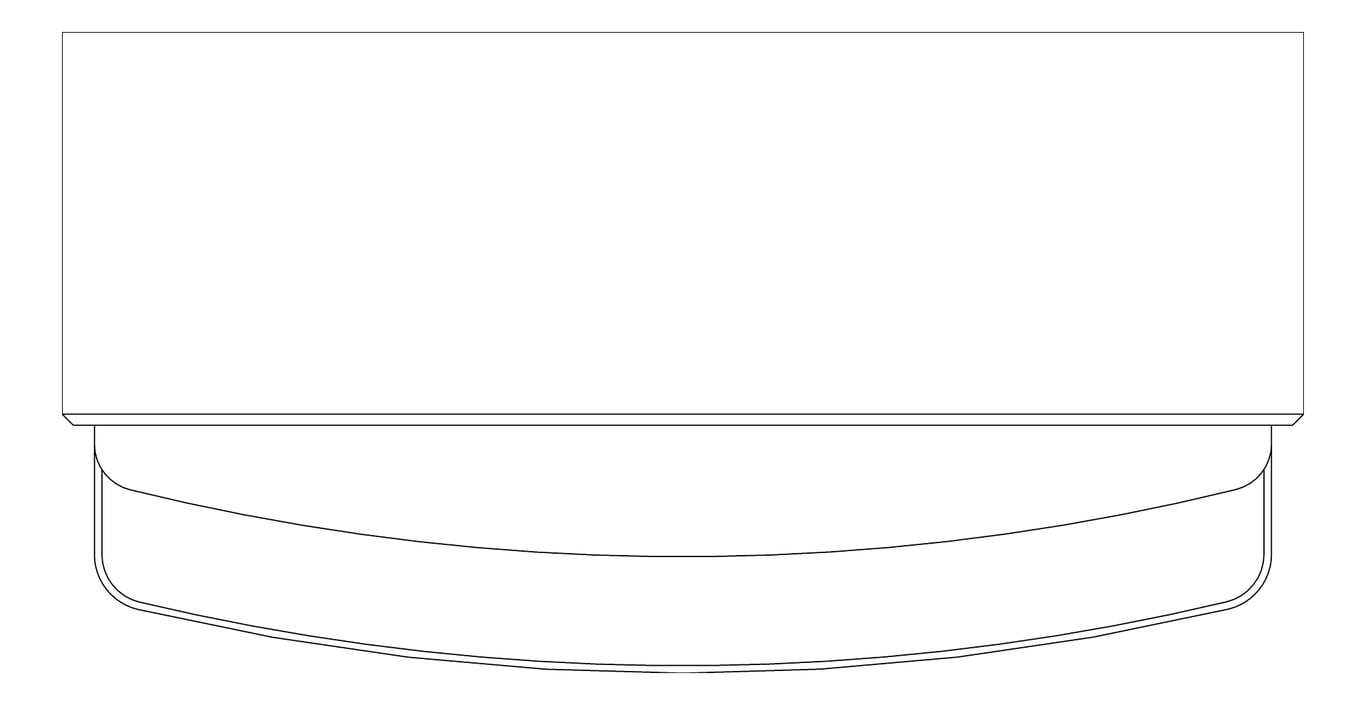

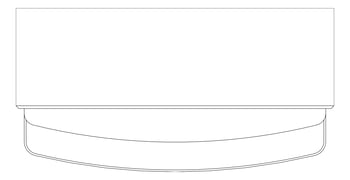

Plan Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

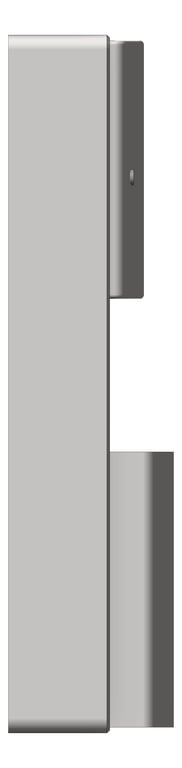

Left Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

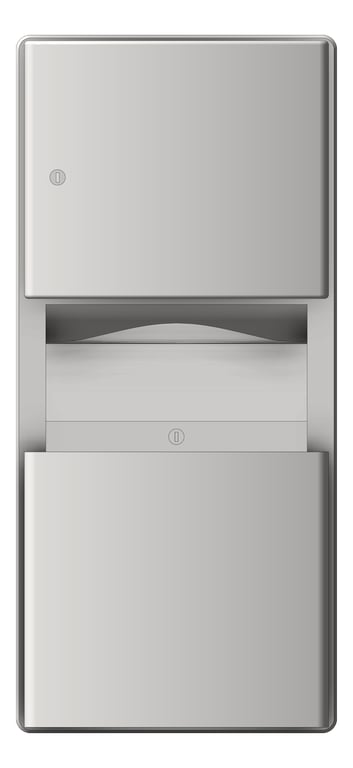

Front Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal
204623-9.png Image of CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

CombinationUnit SurfaceMount ASI Roval PaperDispenser 3Gal

Dispenses 350 C-fold, 475 multi-fold paper towels. 3.0 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3⁄16″ staked piano hinge on door.

Surface mounted with stainless steel collar.

Towels are self-feeding upon user manual demand until supply is depleted. Unit may be reloaded with a partial load in place and will continue to feed properly. Towels are replenished and waste receptacle is emptied manually. Locked door and waste receptacle prevents unauthorized access or removal.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
13"
Depth
6 3/4"
Height
28 1/4"
Model
204623-9
