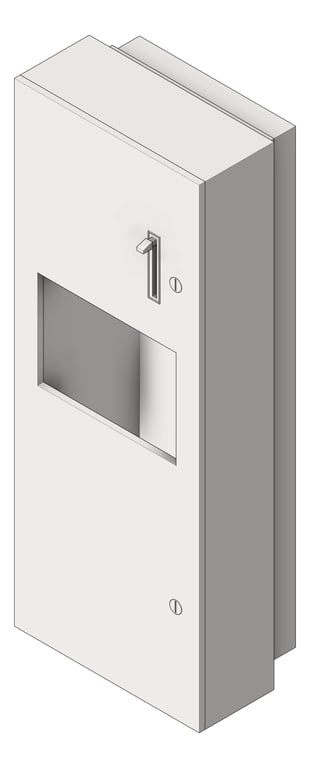

3D Shaded Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

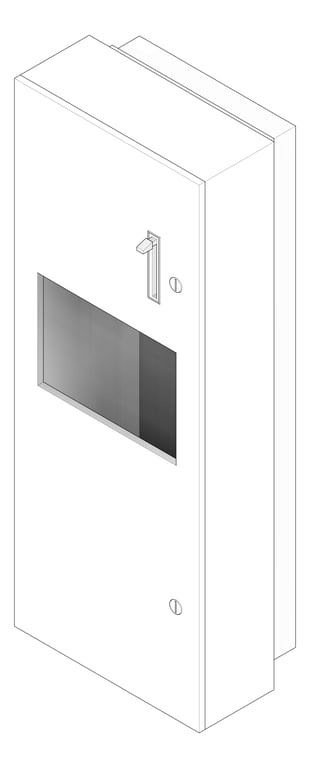

3D Documentation Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

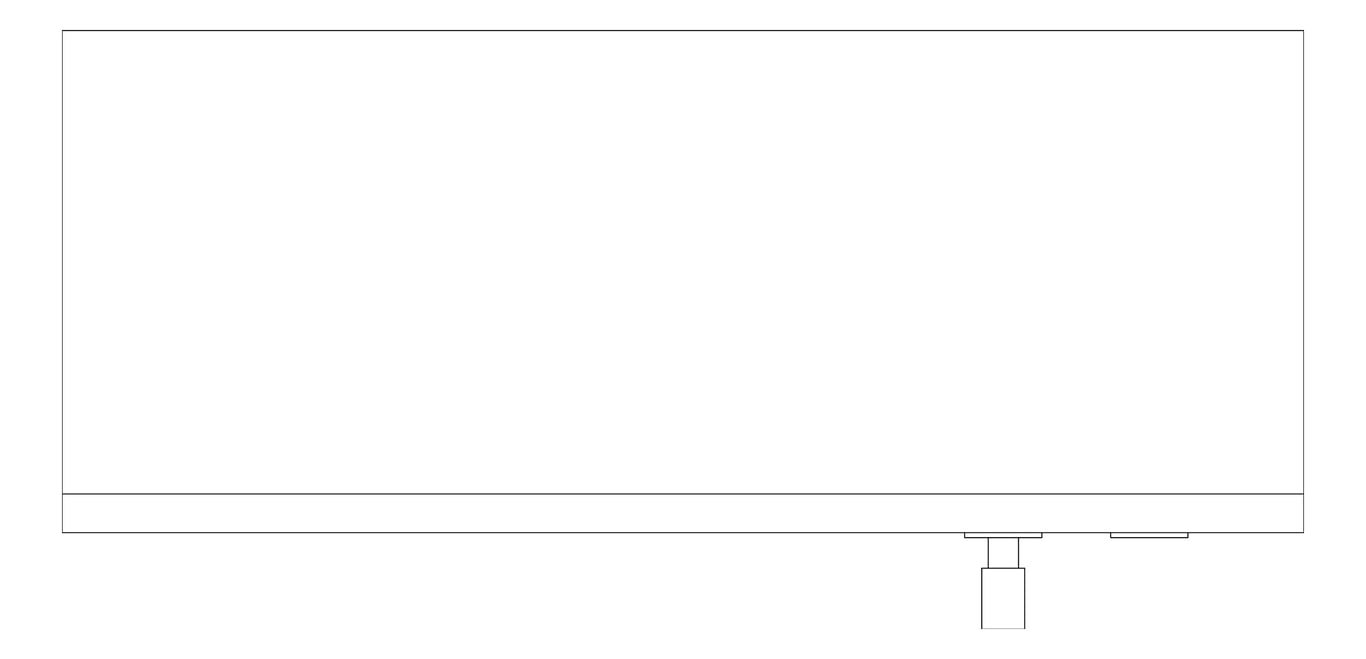

Plan Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

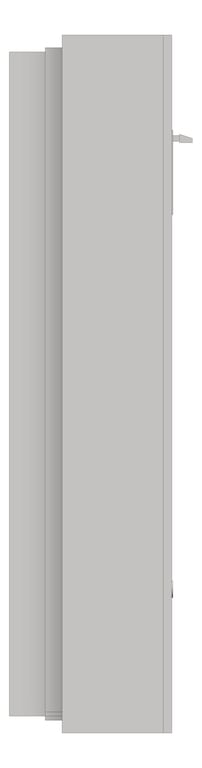

Left Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

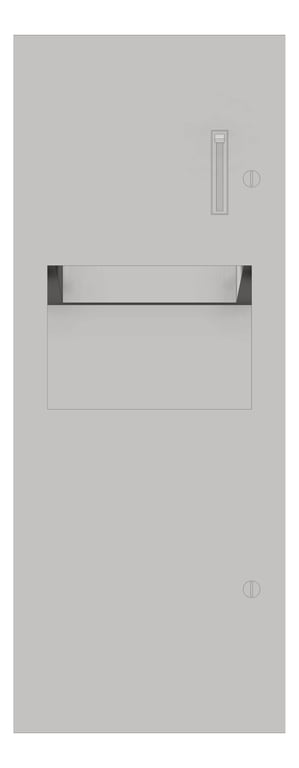

Front Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal
64696-6.png Image of CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

CombinationUnit SemiRecessed ASI Simplicity RollPaperDispenser 9.4Gal

Mechanically dispenses 8″ or 9″ (205 or 230 mm) wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. Stainless steel disposal with 9.4 gal. (36 liters) capacity.

Semi-recessed with stainless steel collar.

Towels are fed by lever action. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Locking full-face door over compartments prevents unauthorized access or removal.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
16 1/16"
Depth
9 5/8"
Height
41 1/4"
Model
64696-6
Type Comments
