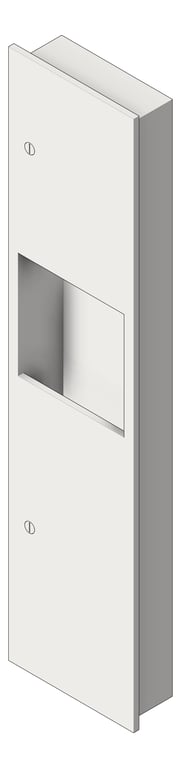

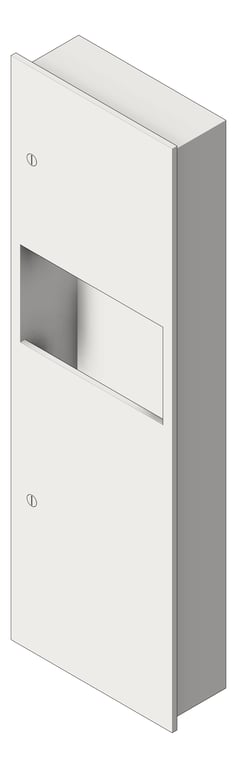

3D Shaded Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

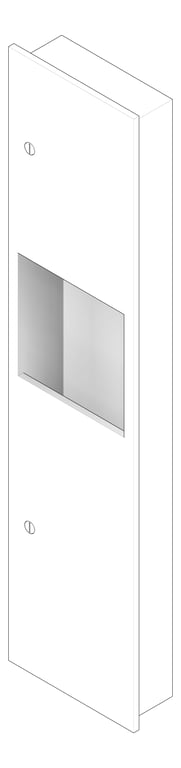

3D Documentation Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

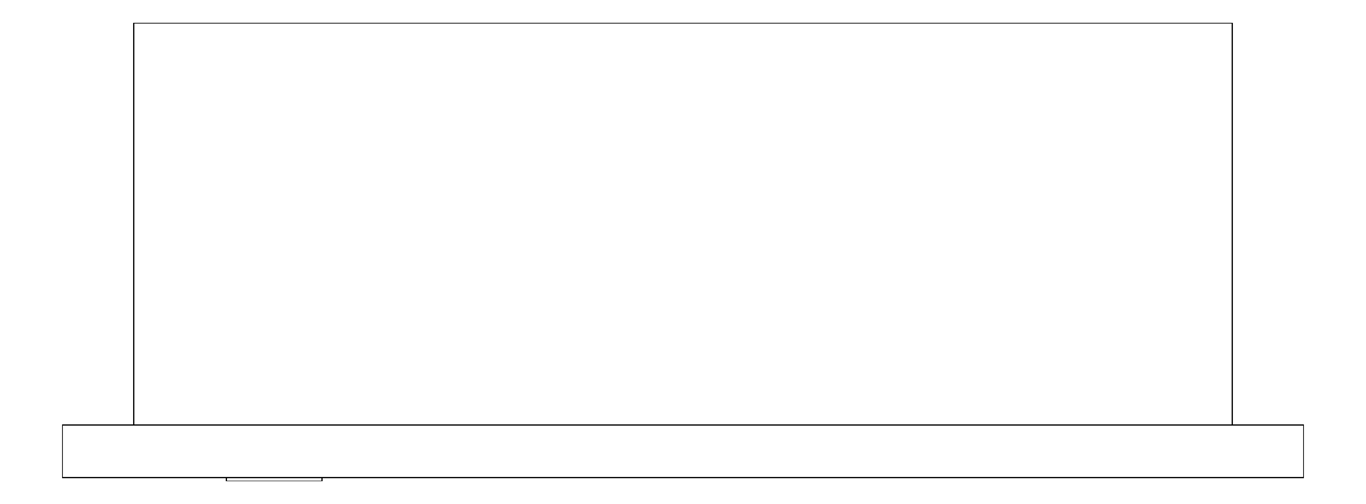

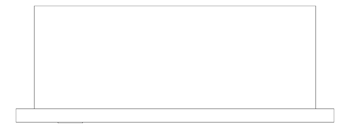

Plan Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L
Left Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

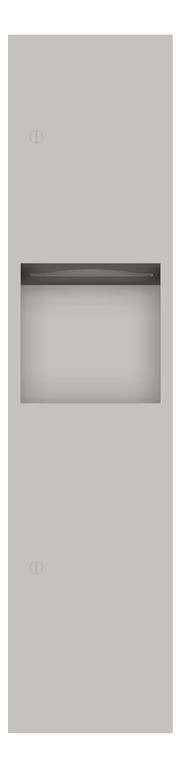

Front Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

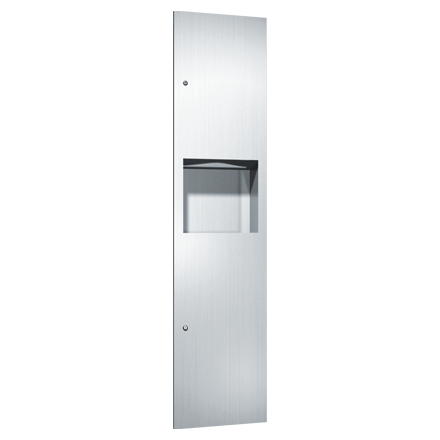

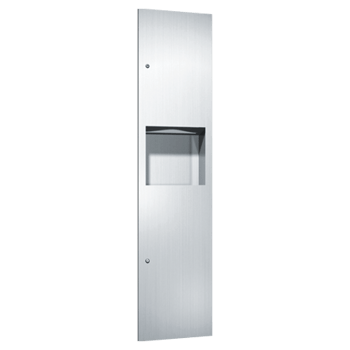

10-6467_ASIJDMacDonald_Paper_Towel_Dispenser__Waste_Bin_Recessed_Simplicity_Web.png Image of CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

CombinationUnit Recessed ASIJDMacDonald Simplicity PaperDispenser WasteBin 16L

Dispenses 600 C-fold or 800 multi-fold paper towels. 16 L stainless steel waste receptacle. Door made of 18 gauge stainless steel attached to 20 gauge stainless steel cabinet with 5 mm (diam) multi-staked piano hinge. Tumbler locks are keyed alike. Satin finish.
folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
121 mm
Height
1397 mm
Width
330 mm
Model
10-6467
ModifiedIssue
20221201.00
