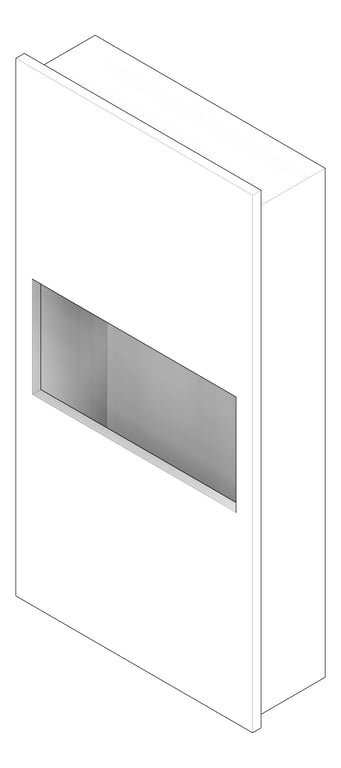

3D Shaded Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal

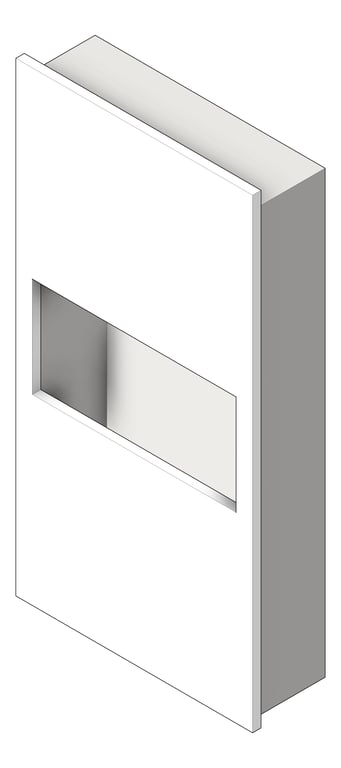

3D Documentation Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal
Plan Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal

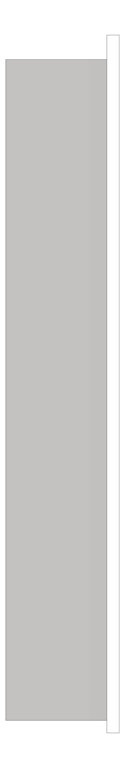

Left Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal

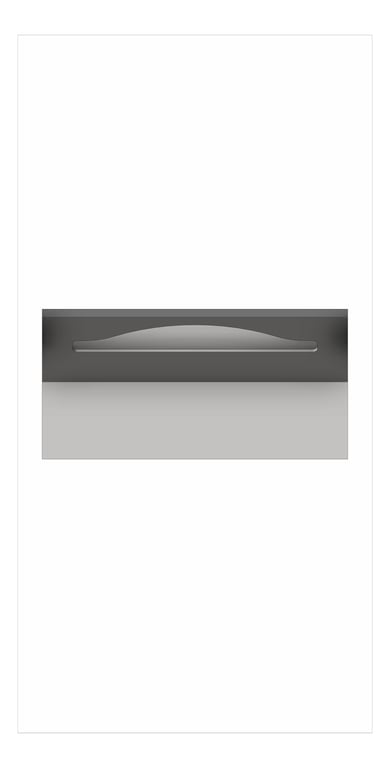

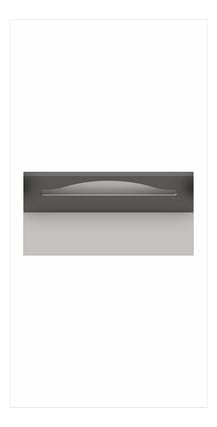

Front Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal
64623-41_ASI-Piatto_Paper-Towel-Dispenser@2x.png Image of CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal

CombinationUnit Recessed ASI Piatto PaperDispenser 2.2Gal

This sophisticated paper towel dispenser and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels. Towels are self-feeding until supply is depleted. Unit will continue to feed properly when reloaded with a partial load in place. Includes 2.2 gal. (8.4 L) stainless steel waste receptacle, which is emptied manually.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
14 1/4"
Depth
4 9/16"
Height
28"
Model
64623-00|64623-41
