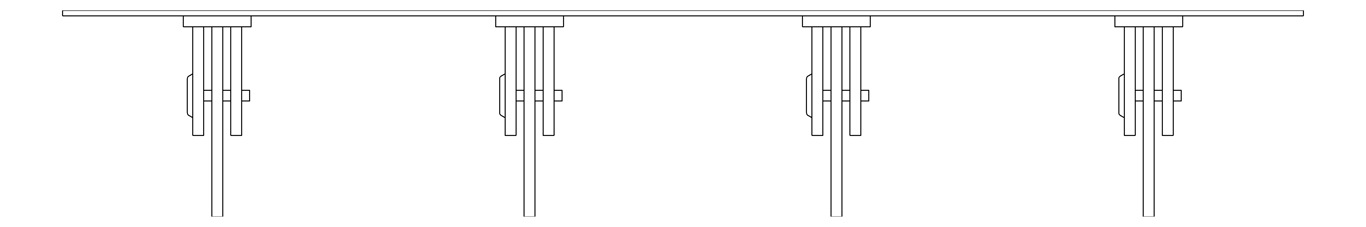

Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

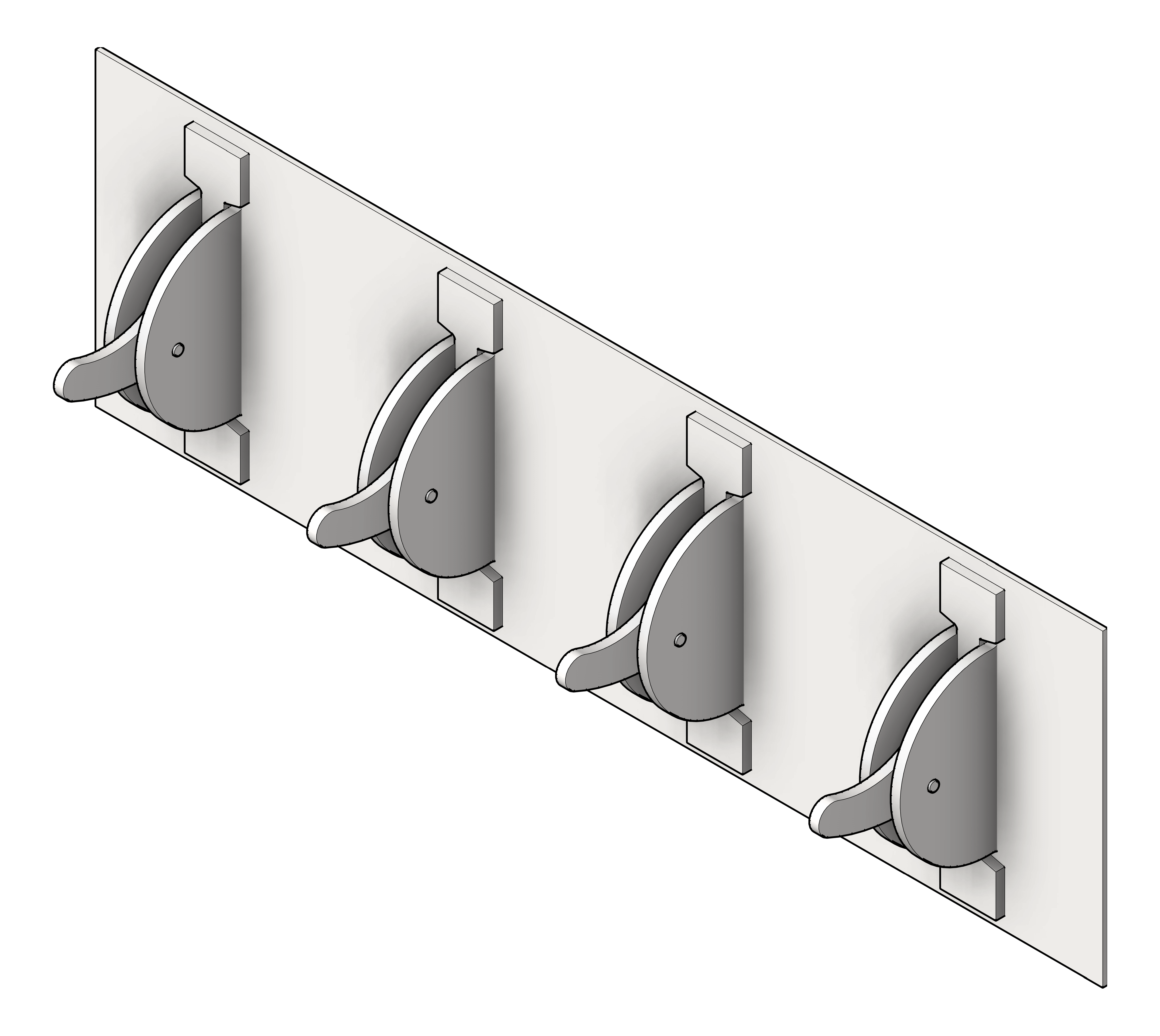

3D Shaded Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

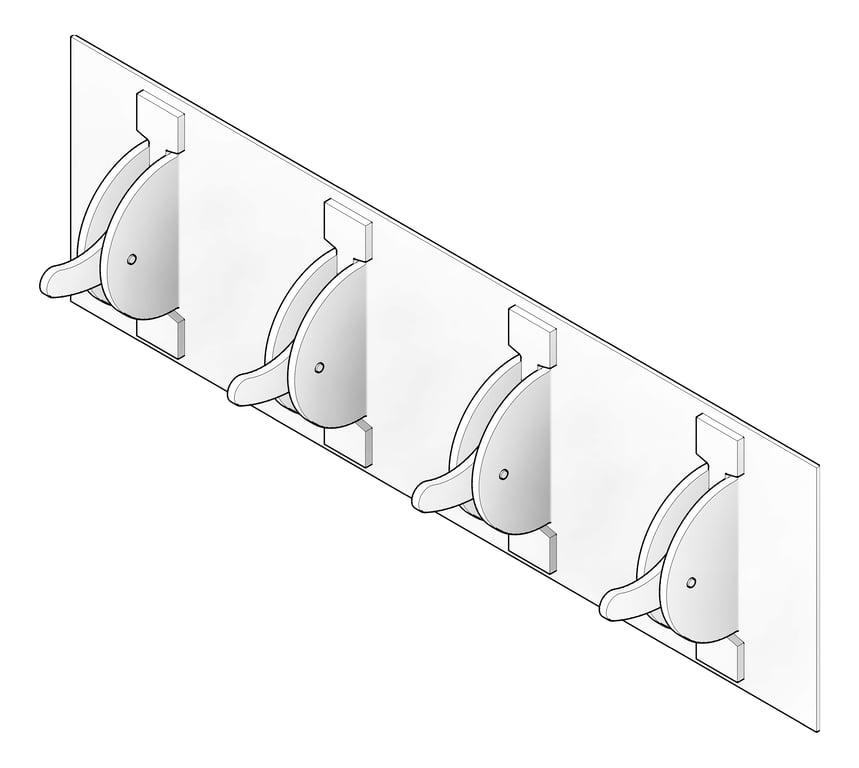

3D Documentation Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

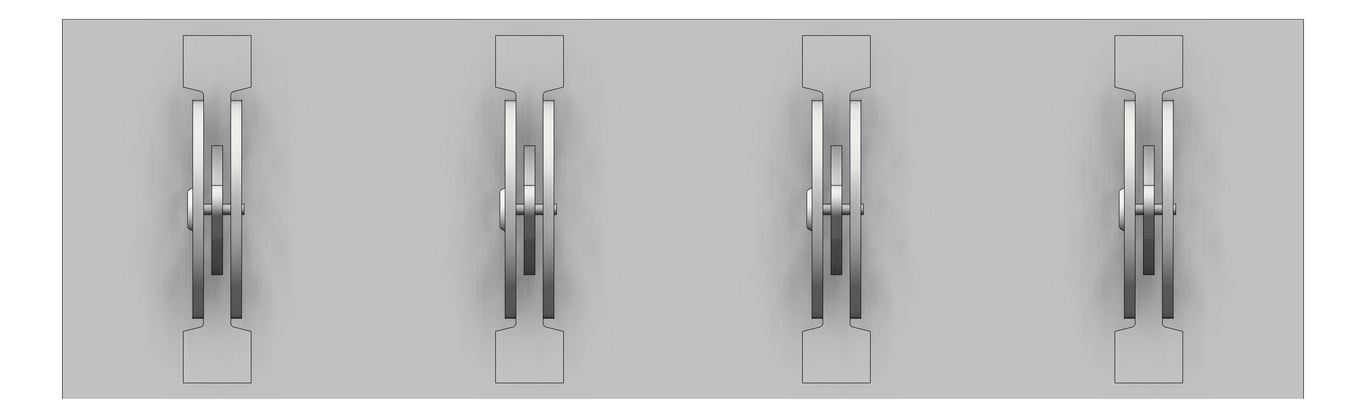

Plan Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

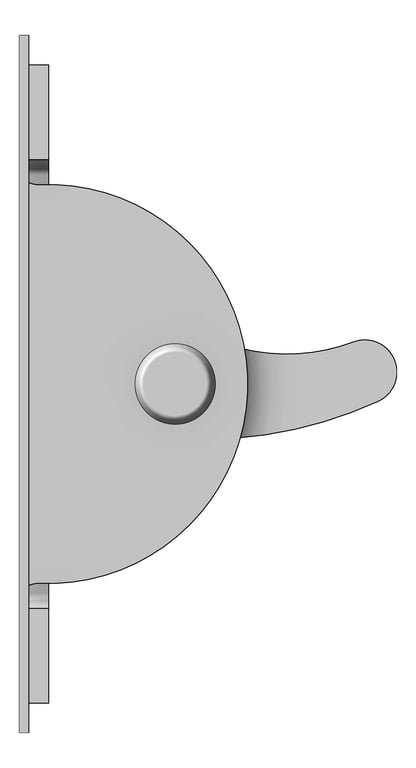

Left Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

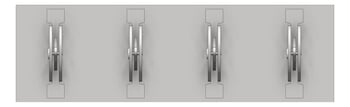

Front Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

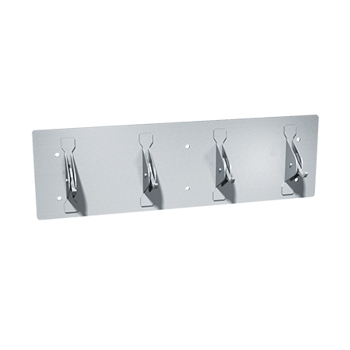

10-127_ASIJDMacDonald_Security_Clothes_Towel_Hook_Strip_Front_Mount_Web.png Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security

ClothesHookStrip SurfaceMount ASIJDMacDonald Security

Fabricated of type 304 stainless steel alloy 18-8. Hooks are 7 gauge, brackets are 11 gauge and wall plate is 14 gauge. Safety hook tension is adjustable by means of a captive round head stainless steel spanner screw. Hooks smoothly drop down when load exceeds 16 kg limit when correctly set. Hook geometry and bracket... Read More

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
76 mm
Height
140 mm
Width
457 mm
Model
10-127
ModifiedIssue
20221201.00
