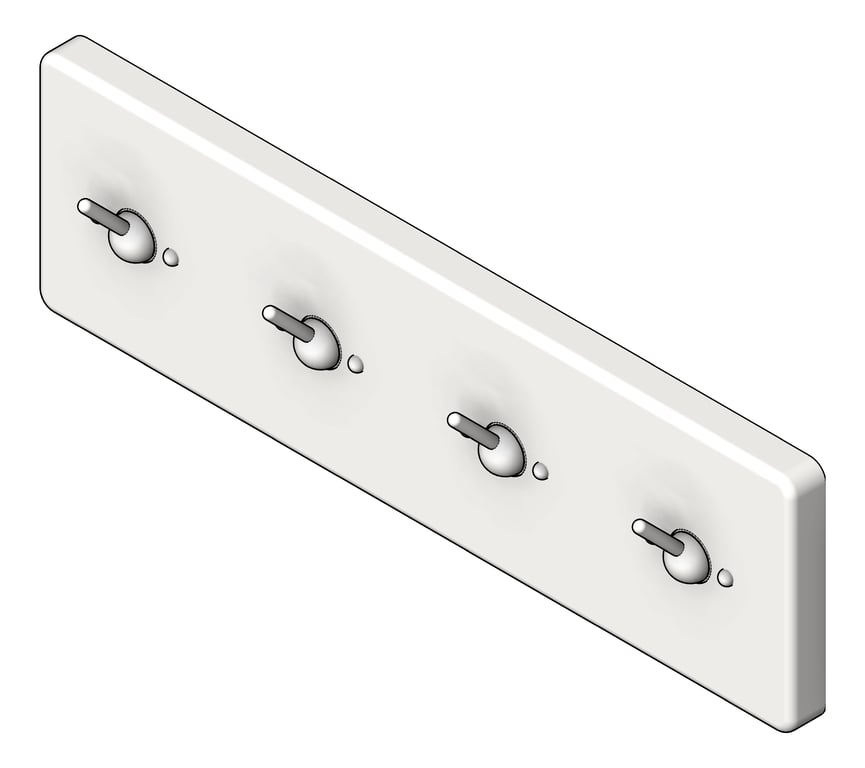

3D Shaded Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

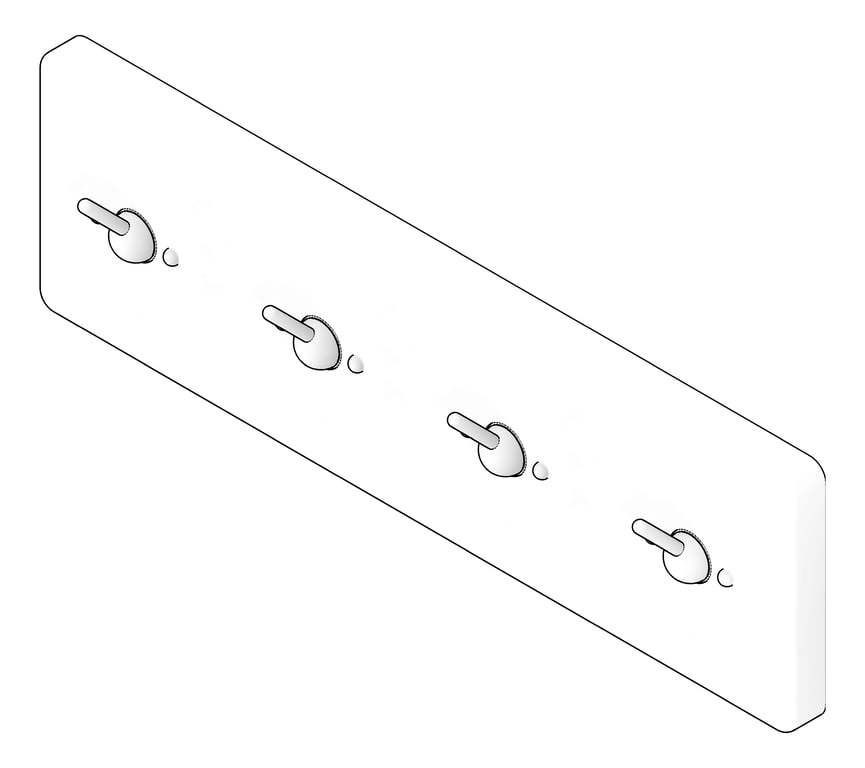

3D Documentation Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

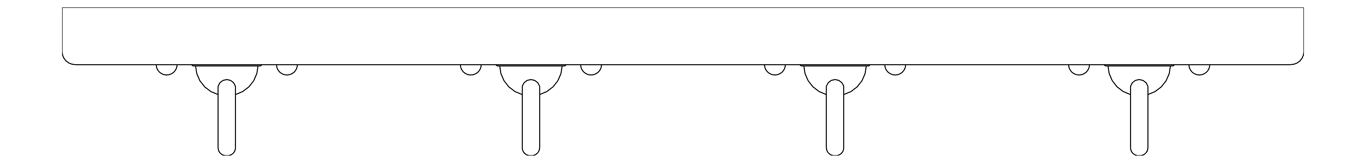

Plan Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

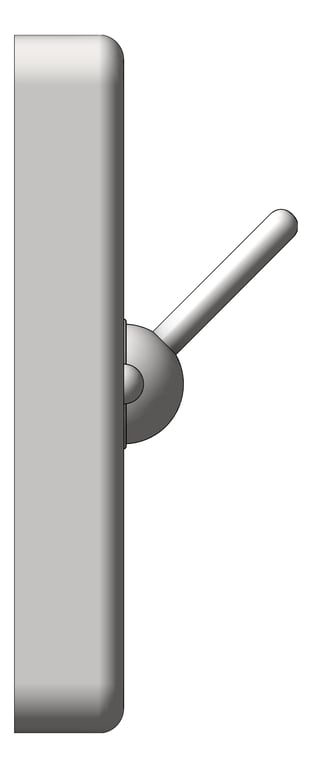

Left Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

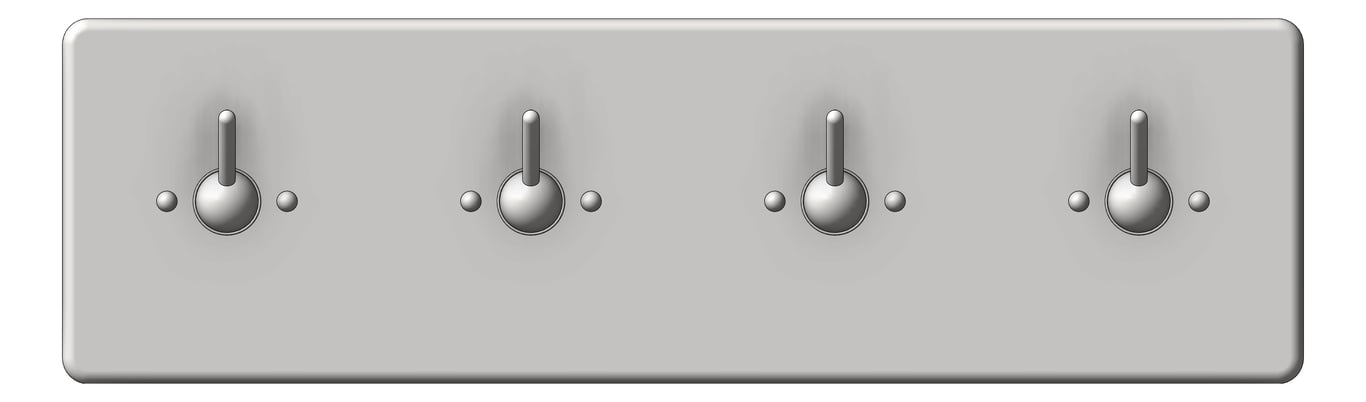

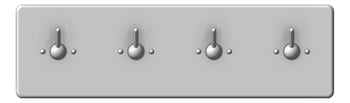

Front Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

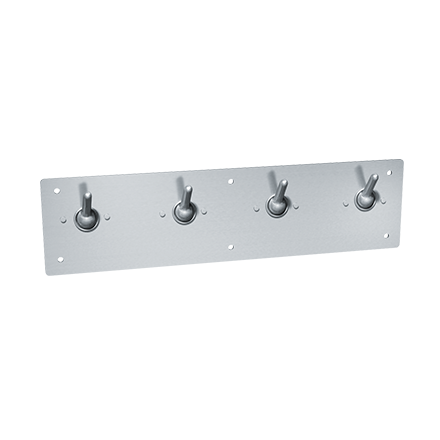

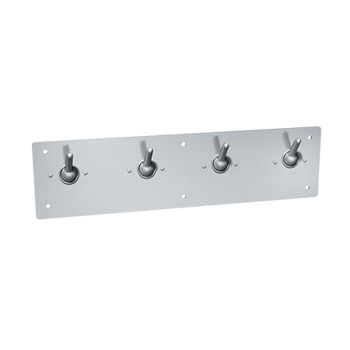

10-129_ASIJDMacDonald_Security_Clothes_Towel_Hook_Strip_Front_Mount_Web.png Image of ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

ClothesHookStrip SurfaceMount ASIJDMacDonald Security TripBall

Fabricated of type 304 stainless steel alloy 18-8. Back plate is 14 gauge. Clothes hooks will be solid bar 10mm diameter of one-piece construction with 25mm diameter swivel trip-ball. Safety hooks snap down when load exceeds 16 kg limit. Trip-ball socket housing prevents hooks from being set in vertical-up position. The unit is provided with... Read More
folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
57 mm
Height
140 mm
Width
475 mm
Model
10-129
ModifiedIssue
20221201.00
