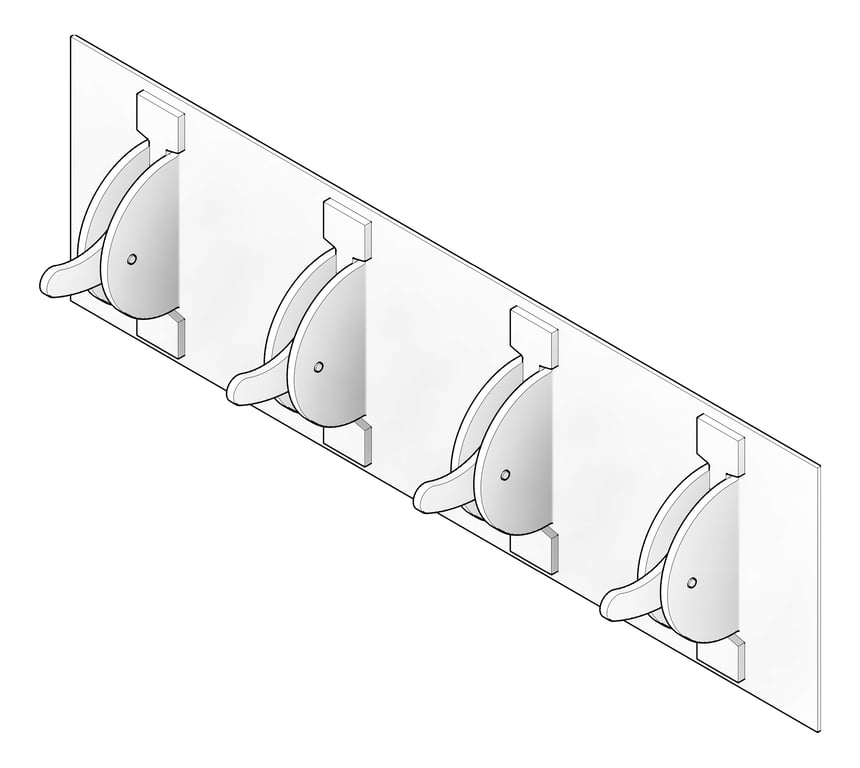

3D Documentation Image of ClothesHookStrip SurfaceMount ASI Security FrontFixed

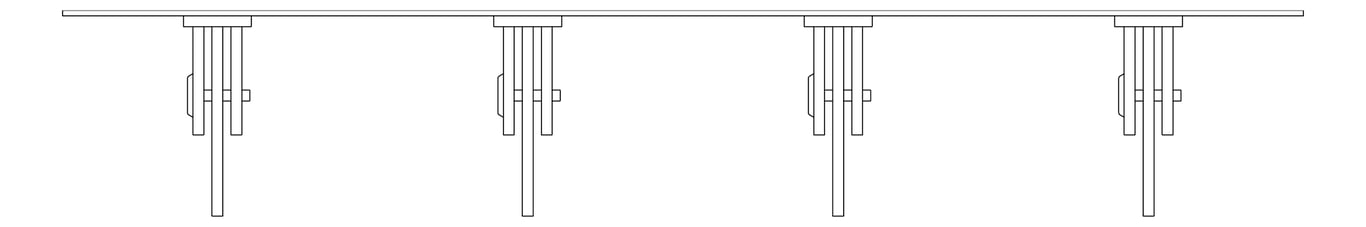

Plan Image of ClothesHookStrip SurfaceMount ASI Security FrontFixed

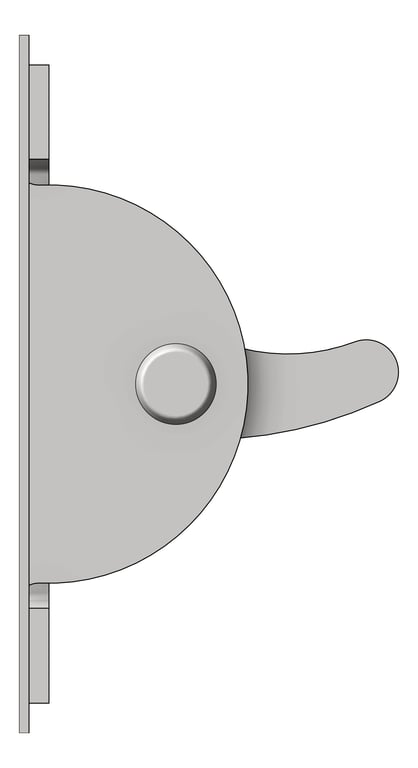

Left Image of ClothesHookStrip SurfaceMount ASI Security FrontFixed

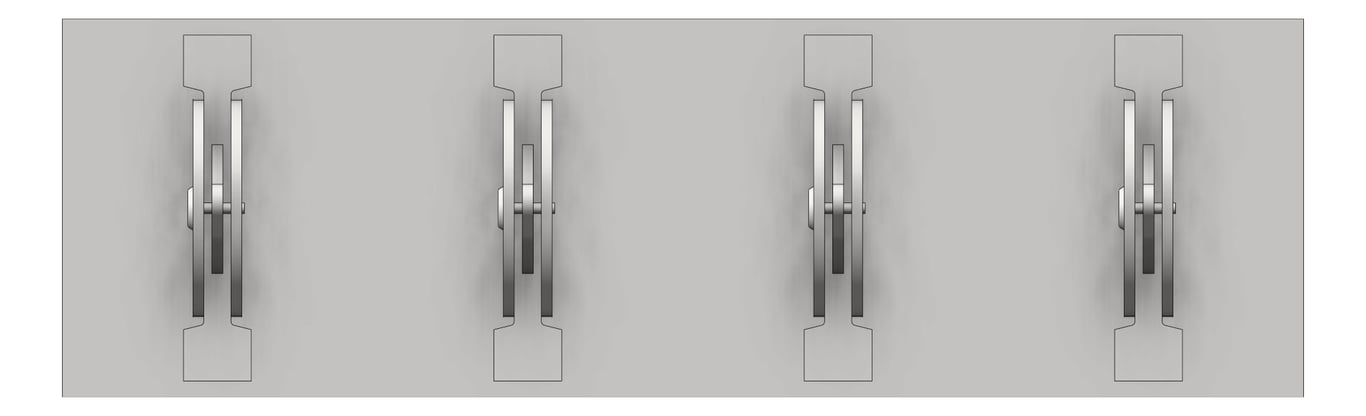

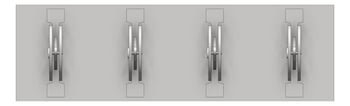

Front Image of ClothesHookStrip SurfaceMount ASI Security FrontFixed
127_ASI-ClothesTowelHookStrip-FrontMounting-SecurityAccessories@2x1.png Image of ClothesHookStrip SurfaceMount ASI Security FrontFixed

ClothesHookStrip SurfaceMount ASI Security FrontFixed

Fabricated of type 304 stainless steel alloy 18-8. Hooks are 7 gauge, brackets are 11 gauge and wall plate is 14 gauge. Safety hook tension is adjustable by means of a captive round head stainless steel spanner screw. Hooks smoothly drop down when load exceeds 35 lb (16 kg) limit when correctly set. Hook geometry and bracket prevents hooks from being set in vertical-up position.

Wall plate includes six (6) mounting holes for 1/4-20 button head pin-Torx® machine screws (supplied).

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
18"
Depth
3"
Height
5 1/2"
Model
127
