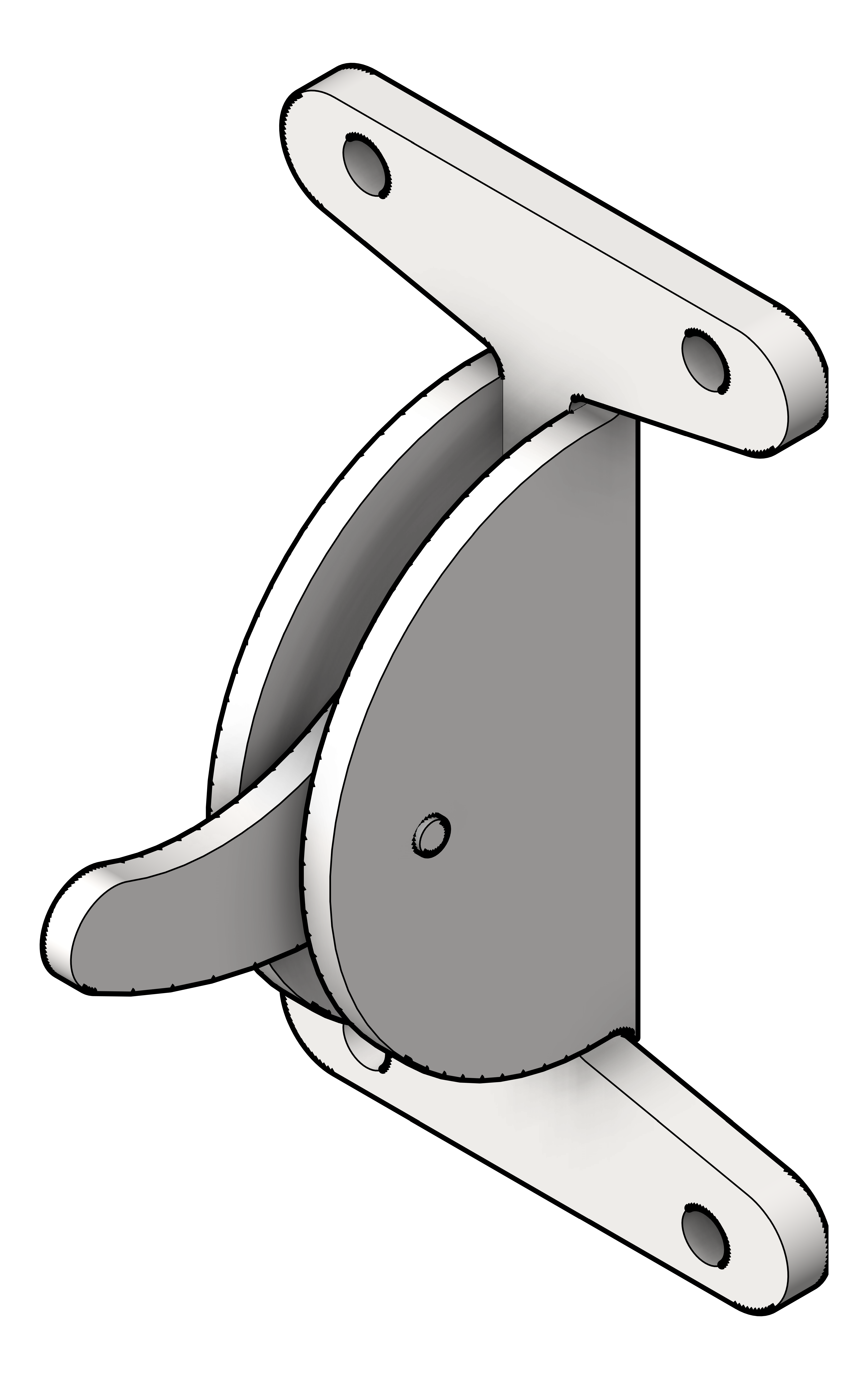

3D Shaded Image of ClothesHook SurfaceMount ASIJDMacDonald Security

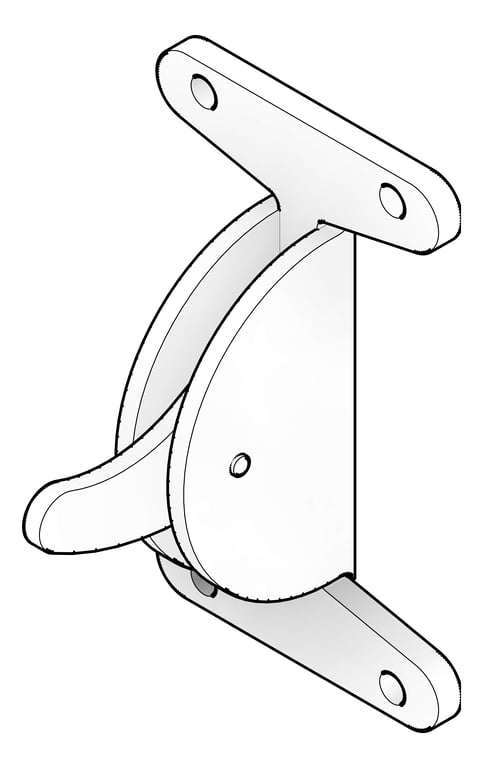

3D Documentation Image of ClothesHook SurfaceMount ASIJDMacDonald Security

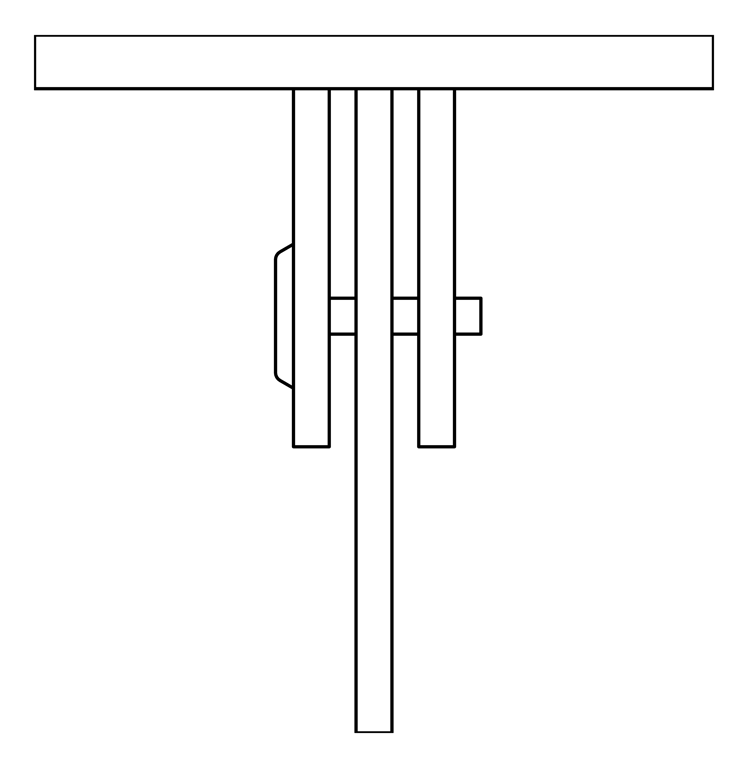

Plan Image of ClothesHook SurfaceMount ASIJDMacDonald Security

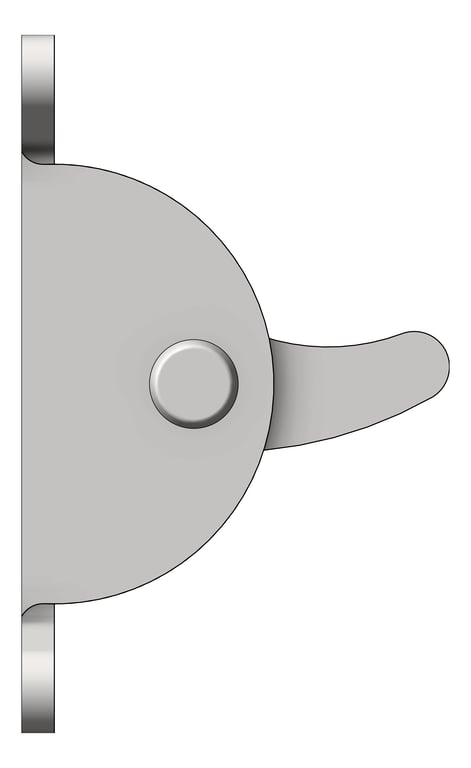

Left Image of ClothesHook SurfaceMount ASIJDMacDonald Security

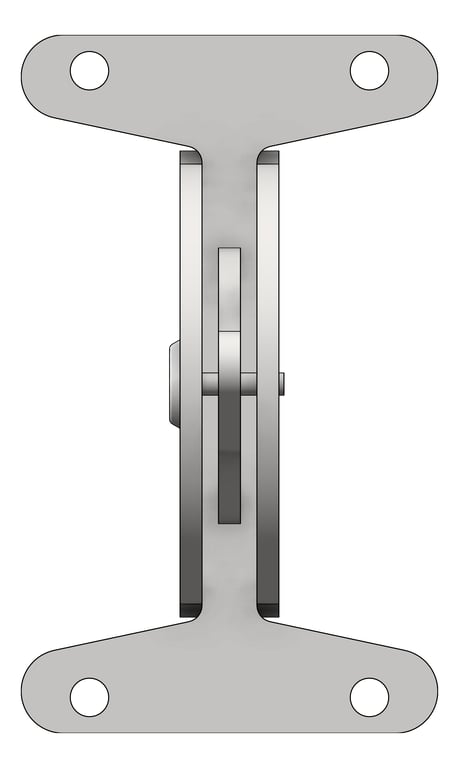

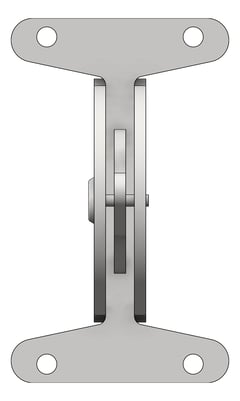

Front Image of ClothesHook SurfaceMount ASIJDMacDonald Security

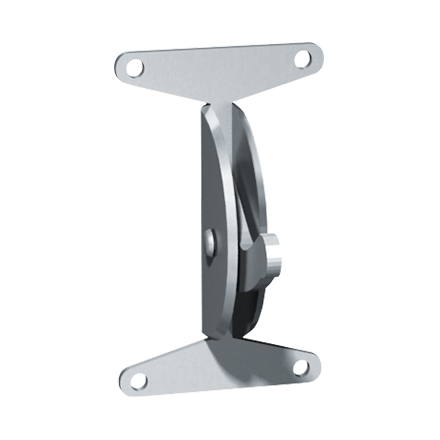

10-120_ASIJDMacDonald_Security_Clothes_Hook_Front_Mount_Web.png Image of ClothesHook SurfaceMount ASIJDMacDonald Security

ClothesHook SurfaceMount ASIJDMacDonald Security

Bracket 11 gauge, hook 7 gauge type 304 stainless steel with satin finish. If hook is excessively loaded, it will snap down for safety. Maximum capacity: 16 kg. Unit has four holes through flange for front mounting.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
78 mm
Height
127 mm
Width
76 mm
Model
10-120
ModifiedIssue
20221201.00
