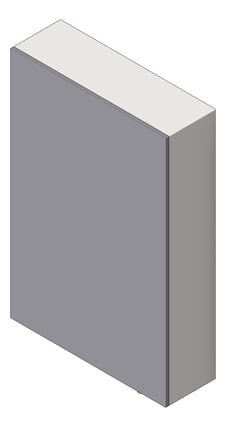

3D Shaded Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser

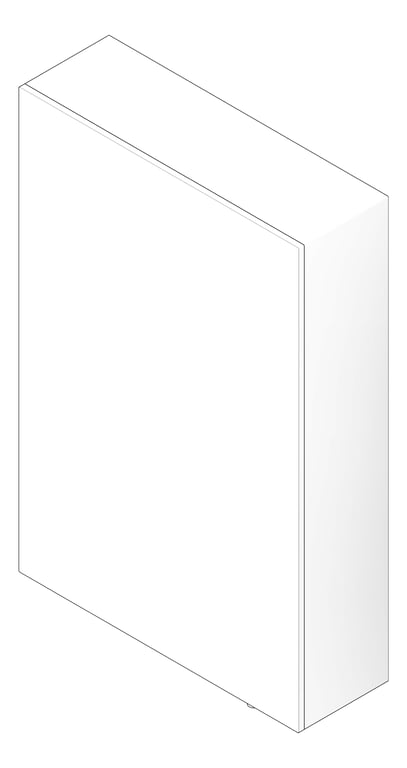

3D Documentation Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser
Plan Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser

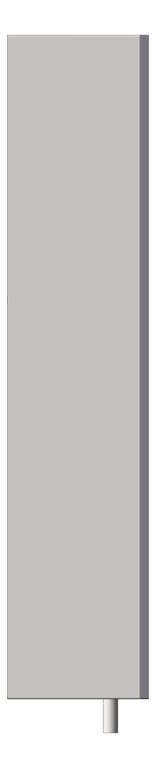

Left Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser

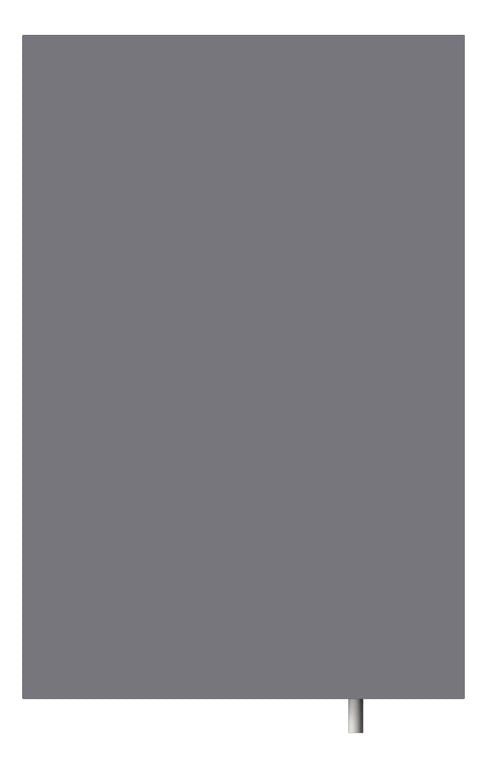

Front Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser
ASI-Velare-BTM-hand-dryer_foam-version@2x_880x880.png Image of Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser

Cabinet Mirror ASI Velare HandDryer PaperTowel SoapDispenser

ASI’s Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with backlit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 1/4″ (6mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.

The mirrored door is attached to the cabinet using a full width 3/16″ diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.

This wall mounted stainless steel cabinet conceals a hands-free automatic foam soap dispenser with a 1.5 gal (6 L) capacity and a high-speed hand dryer (110-120V) equipped with a HEPA filter.

Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
23 5/8"
Depth
7 9/16"
Height
35 7/16"
Model
0661-2|0663-2|0661-1|0663-1
Type Comments
Types
