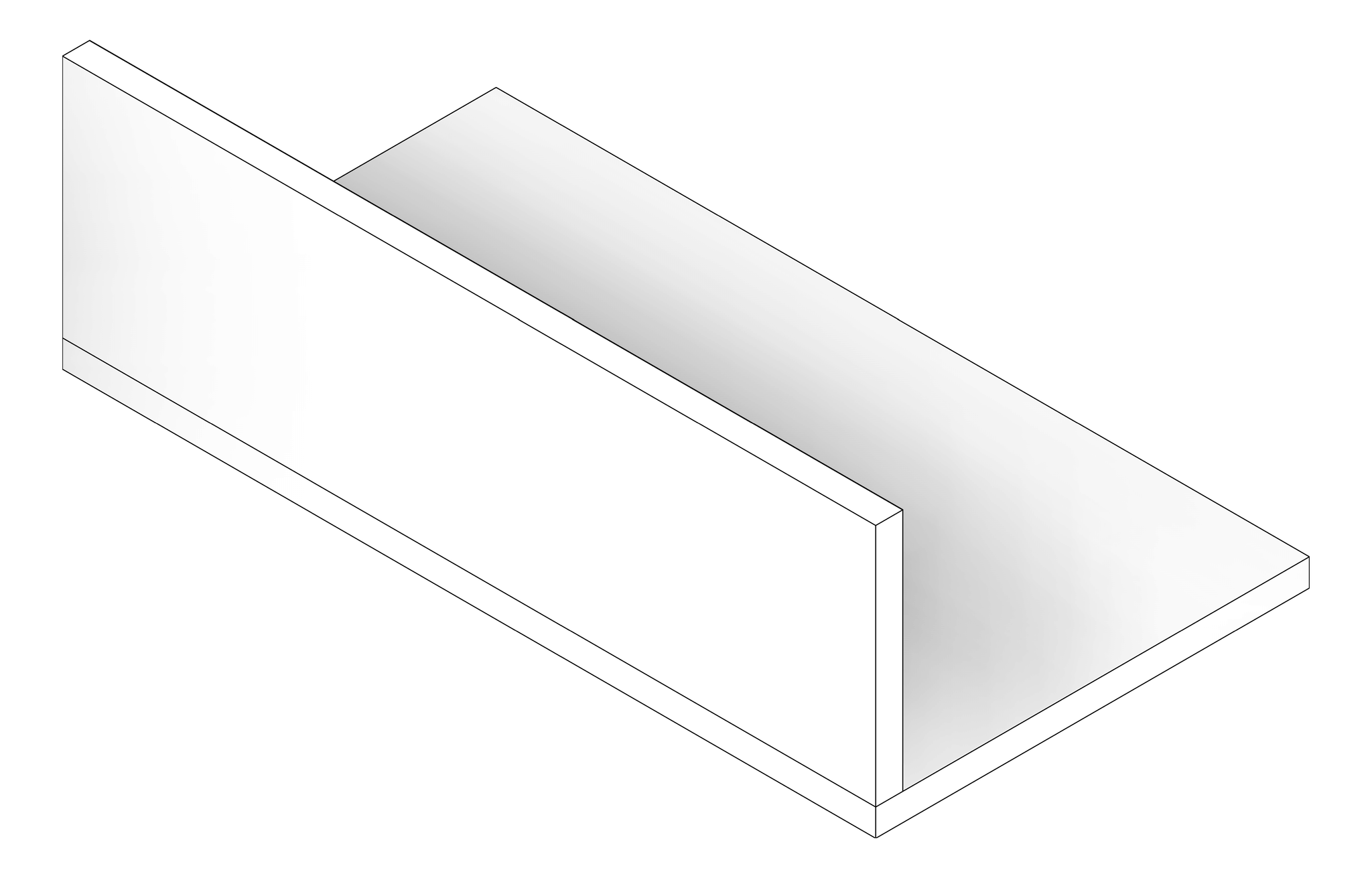

    3D Documentation Image of BULKHEAD Toilet Internal Type1 300x900mm
    Plan Image of BULKHEAD Toilet Internal Type1 300x900mm

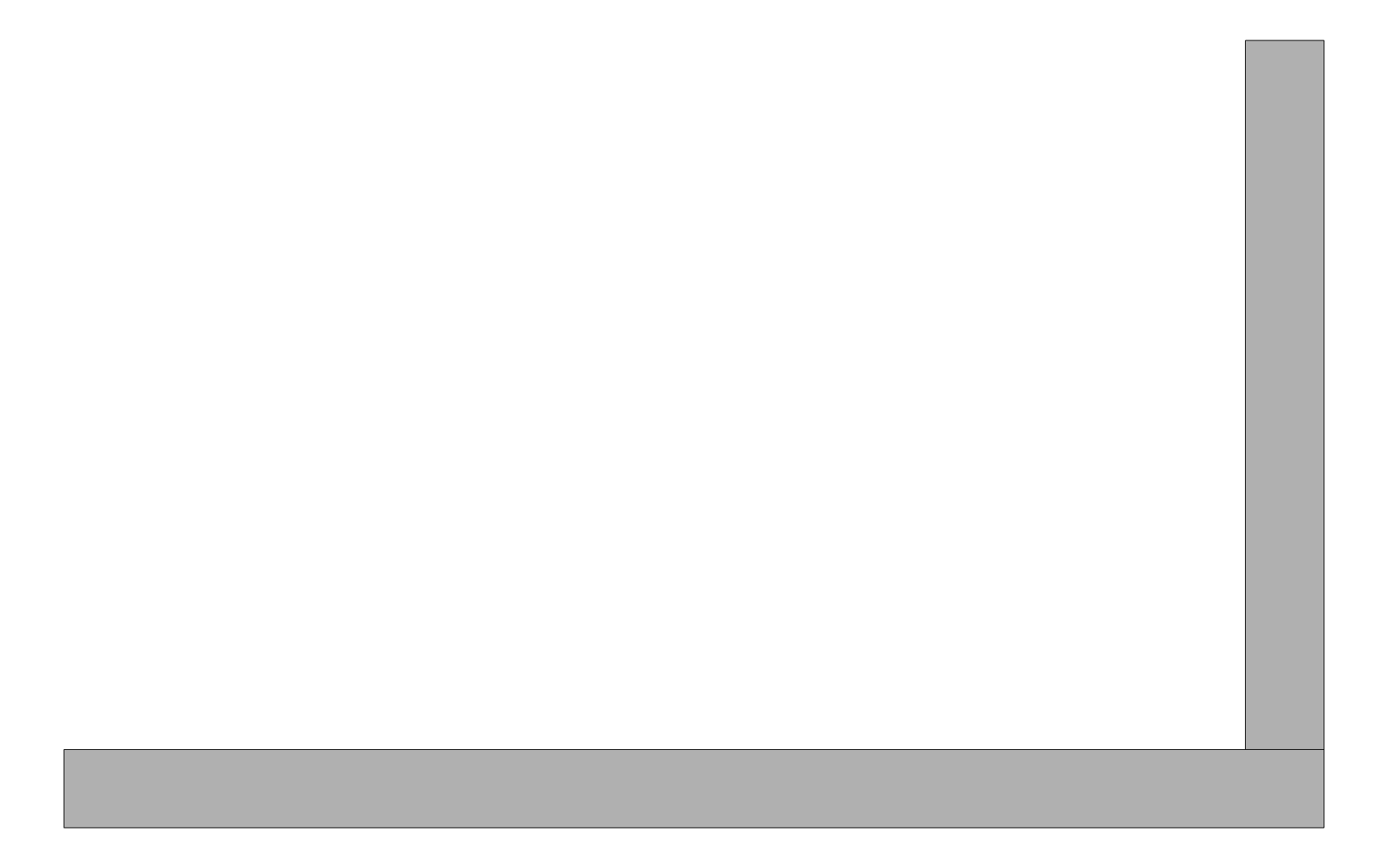

    Left Image of BULKHEAD Toilet Internal Type1 300x900mm

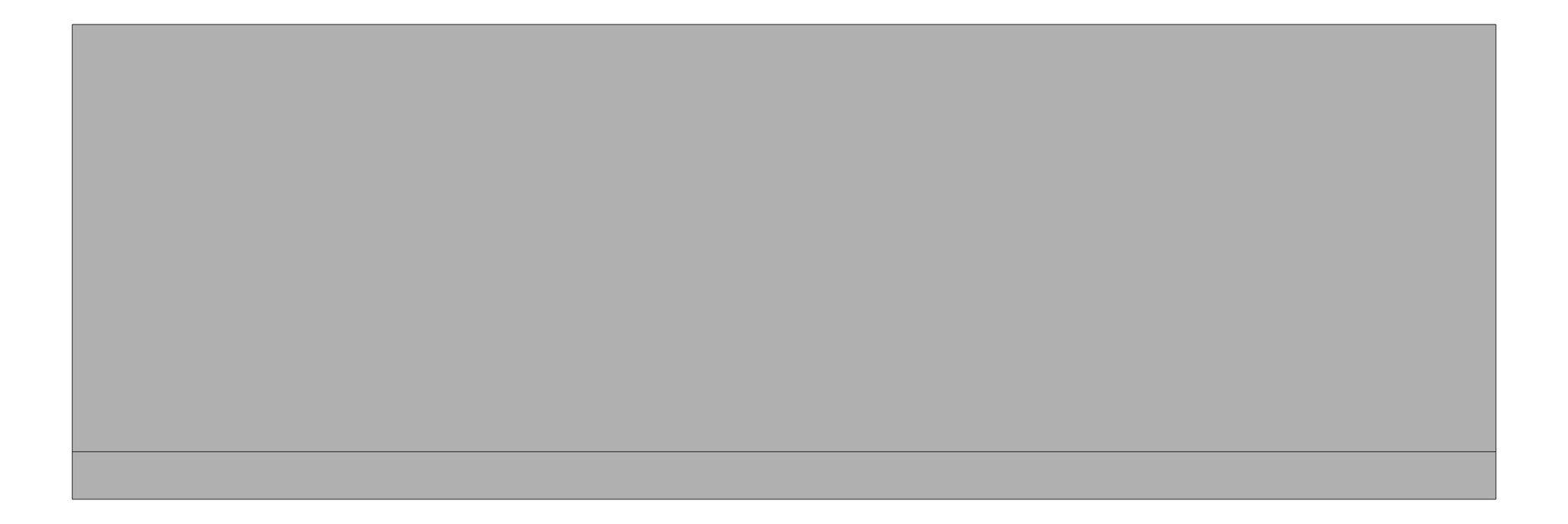

    Front Image of BULKHEAD Toilet Internal Type1 300x900mm

    BULKHEAD Toilet Internal Type1 300x900mm

    BULKHEAD Toilet Internal Type1 300x900mm



    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    0.432 sqm
    AreaXZ
    0.27 sqm
    HeightZ
    299 mm
    LengthX
    900 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    2760 mm
    PerimeterXZ
    2398 mm
    Volume
    0.13 cum
    WidthY
    480 mm
