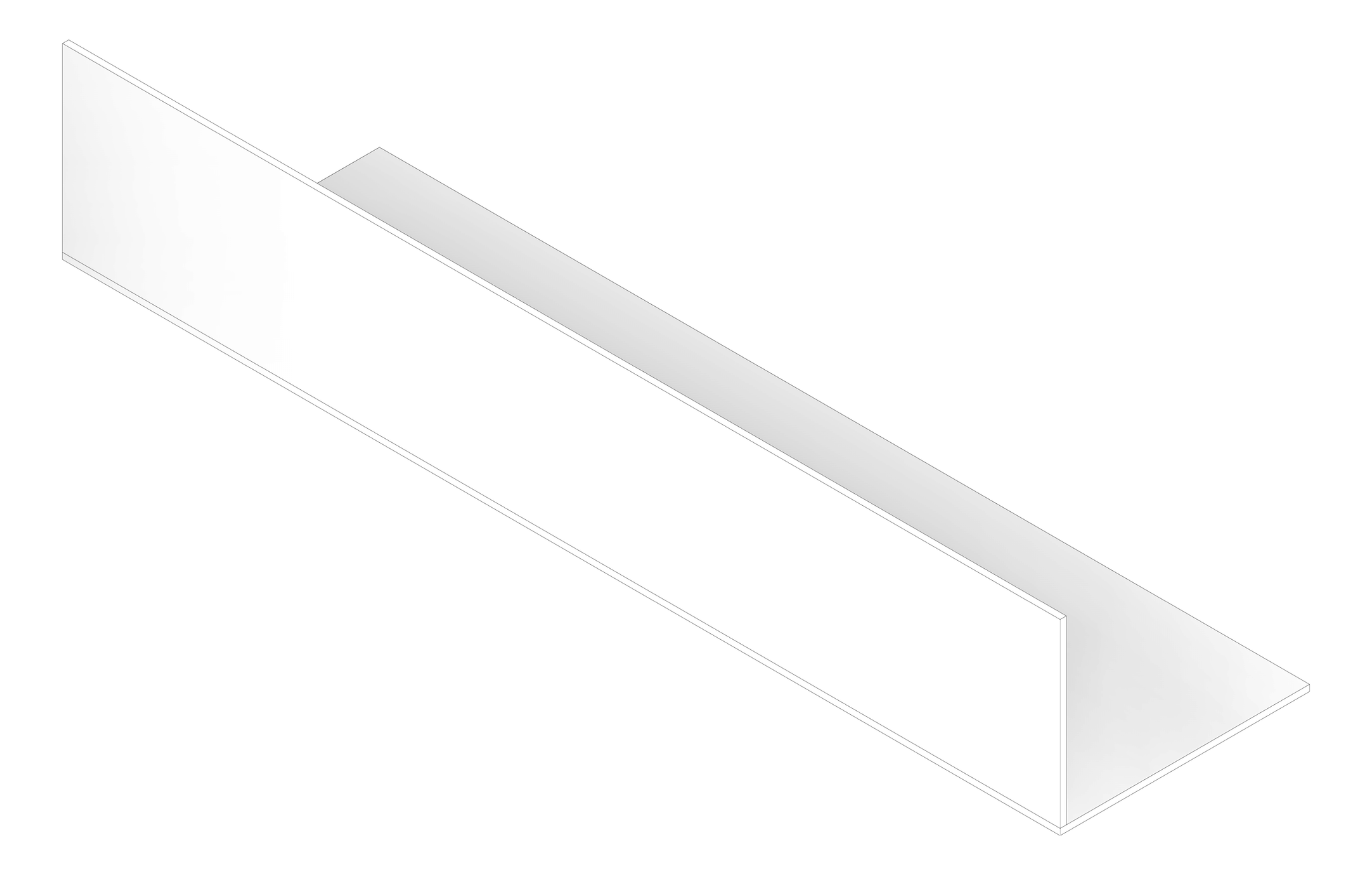

    3D Documentation Image of BULKHEAD Assembly Services Type1 900x4800mm

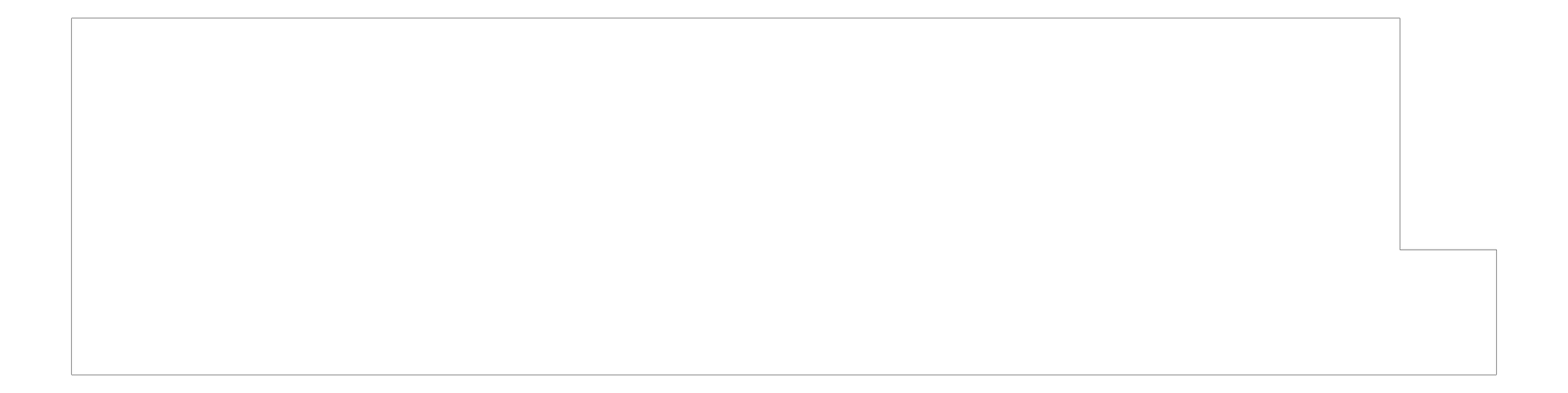

    Plan Image of BULKHEAD Assembly Services Type1 900x4800mm

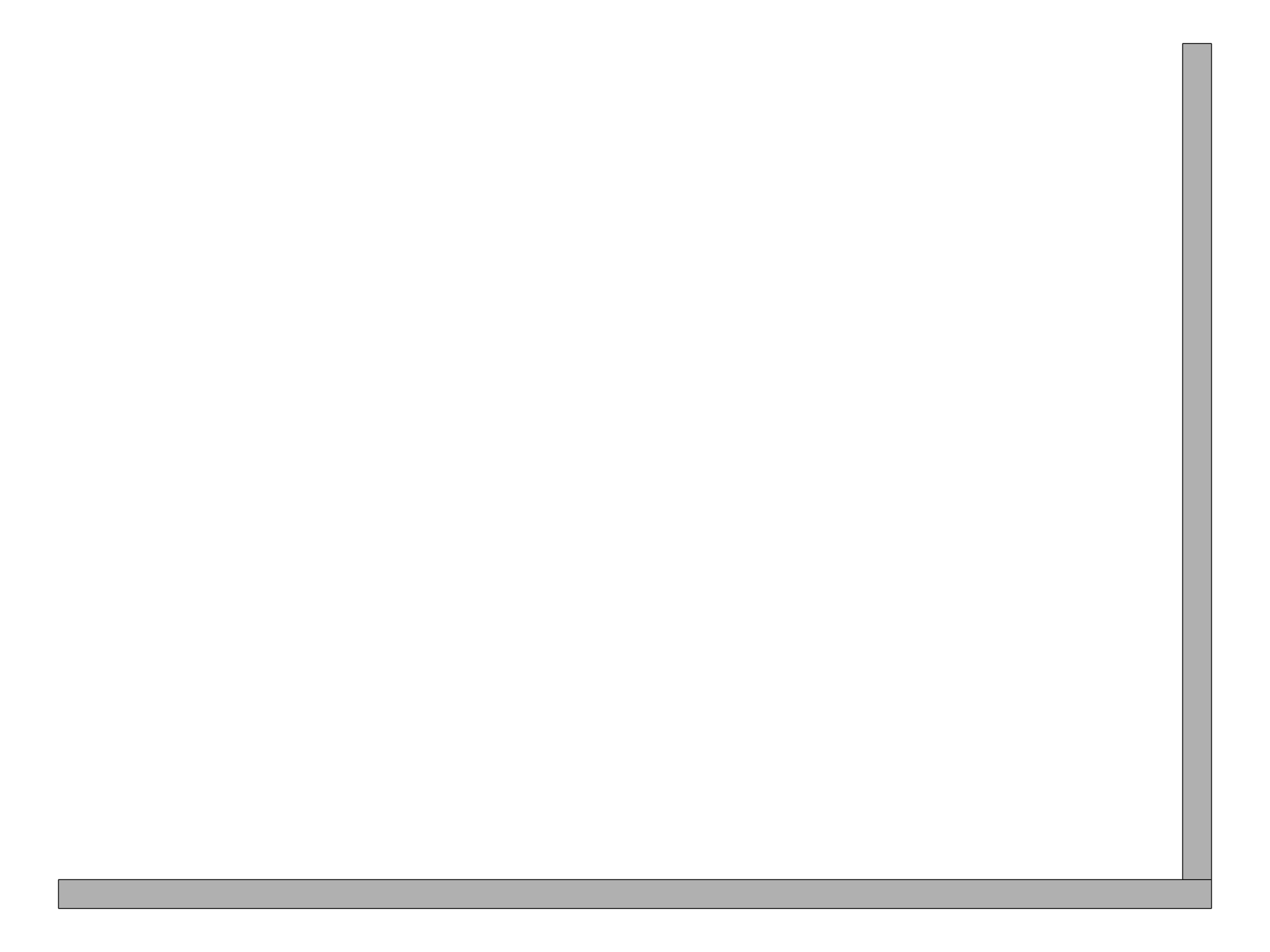

    Left Image of BULKHEAD Assembly Services Type1 900x4800mm

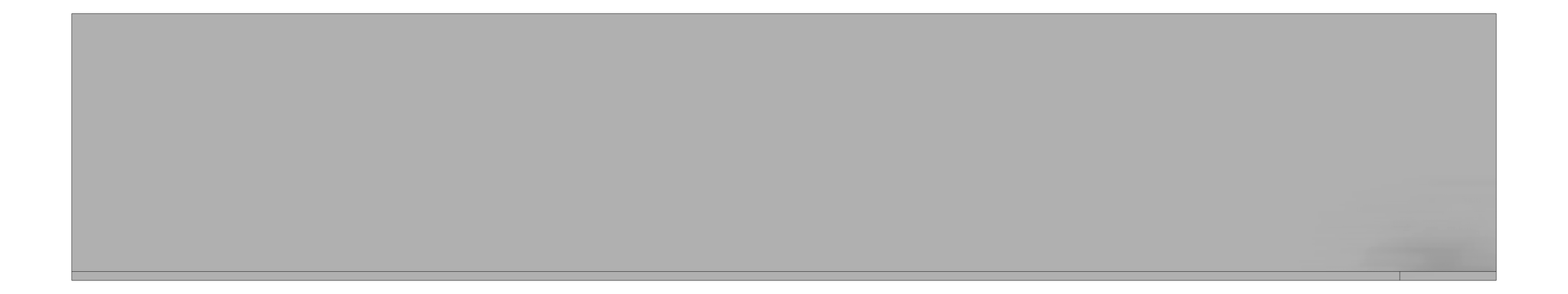

    Front Image of BULKHEAD Assembly Services Type1 900x4800mm

    BULKHEAD Assembly Services Type1 900x4800mm

    KOP-SINSW-ZZ-XX-DR-A-BLKB-001

    BULKHEAD Assembly Services Type1 900x4800mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    5.76 sqm
    AreaXZ
    4.32 sqm
    HeightZ
    900 mm
    LengthX
    4800 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    12000 mm
    PerimeterXZ
    11400 mm
    Volume
    5.184 cum
    WidthY
    1200 mm
    Types
