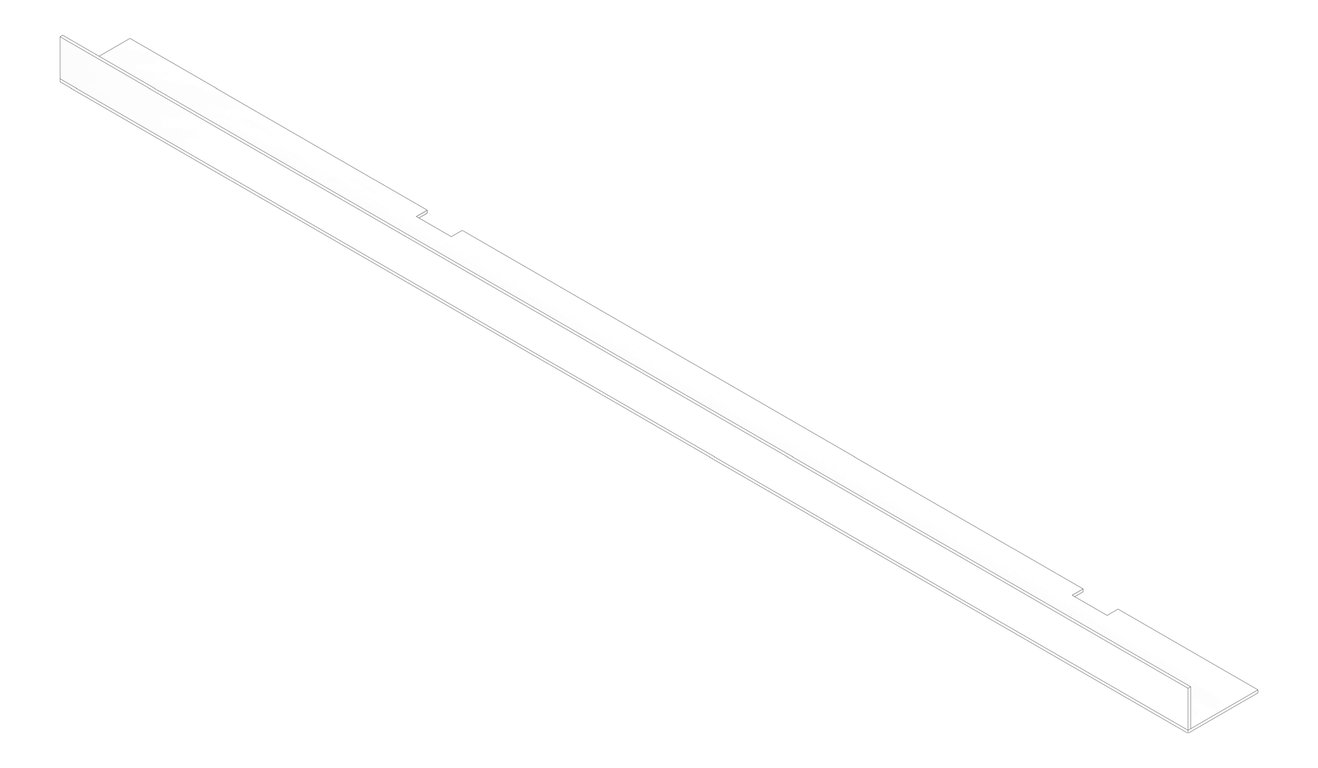

    3D Documentation Image of BULKHEAD Assembly Internal Type5 446x12900mm
    Plan Image of BULKHEAD Assembly Internal Type5 446x12900mm

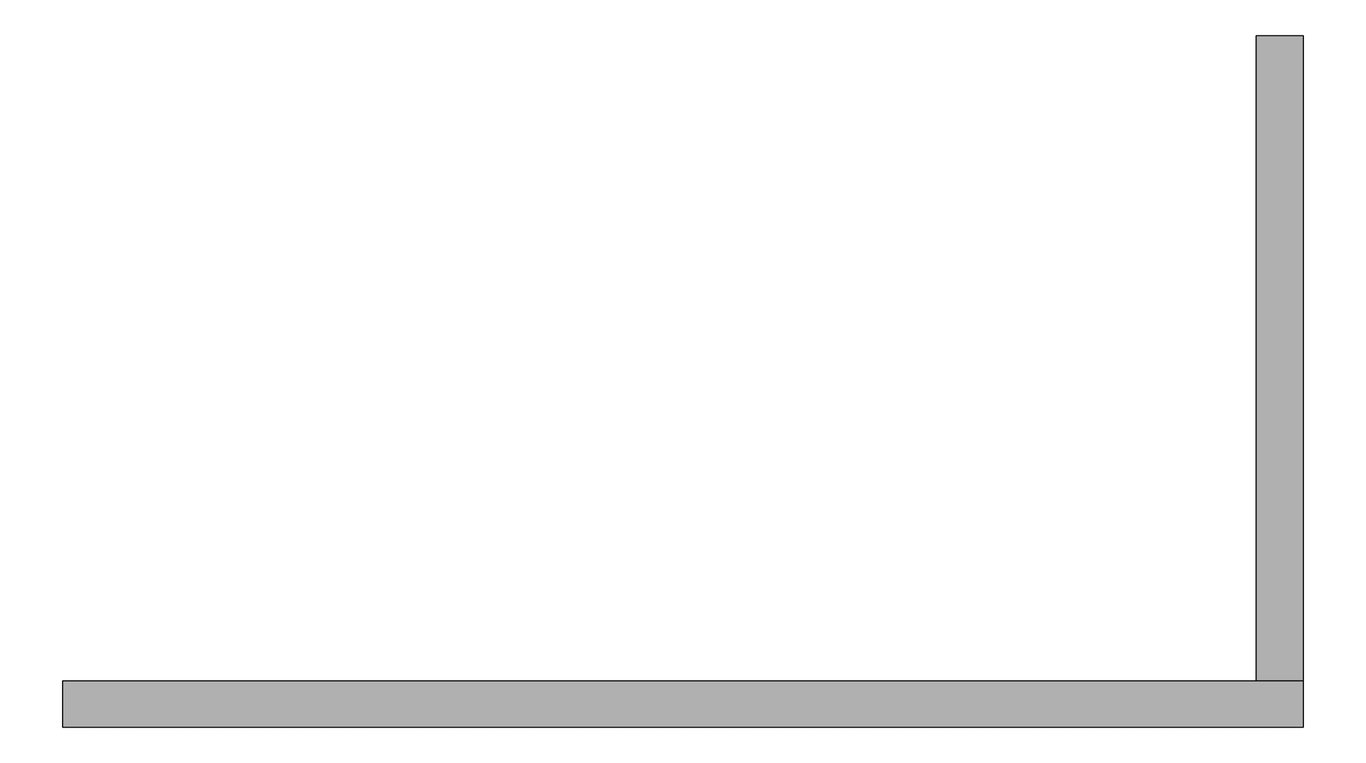

    Left Image of BULKHEAD Assembly Internal Type5 446x12900mm
    Front Image of BULKHEAD Assembly Internal Type5 446x12900mm

    BULKHEAD Assembly Internal Type5 446x12900mm

    KOP-SINSW-ZZ-XX-DR-A-BLKA-005

    BULKHEAD Assembly Internal Type5 446x12900mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    10.32 sqm
    AreaXZ
    5.753 sqm
    HeightZ
    446 mm
    LengthX
    12899 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    27398 mm
    PerimeterXZ
    26690 mm
    Volume
    4.603 cum
    WidthY
    800 mm
