Image of BULKHEAD Assembly Internal Type4 446x7500mm
    3D Presentation Image of BULKHEAD Assembly Internal Type4 446x7500mm
    3D Shaded Image of BULKHEAD Assembly Internal Type4 446x7500mm

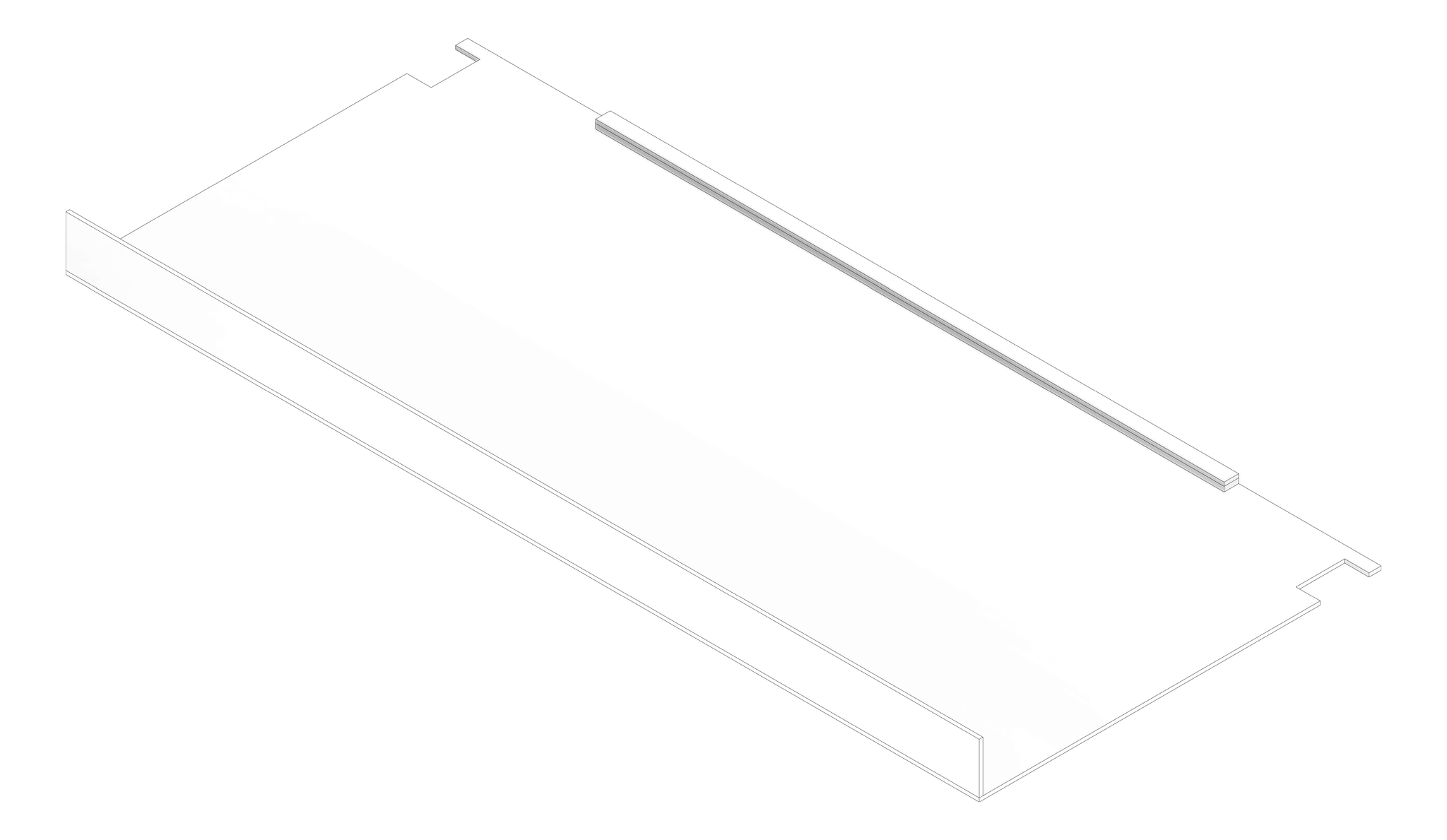

    3D Documentation Image of BULKHEAD Assembly Internal Type4 446x7500mm

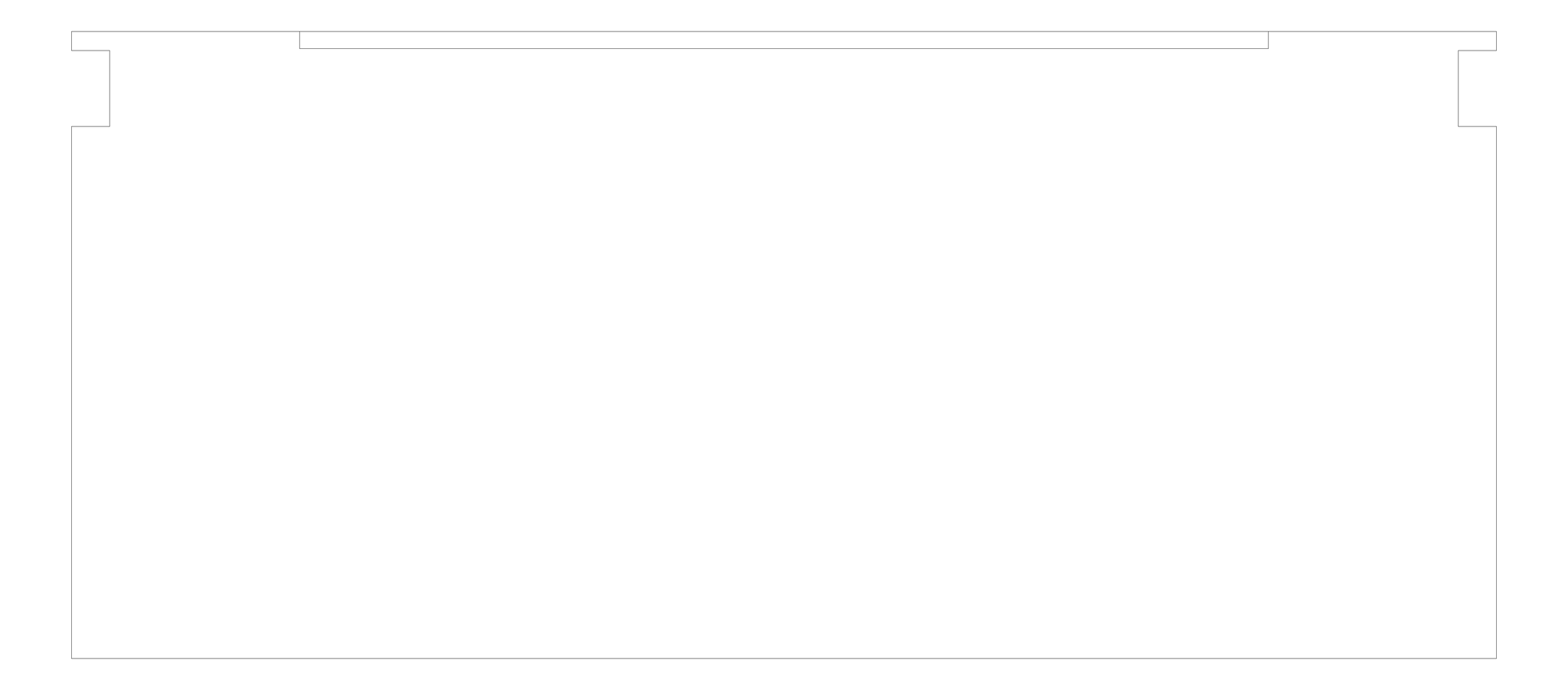

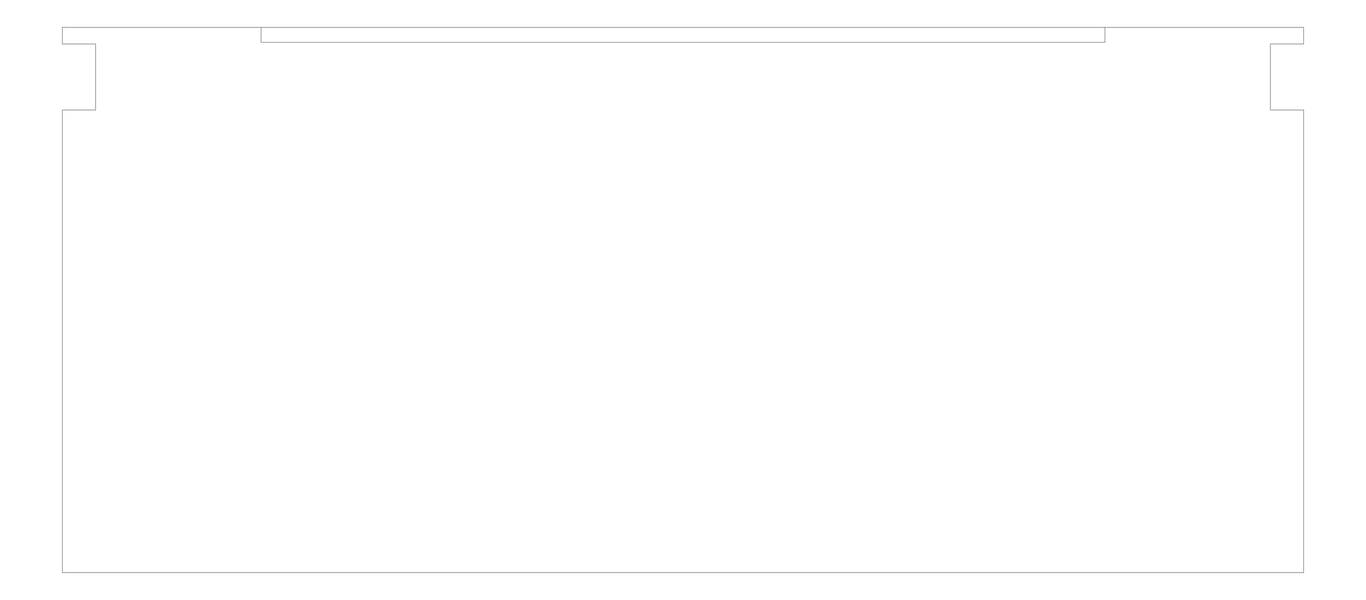

    Plan Image of BULKHEAD Assembly Internal Type4 446x7500mm

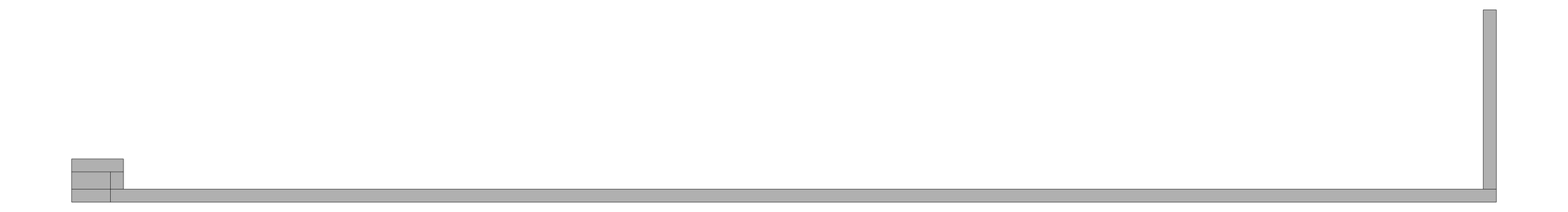

    Left Image of BULKHEAD Assembly Internal Type4 446x7500mm

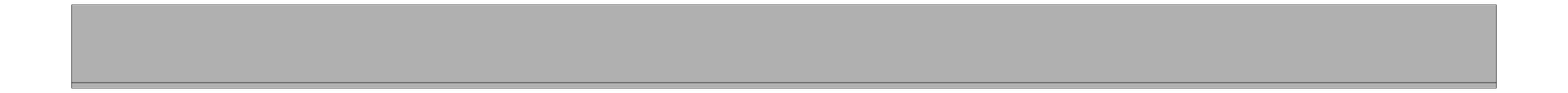

    Front Image of BULKHEAD Assembly Internal Type4 446x7500mm

    BULKHEAD Assembly Internal Type4 446x7500mm

    KOP-SINSW-ZZ-XX-DR-A-BLKA-004

    BULKHEAD Assembly Internal Type4 446x7500mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    24.75 sqm
    AreaXZ
    3.345 sqm
    HeightZ
    446 mm
    LengthX
    7500 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    21600 mm
    PerimeterXZ
    15892 mm
    Volume
    11.039 cum
    WidthY
    3300 mm
