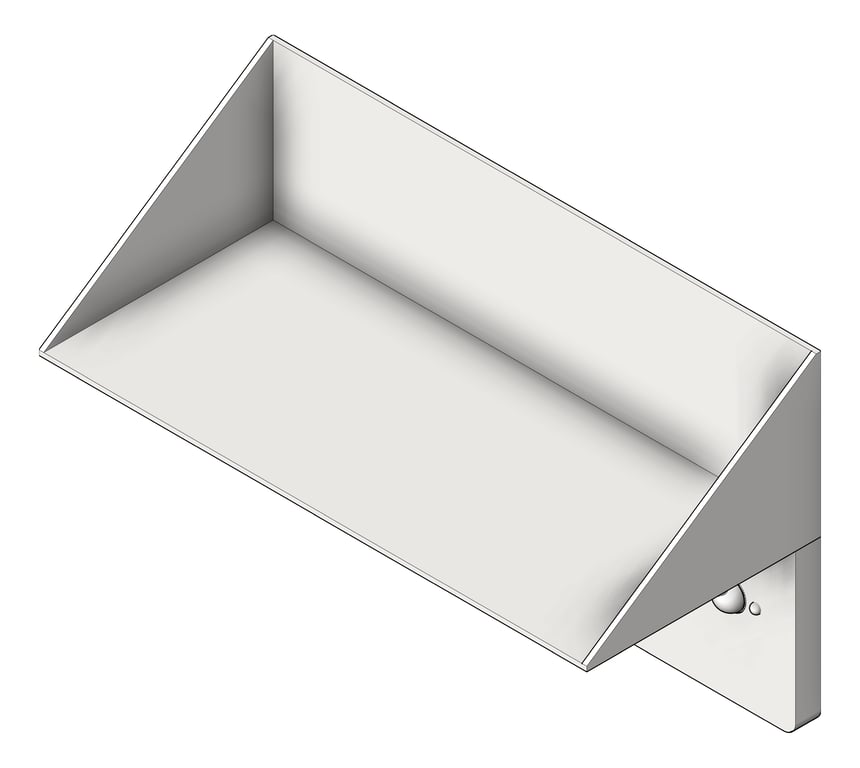

3D Shaded Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

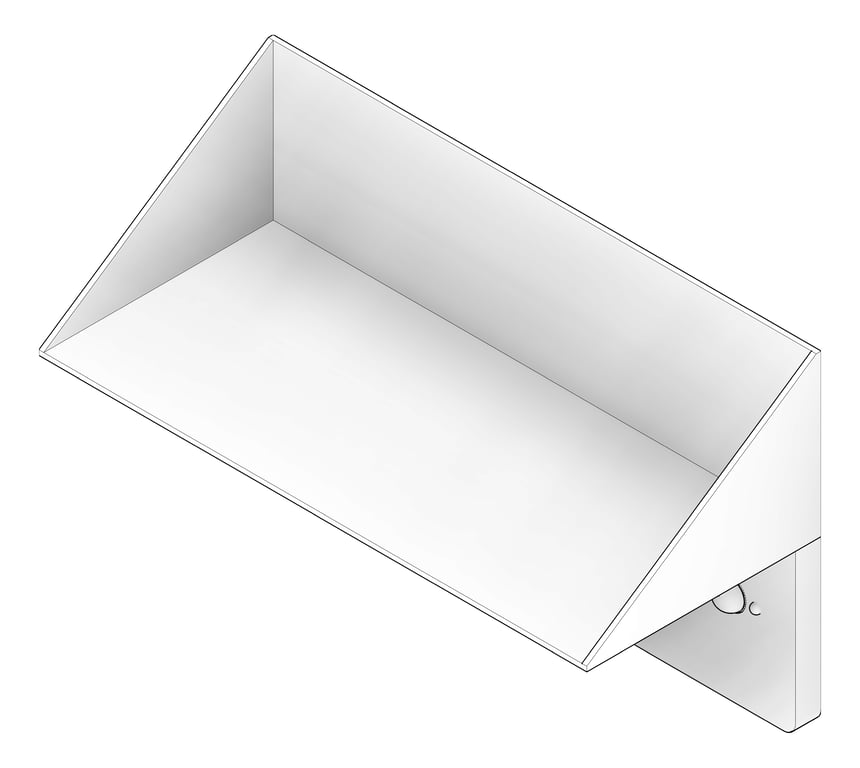

3D Documentation Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip
Plan Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

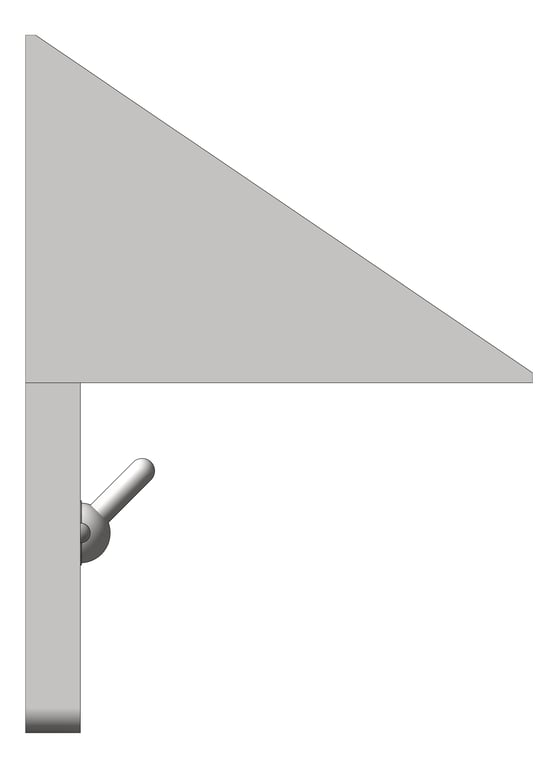

Left Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

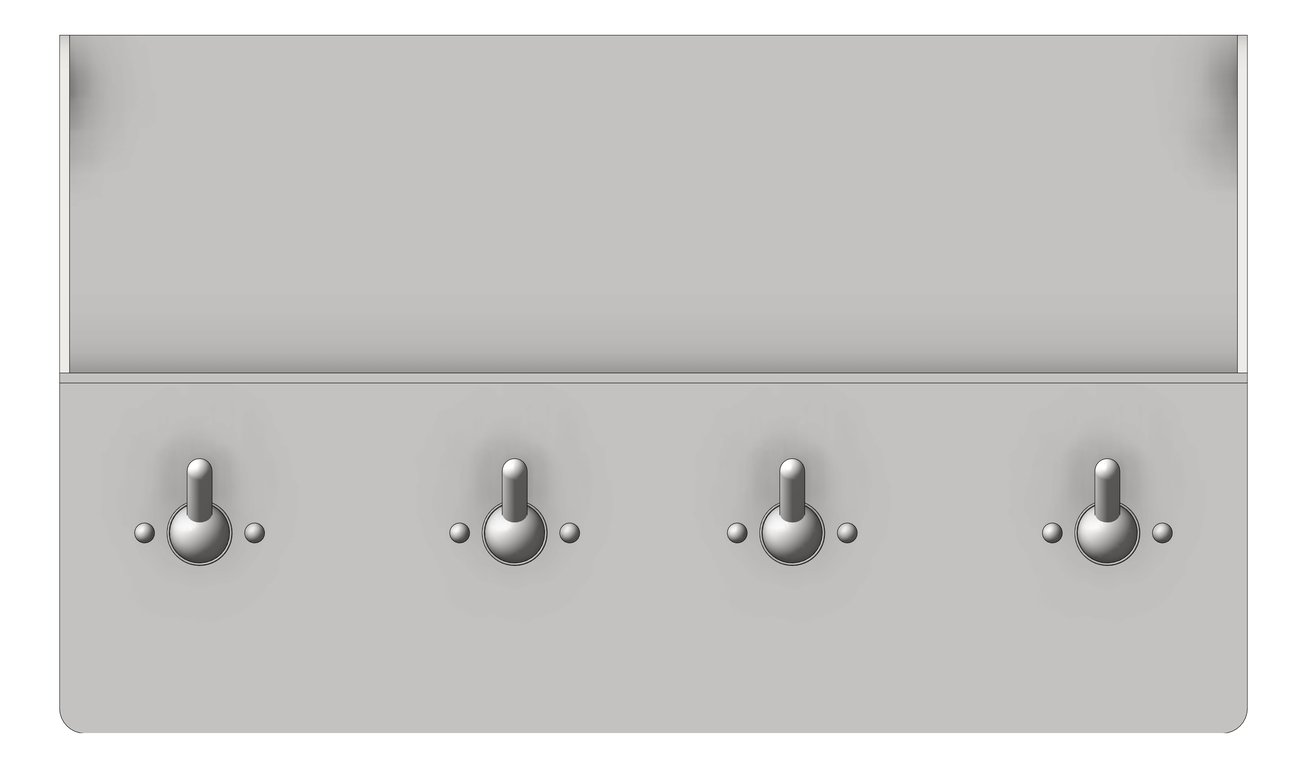

Front Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

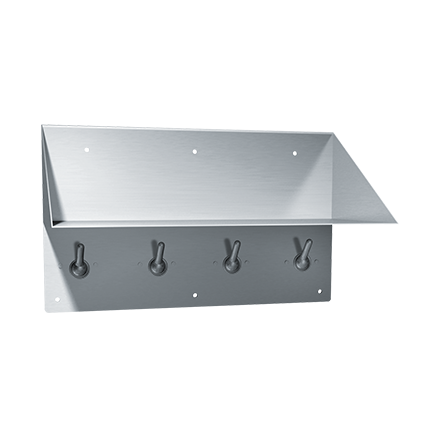

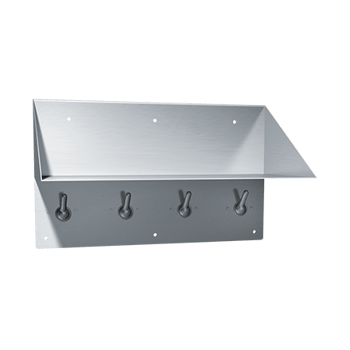

10-128-1_ASIJDMacDonald_Security_Book_Shelf_Clothes_Hook_Front_Mount_Web.png Image of BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

BookShelf SurfaceMount ASIJDMacDonald Security ClothesHookStrip

Fabricated of type 304 stainless steel alloy 18-8. Back plate and bookshelf are 14 gauge. Clothes hooks are solid bar 10mm diameter of one-piece construction with 25MM diameter swivel trip-ball. Safety hooks snap down when load exceeds 16kg limit. Trip-ball socket housing prevents hook from being set in vertical-up position. The unit is provided with... Read More

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
check_circle_outline
Code Compliant Defaults
CreatedBy
IGS BIM Solutions
Manufacturer
ASI JD MacDonald
Depth
203 mm
Height
279 mm
Width
475 mm
Model
10-128-1
ModifiedIssue
20221201.00
