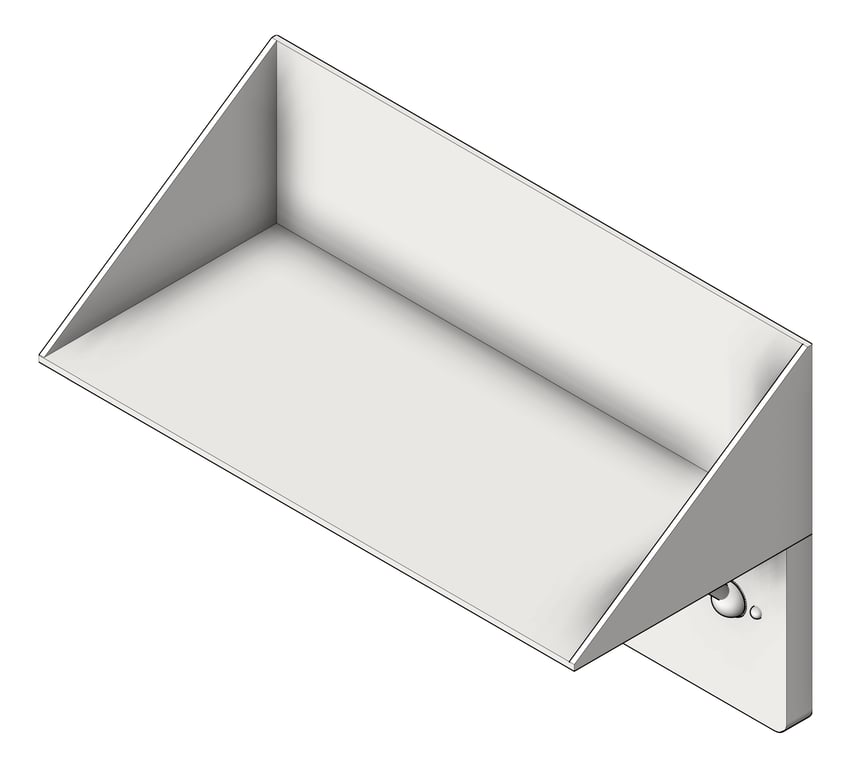

3D Shaded Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall

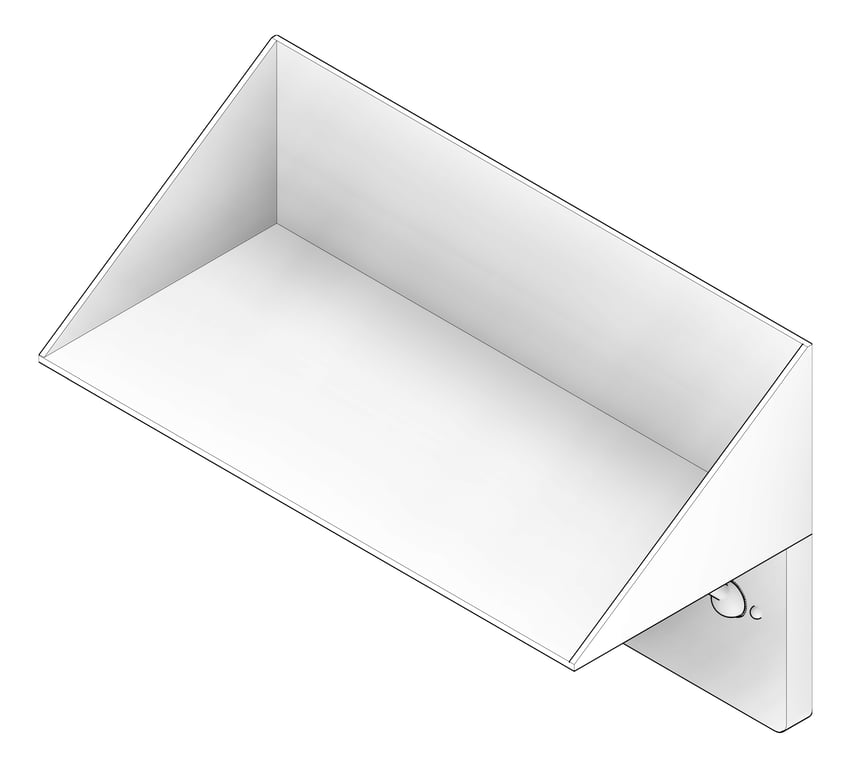

3D Documentation Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall
Plan Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall

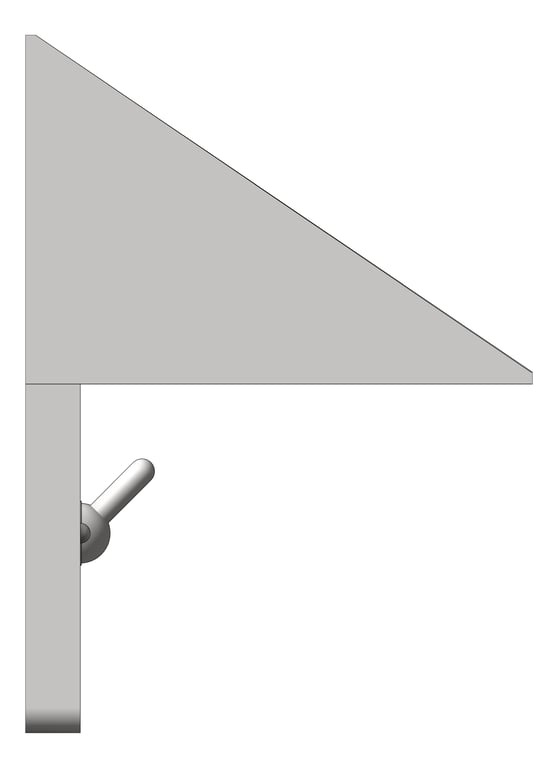

Left Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall

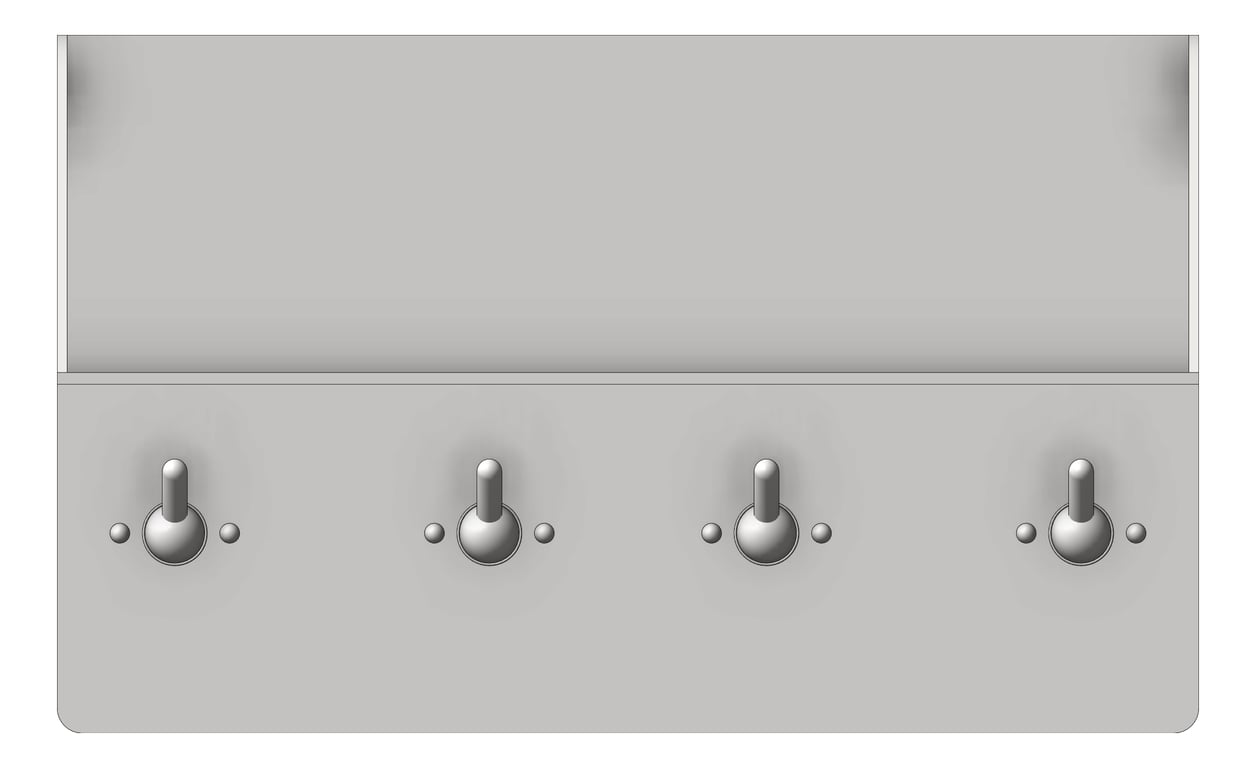

Front Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall
128-1_ASI-BookShelfClothesHook-FrontMounting-SecurityAccessories@2x.png Image of Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall

Bookshelf SurfaceMount ASI Security ClothesHookStrip TripBall

Fabricated of type 304 stainless steel alloy 18-8. Back plate and bookshelf are 14 gauge. Clothes hooks are solid bar 3/8″ diameter (Ø10) of one-piece construction with 1″ diameter (Ø25) swivel trip-ball. Safety hooks snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing prevents hook from being set in vertical-up position.

The unit is provided with six (6) clear mounting holes that shall accept (supplied) 1/4″-20 or (M6) stainless steel pin-Torx® button head machine screws.

folder_zip
Bulk Download Options
remove_red_eye
Virtual Showroom Available
diamond
Native Geometry
Width
18"
Depth
8"
Height
11"
Model
128-1
