Image of BALUSTRADE External Circulation Type2A 7500mm
    3D Presentation Image of BALUSTRADE External Circulation Type2A 7500mm

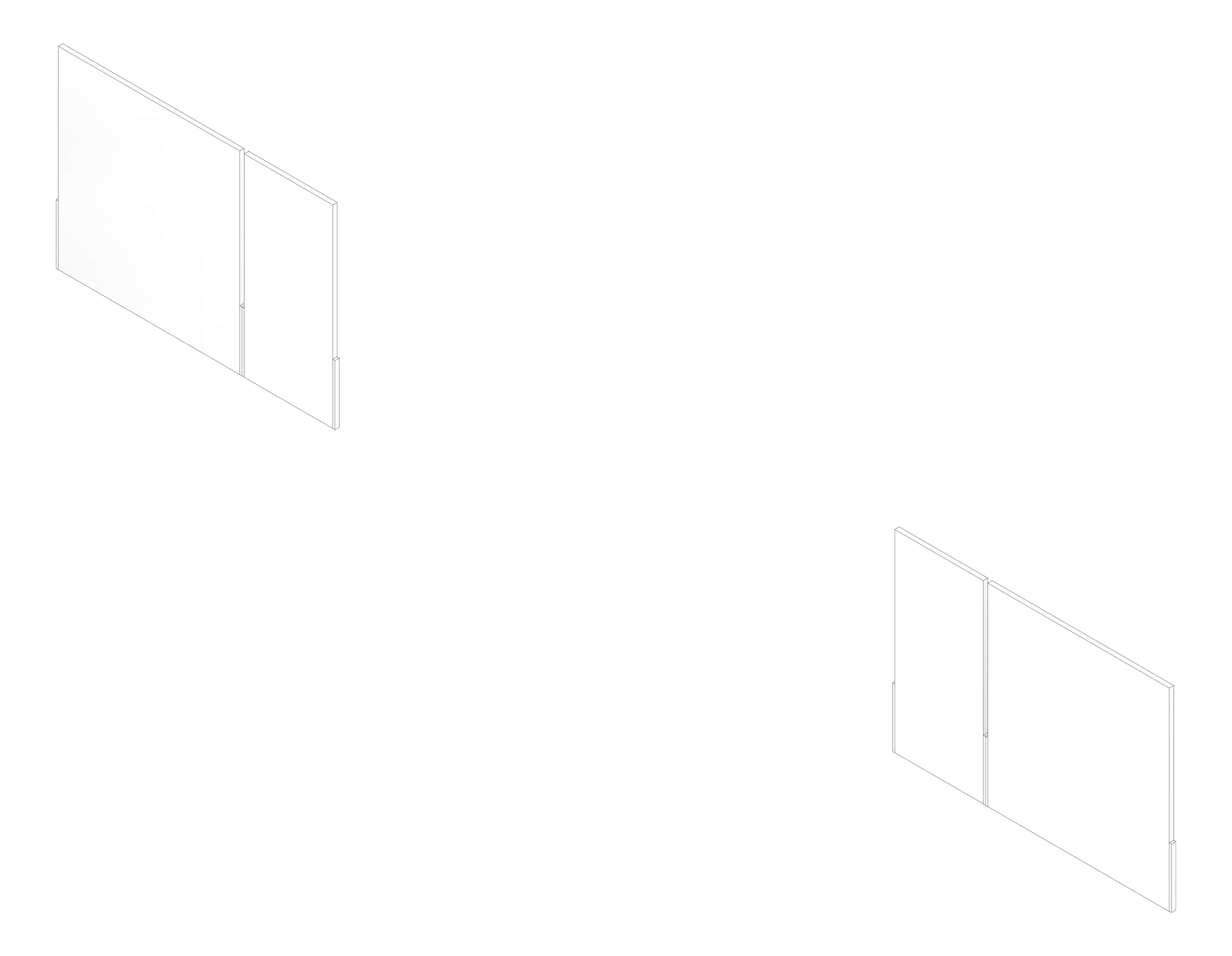

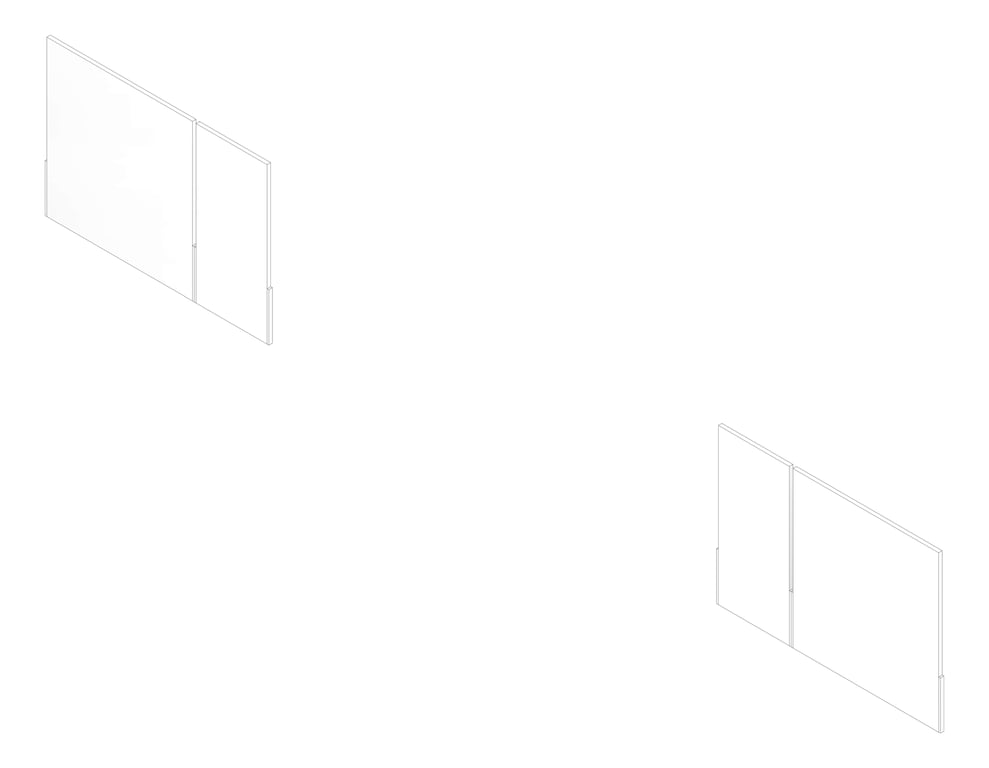

    3D Documentation Image of BALUSTRADE External Circulation Type2A 7500mm
    Plan Image of BALUSTRADE External Circulation Type2A 7500mm
    Left Image of BALUSTRADE External Circulation Type2A 7500mm

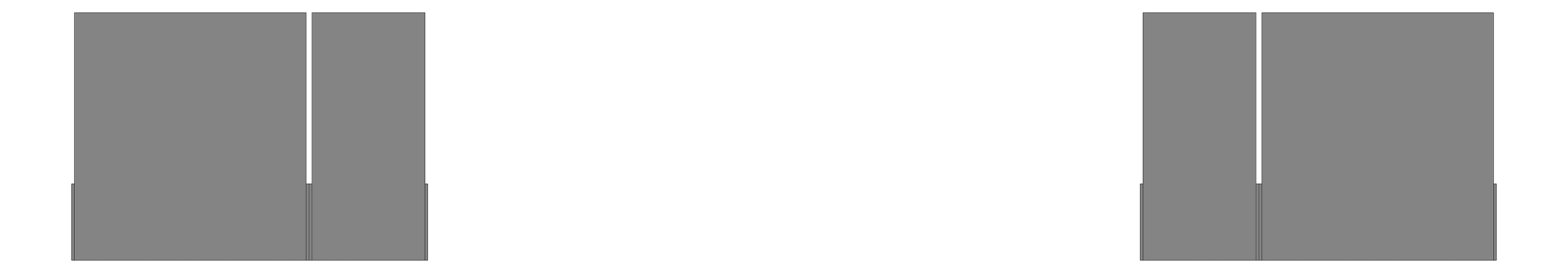

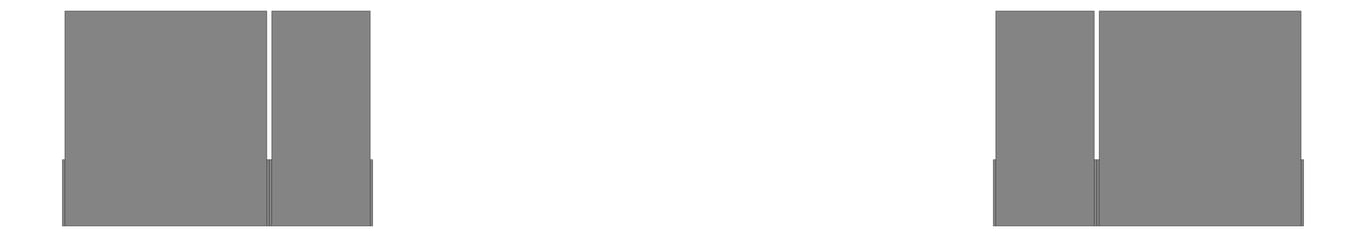

    Front Image of BALUSTRADE External Circulation Type2A 7500mm

    BALUSTRADE External Circulation Type2A 7500mm

    KOP-SINSW-ZZ-XX-DR-A-BALA-002

    BALUSTRADE External Circulation Type2A 7500mm


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    0.225 sqm
    AreaXZ
    9.75 sqm
    HeightZ
    1300 mm
    LengthX
    7500 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    15060 mm
    PerimeterXZ
    17600 mm
    Volume
    0.293 cum
    WidthY
    30 mm
    Types
