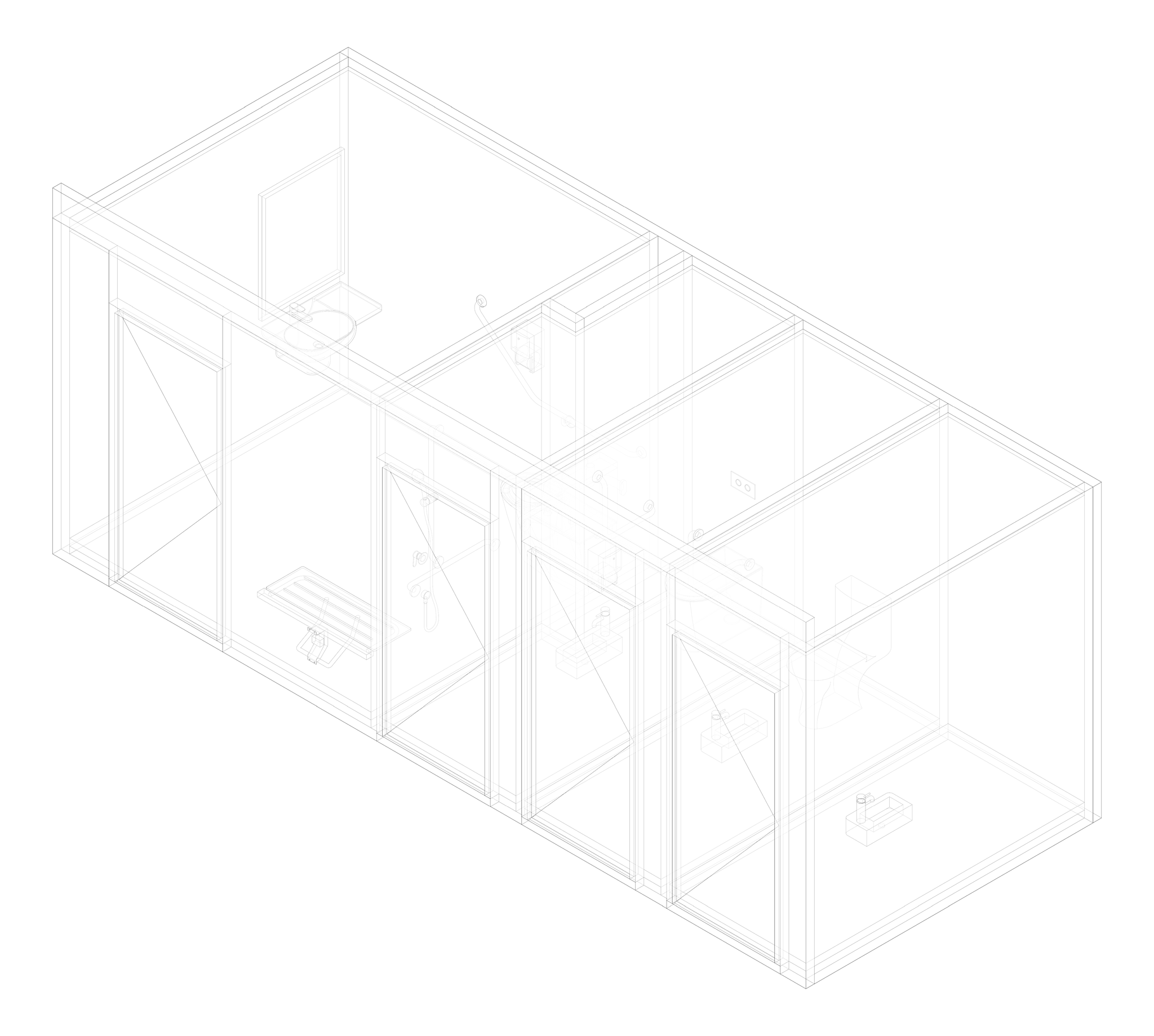

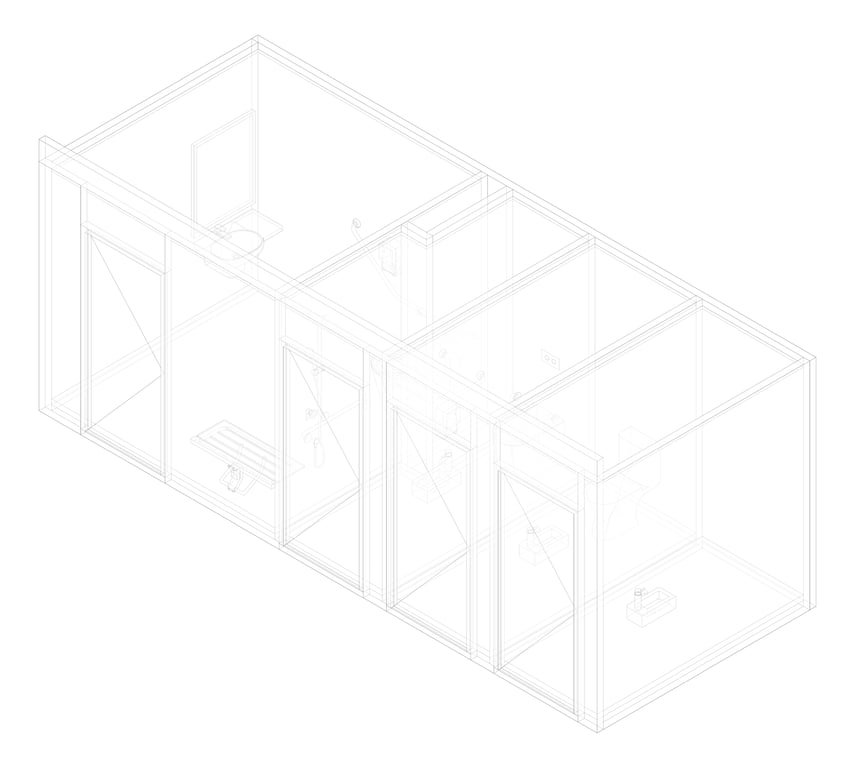

    3D Documentation Image of AMENITIES Assembly Internal Type5 4Cubicle

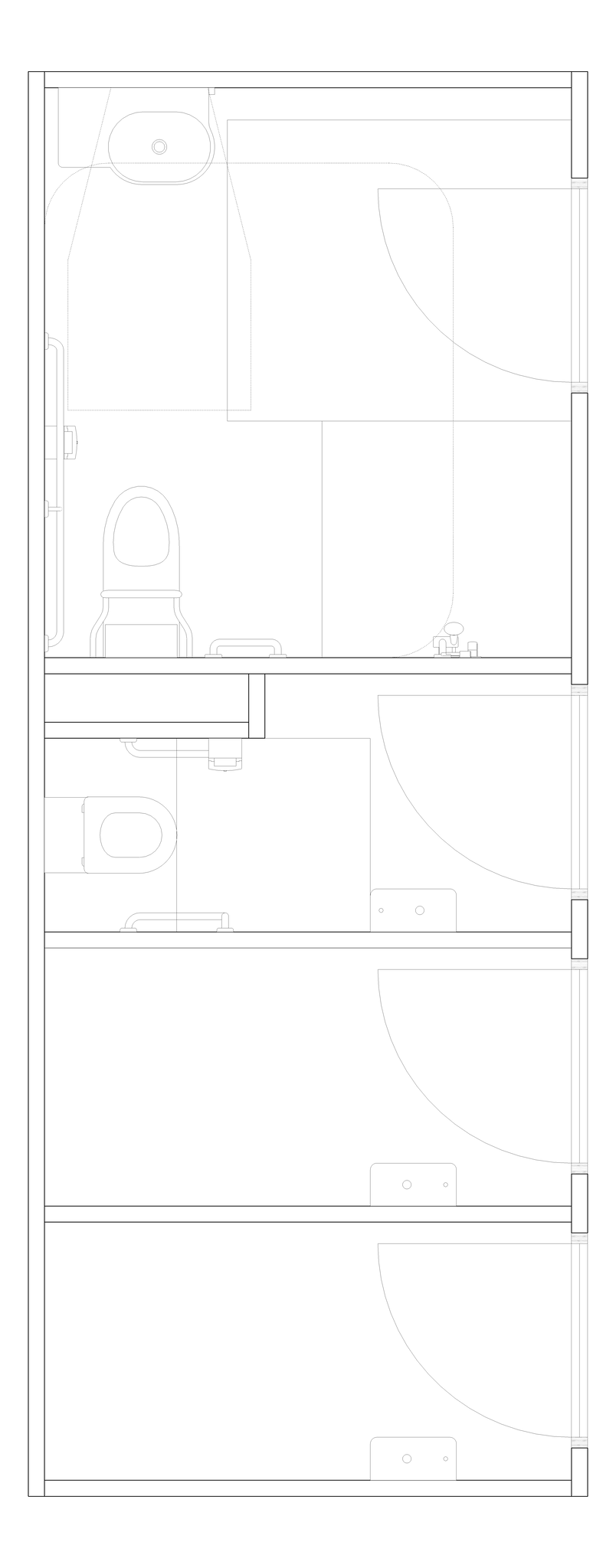

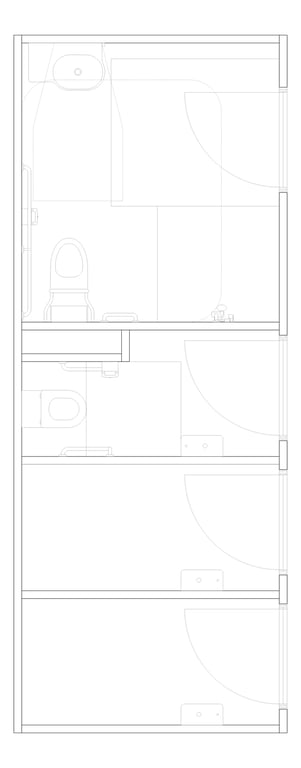

    Plan Image of AMENITIES Assembly Internal Type5 4Cubicle

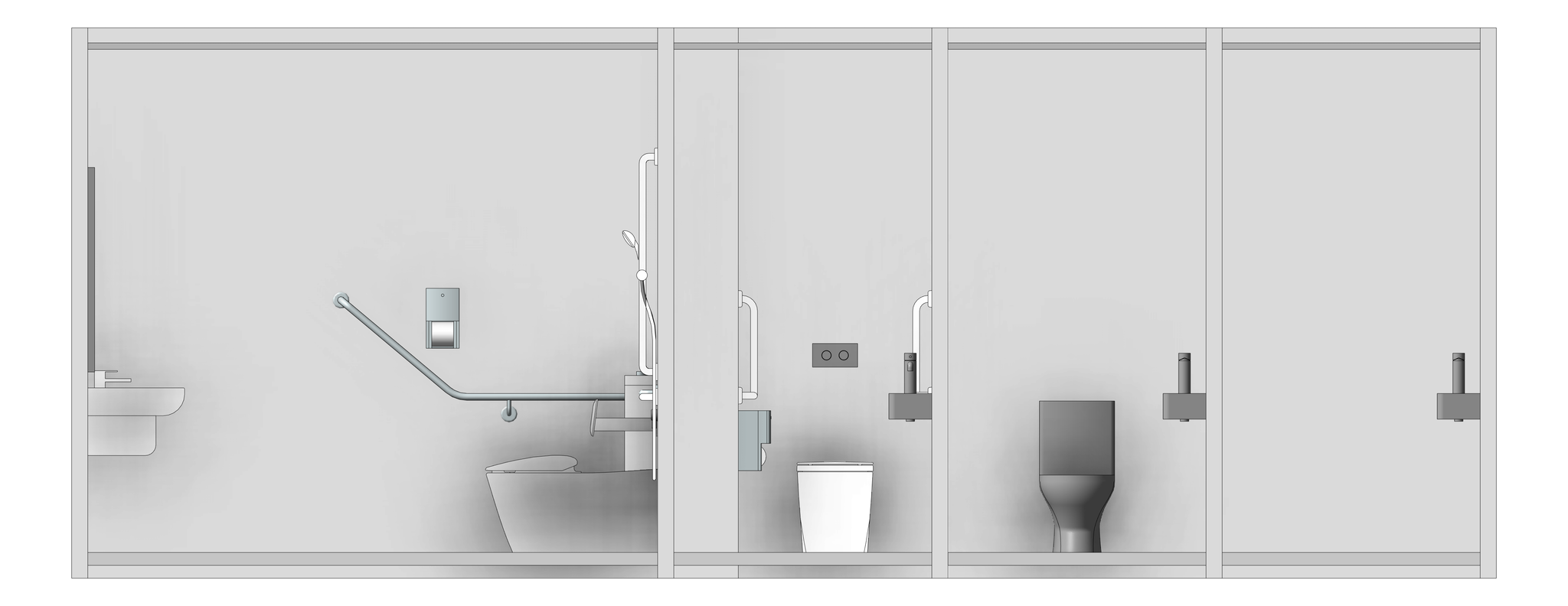

    Left Image of AMENITIES Assembly Internal Type5 4Cubicle

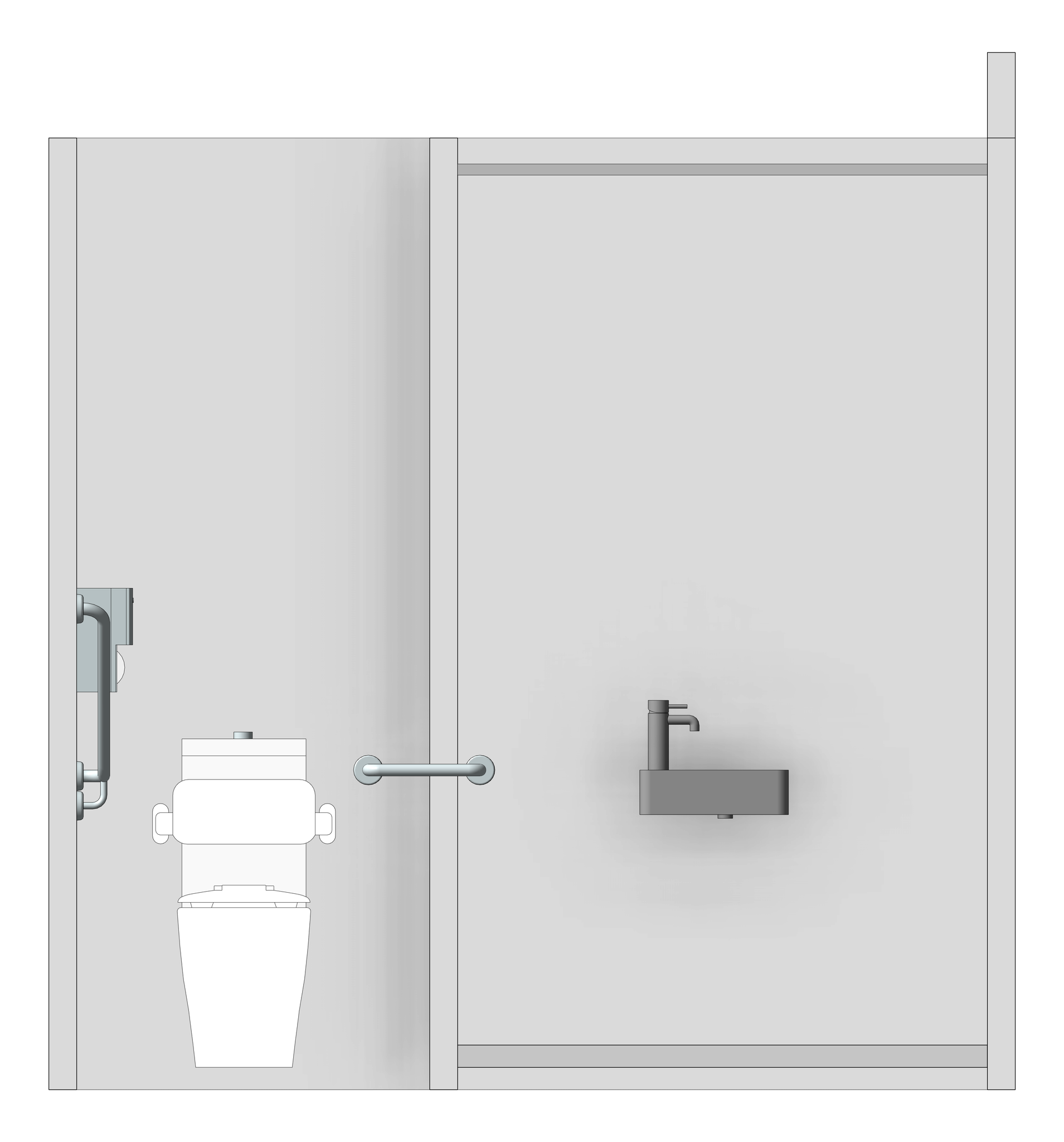

    Front Image of AMENITIES Assembly Internal Type5 4Cubicle

    AMENITIES Assembly Internal Type5 4Cubicle

    KOP-SINSW-ZZ-XX-DR-A-ASIA-005

    AMENITIES Assembly Internal Type5 4Cubicle


    folder_zipLink to Technical Data Sheet

    For access to the Kit of Parts models, please Contact Us

    fast_forward
    Advanced Materials
    Created By IGS BIM Solutions
    folder_zip
    Bulk Download Options
    AreaXY
    12.948 sqm
    AreaXZ
    7.254 sqm
    HeightZ
    2790 mm
    LengthX
    2600 mm
    ModifiedIssue
    V01.01
    PerimeterXY
    15160 mm
    PerimeterXZ
    10780 mm
    Volume
    36.125 cum
    WidthY
    4980 mm
    Types
